Ana Özellikler
A new concept in banding machines that showcases the product while still offering information and secure packaging.
Product strap banding label with printing on demand for a new solution

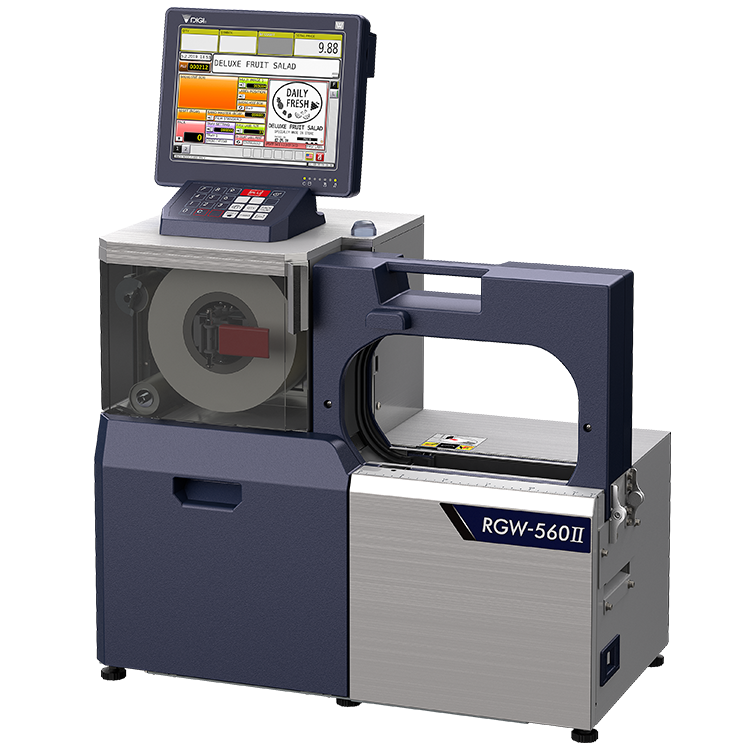

DIGI's unique solution, RGW-560II showcases the product by sophisticated graphic design banding labels. It provides printing on demand with flexible images and information pre-programmed in the machine.
Adding value to customers’ products with a sleek, flexible, graphic banding label

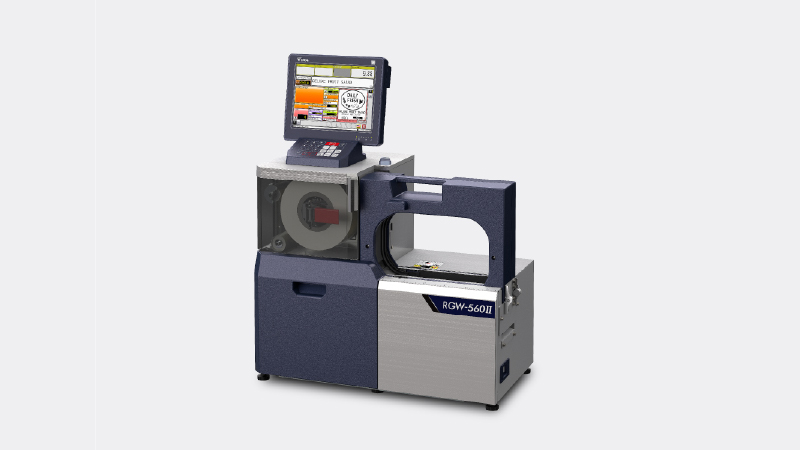

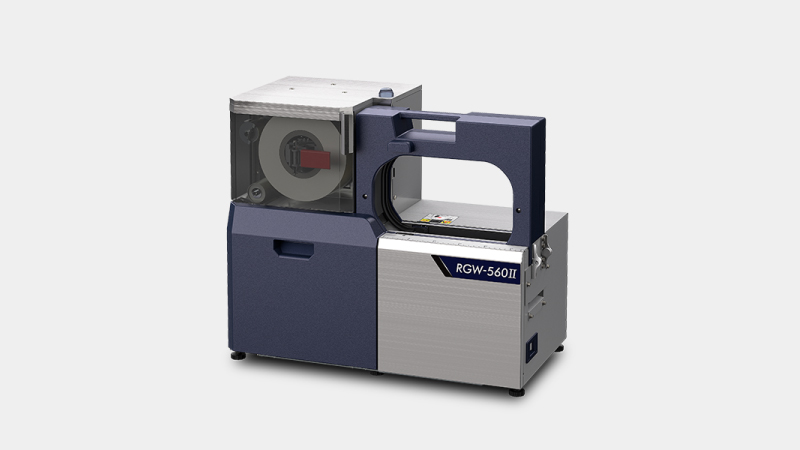

The RGW-560II is a new concept in banding machines that showcases the product while still offering information and secure packaging. The flexible product strap eliminates the need for distracting labels allowing for a better package design appealing to customers.
Impact product presentation

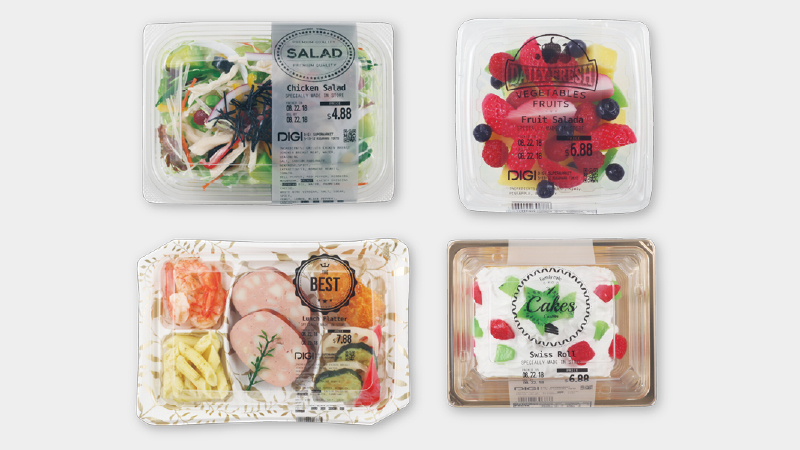

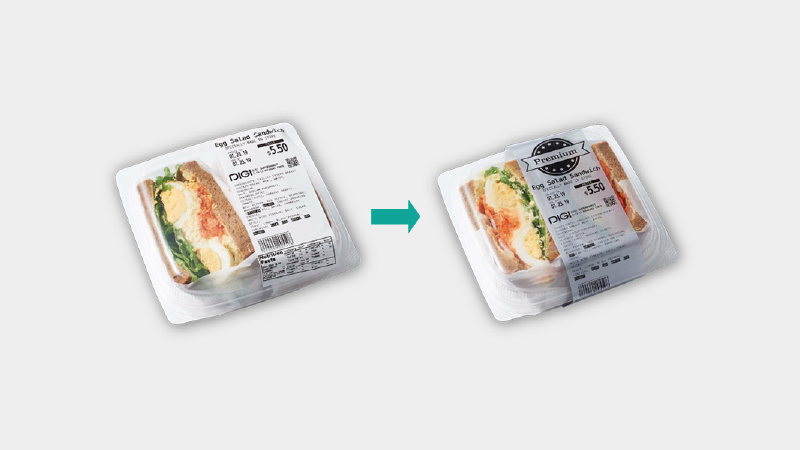

Normal white labels increasingly obstruct the product view and degrade the appearance. The banding label’s sophisticated graphic design printing allows customers a better impression of the product.

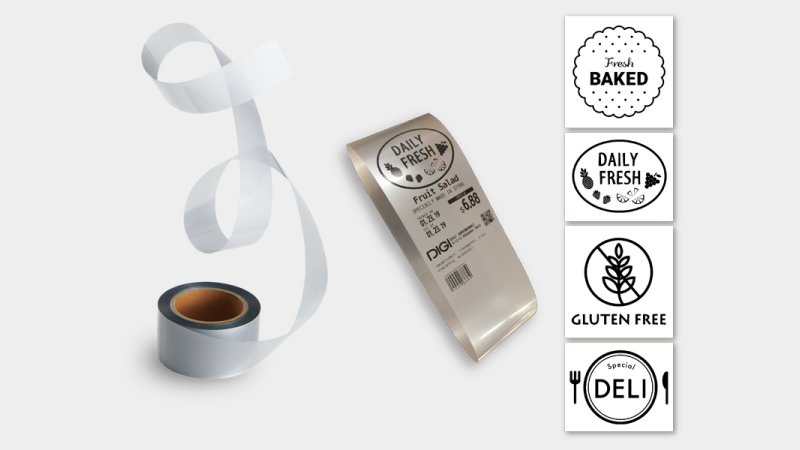

Flexible design printing
The RGW-560II enables to the flexible design to print on demand by thermal transfer. The banding label has space to fit a wide variety of advertising images or multiple lines of information.
Secure packaging

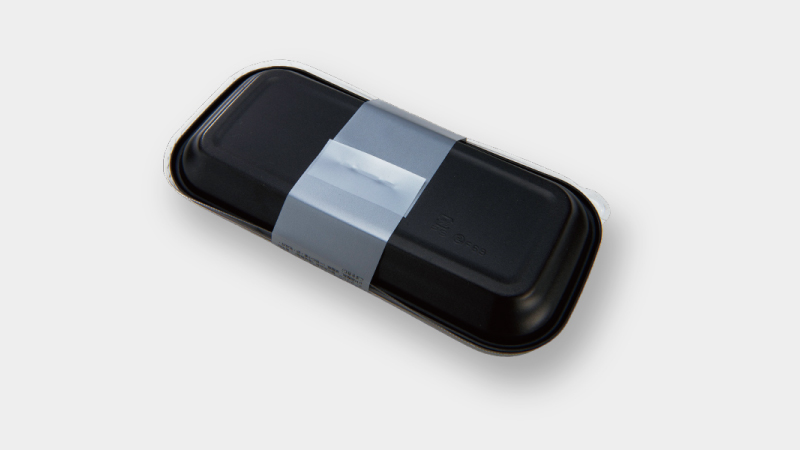

The banding label uses a heat seal to safely secure the package, avoiding any chance the lid would open unexpectedly. No need to tape manually.
Utilize DIGI’s 5600 series console
The RGW-560II uses the DIGI 5600 series console to enable communication with other backroom wrapping machines or printers. Easy and familiar operation helps improve efficiency.

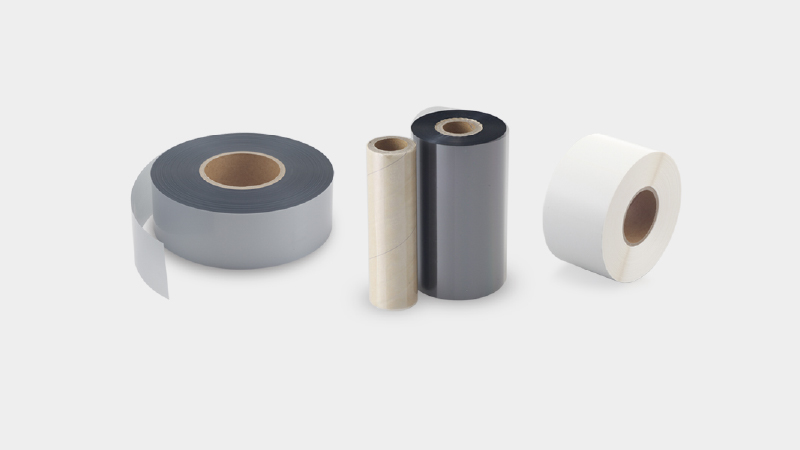

Consumables
The RGW-560II uses OPP film, ink-ribbon, and additional labels as consumables, which are easily sourced locally. Additional labels are only used for the transparent banding label so the barcode can be scanned properly.
Teknik Özellikler

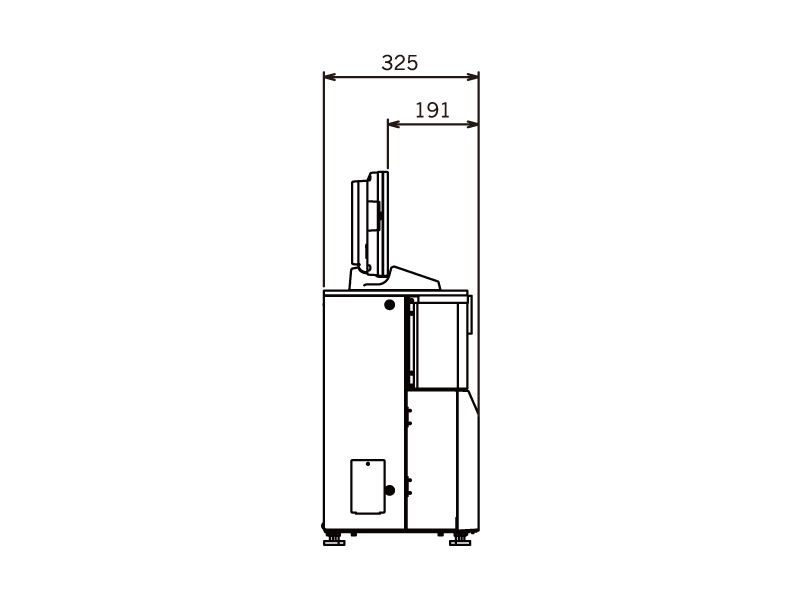

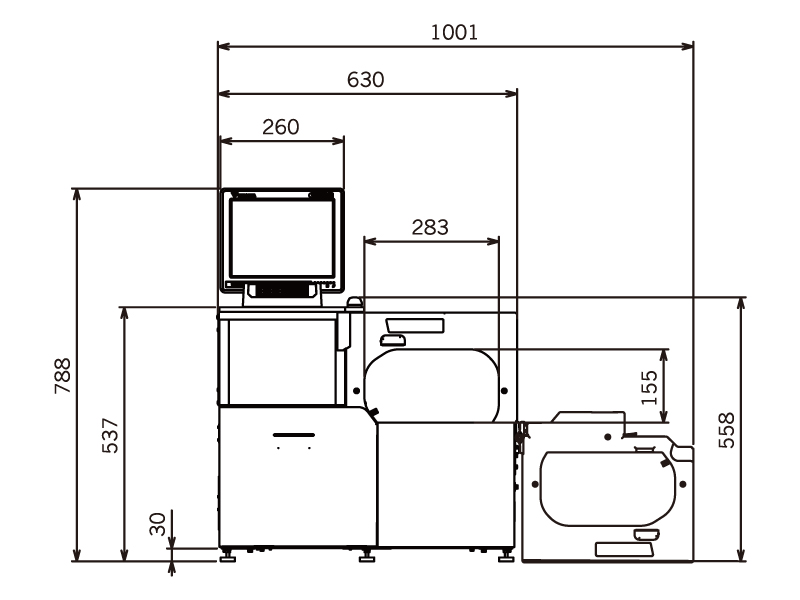

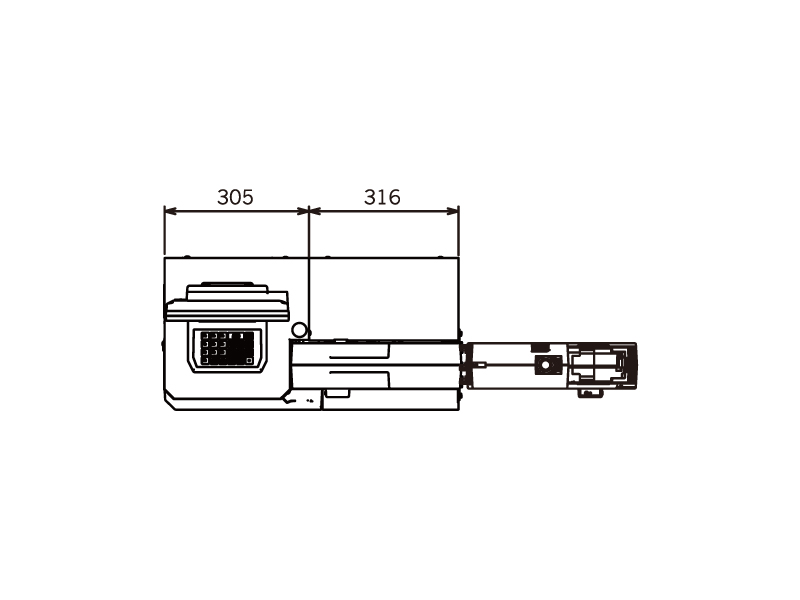

Dimensions
Specifications
Banding
| Package size | Width: 50-240mm (2.0-9.4 inches) Height: 10-150mm (0.4-5.9 inches) Depth: 80mm or more (3.1 inches or more) |
|---|---|
| Banding speed | Max: 12 packages/min. Note: The banding speed may vary depending on the length of the band format. |
Printer
| Banding film type | OPP |
|---|---|
| Print method | Thermal transfer |
| Dot density | 11.8dot/mm (300dpi) |
| Film width | 60mm or 40mm |
| Printing area | Max. 300mm (Between 95mm to 395mm from top of banding label) |
Operation console
| Display panel | TFT LCD color (10.4 inches) touch panel |
|---|---|
| Operation keys | Mechanical keys and touch panel |
| Memory for programmable files | 18GB |
General
| Power source and power consumption |
AC 100-120 or 220-240V, 50/60Hz 280W |
|---|---|
| Net weight | ・Apporpx. 41.4kg (RGW-560Ⅱ) ・Apporpx. 38kg (RGW-560ⅡCT) |
| Operation humidity | 40 to 80%RH with no condensation |
Modeller
RGW-560II CT
Seçenekler

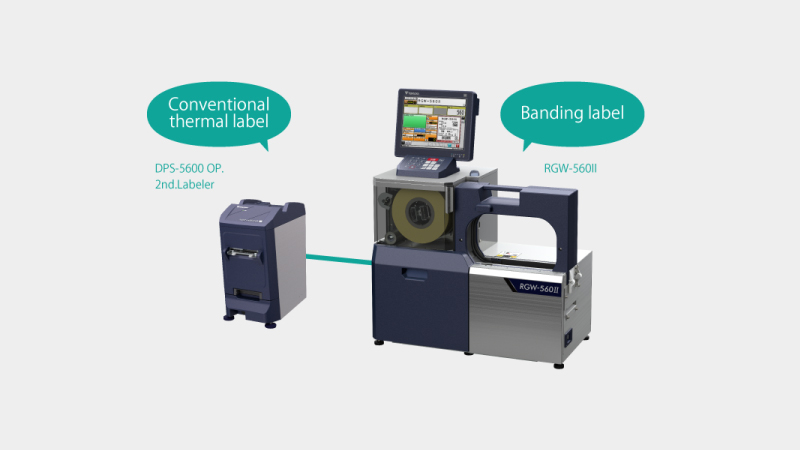

External labeler

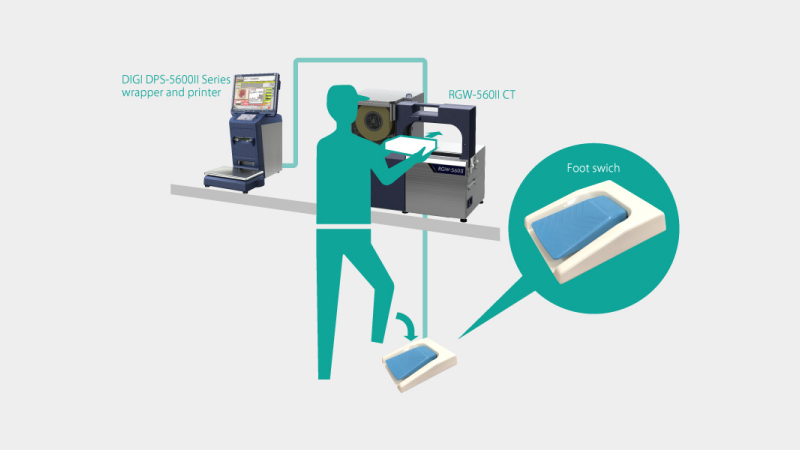

Foot switch
Vaka çalışmaları
Case Study
Globus utilizes portable RGW-560IIS for efficient strap-banding across departments.
Globus-Markt in Krefeld
The Globus store in Krefeld sought a flexible and transportable Product Strap Banding solution and increased product presentation across in-house production departments such as the Sushi bar.
Allseas Sushi relies on RGW-5600II to simplify their daily operation
Allseas Sushi
Allseas Fisheries Corp., operator of Allseas Sushi, is one of Canada’s largest seafood distribution companies. Allseas Sushi is utilizing DIGI’s RGW-560II product strap banding machine for clear and attractive labeling of their sushi products.
SSS
-
Do you provide a solution for larger trays which do not fit?The manual mode option is provided for larger trays.
