Expert automatic production line package inspection using a high-precision camera/scanner combination.
A variety of inspection/verification checks allows fully automatic detection of labeling defects to substantially save on labor in the label inspection process.

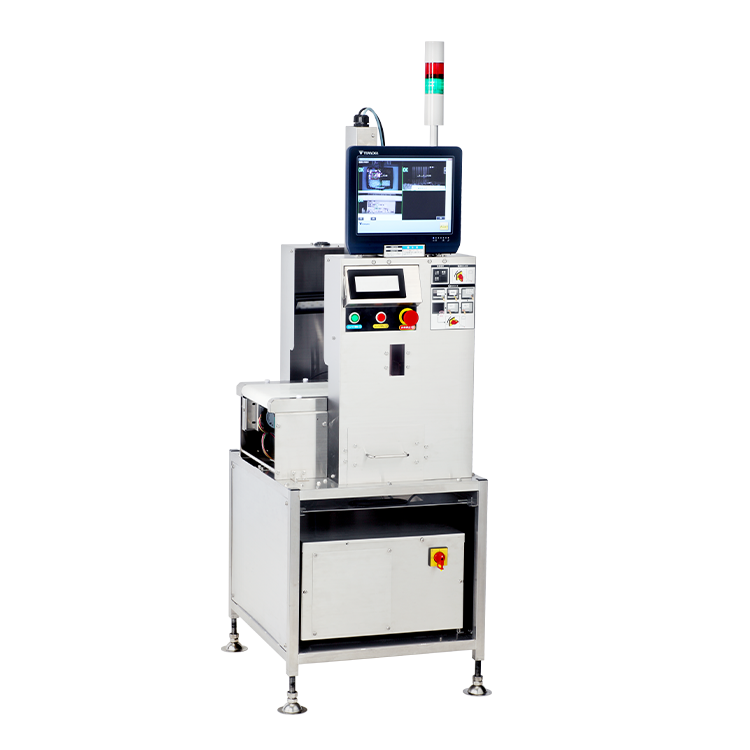

LIS-CS series

Gıda Endüstrisi

Paket Denetleme & Sınıflandırma Sistemi

Ana Özellikler

The LIS-CS series easily installs on existing automatic price labeling lines in your food processing facility to provide expert detection of a wide range of labeling defects. Issues such as incorrect labels, missing labels, mismatch of top and bottom labels, and incorrect bar code data are automatically detected at high speed for every product passing through the line. Equipped with a high-precision camera, the LIS-CS series can detect both the type of POP label and the image printed on the packaging material. Its leading-edge scanning system scans the barcode and verifies the readability and the code data in one step. In addition, the barcode data is checked against the image captured by the camera to confirm that there is a match.

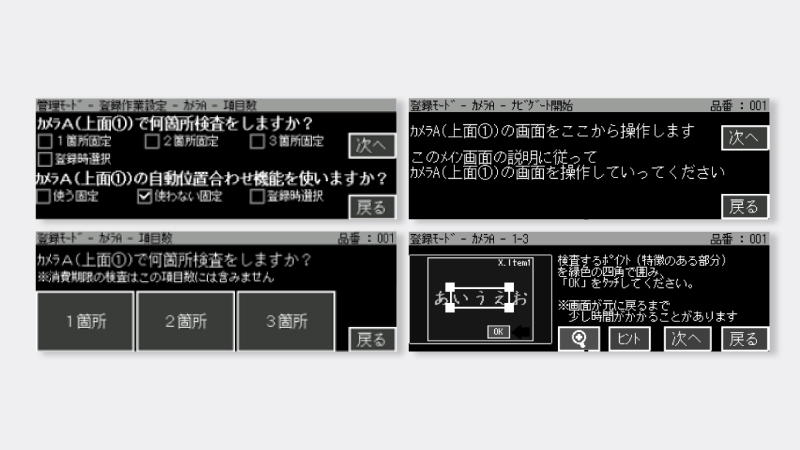

Easy new product entry and set-up

Up to now image-based inspection systems required an experienced operator with extensive know-how and knowledge of the settings to successfully input new product entries - not just any operator could do it. With the LIS-CS series, you simply run a sample product through once and follow the on-screen guidance to complete the entry operation. Now anyone can input new product entries with ease.

Different models to handle a wide range of foods

Food categories have unique labeling characteristics and requirements. Whether it's ready meals, sandwiches or box lunches, factors such as the label position, packaging material position, and processing method can be entirely different among categories. The LIS-CS series offers a range of models optimized for the inspection needs of various food processing methods - a label and package inspection model for most any type of food.

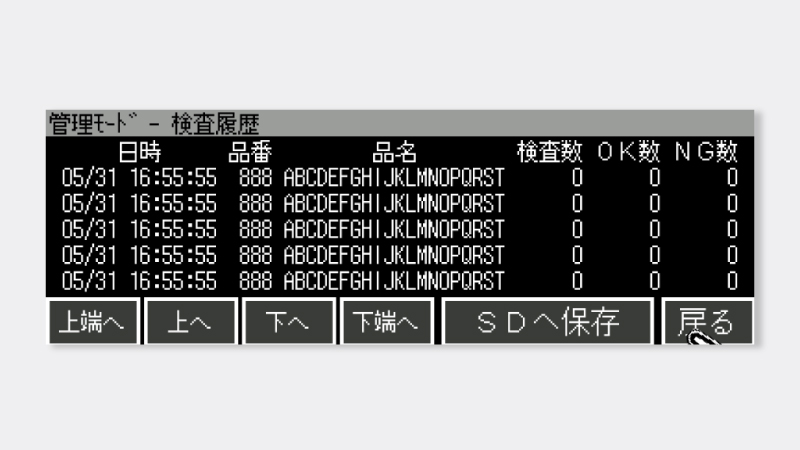

Enhanced inspection history management functionality

The LIS-CS series is equipped with an SD card slot for saving inspection results to a removable media. You can use the SD card to move the data to a PC for later viewing and long-term storage.

Seamless interoperability with DIGI equipment is standard

The LIS-CS series is designed to directly connect with specific models of DIGI automatic thermal labelers. When used in combination with the DIGI 700 or 800 series labelers, the LIS-CS will automatically switch to the correct product type when you select the product on the labeler.

Teknik Özellikler

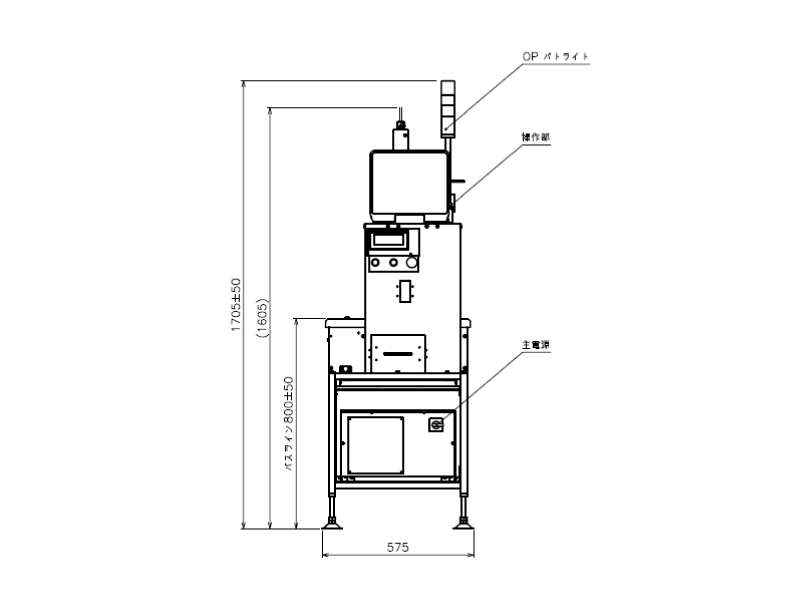

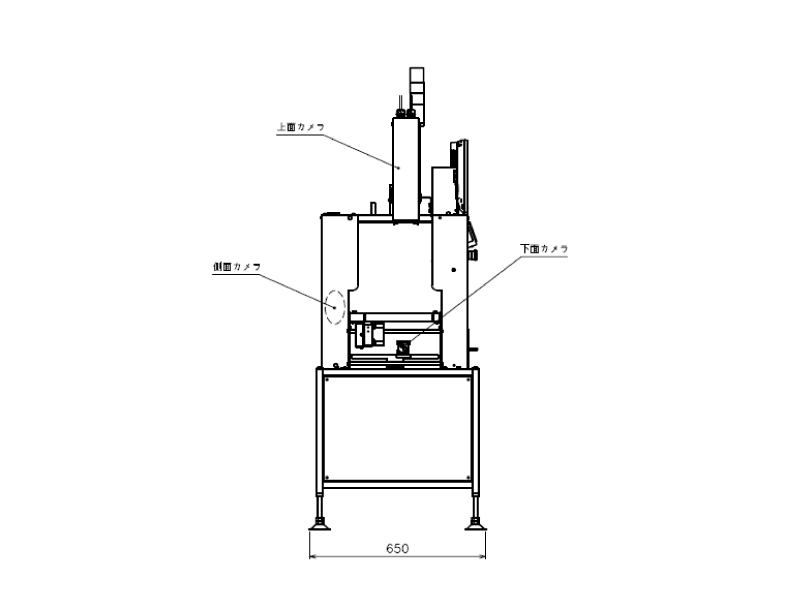

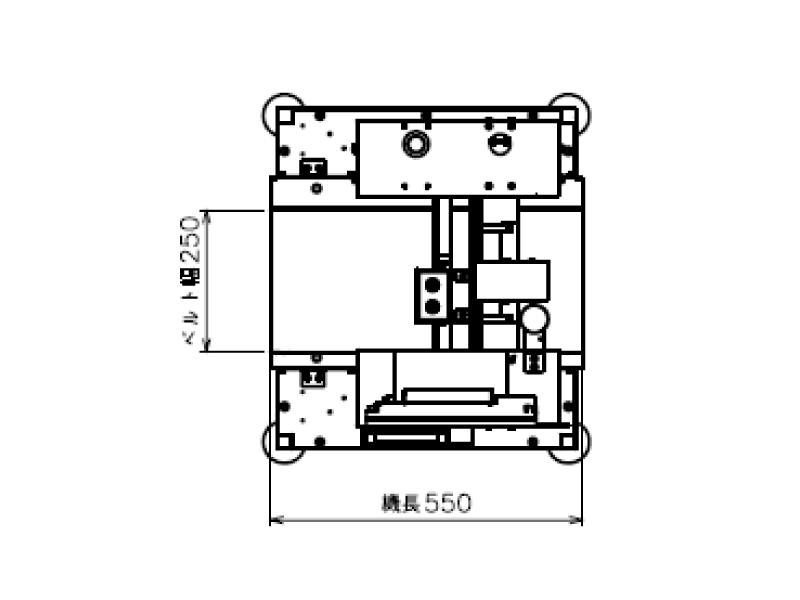

Dimensions

Common specification

Power-supply voltage	AC100V 50/60Hz
Maximum number inspection history saved	4000 cases ^*1
Number of items that can be registered	999 variety
Maximum inspection capacity	72 pieces/min.

*1: One item for each item number change

General purpose model

		LIS-CS USBC	LIS-CS UCBS
Intended use		For tray packs, general food packs
Device		Upper side: Scanner Lower side: Camera	Upper side: Camera Lower side: Scanner
Dimensions of main unit	Conveyor length	550 mm
	Depth	550 mm
	Height	1410 to 1560 mm
Belt width		230mm
Path line		750 mm to 850 mm
Power consumption		56 W (Max) ^*2
Integrated air sorting		×

Specific use model

		LIS-CS1	LIS-CS PLW	LIS-CS SND
Intended use		For triangular rice ball inspection only	For Reverse pillow packaging rice ball inspection only	For sandwich inspection only
Device		Horizontal side: Camera Horizontal side: Scanner	Upper side: Scanner Lower side: Camera	Upper side: Camera Lower side: Scanner
Dimensions of main unit	Conveyor length	500 mm	539 mm	550 mm
	Depth	550 mm		665 mm
	Height	1180 to 1330 mm	1278 to 1378 mm	1410 to 1560 mm
Belt width		45 mm	73.5 mm	230 mm
Path line		700 to 850 mm	750 to 850 mm
Power consumption		27 W ^*2	30 W ^*2	50 W (Max) ^*2
Integrated air sorting		◯

*2: It varies depending on the weight, size, conveyor speed and other conditions of the item to be inspected.
** When considering, please check with the sales representative beforehand if the target product can be inspected with this product.
