Ana Özellikler

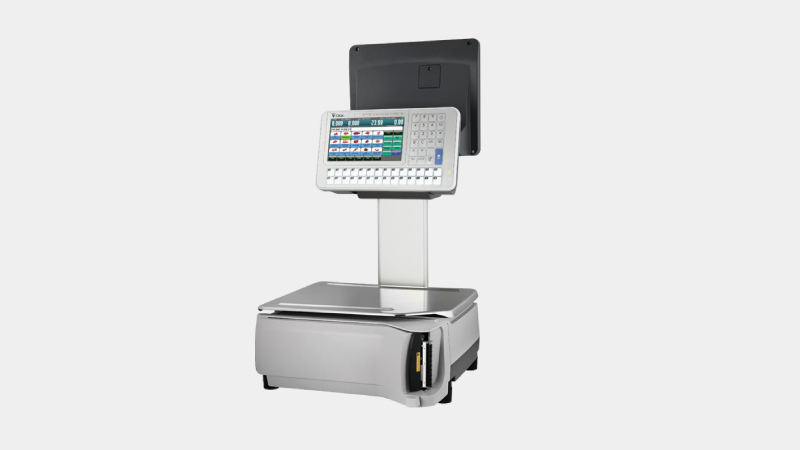

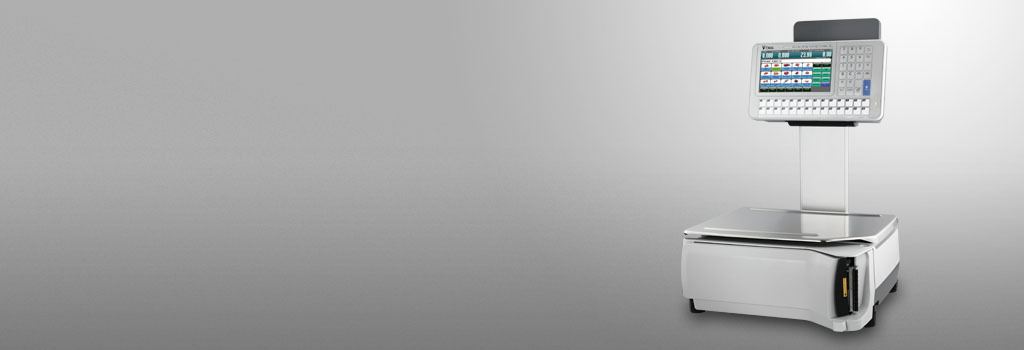

SM-5300 is a PC based weigh-labeller offering linerless function with the auto-cutter feature. It comes with an interactive 7-inch colour customer display that can present advertisements to drive sales and enhance customer service. It can also connect to InfoTag and e.Labels electronic tag for seamless price updates with minimum human interference.
• Linerless label print with built-in auto-cutter
• Watermark printing
• Speed ID
• Scale management software @LABEL
• InfoTag Electronic Shelf Label
• Integrated Queue and Collection System
• Interactive colour operator and customer display

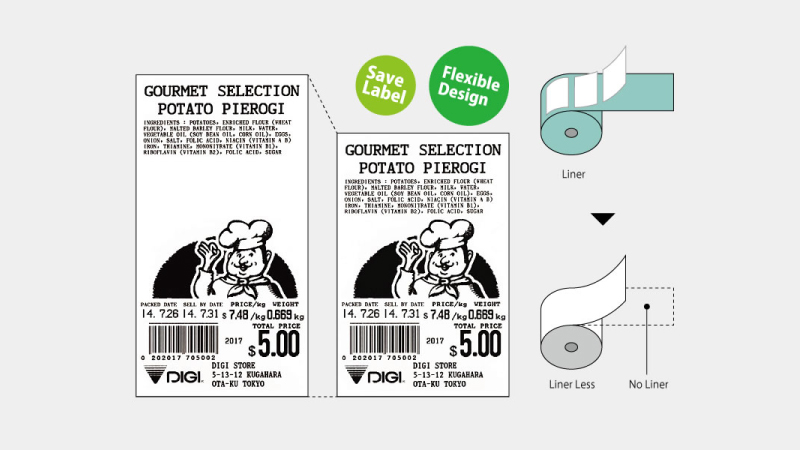

Linerless Labels with Auto-Cutter Weigh Labeller
SM-5300 is a PC based weigh-labeller with a built-in auto-cutter feature for linerless labels. The use of linerless labels will reduce wastage and label costs
Without liner film sheet, the number of labels per roll for print will increase significantly and minimises disruptions for operational downtime for changing of label roll.
As the printer is capable of detecting label size automatically, hence only 1 type of label is required.
Watermark Printing
Maximise your brand awareness and make the product labels more attractive by the variable use of creative effects. Take advantage of this watermark printing feature to increase revenue.

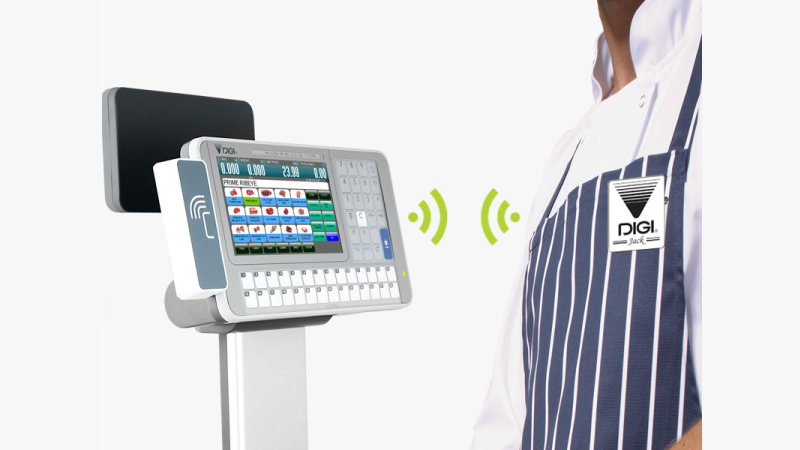

Speed ID
With the near field identification feature, it eliminates the process of a manual key in of clerk password. It provides hassle-free user login and prevents unauthorised access. The operational log ensures accountability and transparency.
• Fast operation
• Reduce error
• Clerk operations log
Scale Management Application @LABEL
Sales reports are automatically collected and stored to one centralise location, that allows management to access, analyse and manage remotely. Users are also able to check, set PLU conveniently.
It reduces time spent to check individual scale status as any update is just a few clicks away.

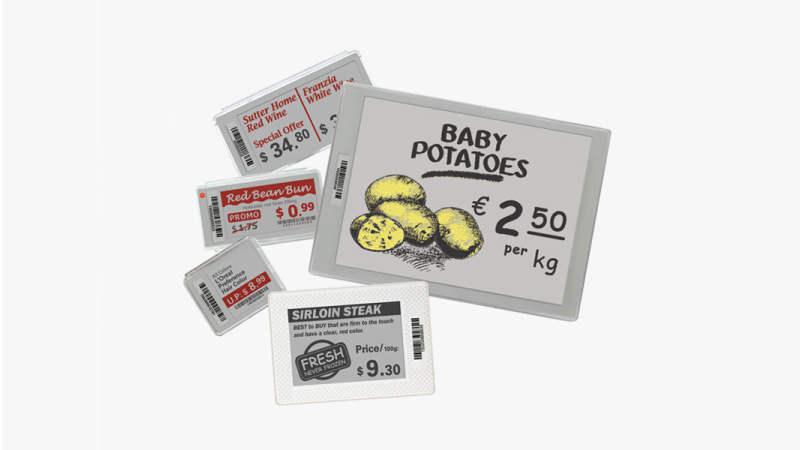

InfoTag and e.Label Electronic Signage
Revision of promotional text, product information and pricing updates can be instantaneously displayed on InfoTag via the wireless base station. It can reduce pricing errors and labour costs for businesses. These InfoTags can also be easily deployed within the store.
• Wireless update
• Price integrity
• Minimise errors
• Easy connection through base station
Equipped with the IP67 rating, e.Label with Hi-Touch is dust and water resistant and compatible for use with DIGI PC scale. Utilising tap sensor technology, Hi-Touch feature allows operators to call up the correct PLU code easily. The highly efficient and responsive system reduces errors and enhances customer service.
Both InfoTag and e.Label are designed with high contrast ePaper display, ensuring high screen readability for your customers. Complement your marketing campaign by customising ePaper with barcodes, QR codes and NFC for interactions between customers that can be accessed through a smartphone.

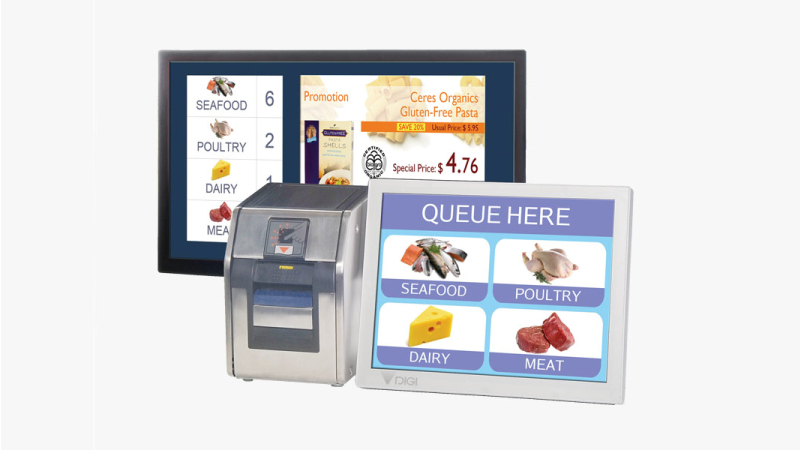

Integrated Queue & Collection System
The integrated queue and collection system allows customers to keep track of all the services at one central place. It allows multiple departments queues to be consolidated for real-time monitoring. This allows operators to react to customer’s demand as quickly as possible, keeping checkouts operation smooth. It also reduces customer’s waiting time and enhances customers’ overall shopping experience.

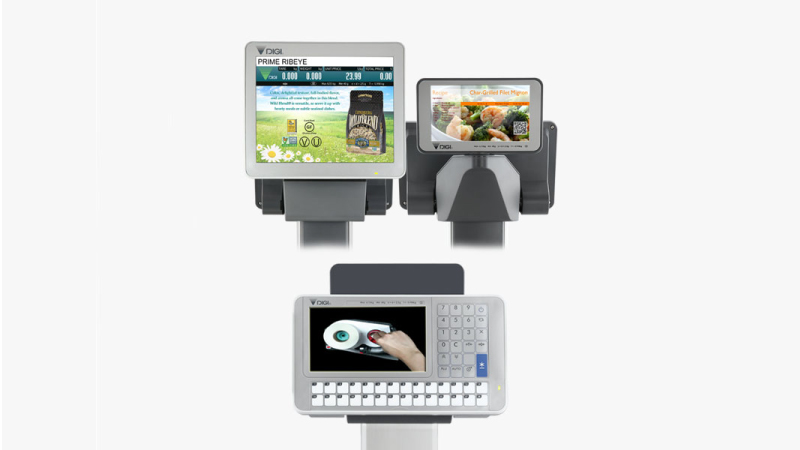

Interactive Screens Display
SM-5300 is available in both 7" and 12.1" WVGA customer display screen that can display customise information.
• Upsell
• Cross-sell
• Recipes
• Promotions
• Advertisements
Businesses can also maximise the operator display screen for e-training purposes.Training cost can be reduced for other development purposes. Further enhance service level by supporting operators with updates on promotions, cross-selling and consumers advice.
Teknik Özellikler

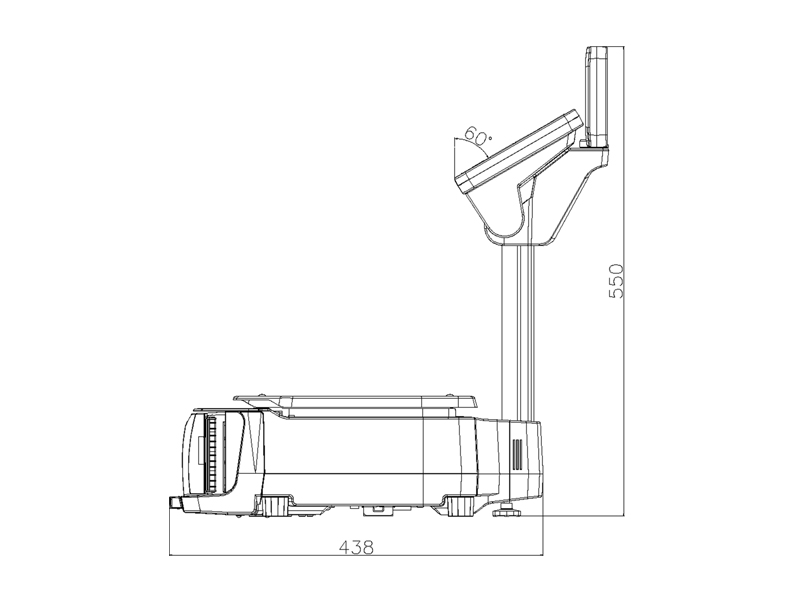

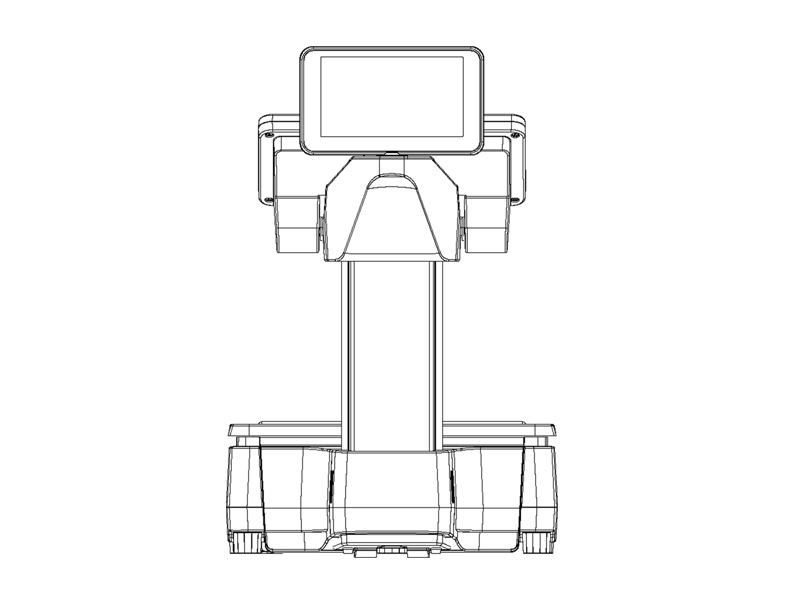

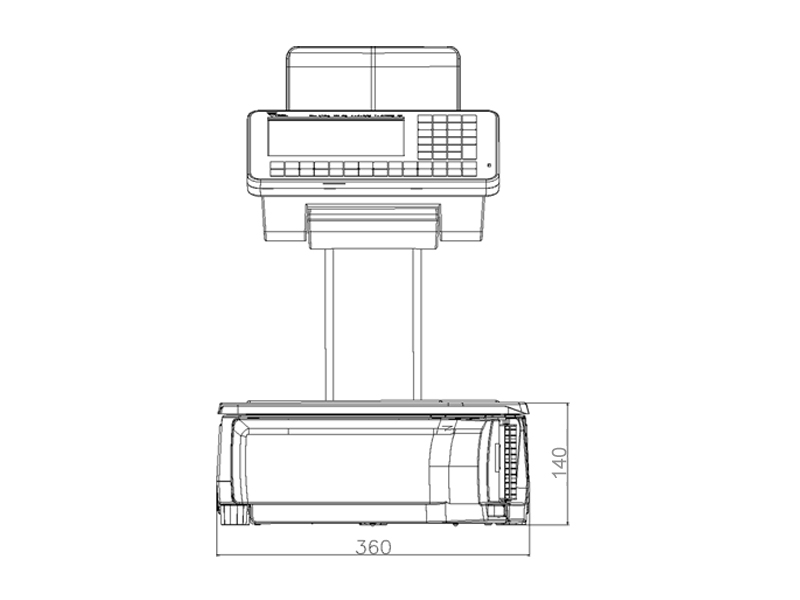

Dimensions
Weighing
| Capacity | Max 6kg | Max 15kg/ 30lb | Max 30kg | |
|---|---|---|---|---|
| Single Interval | 1/ 3,000 | e= 2g | e= 5g/ 0.01lb | e= 10g |
| 1/ 6,000 | e= 1g | e= 2g | e= 5g | |
| Capacity | Max 3/ 6kg | Max 6kg/ 15kg | Max 15kg/ 30kg | |
| Multi Interval | 1/ 3,000 | e= 1/ 2g | e= 2/ 5g | e= 5/ 10g |
| Model | SM-5300B (Bench) | SM-5300P (Pole) | SM-5300EV (Elevated) | SM-5300EV PLUS (Elevated) | SM-5300SSP (12.1"Self-Service) | SM-5300SSP (19" Self-Service) | SM-5300H (Hanging) |
| Dimension (mm) | 360(W) x 472(D) x 136(H) | 360(W) x 500(D) x 542(H) | 360(W) x 438(D) x 550(H) | 360(W) x 438(D) x 637(H) | 360(W) x 460(D) x 637(H) | 442(W) x 480(D) x 757(H) | 359(W) x 369(D) x 883(H) |
| Operator display, 7" WVGA with Touch (800x480) | Ο | Ο | Ο | Ο | - | - | Ο |
| Customer display, 7" WVGA (800x480) |
Ο | Ο | Ο | - | - | - | Ο |
| Display Resolution | 1/ 3,000, 1/ 6,000 & 1/ 7,500 | ||||||
| Number of Keys | 28 Preset Keys/ 23 Alphanumeric Function Keys (for 7" Operator WVGA with Touch Screen) | ||||||
| Label Types | Liner / Linerless With Autocutter | ||||||
| Liner Label/ Receipt Roll Diameter | 125mm (Max) | ||||||
| Liner Label/ Receipt Printing Speed | Up to 150mm/second* | ||||||
| Linerless Label/ Receipt Roll Diameter | 95mm (Max) | ||||||
| Linerless Label/ Receipt Printing Speed | Up to 100mm / second* | ||||||
| Power Source | AC 100/ 110 or 220/ 230/ 240 Volts (50/60Hz) Auto Switch | ||||||
| Operating Temperature | -10°C to +40°C | ||||||
| Humidity | 15% to 85% RH | ||||||
| Standard Interface | Ethernet 10/ 100 Base T, 4 x USB 2.0, RJ11 | ||||||
| Net Weight | 10.5kg | 11.5kg | 12.5kg | 16.0kg | 13.3kg | 17.0kg | 14.0kg |
| * To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for details. | |||||||
Modeller

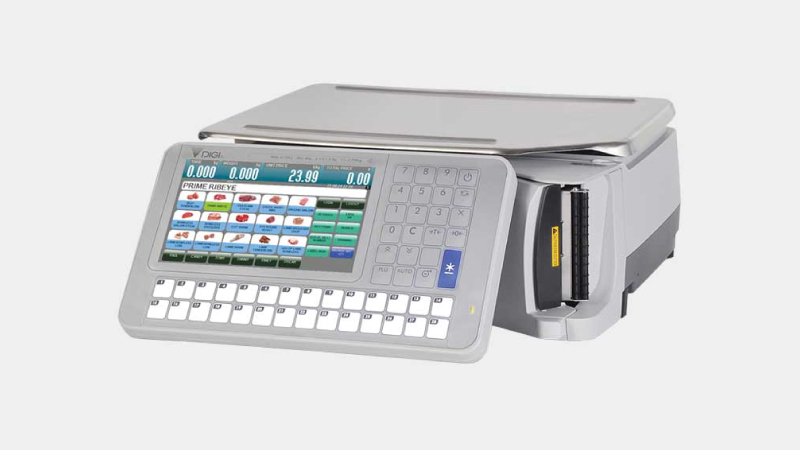

Bench Type
SM-5300 B

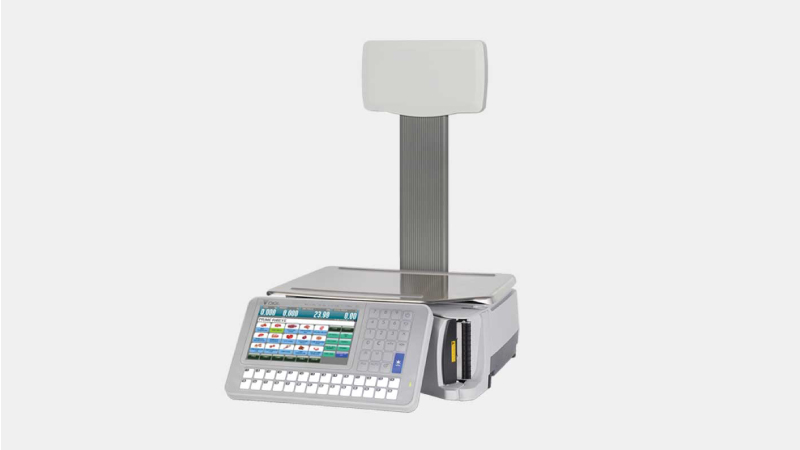

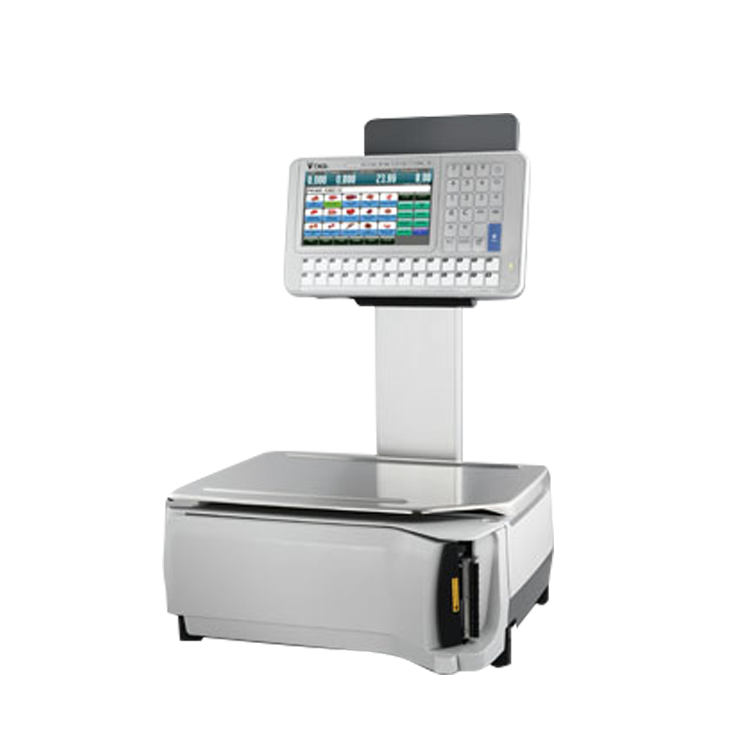

Pole Type
SM-5300 P

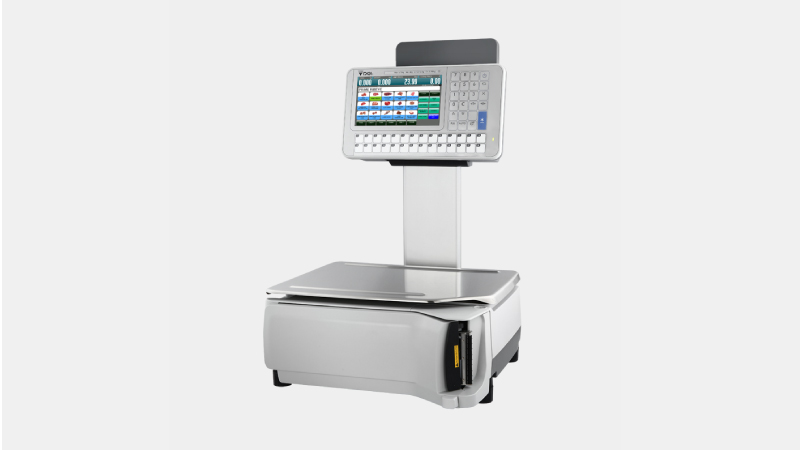

Elevated Type
SM-5300 EV
Elevated Type
SM-5300 EV PLUS

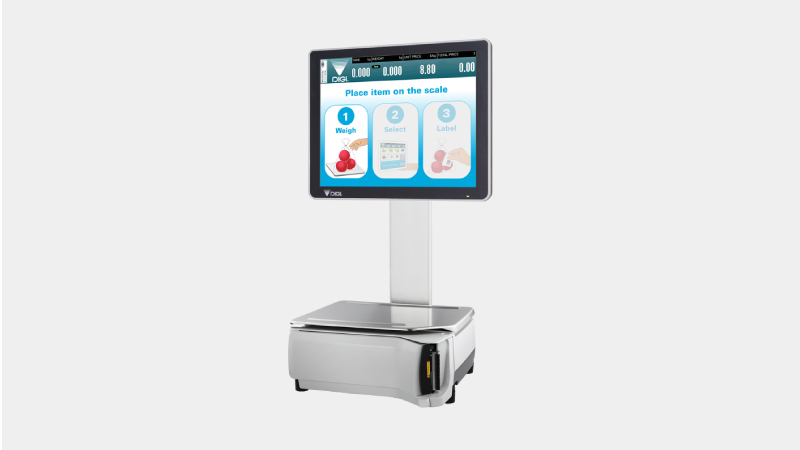

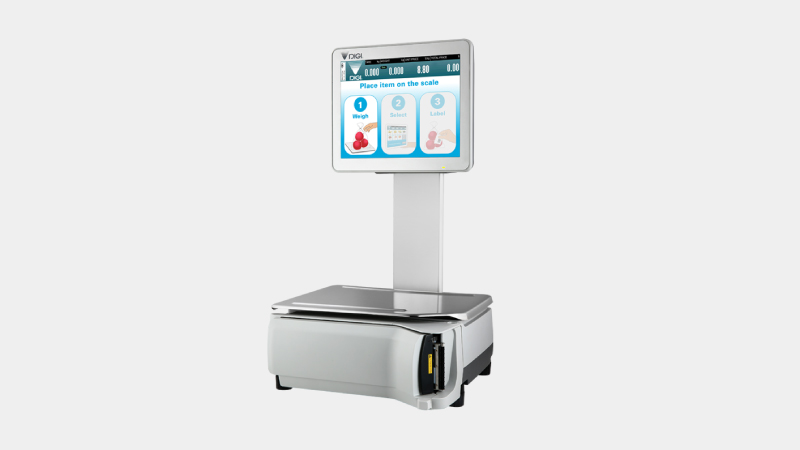

Self Service Type
SM-5300 SSP (12.1" Self-Service)
Self Service Type
SM-5300 SSP (19" Self-Service)

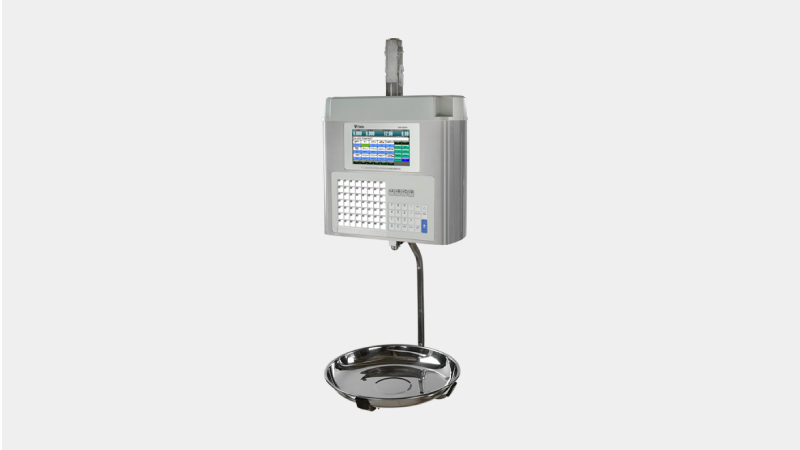

Hanging
SM-5300 H
Vaka çalışmaları
Case Study
DIGI integrated solutions enhance customer experience in FairPrice’s largest hypermarket
FairPrice
“A perennial supporter of DIGI's integrated weighing solutions, FairPrice is delighted to leverage DIGI’s expertise once again to strengthen its commitment in providing convenience to customers”.
SM5300, flexible and reliable partner of BOB & ROY'S
BOB & ROY'S
A perfectly integrated scale that gives the customer all paying options.A sturdy scale that can perfectly work on its own
DIGI solutions change the rules of the game for future retail supermarkets
Unicoop Tirreno

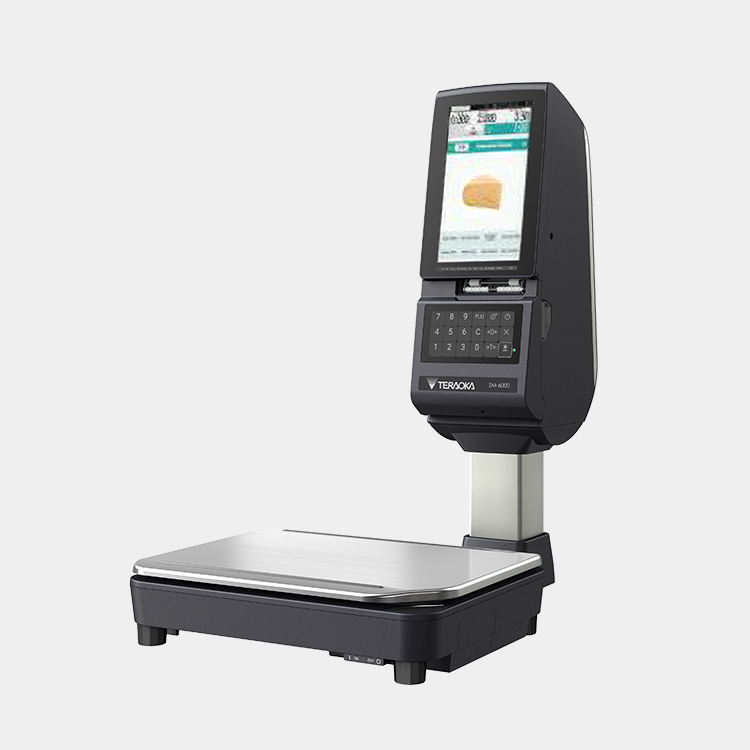

“SM-6000 is for high-end users, who wants to add design and new features to the store concept”. -Federico Tanesini, Manging Director of DIGI Italia
