Picking carts with built-in scales enable simultaneous picking and quantity verification

AI picking carts

Lojistik

Şipariş Alma & Sınıflandırma Sistemi

Ana Özellikler

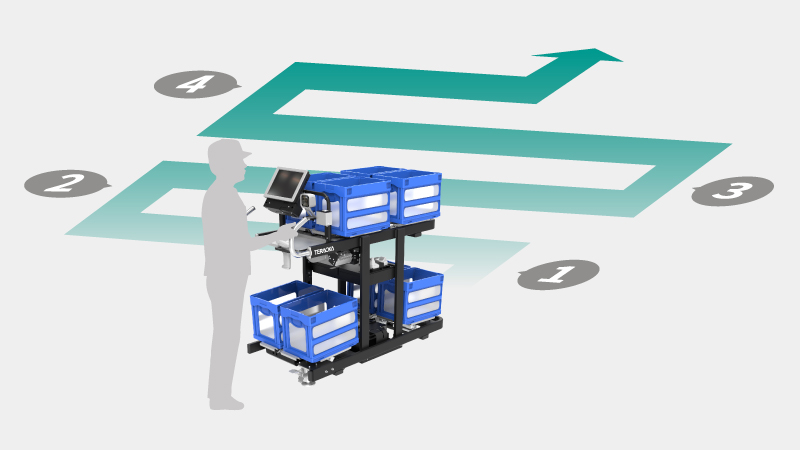

Cart with built-in scale is ideally suited for the most labor-intensive picking work in distribution centers. Contributes to increased productivity by wirelessly communicating with the shipping/receiving management system (IT-Matex III), which verifies quantities picked while simultaneously determining the optimum picking path. Eliminating the need to work with forms such as shipping instructions and minimizing the need for printed labels, this system helps reduce operational costs. Lightweight and compact even with its built-in scales, the cart also excels at navigating aisles.

Weight and quantity can be measured simultaneously

In this video, we introduce the features of this product.

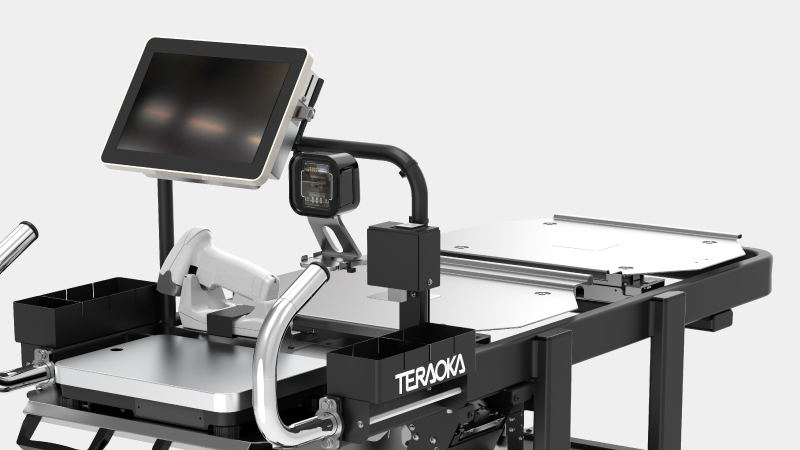

High-precision loadcell

Accurate quantity verification is achieved by adopting a high-performance load cell (internal resolution: 1/30,000; display resolution: 1/3000) to minimize unit weight errors.

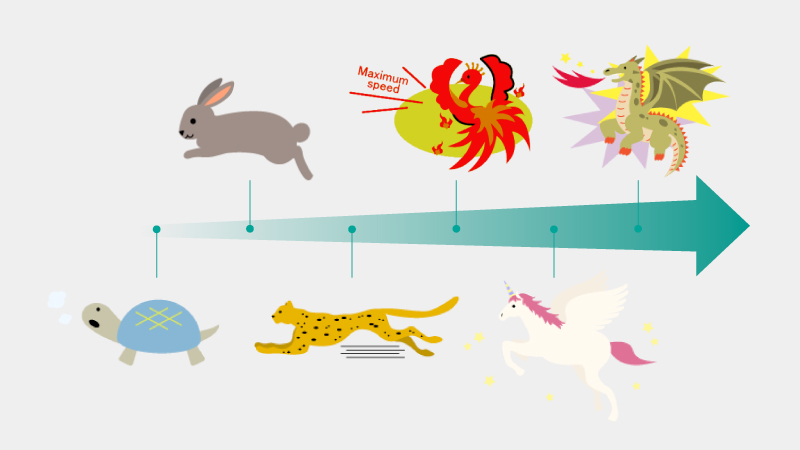

Worker motivation function

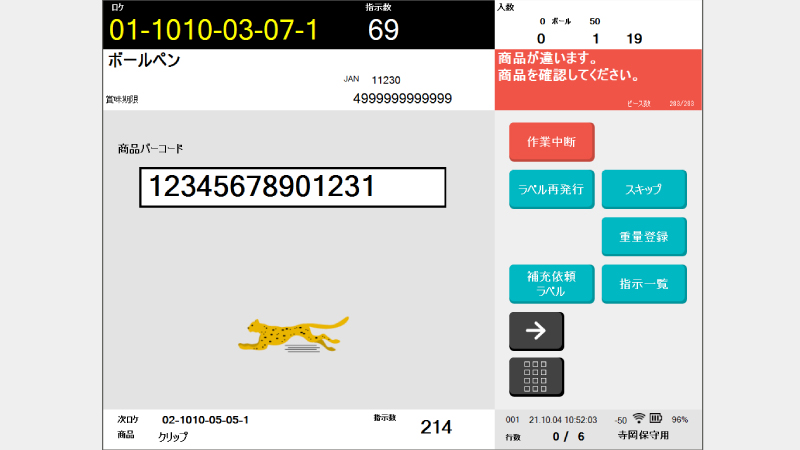

An animal character on the display changes to indicate per-hour picking performance. This helps workers increase performance in an enjoyable way.

Simultaneous box/loose verification

Box and loose weights can be registered for each PLU according to packing type. Not only does this facilitate simultaneous picking of boxed and loose items, but it helps keep orders together and makes it easy to tell how many items should be removed from a container to fill an order.

Teknik Özellikler

Dimensions

Specifications

Model Type		PKG-4000 Multi-cart (Vertical type)	PKG-4000F Multi-cart (Front-on type)	PKG-3100 Single cart	PKG-3100D Single cart (Detachable type)
Display		10.4-inch TFT LCD (SVGA) touch panel
Wireless communication	Wireless LAN	IEEE802.11b/g
Scanner	Compatible barcode types	UPC, EAN, JAN, CODE39, ITF
Scanner	Operating time (handy scanner)	45000 scans, charges in 4 hours
Printer	Print method	Thermal printer
Printer	Print size	60 (W) x 120 (L) mm
Scales	Maximum load weight	30 kg
	Display resolution	1/30,000
	Internal resolution	1/60,000
	Number of scales	4	4	1	1
Power supply	Continuous operating time	14 hours or better (front-on type cart) * Varies according to manner used and environment.
	Type	Ni-MH (Nickel-Metal Hydride Battery)
	Charging time	10.5 hours
	Charging system	DIGI Chain charging (charges up to 5 units at once)
Cart	Service temperature	5 to 35℃ during operation, 0 to 55℃ in storage
	Service humidity	20 to 85% RH (no condensation)
	Frame material	Aluminum
	Dimensions (mm) W x H x D	570 x 1140 x 1350	830 x 1024 x 841	570 x 1050 x 1285	620 x 1130 x 625
	Weight	45 kg	45 kg	34 kg	40 kg

Modeller

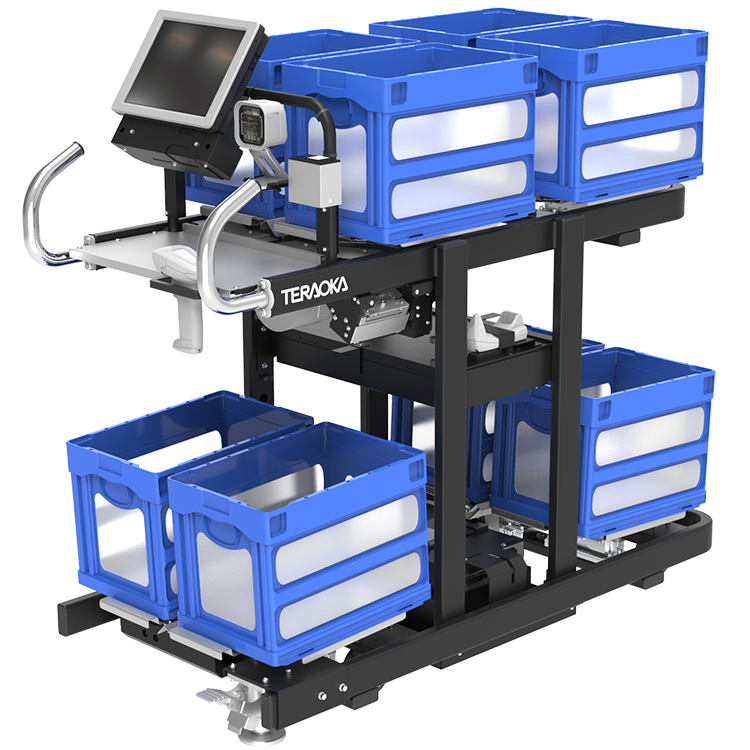

Multi-cart (vertical type)

PKG-4000

Equipped with four scales, this cart makes it possible to pick up to four orders simultaneously. With a width of just 570mm, its compact design allows easy movement past other workers even in narrow aisles.

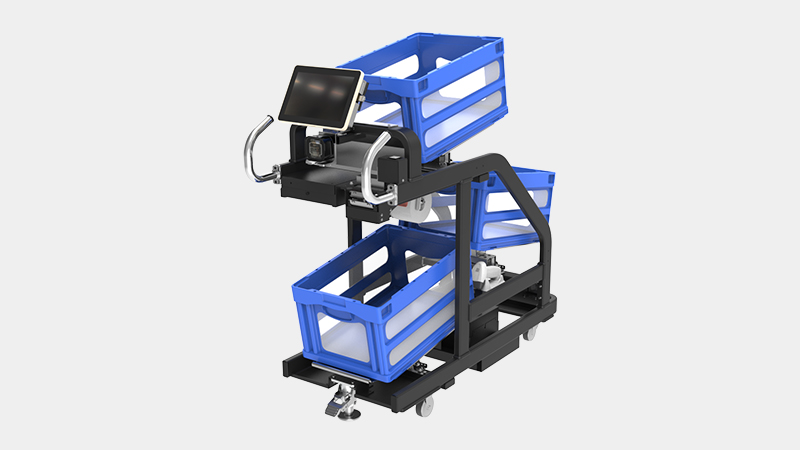

Multi-cart (front-on type)

PKG-4000F

Equipped with four scales, this cart is designed with smooth loading setting as top priority. It is suitable for use at sites that have wider aisles.

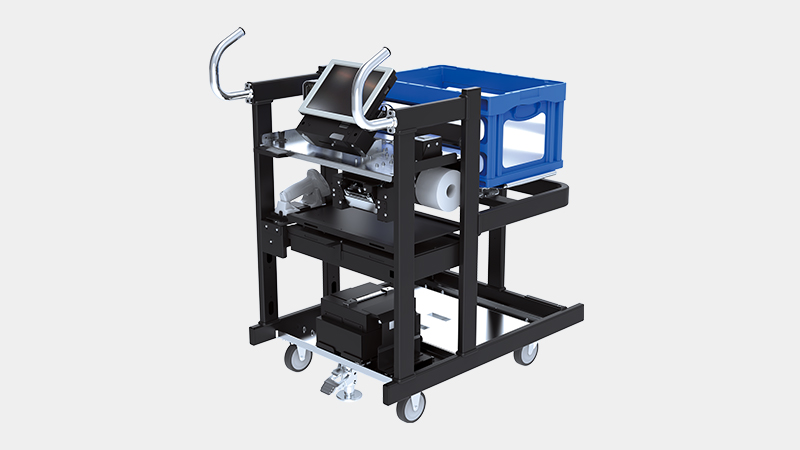

Single cart

PKG-3100

This cart can carry up to three picking boxes in addition to the one that is currently being worked.

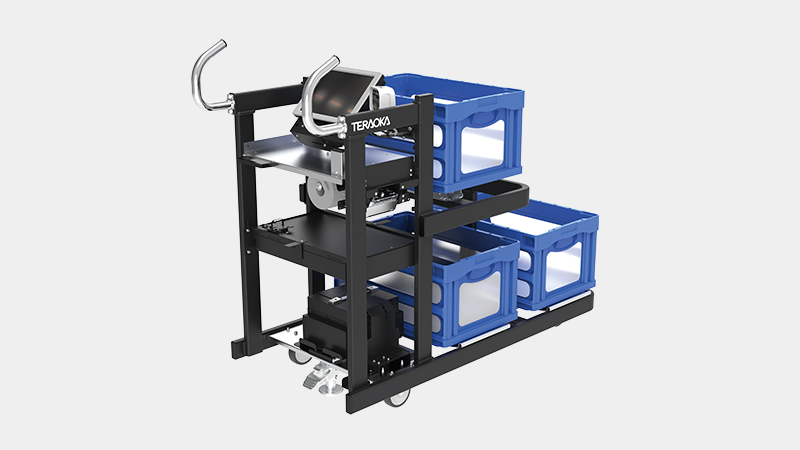

Single cart (detachable type)

PKG-3100D

Based on the PKG-3100 single cart, the front part of the cart with it scales can be detached from the rear part that holds the picking boxes. This greatly reduces work required to change picking boxes when the working box becomes full.

Vaka çalışmaları

Yapay Zeka (AI) ürün Toplama Arabası - Dahili tartım sistemine sahip Ürün Toplama Arabası

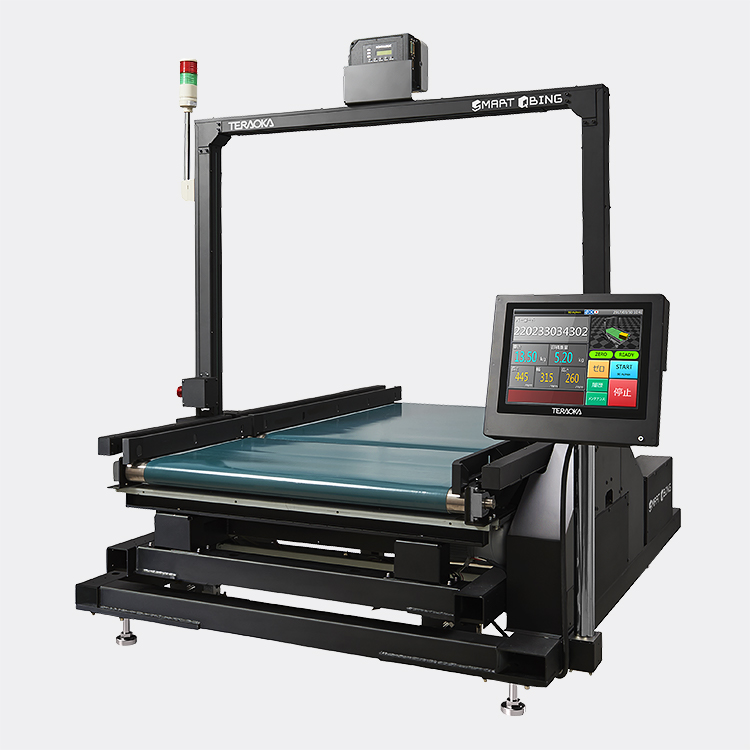

SPK - Yüksek Hassasiyetli Ürün Boyutlandırmalı Terazi

Tokyo Logistics Factory Co., Ltd.

Ürünlerin sevkiyattan önce gözden geçirilmesi ve yeniden paketlenmesi ihtiyacı ortadan kalktı, iş verimliliğini önemli ölçüde artırdı ve zaman tasarufu getirdi.

Vaka çalışmasının tamamını okuyun

Dahili Terazili Yapay Zeka(AI) Destekli Picking Cart ve SPK Yüksek Hassasiyetli Boyutlandırma Terazisi

Keihin Distribution Co., Ltd.

Çift denetim (tarama ve tartım) yoluyla ürün toplama doğruluğunu artırarak, paketleme sırasında ve toplama sonrası kontrol çalışmalarını azaltarak üretkenlik artırıldı.

Vaka çalışmasının tamamını okuyun

SSS

Aside from eliminating storage for forms, what is the advantage of doing away with paper picking lists?

Time required to produce lists is eliminated, including printing. Errors in product type, packaging, and quantity that result from misreading lists are also reduced. Further, not having to hold a list leaves both hands free for picking.
How much time is needed for charging?

14hours or better (front-on type cart)
* Varies according to manner used and environment.
