Not: Bu ürün artık satılmamaktadır. Lütfen bu modelin bakımı veya değişim modelleriyle ilgili olarak yerel temsilcinize danışın.

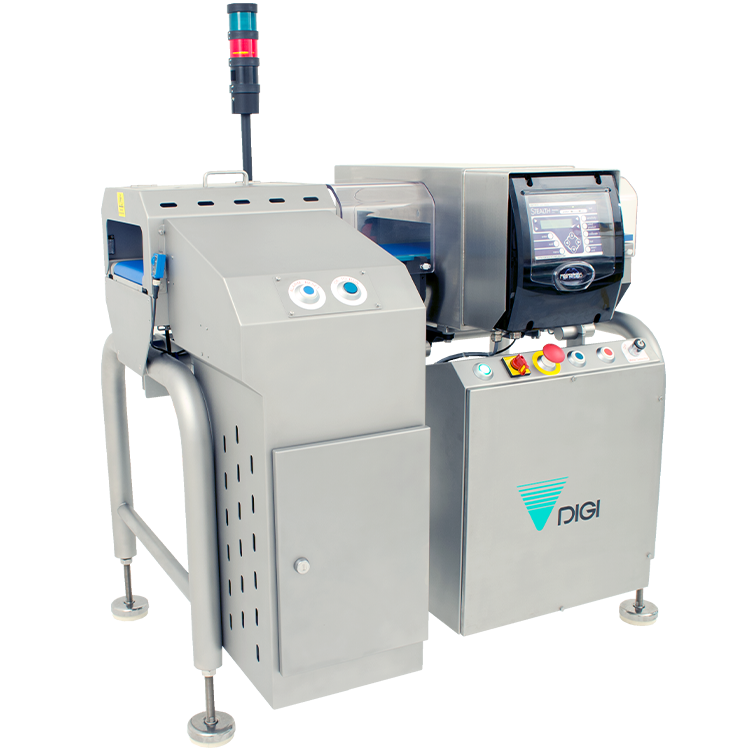

MD-700-WS02

High speed metal detector rejection system

MD-700

Gıda Endüstrisi

Ana Özellikler

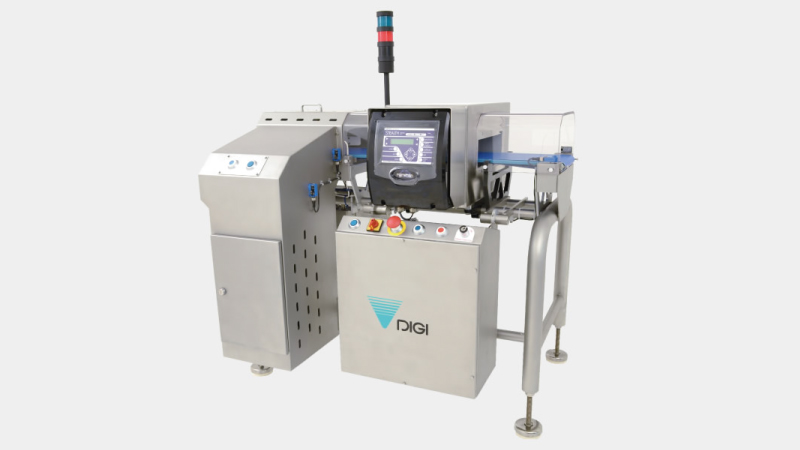

The MD-700 combines the efficiency and speed of the DIGI intelligent rejector with a market leading metal detector in one unit. The robust stainless steel construction, simple operation and exceptional performance of the metal detector makes the MD-700 a reliable and robust system.

MD-700-WP04

Stainless steel construction

The stainless steel tubular frame construction ensures a high quality, durable and strong structure.

MD-700-WP04

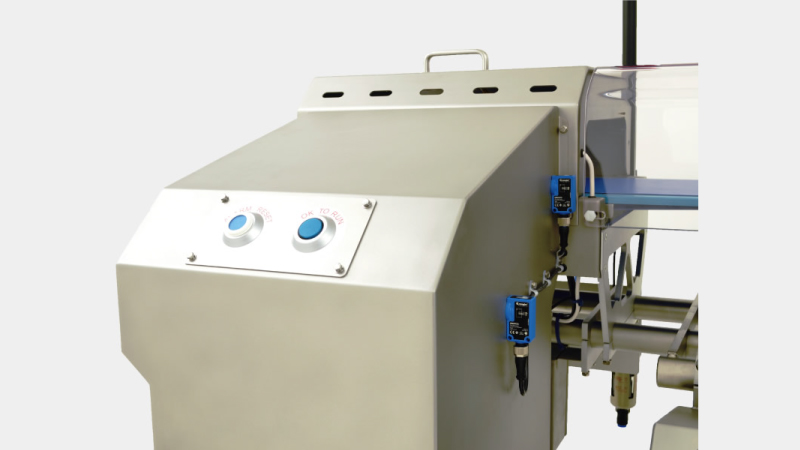

Intelligent detection

To ensure pack rejection, the unit has advanced features such as reject confirmation, bin full and low air detection. Other features include on/off of metal detector and reset of rejector, operated and protected by key lock & reject confirmation check.

MD-700-WP04

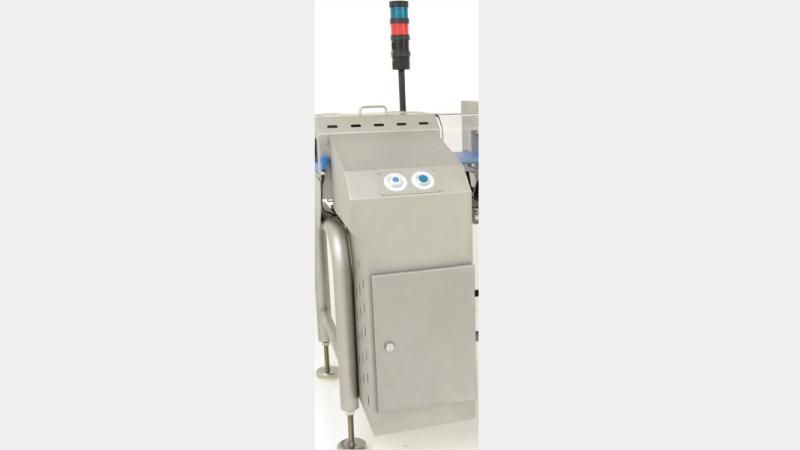

Rejector security

The rejector has a enclosed top guard with interlock and lockable bin. The high level warning light system ensures any visual alarm is seen. An audible alarm is also present.

MD-700-WP04

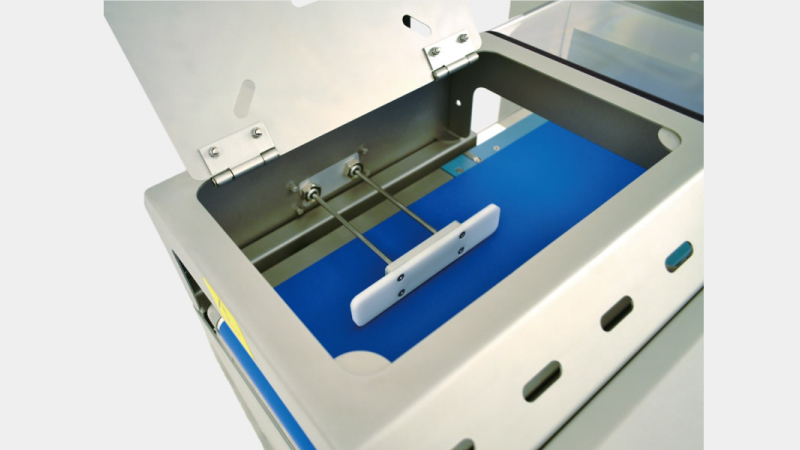

Push arm rejection

The push arm type rejection offers a high speed, accurate and reliable method to reject a wide range of packs.

Teknik Özellikler

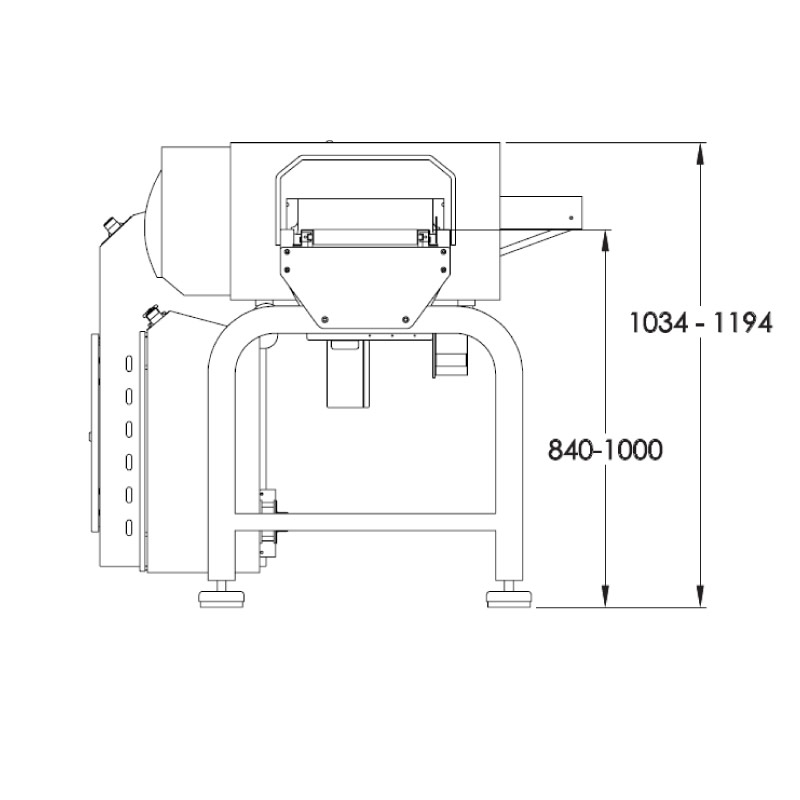

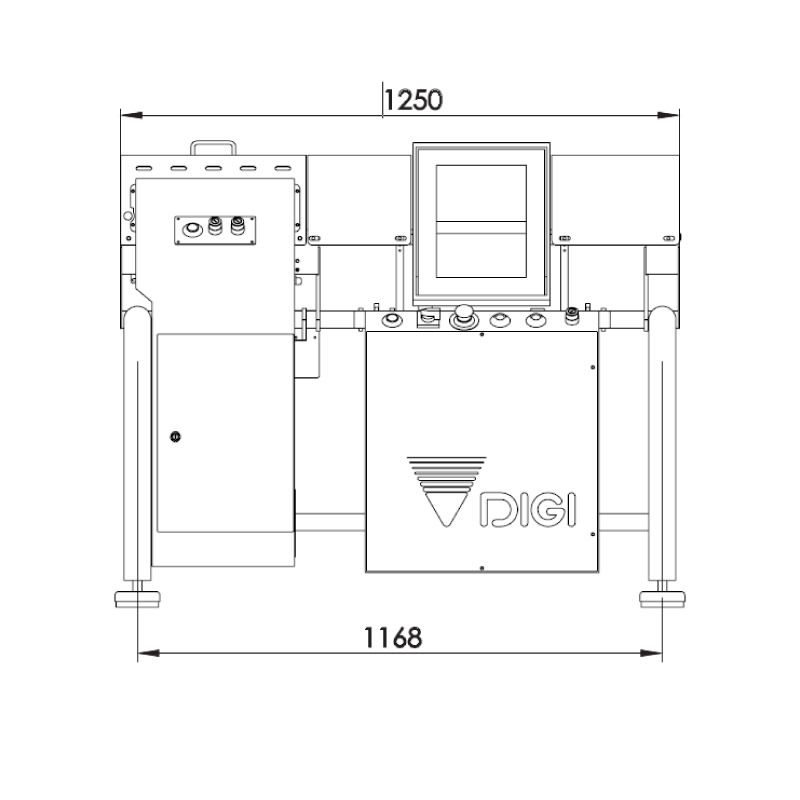

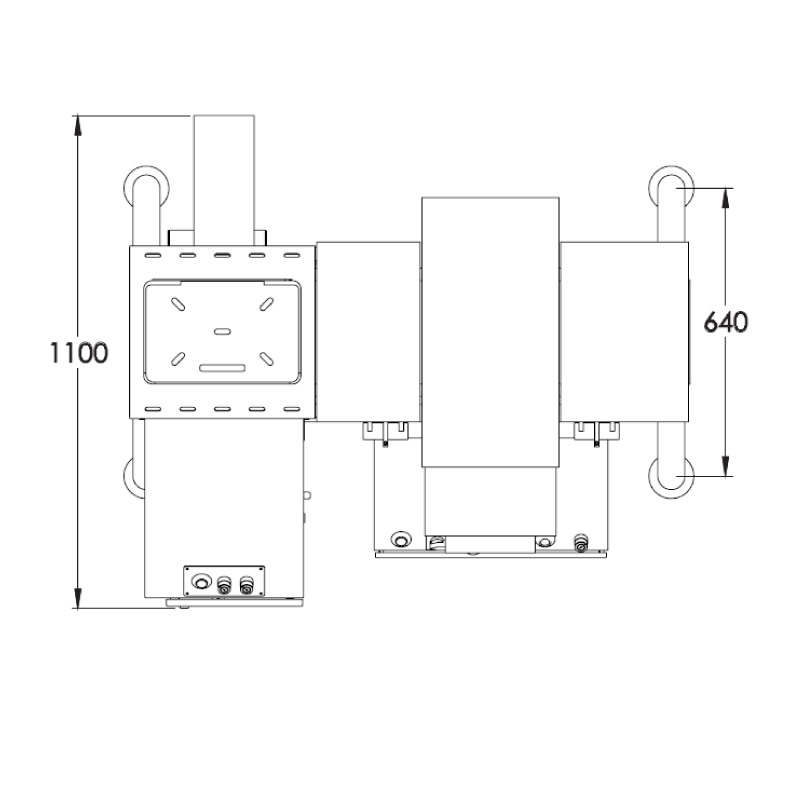

Dimensions

  • MD-700-WP05-1
  • MD-700-WP05-2
  • MD-700-WP05-3
Pack speed up to 150ppm (dependant on pack size)
Pack size Length 80 to 200mm, Width 40 to 250mm, Height up to 90mm
Metals Ferrous, Non ferrous, stainless steel
Alarms - audible & visual Open guard/bin, bin full, pack confirmation, low air pressure
Construction Stainless steel and anodized aluminium



Modeller

MD-700-WP07-1

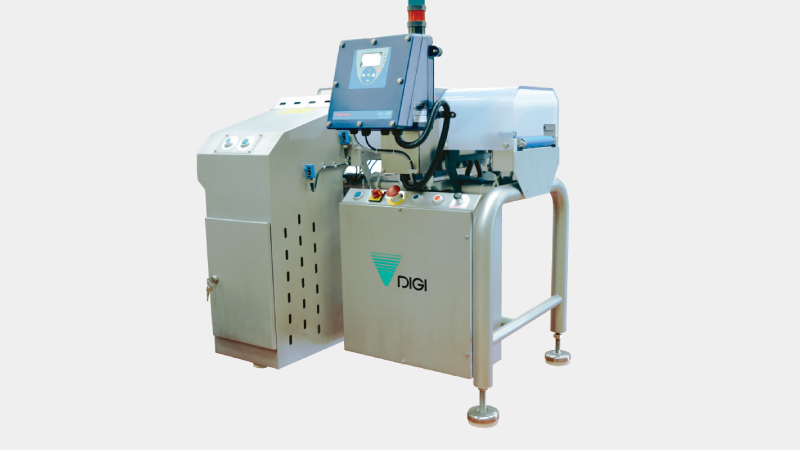

MD-700 with an alternative metal detector unit

MD-700 with Thermo fisher metal detector

The MD-700 is versatile in its modular construction and can be supplied with an alternative metal detector unit.


SSS

  • Is the MD-700 a stand alone unit?
    The MD-700 is fully functional as a stand alone unit. It can also be placed in a production line and linked to up and down stream machines to stop all machines when required.
  • Does the machine stop if there is no air pressure?
    Yes, if the air pressure falls below the pre-set value to operate the machine, the machine will stop and an alarm will sound.
  • Will the machine stop if a contaminated pack is not rejected?
    Yes, if a contaminated pack is detected it must be seen by the pack confirmation sensor when rejected. If not, the machine will stop and alarm will sound.
