No Tare, No Fuss, More Fun.

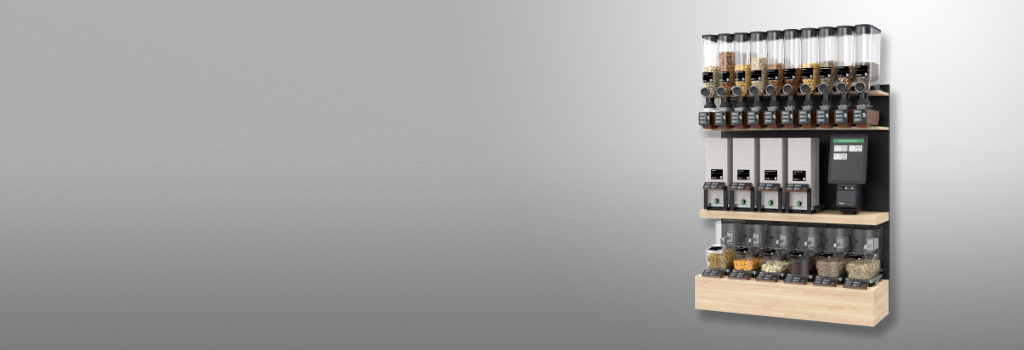

All-In-One Bulk System
RetailMain Features
Introducing the All-In-One Bulk System, DIGI's tare-free streamlined solution for the bulk area. From pantry staples to spices, herbs and even vinegars, customers can view product weight and price in real-time directly on the Hopper, Scoop and Liquid Scales while purchasing only the amount they need.

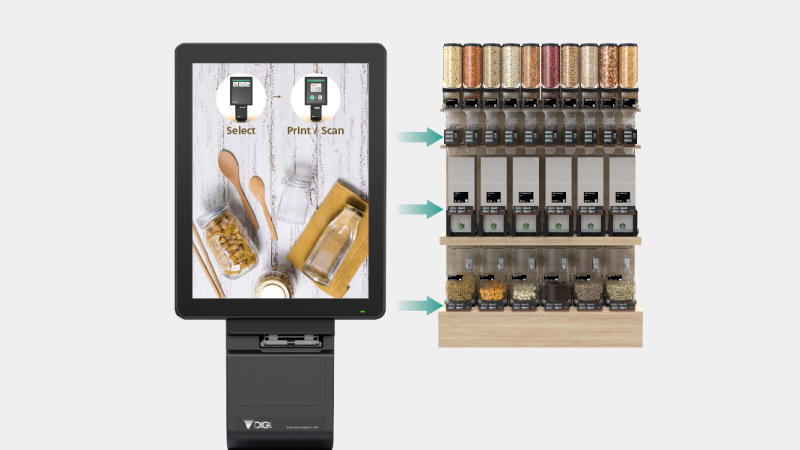

Frictionless Bulk Shopping
With the All-In-One Bulk System, weight and pricing information of the dispensed item are automatically displayed on the console's screen for label printing, thus simplifying the operation process.
- Ease of operation by eliminating the need to search for PLU
- Multiple shoppers can operate simultaneously
- No taring of container weight needed

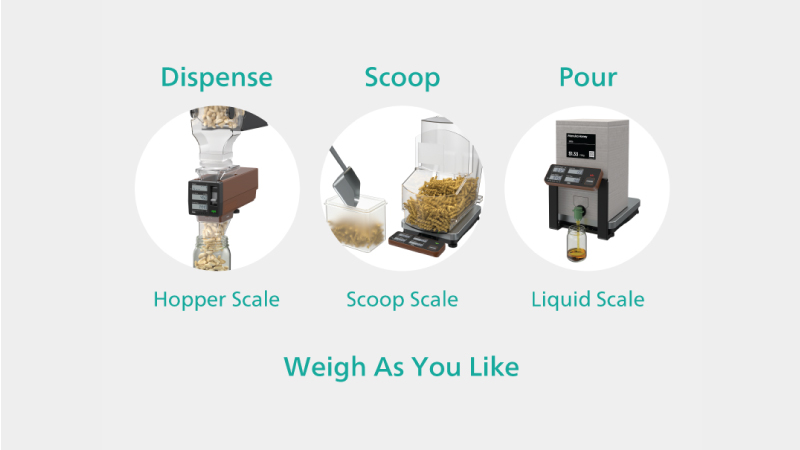

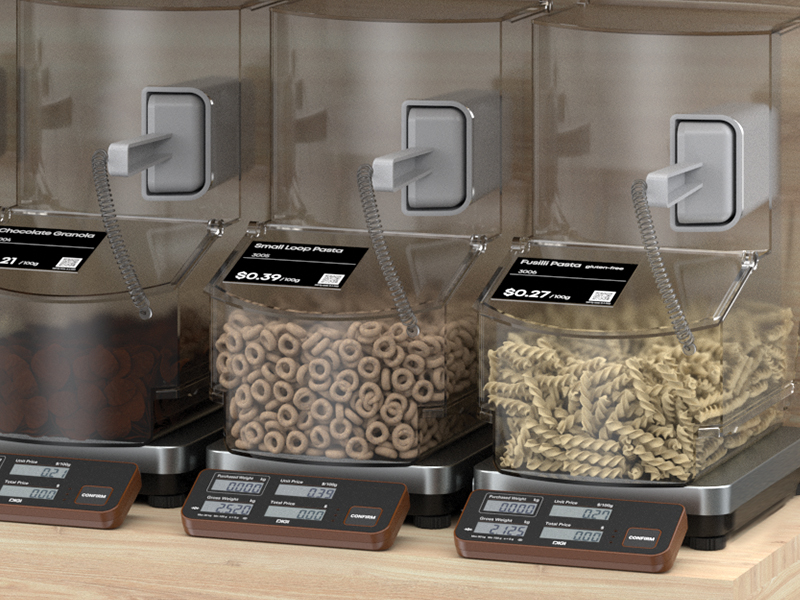

Weigh as You Dispense/ Scoop/ Pour
To accommodate different container-filling methods and dispenser types, this sustainable solution incorporates 3 types of scales so that customers can weigh as they like.
Packaging-Free Shopping

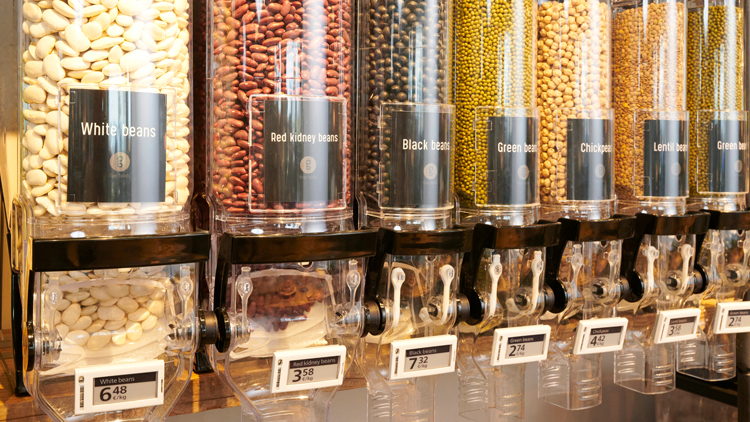

The All-In-One Bulk System redefines the standards for zero waste shopping at the bulk station as it encourages customers to bring their own containers while offering hygienic product handling.

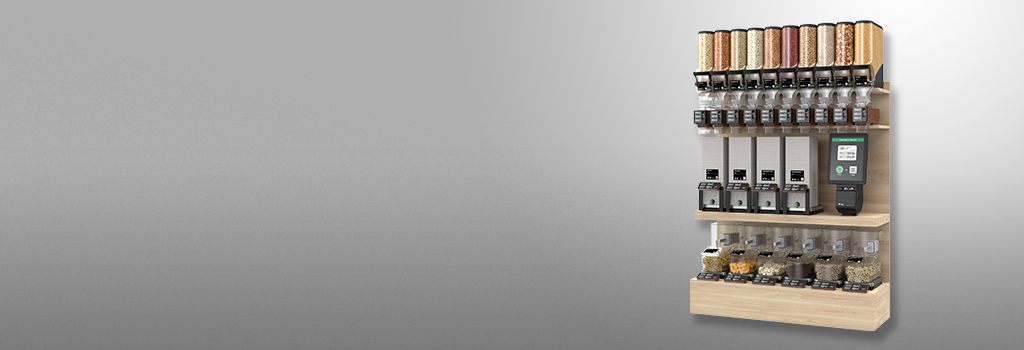

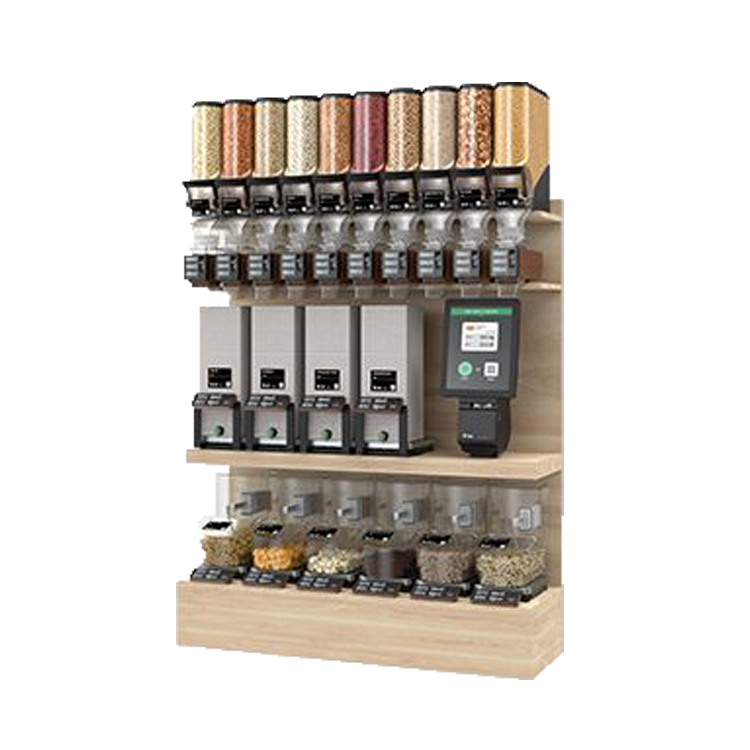

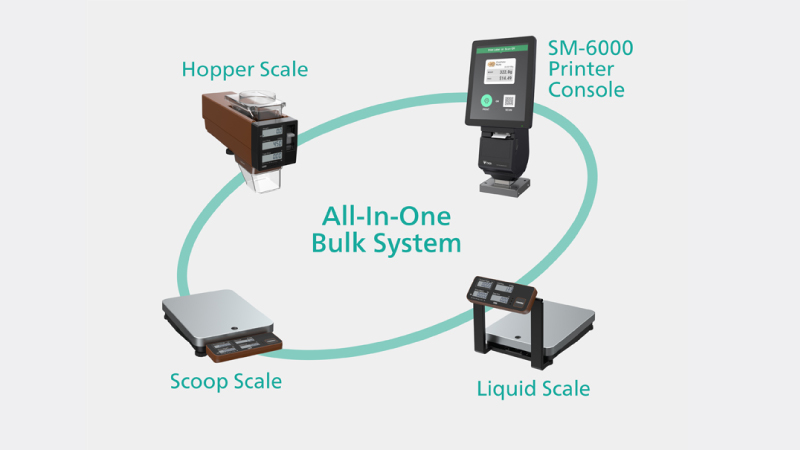

Flexible Configuration

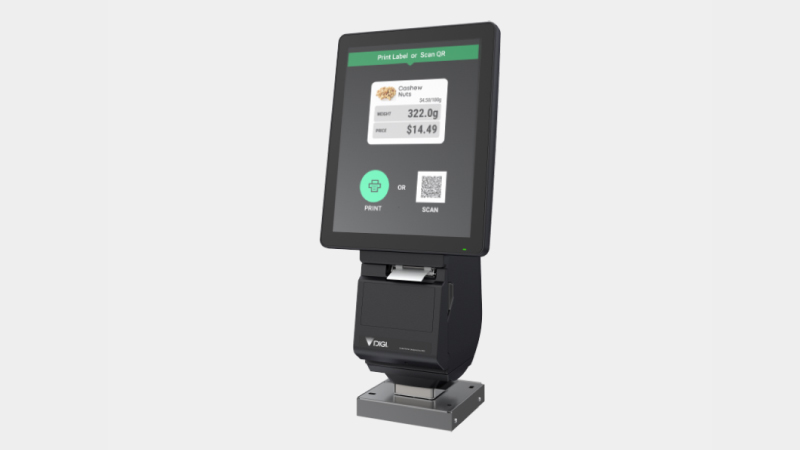

Each setup consists of only a single SM-6000 Printer Console that can be linked to multiple Hopper, Scoop and Liquid Scales, allowing retailers to mix and match different types of dispensers while offering a wider selection of packaging-free products.

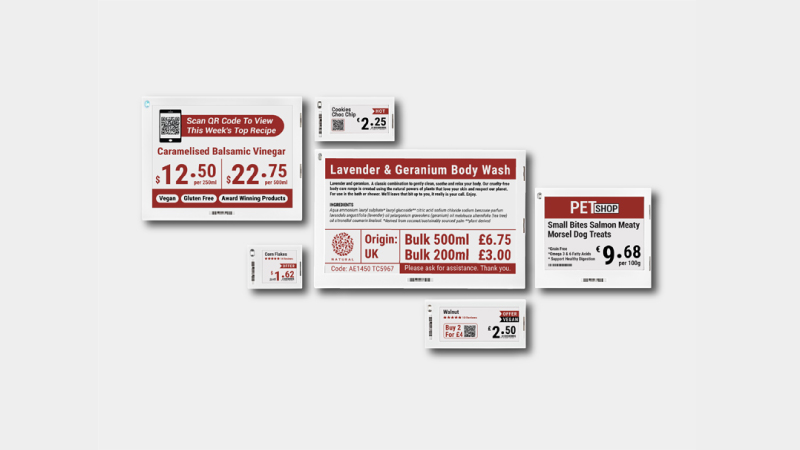

Electronic Signage Label - InfoTag
DIGI's InfoTag is an enterprise-grade electronic shelf label that grants pricing automation via wireless updates. It can be easily incorporated on the Hopper, Scoop and Liquid Scales to display product informations or promotions with agile price updates.
Specifications

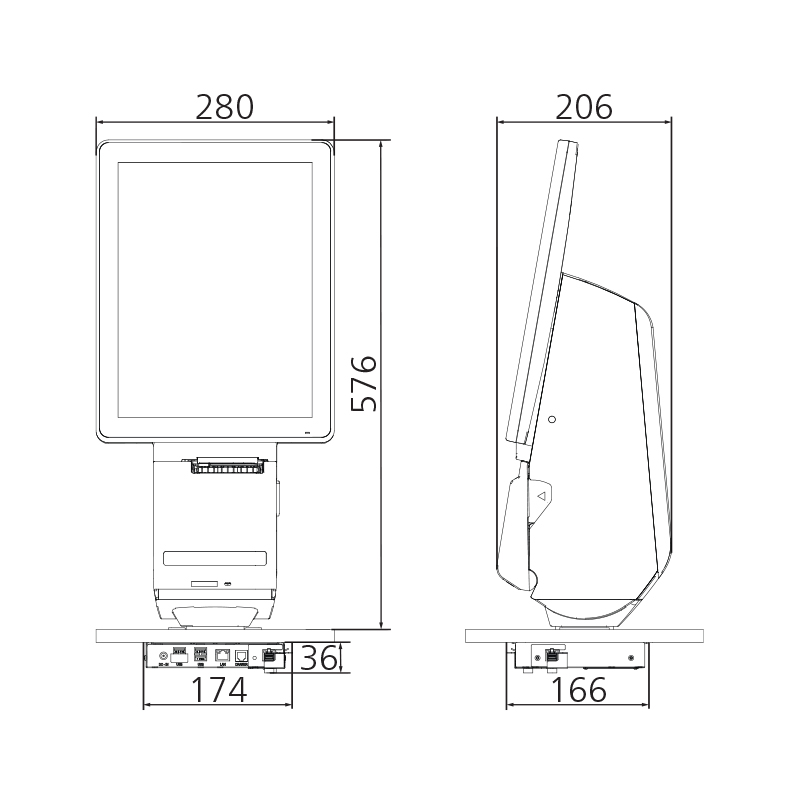

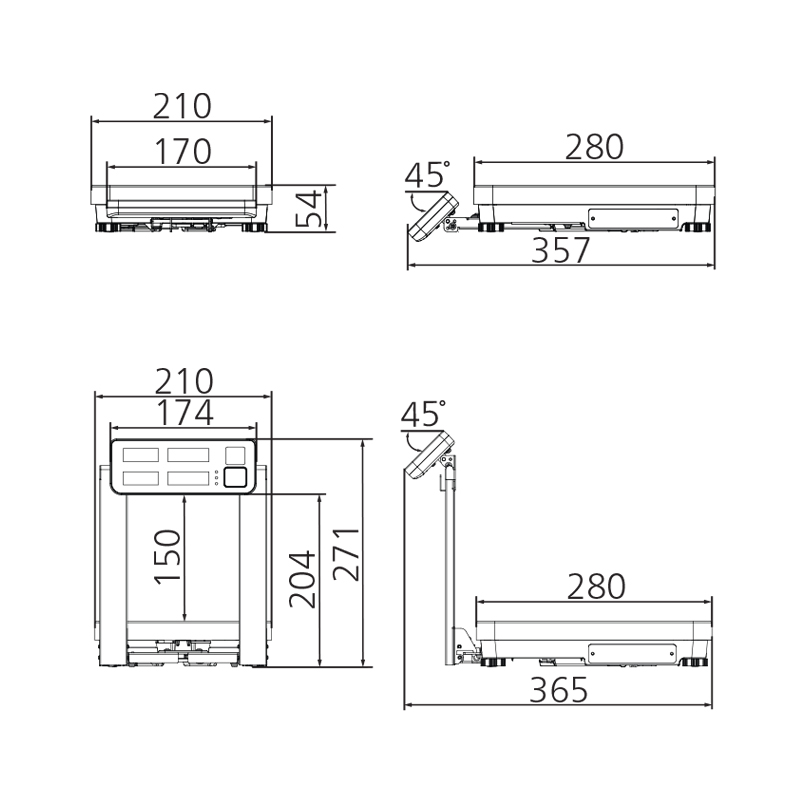

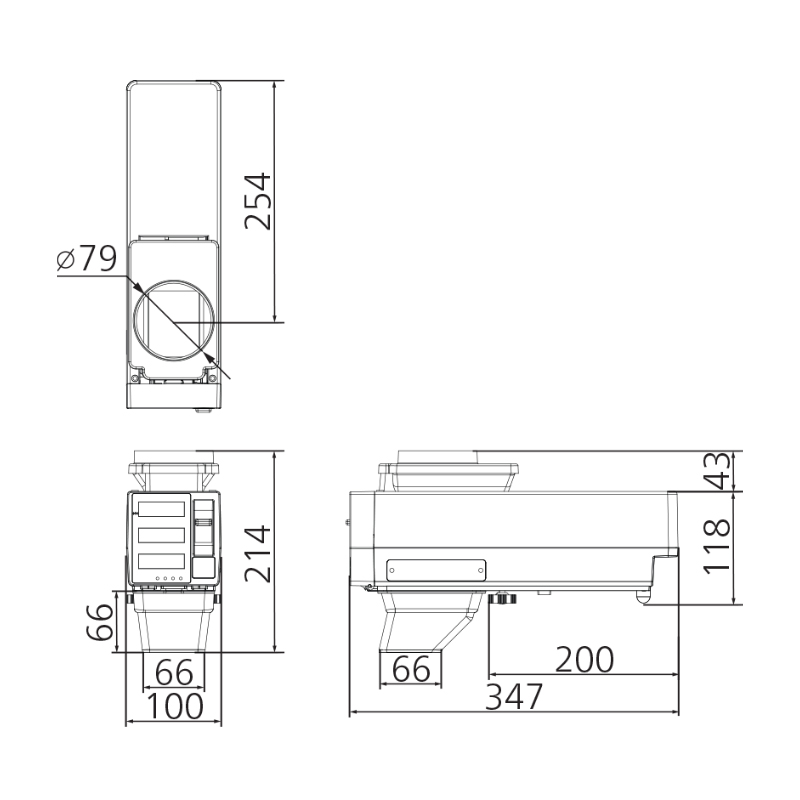

Dimensions
| Capacity | Model | Resolution | Weighing Range | Deviation |
|---|---|---|---|---|
| Max 1.5kg | Hopper Scale | 1 / 1,000 | 0 - 0.5kg | e = 0.5g |
| 1 / 1,500 | 0.5 - 1.5kg | e = 1g | ||
| Max 30kg | Scoop and Liquid Scale | 1 / 6,000 | 0 - 30kg | e = 5g |
| Model | Hopper Scale | Scoop Scale | Liquid Scale | SM-6000 Printer Console | |||
|---|---|---|---|---|---|---|---|
| Dimension W x D x H (mm) | 100 x 347 x 214 | 210 x 357 x 54 | 210 x 365 x 271 | 280 x 206 x 576 | |||
| Display | 3 x 7 Segments LCD (6 digits) |
4 x 7 Segments LCD (5 digits and 6 digits x 2 each) |
15" TFT XGA with Capacitive Touch (768 x 1024) |
||||
| Keyboard | 1 x Confirm Button | ― | |||||
| Label / Receipt | Types | ― | Linerless With Auto-Cutter | ||||
| Roll Diameter | Max 95mm | ||||||
| Roll Width | Max 62mm | ||||||
| Print Width | Max 61mm | ||||||
| Printing Speed | Max 150mm / second* | ||||||
| Print Resolution | 300 dpi | ||||||
| Power Source | DC 7V (Max 100mA) | AC - DC Power Adapter | |||||
| Interface (with DC Power) | RS-485 (RJ-45 Connector) | ||||||
| Maximum Connection | Support up to 100 units of Hopper, Scoop and Liquid Scales per SM-6000 Printer Console | ||||||
| Operating Temperature | -10℃ to +40℃ | ||||||
| Humidity | 15% to 85% RH Non-Condensation | ||||||
| Net Weight | 1.4 kg | 3.3 kg | 3.7 kg | 8 kg | |||
Variations

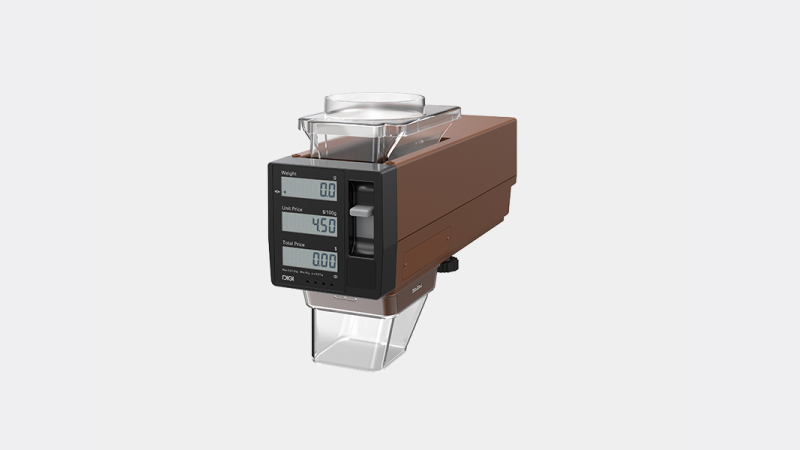

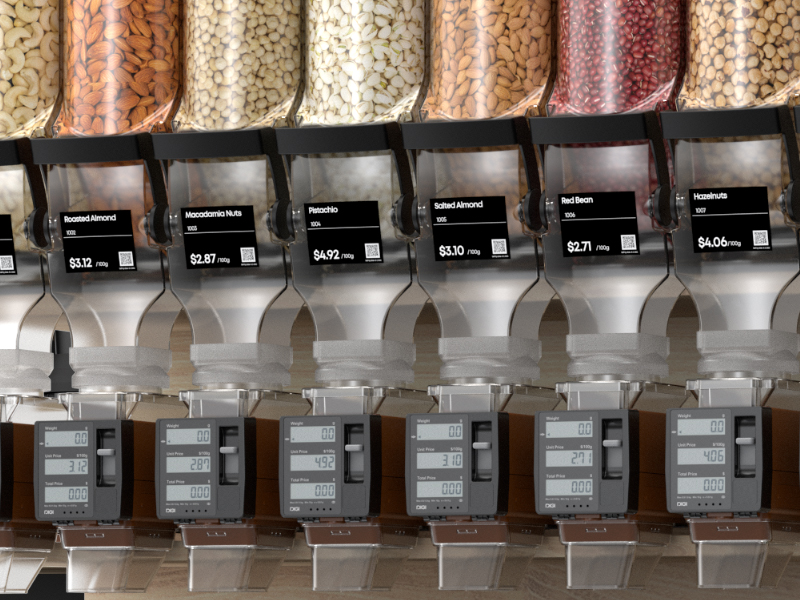

Hopper Scale

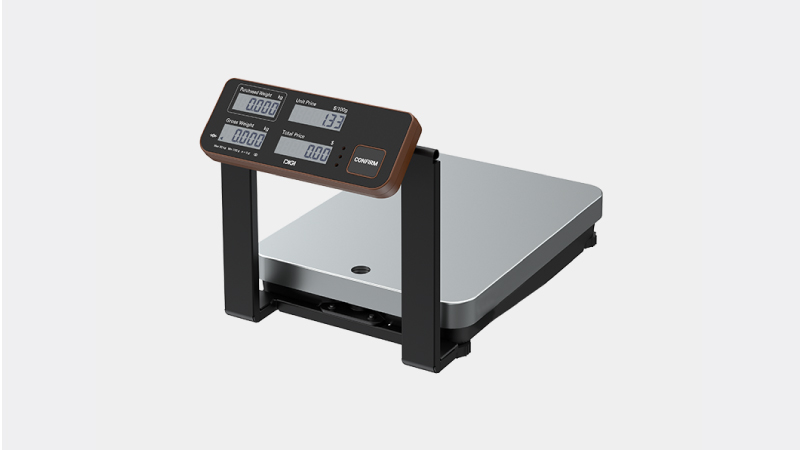

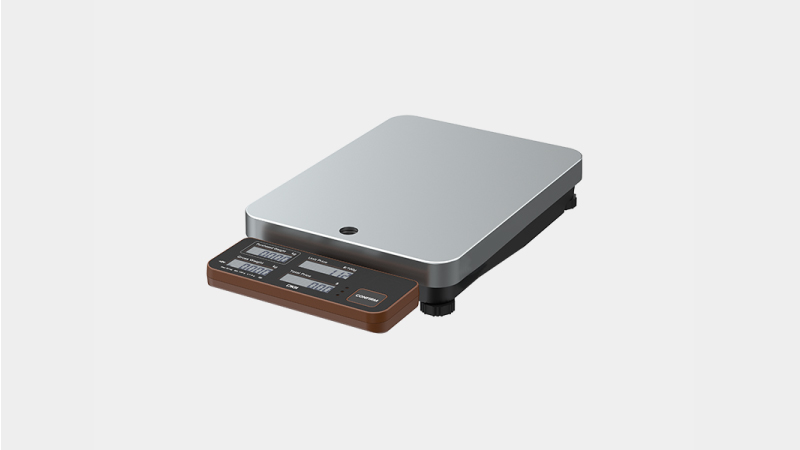

Scoop Scale

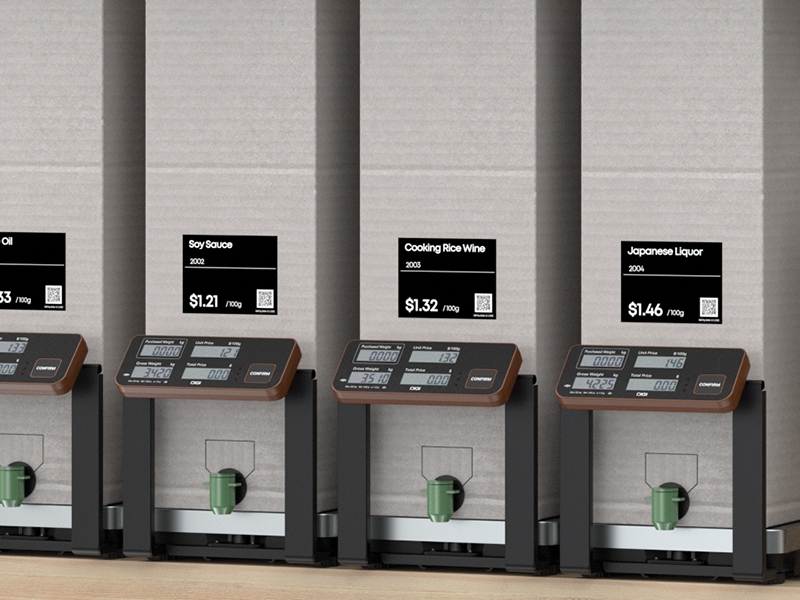

Liquid Scale
