Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.
A convenient and complete solution for a wide range of in-store applications

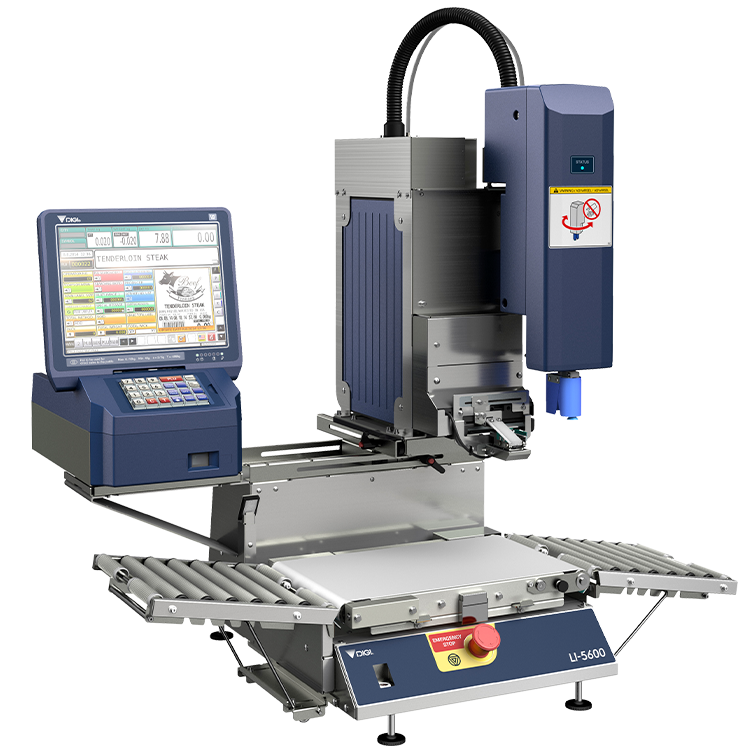

LI-5600
RetailMain Features
The LI-5600 maximizes efficiency of in-store pre-packaging operation and has a compact, space-saving design. Compact design provides opportunities in various applications that require a simple, unique solution for automatic and semi-automatic labeling. The LI-5600 can be easily connected with existing equipment, such as MAP packaging machines in the pre-packaging area.
Fast, accurate and flexible labeling
A newly designed 360° rotating labeler arm offers automatic label placement on packages even with long-cut linerless labels.
Catch the Shopper’s Eye While Saving on Labels

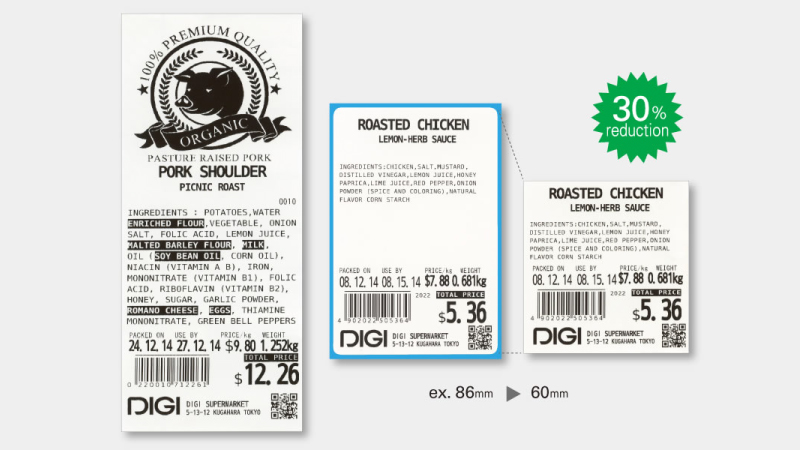

The linerless label automatically adjusts the label size to fit various amounts of text and graphics. Custom labels are printed on a continuous roll of linerless labels and cut according to the size needed. The new, higher resolution of 300 dpi makes the fine print for nutrition and allergen information crisp and easy to read.
User-friendly operation

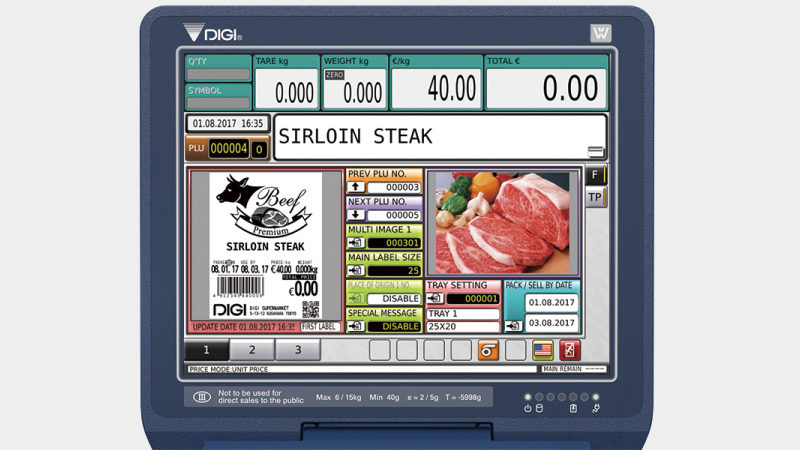

Large color touch screen provides various functions to simplify operation, such as easy PLU searching, convenient print viewing and free key layouts to increase speed and efficiency.
Detachable conveyor
Clean inside the machine by simply removing the conveyor to help maintain hygienic work conditions. No tool required to detach.
Specifications

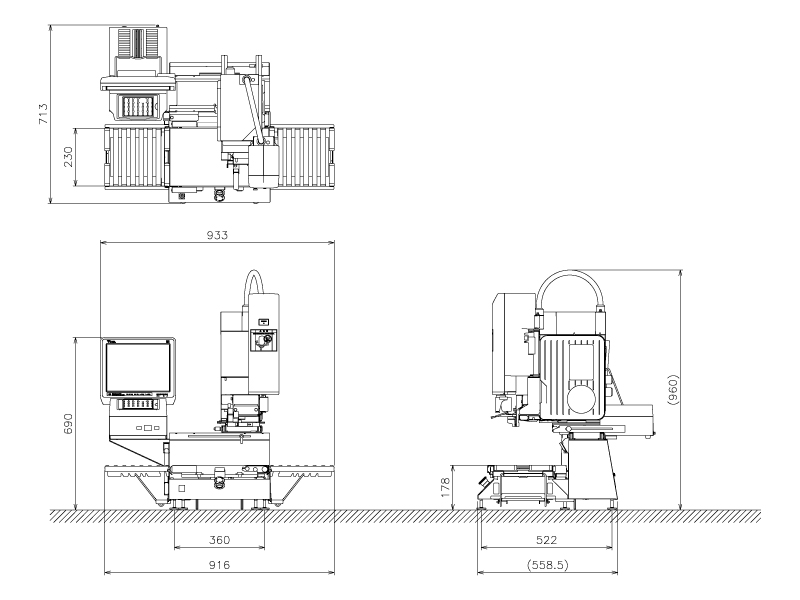

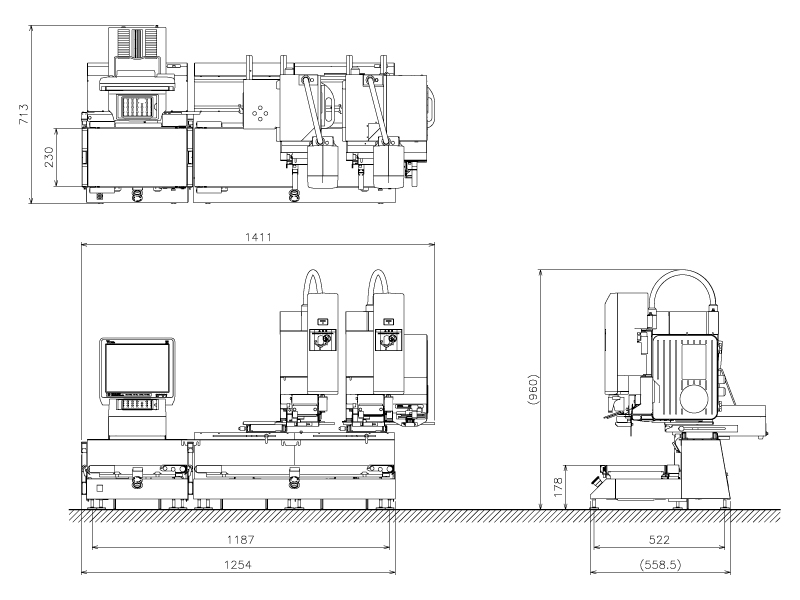

Dimensions
Conveyor
| Model | Type A | Type B | |
|---|---|---|---|
| Package Size | Width | 50-390mm/1.9-15.4 inches | |
| Height | 1-150mm/0.04-5.9inches | ||
| Depth | 50-230mm/1.9-9.1inches | ||
| Speed | Max. 26 packages/min. | Max. 35 packages/min. | |
| Direction | Left → Right or Right → Left | ||
Weighing
| Model | Type A and B | ||
|---|---|---|---|
| Capacity | Max 3/6kg | Max 6/15kg | Max 30lb |
| Scale interval | e=1/2g | e=2/5g | e=0.01lb |
| Weighing range | 20g-6kg | 40g-15kg | 0.20-30lb |
| Conveyor capacity | Max 6kg | Max 15kg | Max 30lb |
Labeling
| Model | Type A and B | |||
|---|---|---|---|---|
| Label type | Linerless (LL) | Die-cut (DC) | ||
| Labeling application | Automatic and Manual application | |||
| Label size | Automatic application | Width | 44-78mm/1.73-3.07inches | 40-80mm/1.57-3.15inches |
| Length | 28-105mm/1.10-4.13inches | 28-105mm/1.10-4.13inches | ||
| Manual application | Width | 44-78mm/1.73-3.07inches | 40-80mm/1.57-3.15inches | |
| Length | 20-500mm/0.79-19.69inches* | 20-150mm/0.79-5.91inches | ||
| Labeling angle | 0 or 90 or 180 or 270 degree | |||
| Dot density | 12dot/mm (300dpi) | |||
| Font | True type font | |||
Console/ Display/ User Interface
| Display panel | TFT LCD color(12.1inches) touch panel |
|---|---|
| Keypad | Pictogram or English |
General
| Model | Type A | Type B |
|---|---|---|
| Externals | Resin and stainless steel construction | |
| Power source and power consumption | 230V;1φ;50/60Hz;0.7A;160W | Scale Conv: 230V;1φ;50/60Hz;0.8A;135W Labelling Conv : 230V;1φ;50/60Hz;0.9A;165W |
| Net weight | Approx. 58kg | Approx. 111kg (TWIN + POP labeler type) |
| Operation humidity | 90%RH (max.) with no condensation | |
Variations

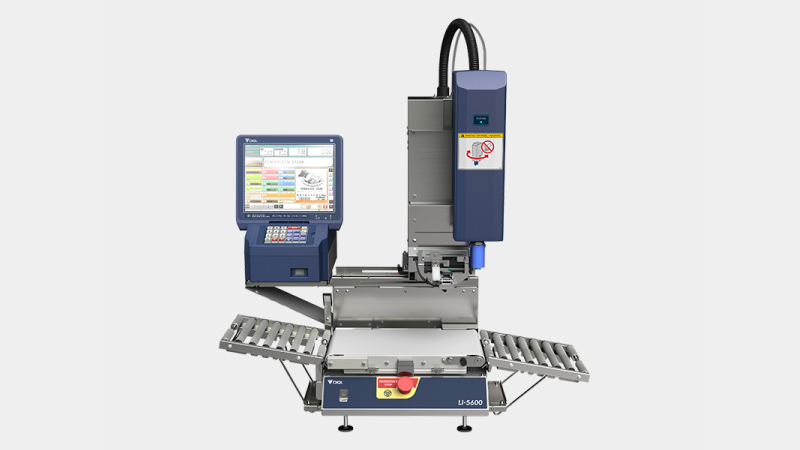

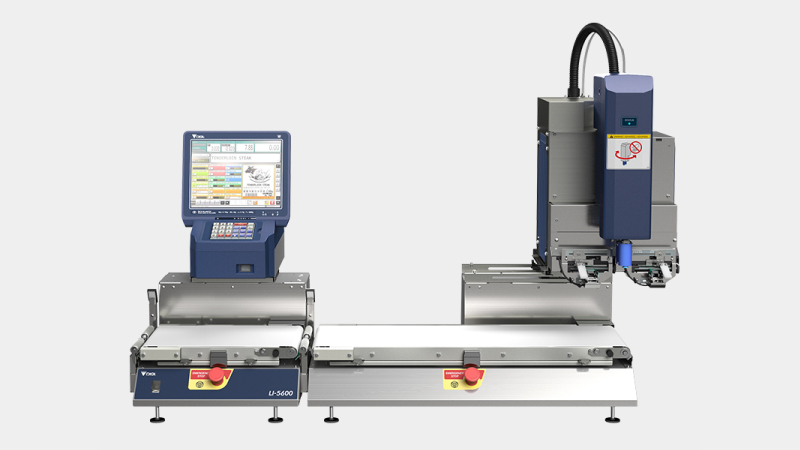

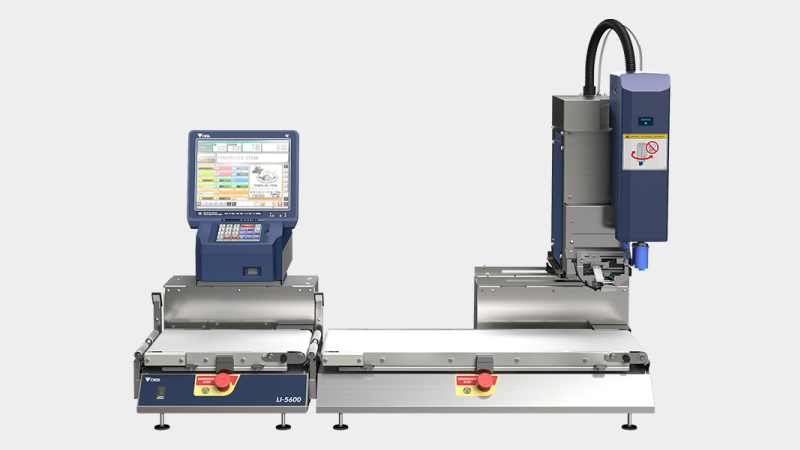

Single labeler type
Single labeler type

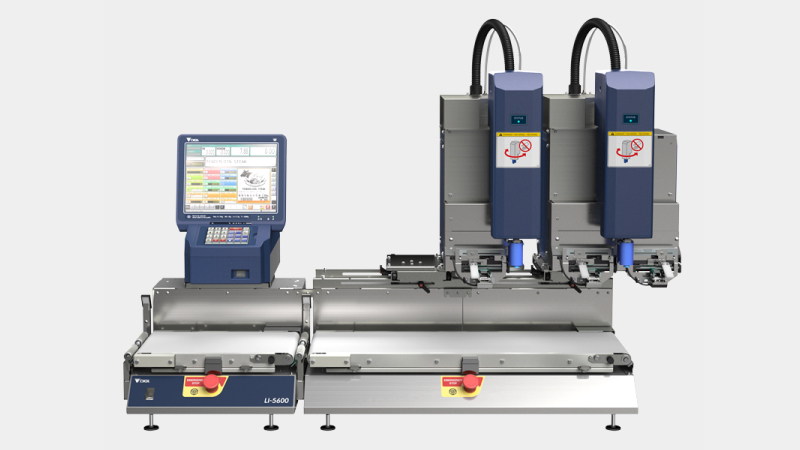

Twin labeler type
Single labeler with POP labeler
