Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

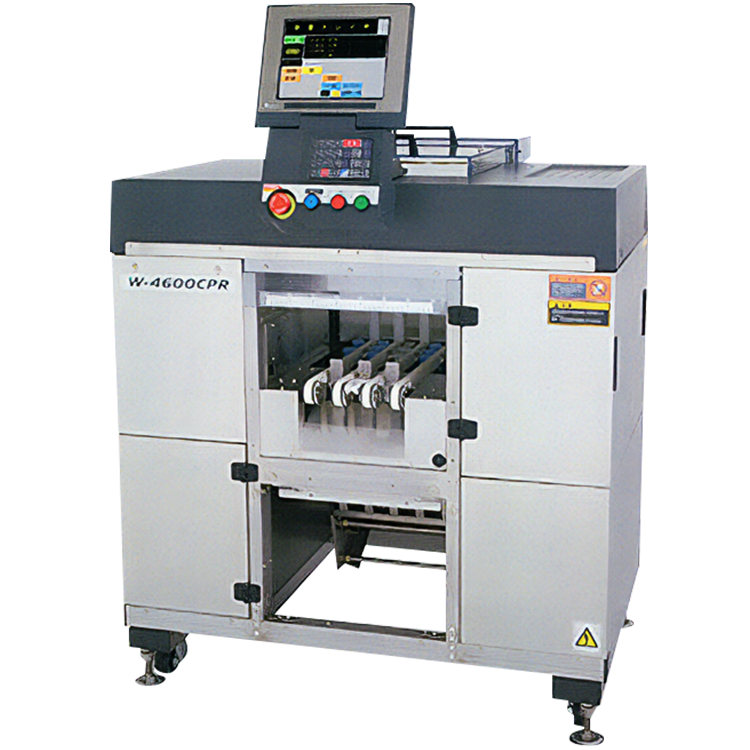

W-4600CPR-WP02

In-line automatic wrapping system

W-4600CPR

Retail

Main Features

W-4600CPR is a wrapping system designed for in-line operation capable of wrapping large packages in spite of its compact size.  Increases productivity with high speed processing of up to 30 packages a minute

W-4600CPR-WP04-1

Selectable infeed/outfeed combinations

Various infeed and outfeed options are available to suit factory operation and layout.

W-4600CPR-WP04-2

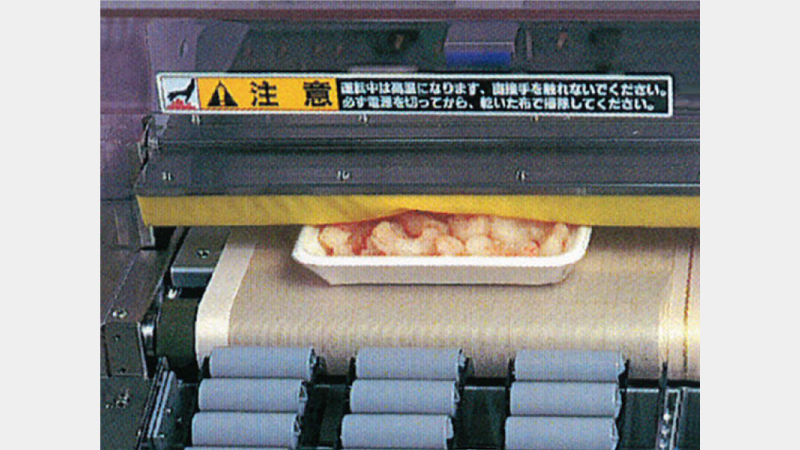

Tray pressor for secure sealing

After wrapping, a tray pressor firmly welds the film to the bottom of the tray. This prevents the wrapping from coming loose during transport after packaging.

W-4600CPR-WP04-3

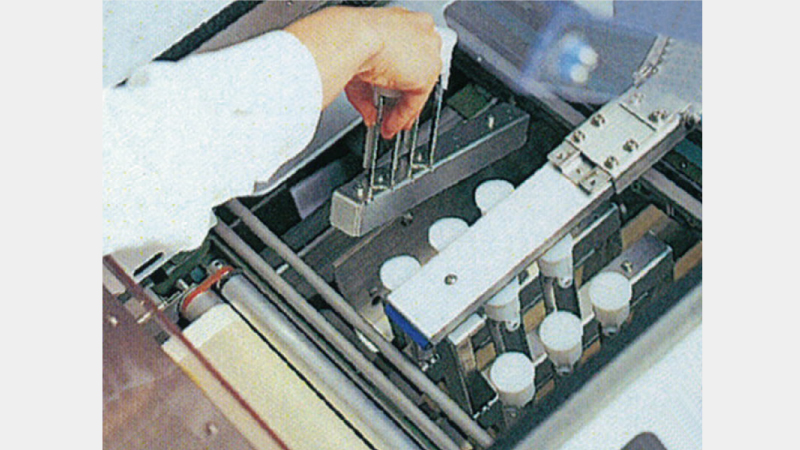

Easy cleaning

Elevator heads can all be removed for cleaning to maintain hygienic conditions.

Specifications

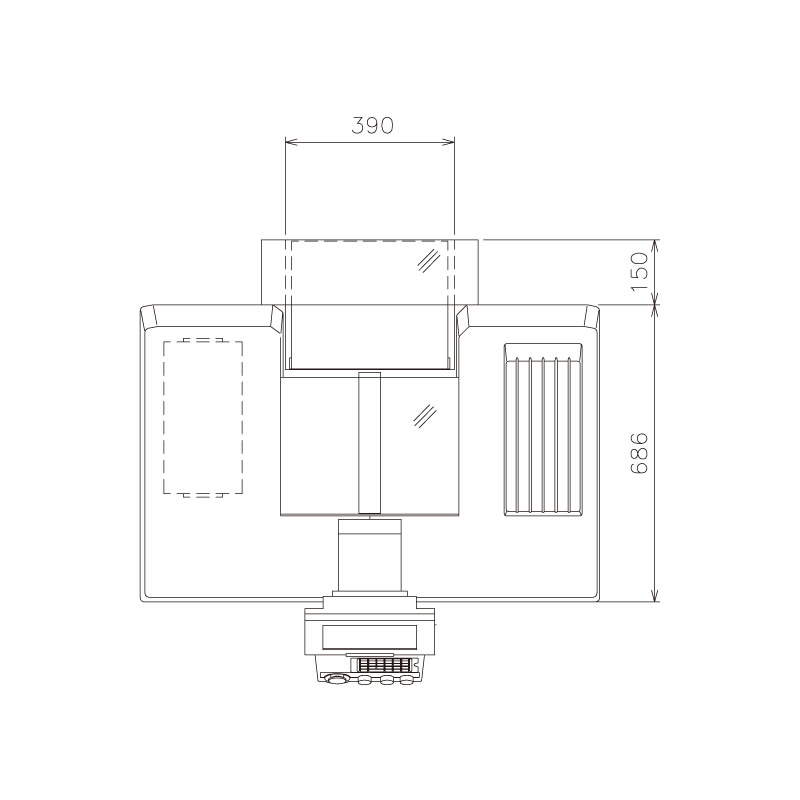

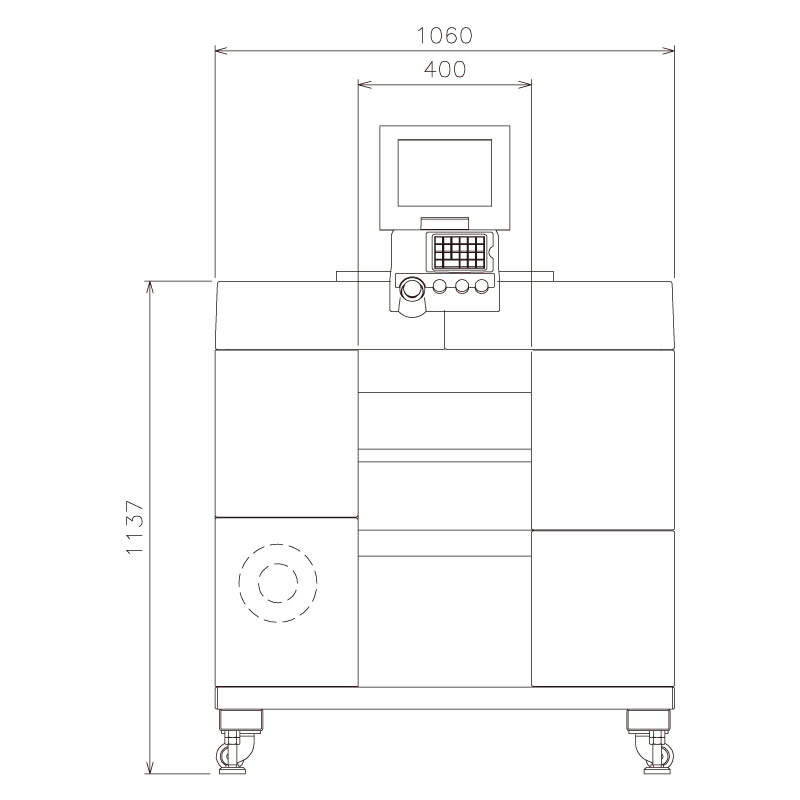

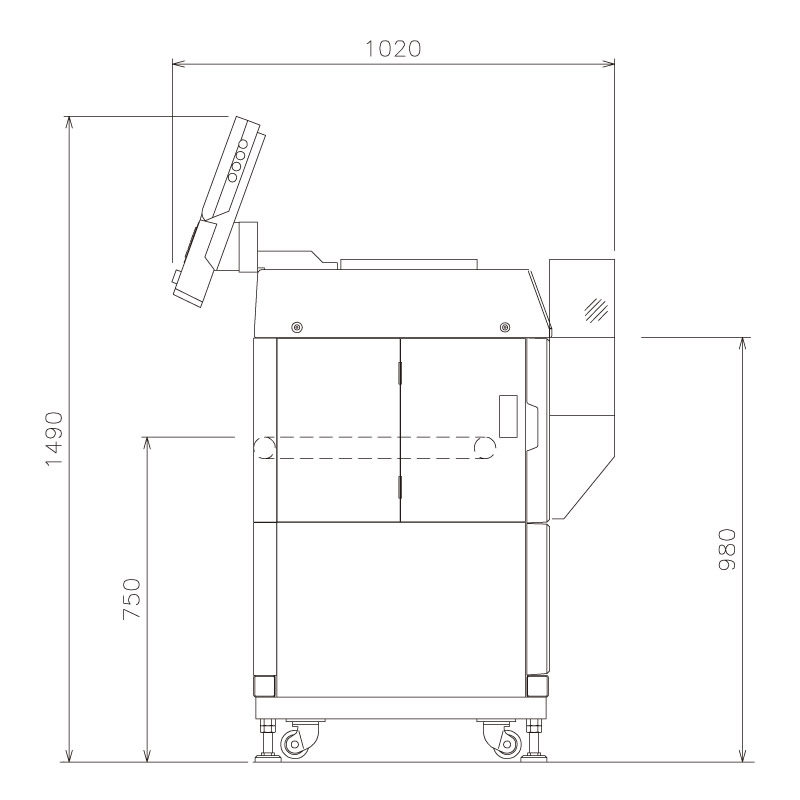

Dimensions

  • W-4600CPR-WP05-1
  • W-4600CPR-WP05-2
  • W-4600CPR-WP05-3

Wrapping

Wrapping Speed Max. 30 packages/min.
Package Size Width  : 130 - 350mm
Height :  10 - 150mm
Depth :  80 - 230mm
The maximum combination of the above dimension is not available and the available package size depends on the film width.
Film Roll Capacity One
Film Size Accepts 250 - 500mm rolls

Options

Infeed options

Infeed options can be selected according to application.

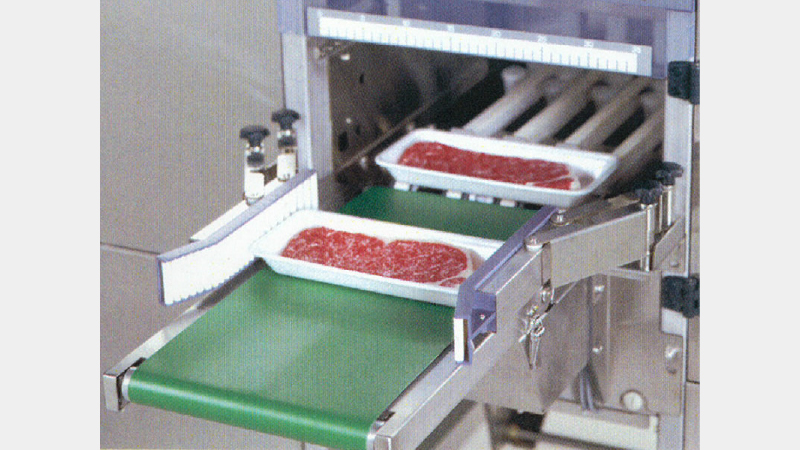

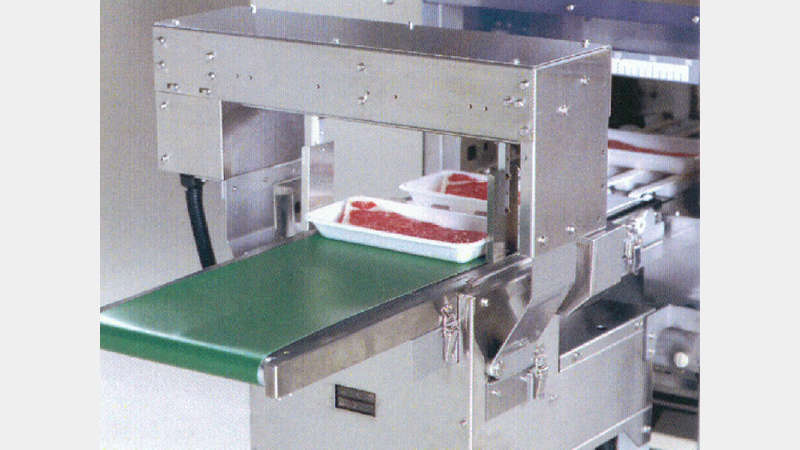

  • Centering conveyor - This option centers trays received from the preceding stage's conveyor before feeding them into the packaging machine.
  • Infeed conveyor - This is a compact conveyor for feeding trays into the packaging machine.

Outfeed options

Outfeed options can be selected according to application.

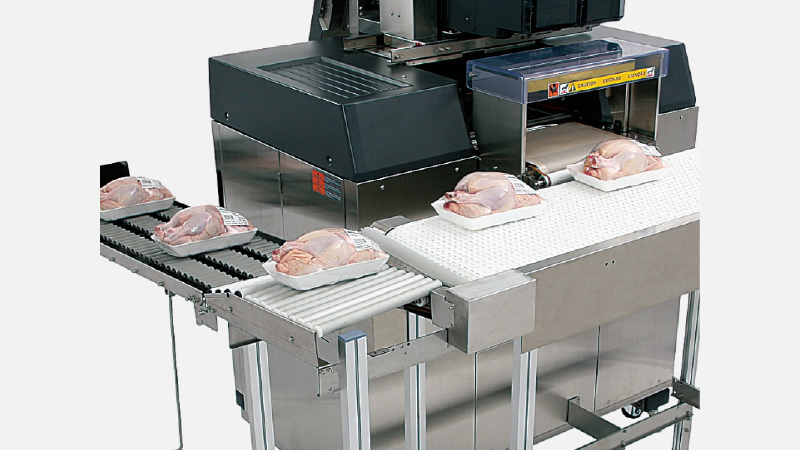

  • Long outfeed conveyor - Discharges packaged trays in a direct line and stocks them.

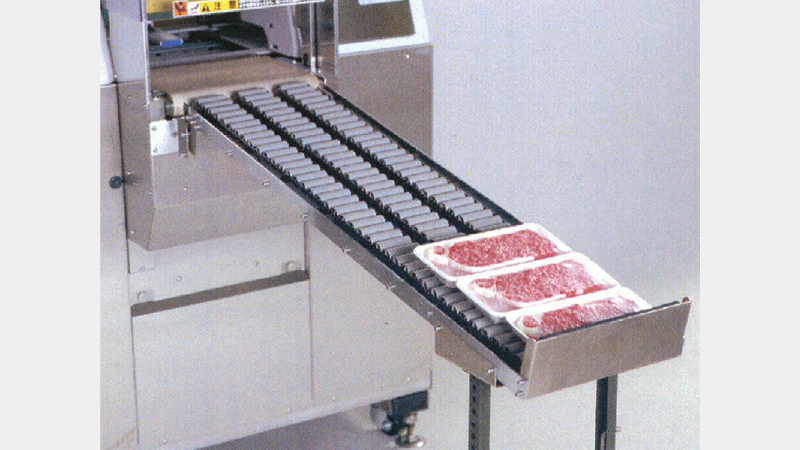

  • U-turn conveyor -Packaged trays are stocked at the front after passing forward on the left or right side of the packaging machine.
