Many automatic labelling functions for the food industry with proven results

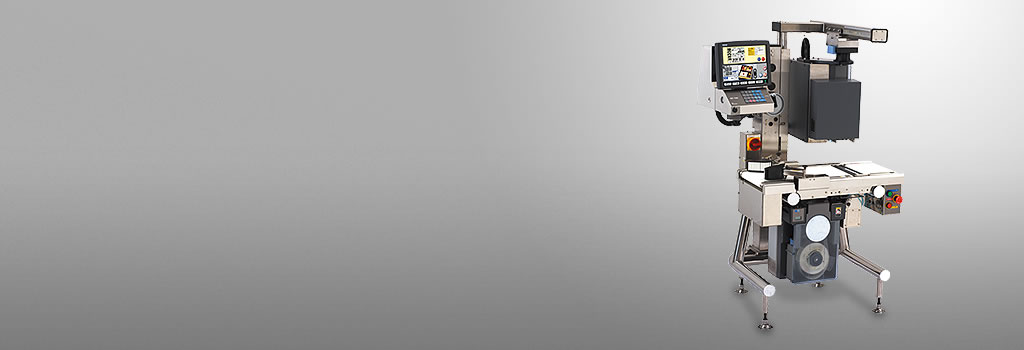

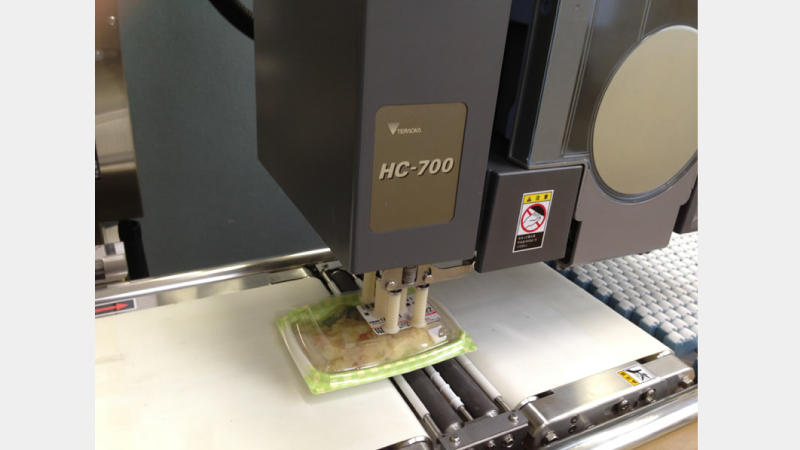

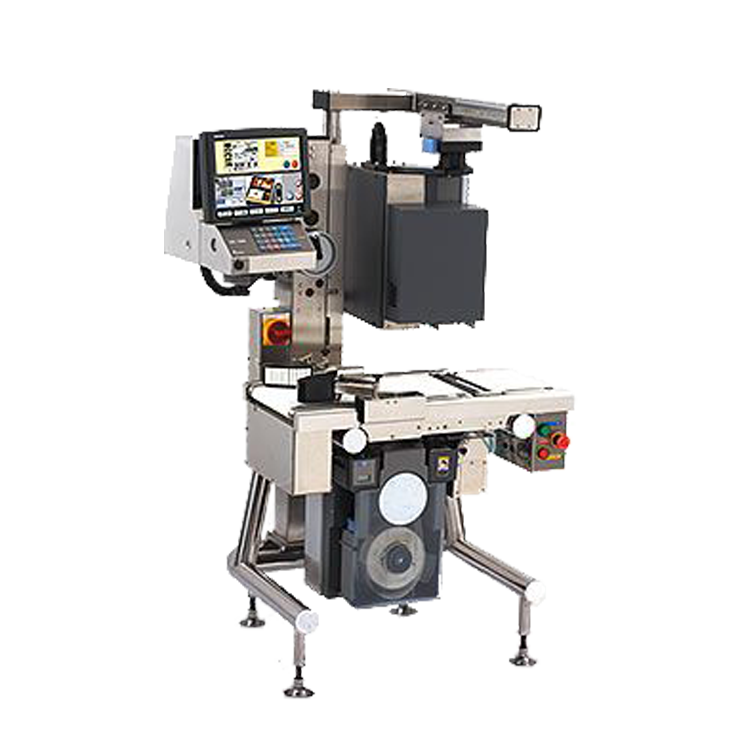

HC-700
Food IndustryMain Features
Based on field experience, the automatic labeler features a larger display with simpler operation for convenience stores and other vendors' use.
Labeler for present-day

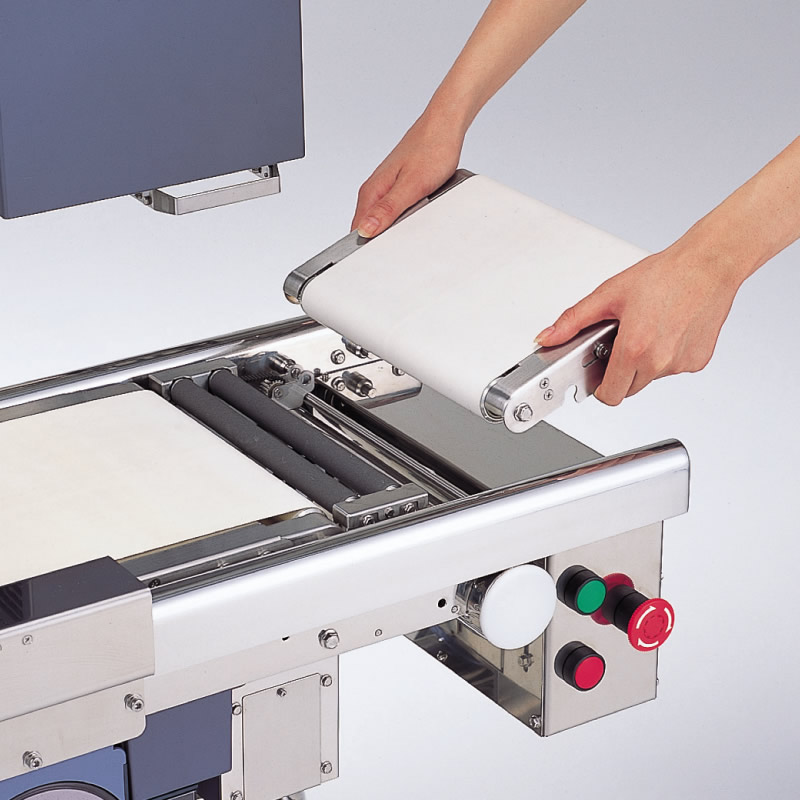

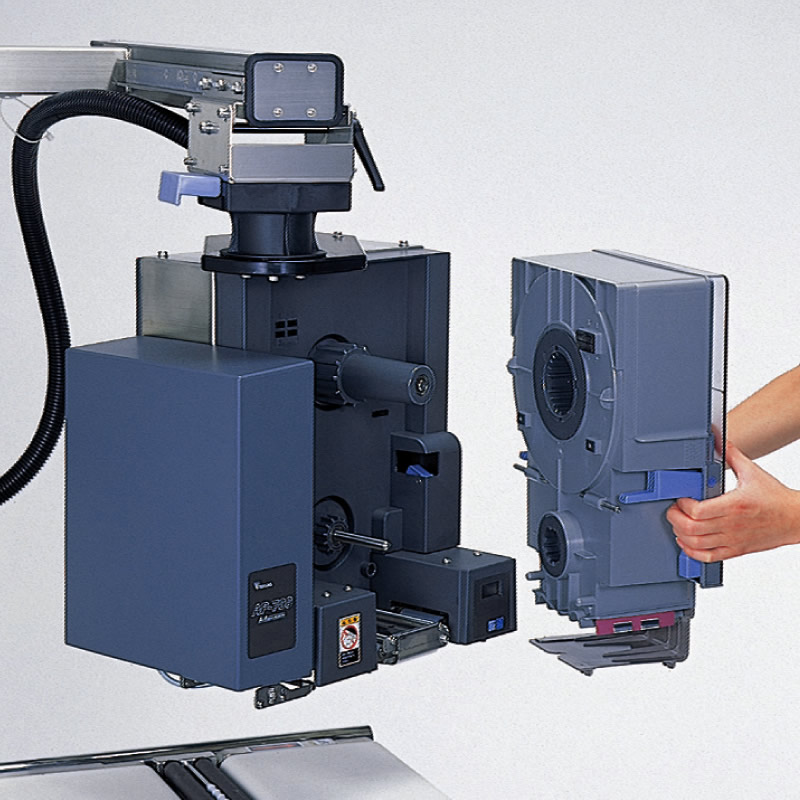

Labeling speed, accuracty, easy of cleaning, and footprint have all been improved. The entire labeling process is now much easier.

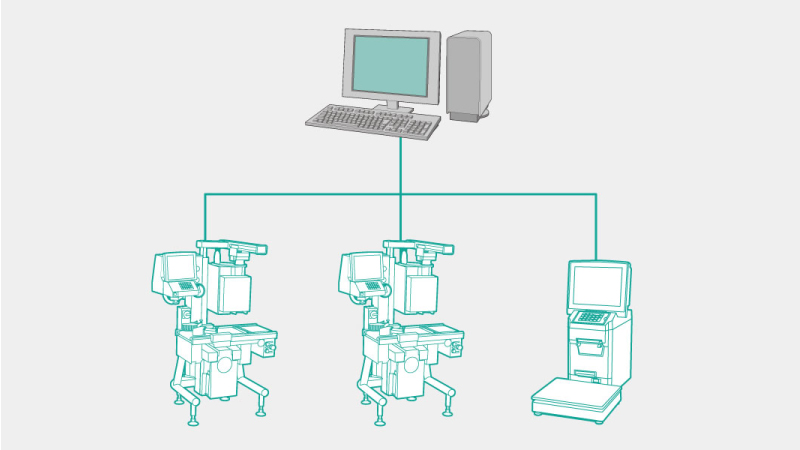

Uniform management of data
When connected with labeler controller PCS-L700, the following can be easily managed:
1.Label Master
2.Printed Date
3.Print Order
4.Labeling Progress
5.Labeling Results
Specifications

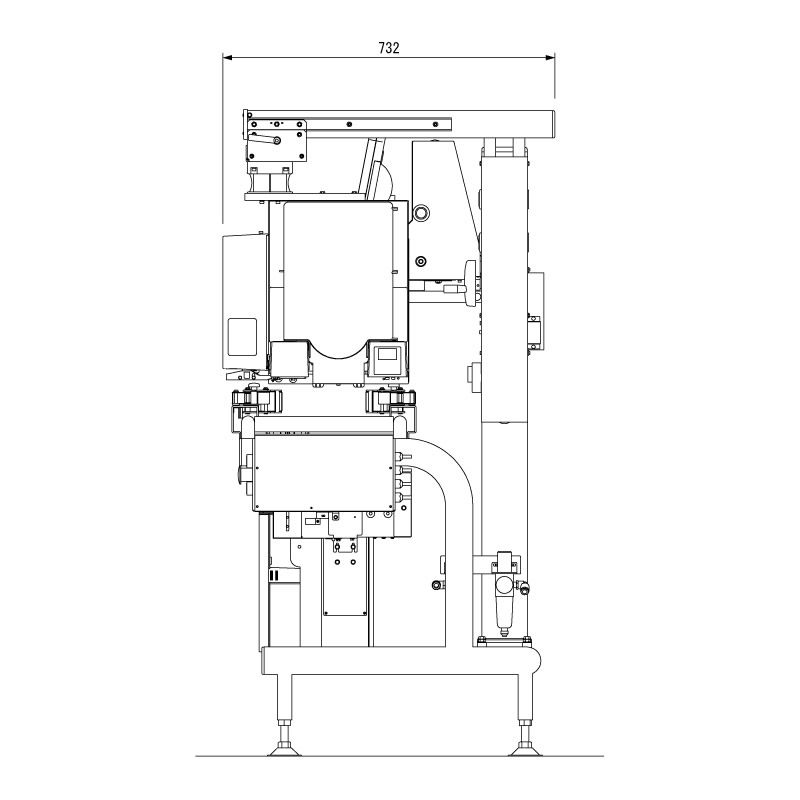

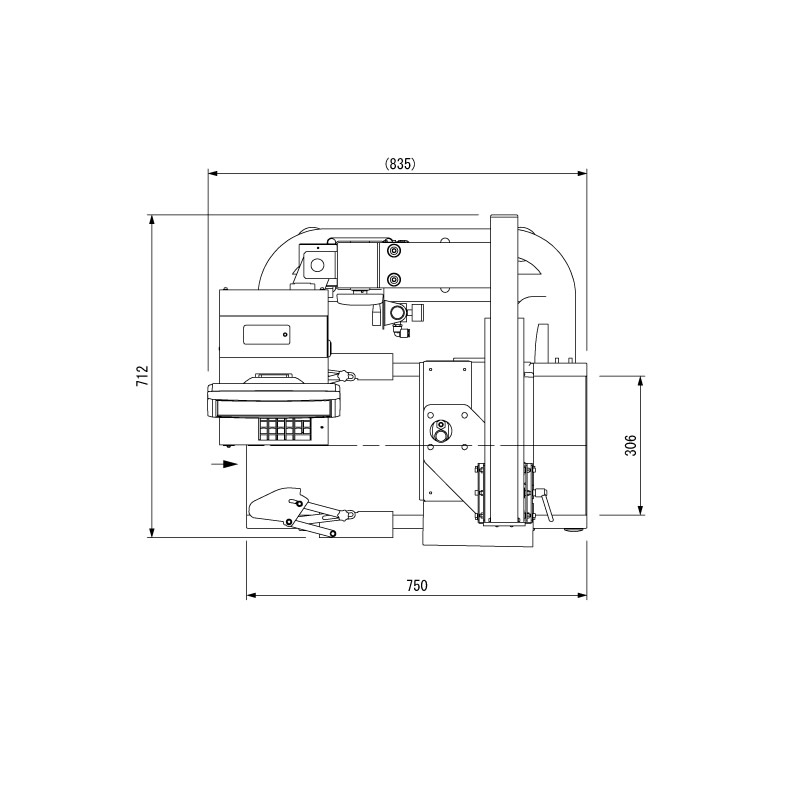

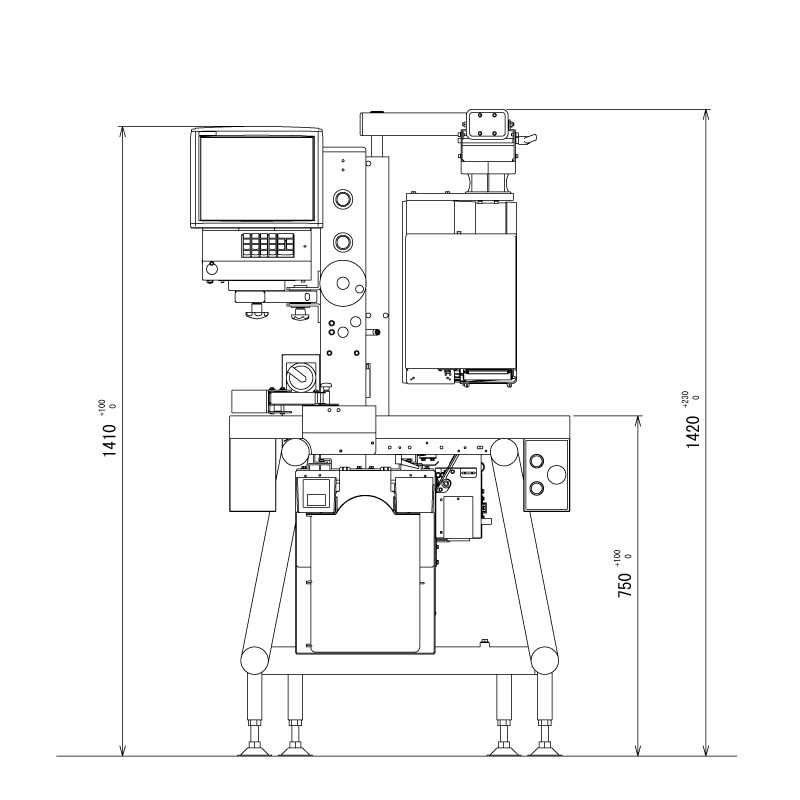

Dimensions
| Dimension of product for labeling(Recommended) | Width: 50 ～ 240mm | |
|---|---|---|
| Length: 70 ～ 350mm | ||
| Height: 15 ～ 190mm | ||
| Label dimensions | Top application(Standard cylinder) | Width: 40 ～ 80mm |
| Length: 28 ～ 100mm | ||
| Top application(High-precision cylinder) | Width: 20 ～ 80mm | |
| Length: 20 ～ 100mm | ||
| Bottom application | Width: 40 ～ 80mm | |
| Length: 28 ～ 80mm | ||
| Power consumption(standby/operation) | 82Ｗ/295W | |
| Main unit dimension | W681ｘL750ｘH1545mm | |
| Conveyor height | 800±50mm | |
| Power supply | Main unit:single phase 220-240v | |
| Air source | Top application:max1.6/Label Bottom application:max 2.36ℓ/Label | |
Variations
Top/Bottom Application Models
| Model | HC-700UB | HC-700U | HC-700B |
|---|---|---|---|
 |
 |
 |
|

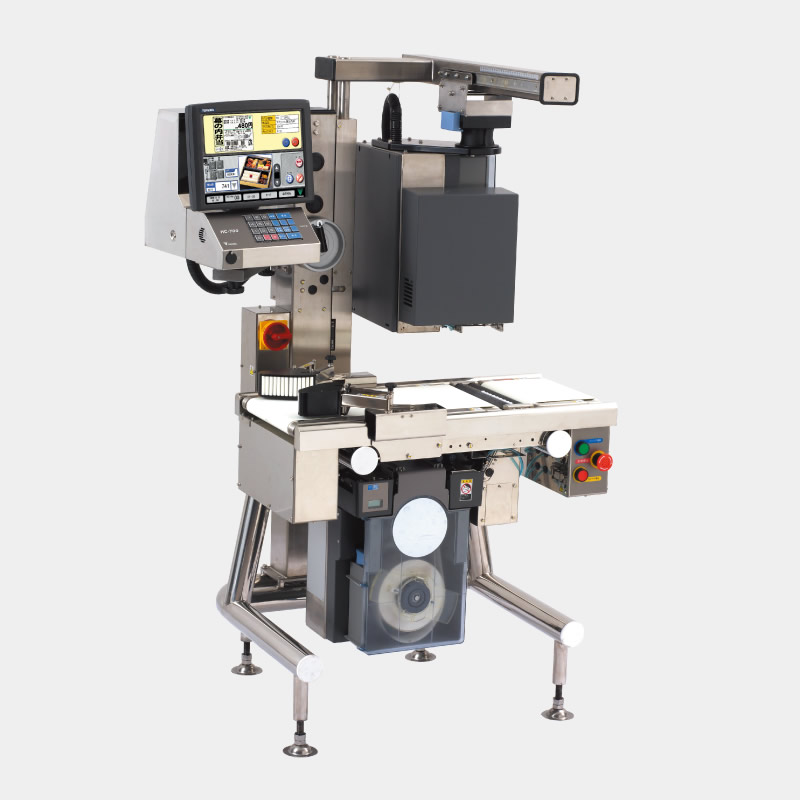

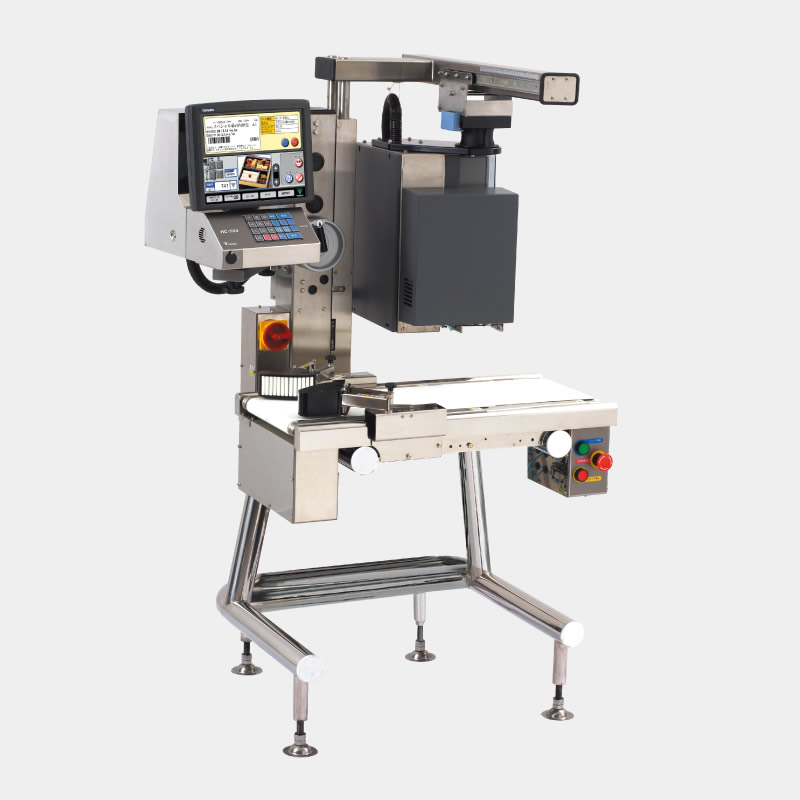

| Top Application | ● | ● | - |

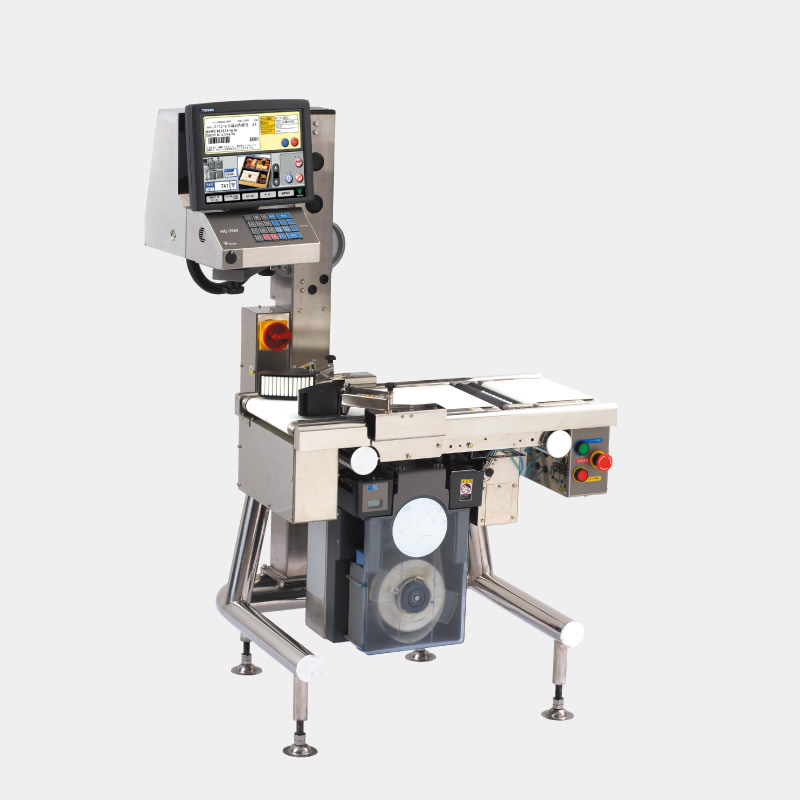

| Bottom Application | ● | - | ● |
Options

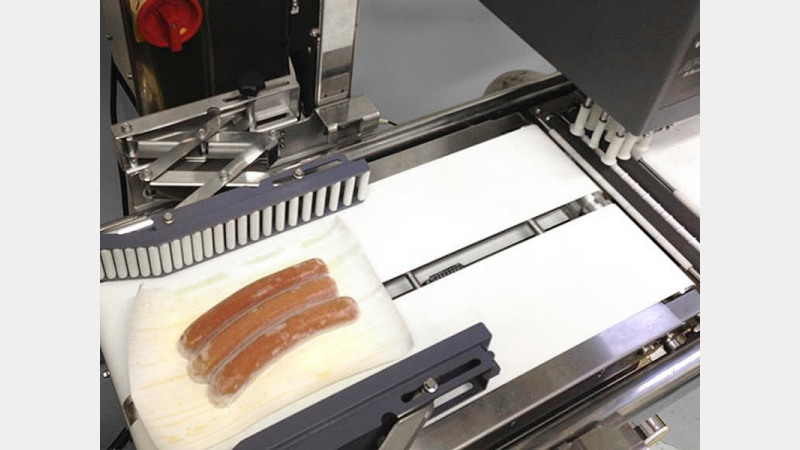

Split conveyor
Suitable for bags or thin products. The product sensor reads in a diagonal line.

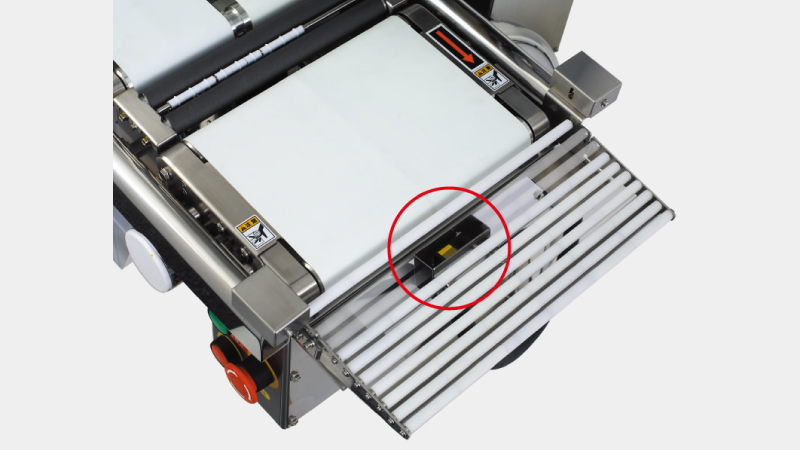

Label inspection（LIS-B1/LIS-D1)
LIS Series can automatically check for the bottom label while also handling various tasks.
