Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

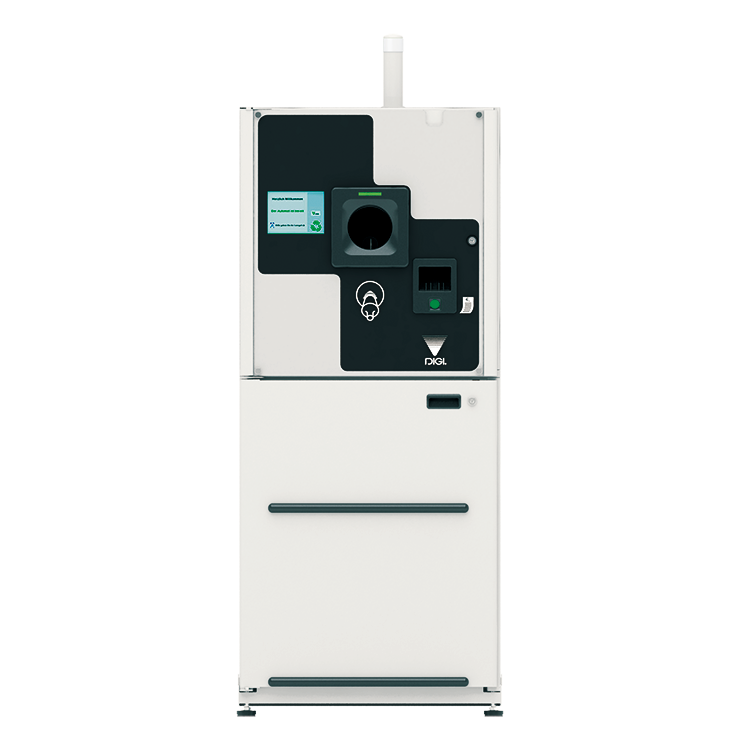

DIGI reverse vending machine for non-refillable containers
DRV-1000 Series
RetailMain Features
The DRV-1000 is a Reverse Vending Machine for return of non-refillable PET bottles and cans. Integrated compactors reduce the volume of non-refillable containers, saving storage space and reducing logistical costs. Modular structure provides customers with various sorting and compacting combinations to meet specific requirements.

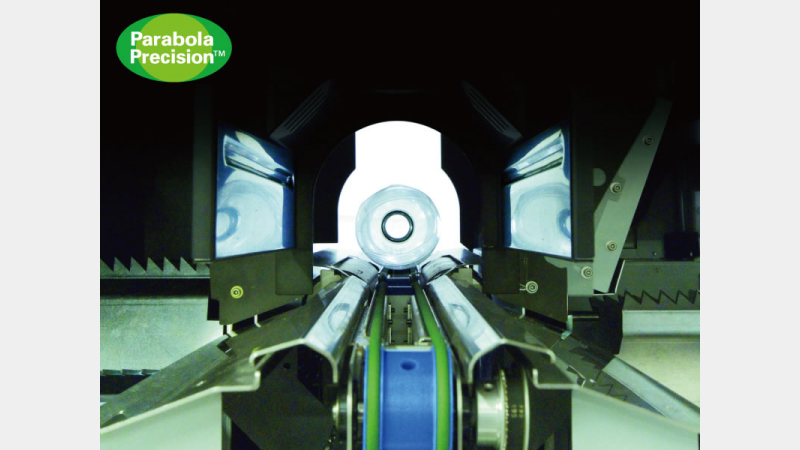

Quick & accurate recognition
DIGI's unique shape recognition technology uses a parabolic mirror to provide uniform light for the camera. This minimizes the influence of outside light and enables quick and accurate detection of various container shapes.

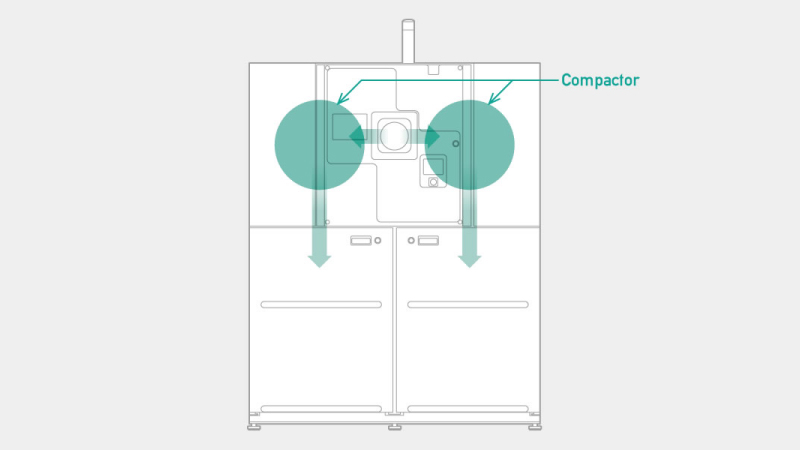

Small & light compactor
DIGI developed robust and durable, yet small and light compactors for non-refillable PET bottles and cans. Two separate compactors are located behind one insertion slot, splitting the burden of each compactor. Also the small, light compactor design is easy to maintain and service.

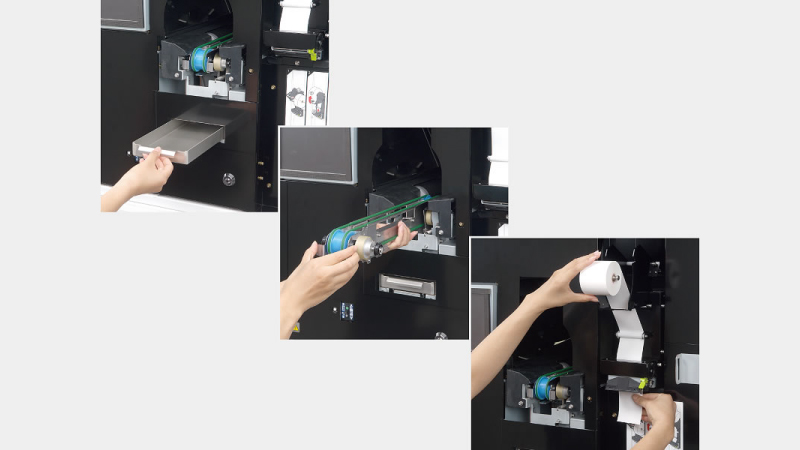

Easy maintenance
The DRV-1000 is designed to allow easy cleaning and maintenance for store personnel and service engineers. All cleaning areas are ergonomically accessible from the front of the machine. The easy cleaning helps keep the machine neat and sanitary, and presents an image of store cleanliness to shoppers.

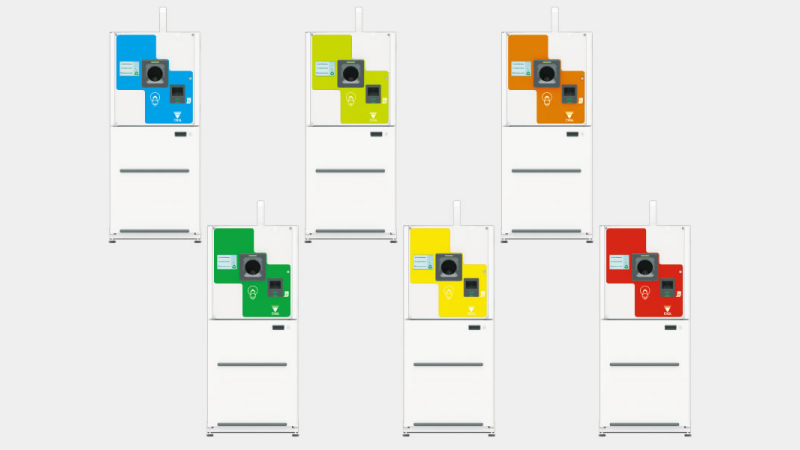

Design
The front panel is available in various colors to complement your store's color or atmosphere (an option). With a space-saving modular structure, the DRV-1000 easily blends in with any store design.
Specifications
Dimensions
Basic data
| Model name | DRV-1111 | DRV-1112 | DRV-1213 |
|---|---|---|---|
| Dimentions (mm) | W: 790 x D: 975 x H: 1,800 | W: 1,460 x D: 975 x H: 1,800 | W: 2,190 x D: 975 x H: 1,950 |
| Net weight (Approx.) | 325kg | 450kg | 700kg |
| Power source | 220-240V ; 50/60Hz | ||
| Power consumption | 8.80A, 1.2kW | ||
| Operating temparature | 10 to 35 degrees C | ||
| Operating humidity | 90%RH (max) | ||
Type of containers
| Model name | DRV-1111 | DRV-1112 | DRV-1213 |
|---|---|---|---|
| Refillable PET | |||
| Glass | |||
| Crate | |||
| Non-refillable PET | ● | ||
| Can | ● | ||
Container Recognition
| Model name | DRV-1111 | DRV-1112 | DRV-1213 |
|---|---|---|---|
| Container feeding | Horizontal, 1 insertion slot | Horizontal, 1 insertion slot | Horizontal, 2 insertion slots |
| Container feeding rate | Up to 50 containers per minute | ||
| Container types | Non-refillable PET bottles, cans | ||
| Container size | φ52mm diameterx150mm-φ130mm diameterx360mm | ||
| Container recognition | Barcode, Safety mark, Container shape | ||
| Container weight detection | Electronic scale | ||
Storage Box
| Model name | DRV-1111 | DRV-1112 | DRV-1213 |
|---|---|---|---|
| Storage box size (mm) | 1/2 Euro pallet collection (W: 600 x D: 800) | ||
| Number of storage box | 1 storage box | 2 storage boxes | 3 storage boxes |
Display & Printer
| Model name | DRV-1111 | DRV-1112 | DRV-1213 |
|---|---|---|---|
| Display | 8.4 inch TFT color display with touch screen function for maintenance. | ||
| Number of display | 1 unit | 1 unit | 2 units |
| Receipt printer | Thermal printer for text, images and barcodes. | ||
| Number of receipt printer | 1 unit | 1 unit | 2 units |
| Receipt roll size | φ150mm diameter, 57.5mm width | ||
Others
| Model name | DRV-1111 | DRV-1112 | DRV-1213 |
|---|---|---|---|
| Warning/Flashing light | Failure and Bin-full alert by a flashing light. | ||
| Number of Warning/Flashing light | 1 unit | 1 unit | 2 units |
| Monitoring/Remote control | Counter and clock are located inside the machine, Progress log with detailed information, Machine status is shown in the display, Diagnostic check remotely and through maintenance menu in the display. | ||

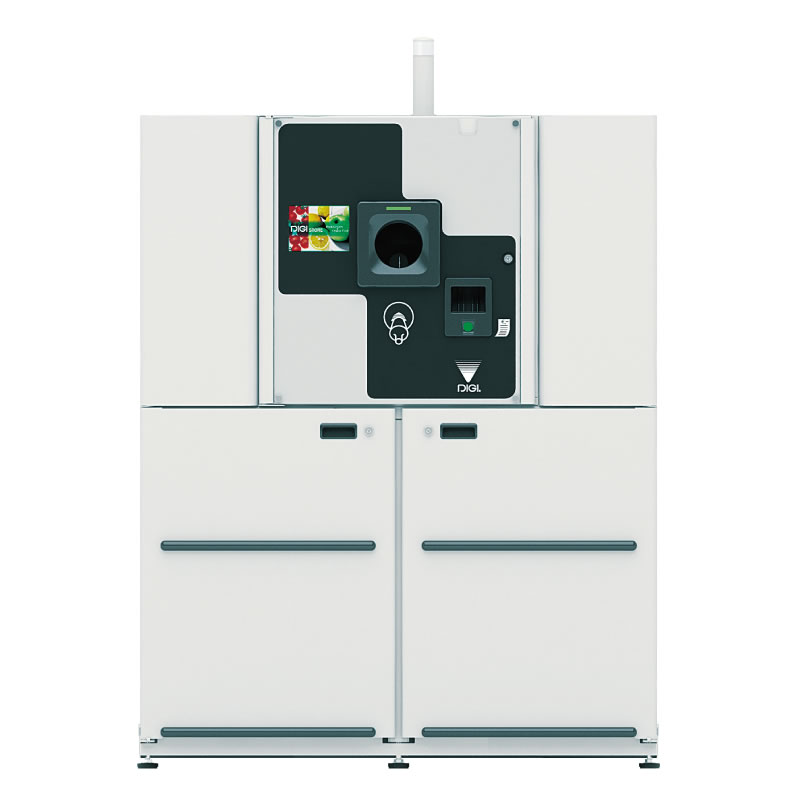

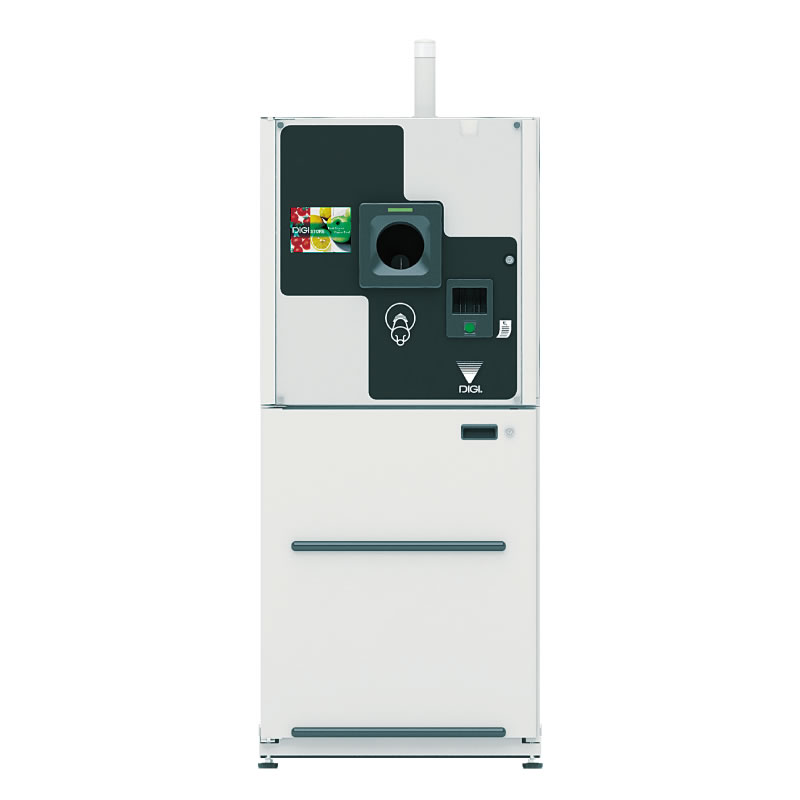

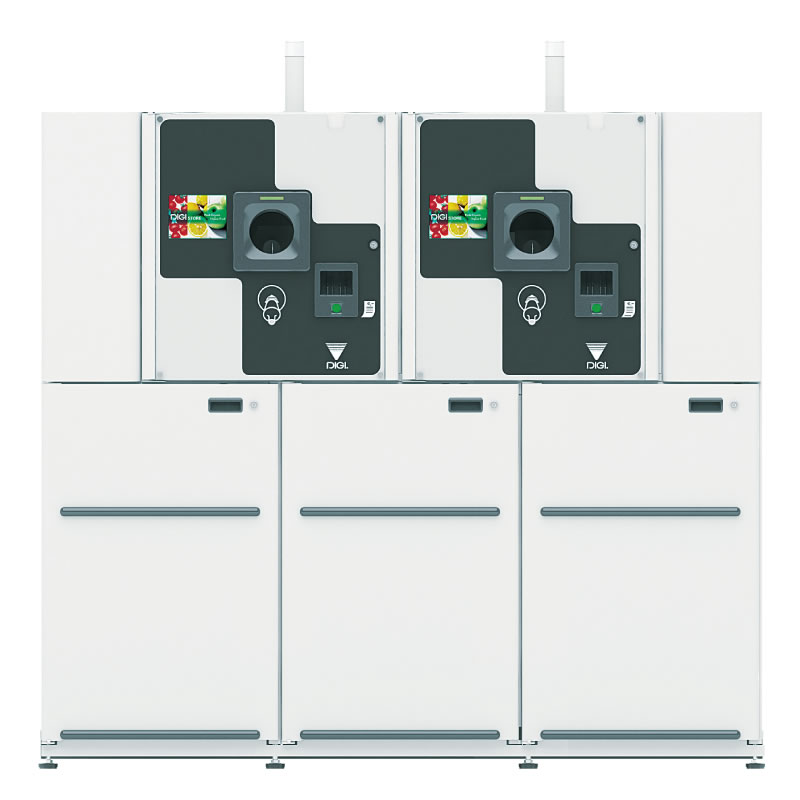

Variations
| DRV-1213 | DRV-1112 | DRV-1111 | ||
 |
 |
 |
||
| Refillable | PET | - | - | - |
| Glass | - | - | - | |
| Crate | - | - | - | |
| Non-Refillable | PET | ● | ● | ● |
| Can | ● | ● | ● | |
Case Studies
Case studies
DRV Reverse Vending Machine chosen by Edeka Endt store, Germany
Edeka Gruppe
Edeka, one of the leading retailers in Germany, selected DIGI Reverse Vending Machines for the collection of beverage containers in the store. In Germany, collection of empty beverage containers by retailers is mandated by law, and the store was looking for a reliable Reverse Vending Machine to ensure quick and simple collection.
FAQ
-
Does the DRV-1000 have networking capability?Yes. Using PC technology, the DRV-1000 provides flexible networking capability with POS systems and back-office software. With DIGI's on-line remote system, remote maintenance is also available.
-
How many non-refillable containers can ordinarily be collected in one storage box?It depends on the type and size of the containers. One storage box (1/2 Euro pallet) will hold approximately 400 containers after compacting.
-
Can we use the machine display for advertisements?Yes. The 8.4-inch TFT color display can be used to display advertising for shoppers. Advertisements can be displayed on the screen as messages, slide shows, or videos.
