Main Features
The DPS-800s is a compact manual weigh labeling system. The large color touch screen is mounted in a strong stainless steel case. Optional printers, scales and stand makes this a robust versatile machine.

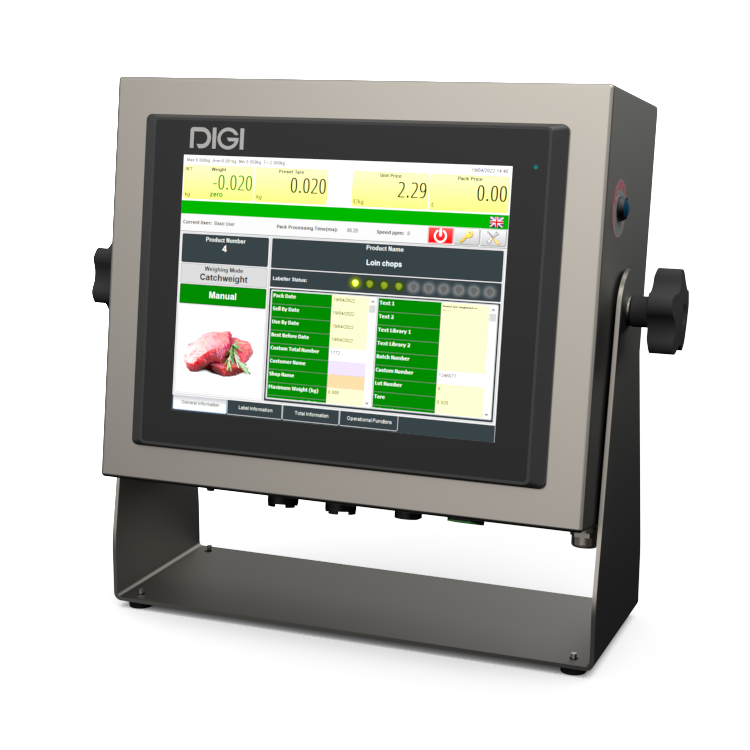

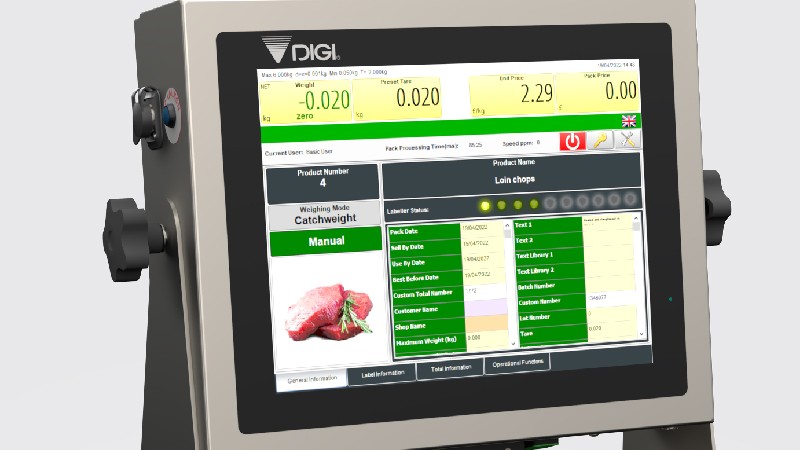

Color touch screen
The DPS-800s has a large color touch screen which aids easy programming of product information and recalling the required plu. When mounted in the optional stand the angle of the screen is adjustable for the correct viewing angle for the operator.

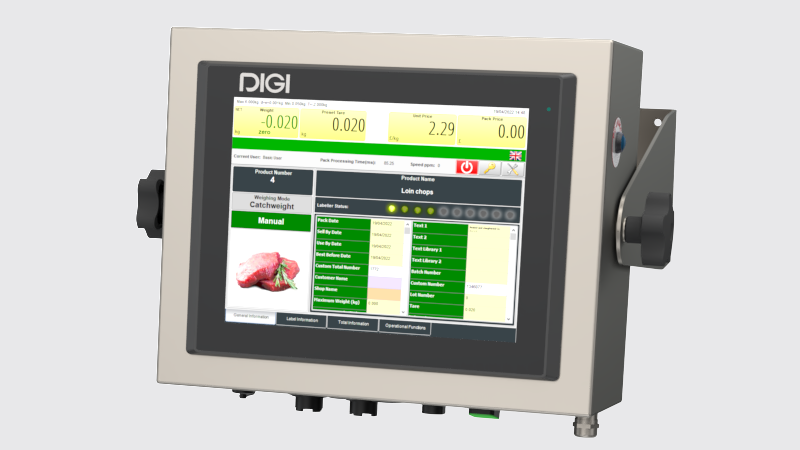

Robust stainless steel casing
The DPS-800s console has a robust stainless steel outer casing with various external communication ports for easy connection to other equipment. USB, waterproof scale connection and two RJ45 sockets (printer and network) are fitted as standard with an RS232 option.
DPS-800s operation system
The DPS800s uses an industrial PC utilising embedded software on a Windows® operating system. This offers a flexible integration for bi-directional communication in XML format to back-office server data collection, programming and line monitoring.
Specifications

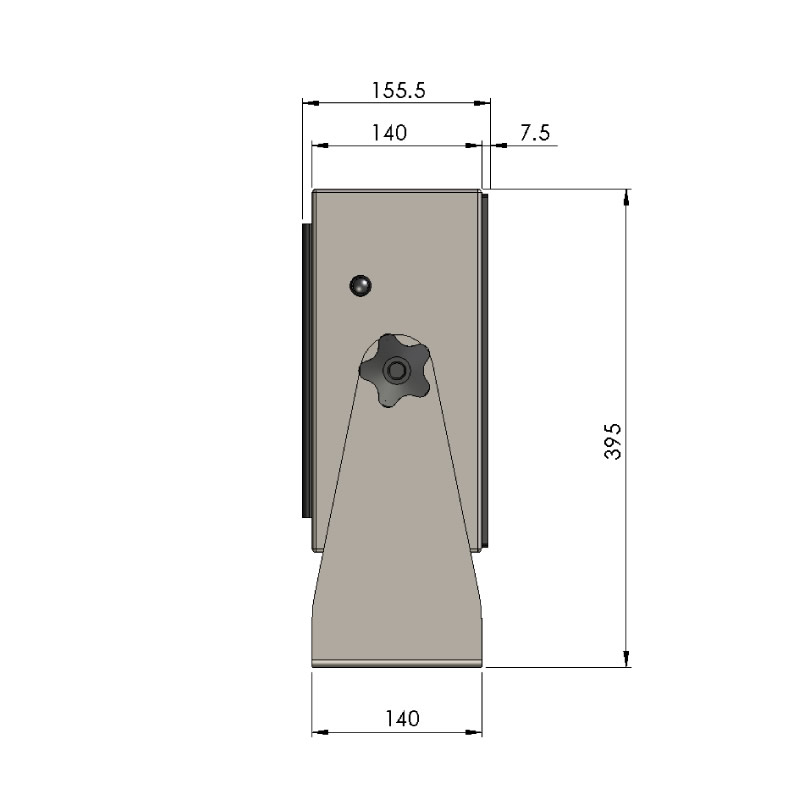

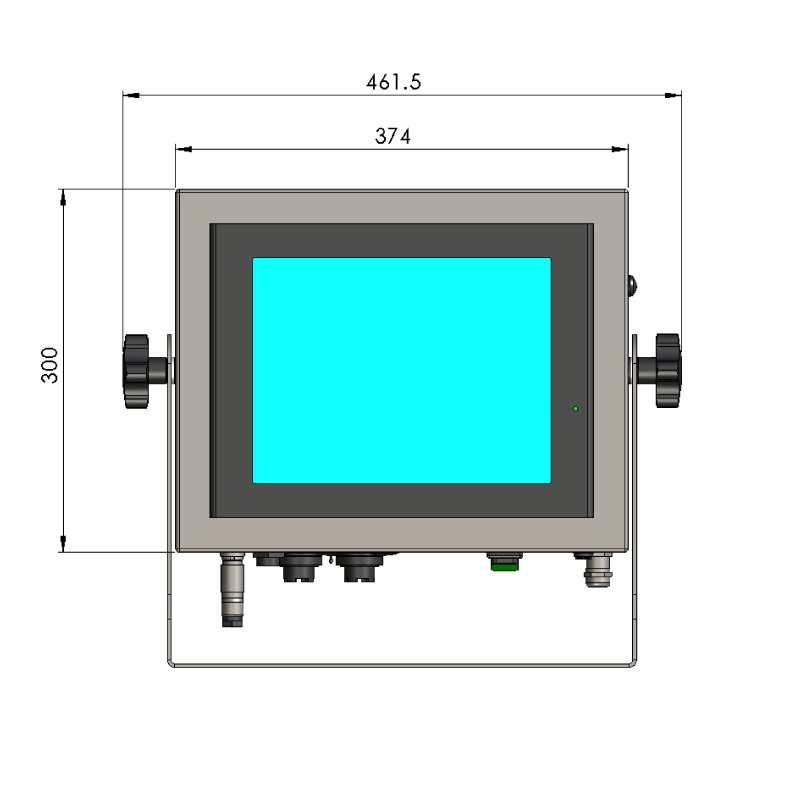

Dimensions
Weighing
| Capacity | Capacity and interval is dependent on scale platform connected |
|---|---|
| Single Interval |
Display
| Screen | 12.1 color high brightness TFT LCD |
|---|---|
| Touch panel | Sealed resistive touch screen |
Operation and general specification using standard DIGI printer
| Print head | 80mm at 300dpi |
|---|---|
| Print method | Direct thermal |
| Print speed | 50 to 200mm/sec |
| Label size | Width: 30 to 80mm, height: 28 to 80mm |
| Label roll | Max. 190mm diameter, 38 & 76mm core, inside/outside wound |
Options

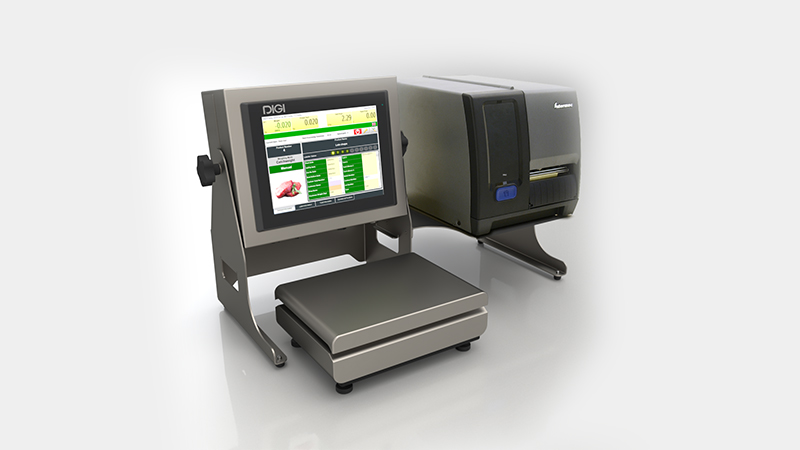

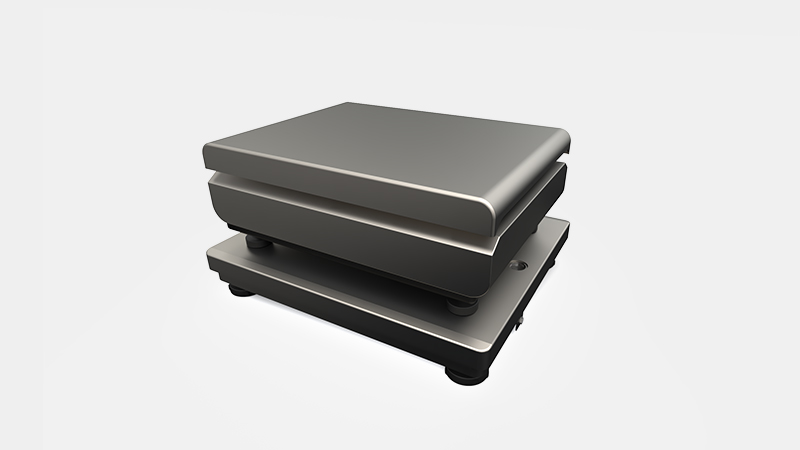

Scale platforms
Stand

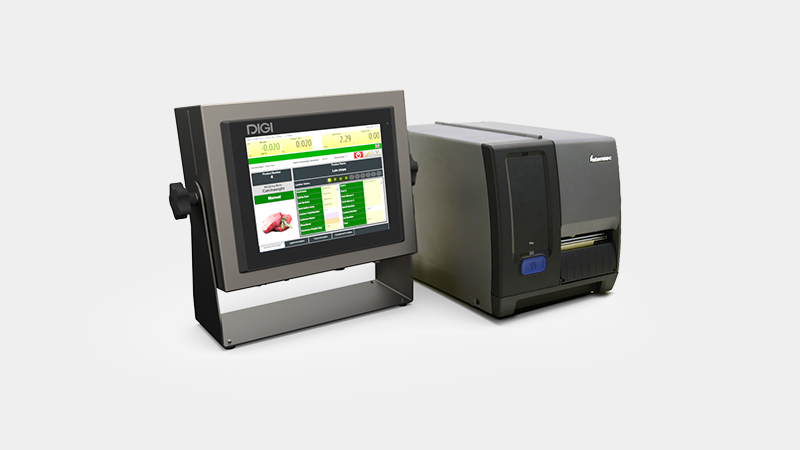

DPS-800 with optional printer
FAQ
-
What is the temperature range the DPS-800s can work in?The climatic environment temperature range for the DPS-800s is -10°C to +40°C.
-
Can the DPS-800 be networked?Yes, the DPS-800 has an RJ45 socket for network connection.
