Main Features

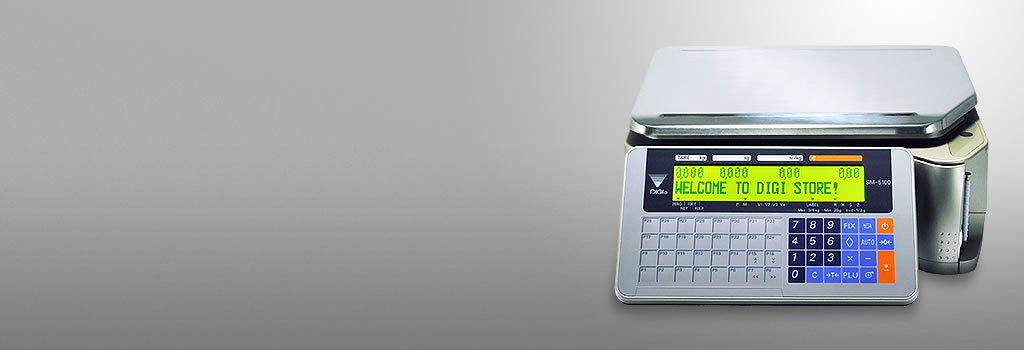

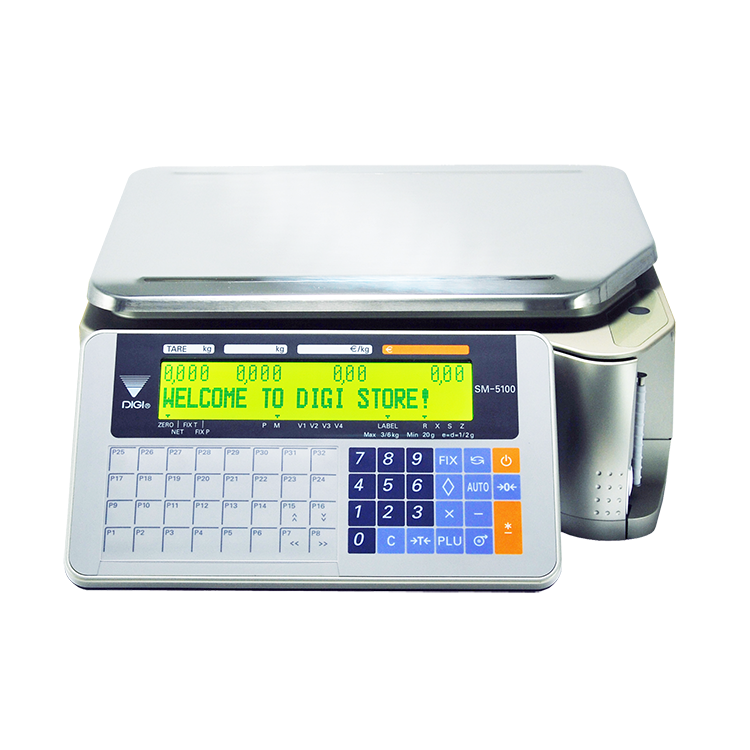

The SM-5100 increases throughput of counter transactions with speedy weighing and printing operation. Its robust yet sophisticated appearance looks good on counters in modern stores, providing added value for your store operation.
Easy-to-see customer display
LCD with backlight display makes it easy for customers to check necessary information.

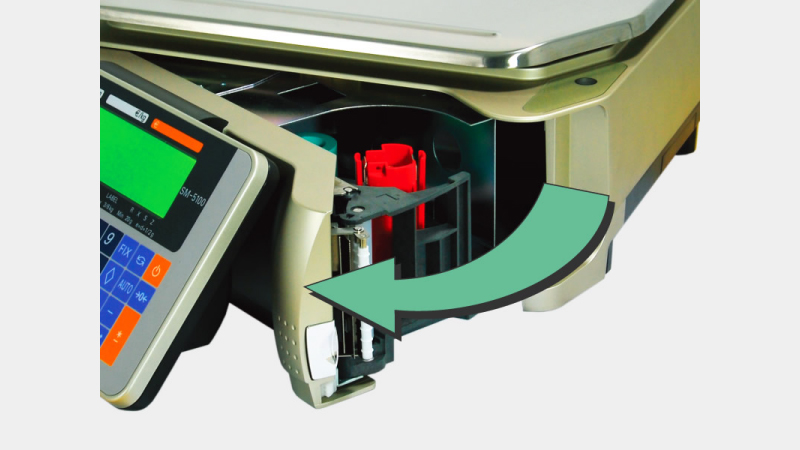

Easy to change label/receipt rolls
Scale front opens wide, making changing label/receipt rolls extremely easy and quick.
Space saving design
Compact design makes for effective use of valuable sales space and minimizes the distance between shopper and operator.
Adjustable angle of operator panel
The operation panel angle is adjustable to suit operators.
Water resistant keyboard
Water resistant membrane keyboard stands up to frequent use.
Specifications

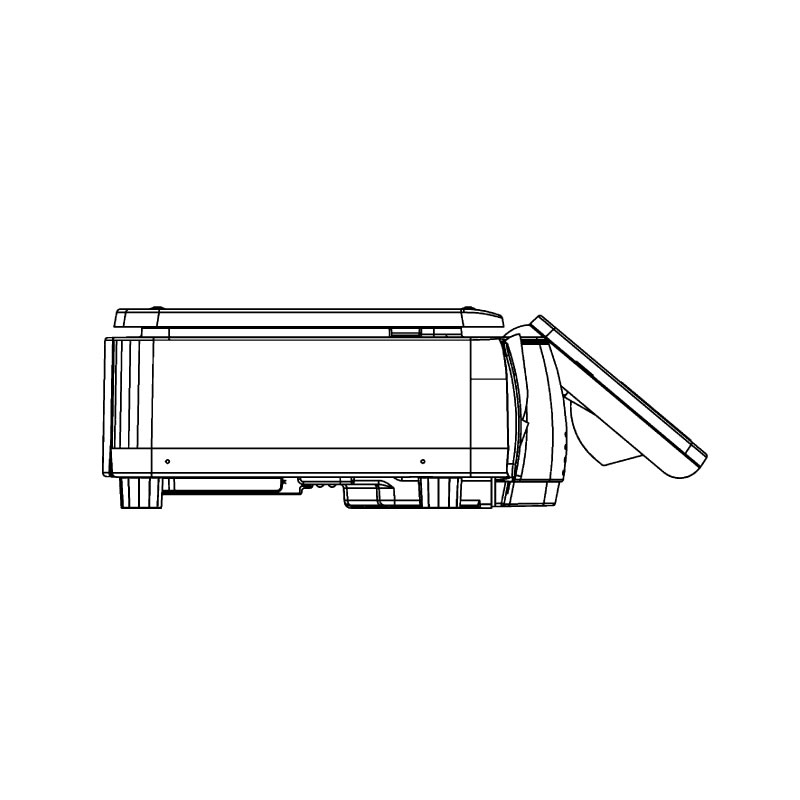

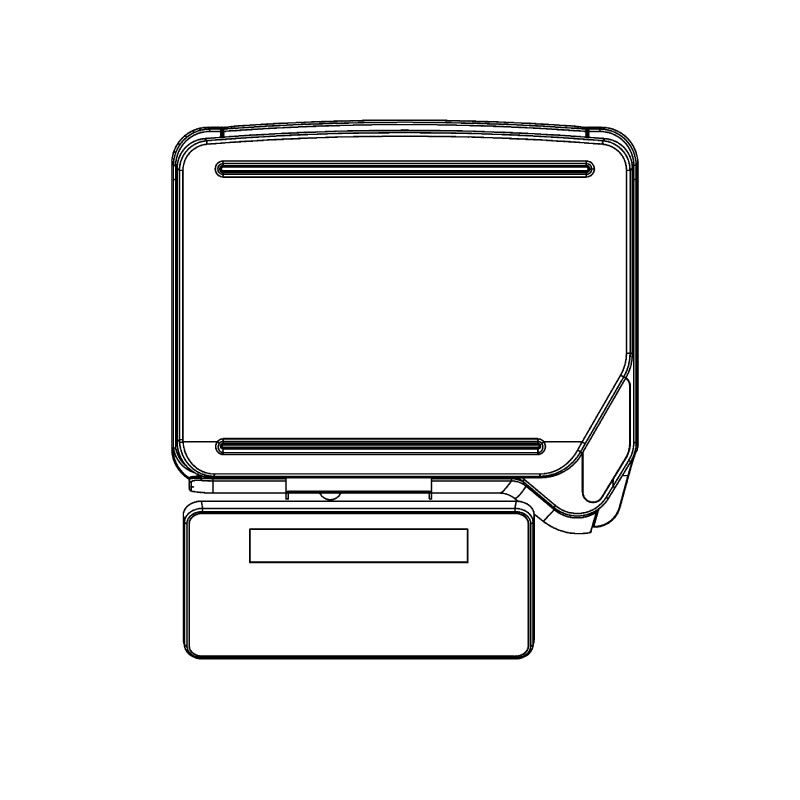

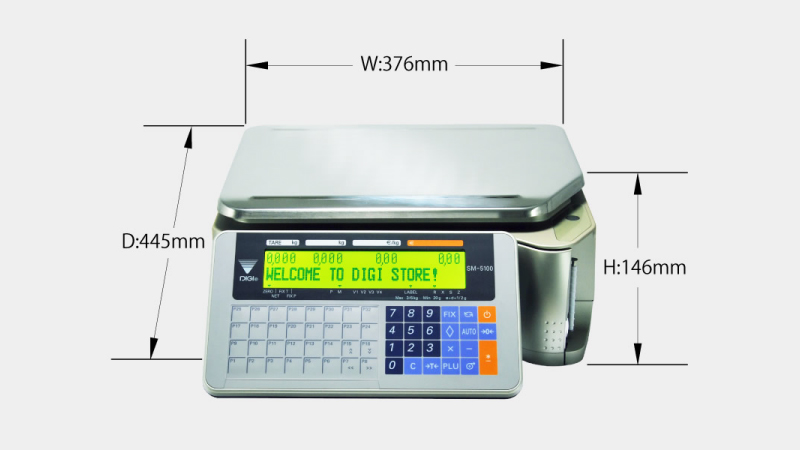

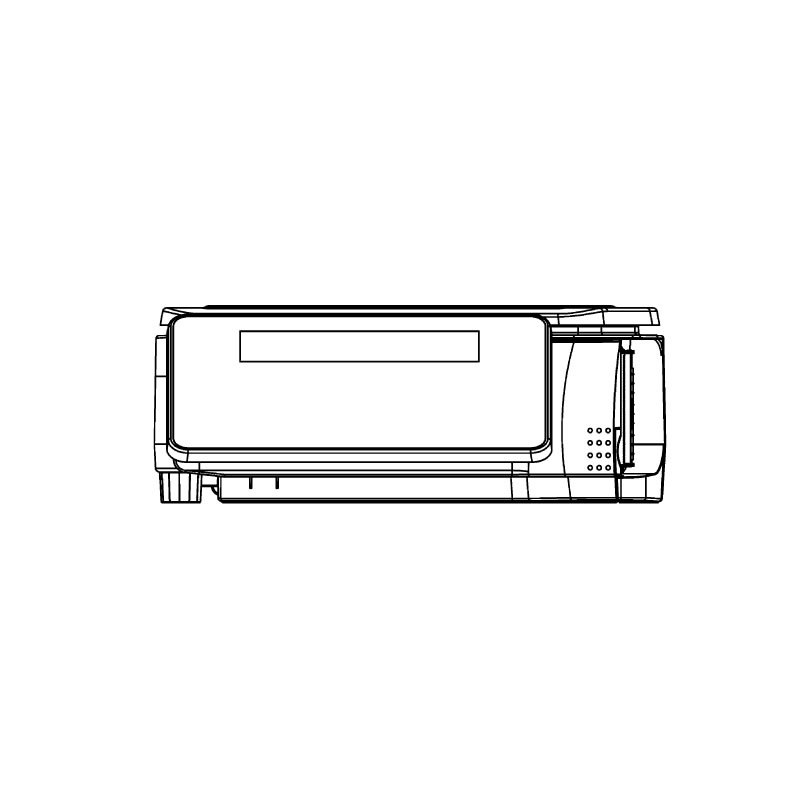

Dimensions
Weighing
| Capacity | Max 6 kg | Max 15kg or 30lb | Max 30kg | |
|---|---|---|---|---|
| Single Interval | 1/ 3000 | e= 2g | e= 5g or 0.01lb | e= 10g |
| 1/ 6000 or 1/ 7500 | e= 1g | e= 2g | e= 5g | |
| Capacity | Max 3/ 6kg | Max 6kg/ 15kg | Max 15kg/ 30kg | |
| Multi Interval | 1/3000 | e= 1/ 2g | e= 2/ 5g | e= 5/ 10g |
Display
| Operator display | green LCD with backlight 32x202 dots |
|---|---|
| Customer display | green LCD with backlight 32x202 dots |
Specification by Model variation
| Variation | SM-5100B | SM-5100P | SM-5100EV | SM-5100BS |
|---|---|---|---|---|
| Number of Preset Keys | 32 | 56 | 56 | 72 |
| Memory Capacity | 2MB (Expandable up to 8MB) | |||
| Standard Interface | RS232C, Ethernet, Cash Drawer I/F | |||
Labeling
| Label Printing Size | Max. 60mmW x 220mmH |
|---|---|
| Paper Width | 60mm for Label 60mm for Receipt |
| Printing Speed-Label | Up To 150mm/s* |
* To achieve maximum high speed, high sensitivity thermal paper is necessary. Contact DIGI for details.
Options
| Memory Expansion Board (4MB/ 8MB) |
| Wireless LAN I/F (IEEE 802.11b/g) |
| Cash Drawer I/F |
Variations

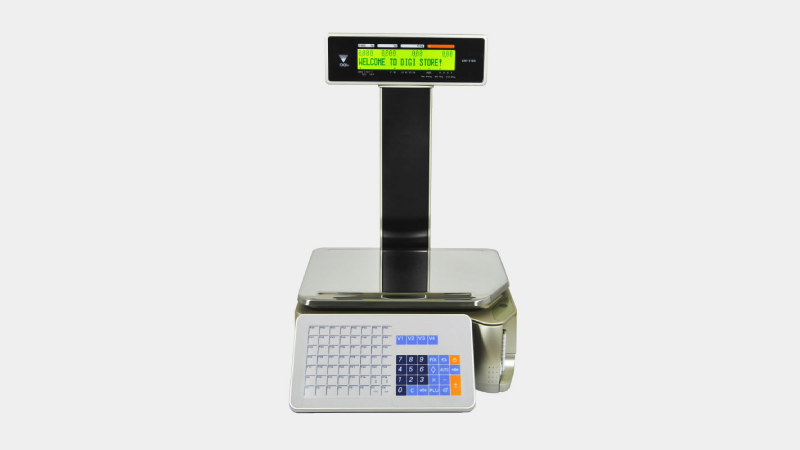

Pole Type
SM-5100P
Dimensions (mm): 385(W)x445 Max(D)x581.7(H)

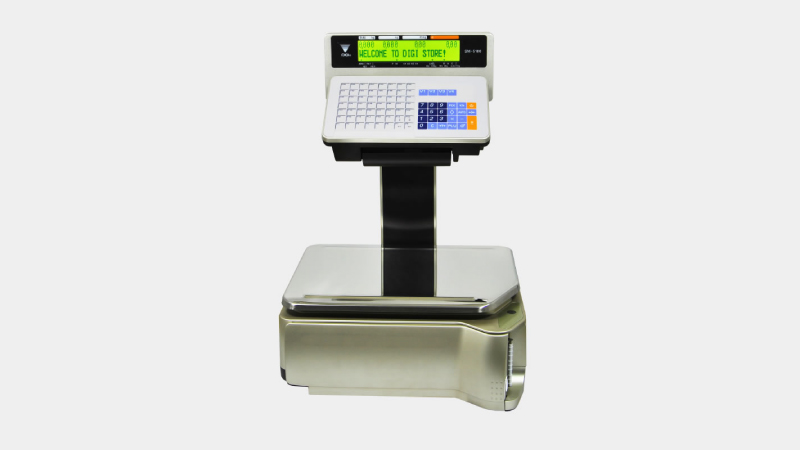

Elevated Type
SM-5100EV
Dimensions (mm): 385(W)x470 Max(D)x492(H)

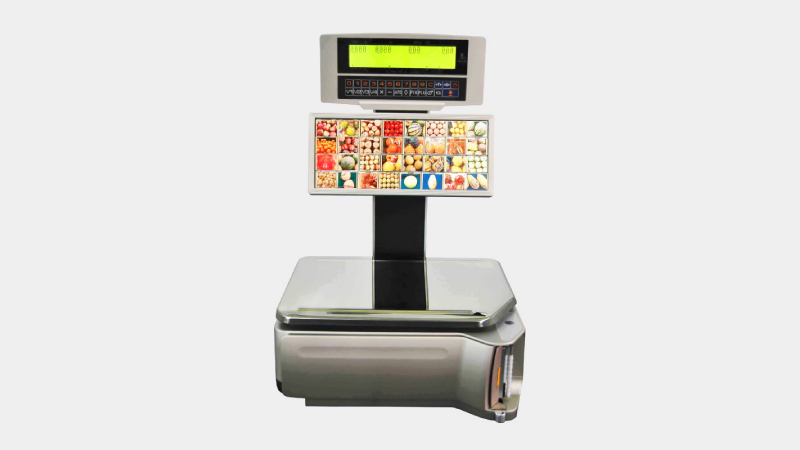

Self-service Type
SM-5100BS
Dimensions (mm): 385(W)x383.2 Max(D)x724.9(H)
