Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.
Main Features
The LI-4600 maximizes efficiency of in-store pre-packaging operation and has a compact, space-saving design. Compact design provides opportunities in various applications that require a simple, unique solution for automatic and semi-automatic labeling. The LI-4600 can be easily connected with existing equipment, such as MAP packaging machines in the pre-packaging area.
Flexible and accurate labeling

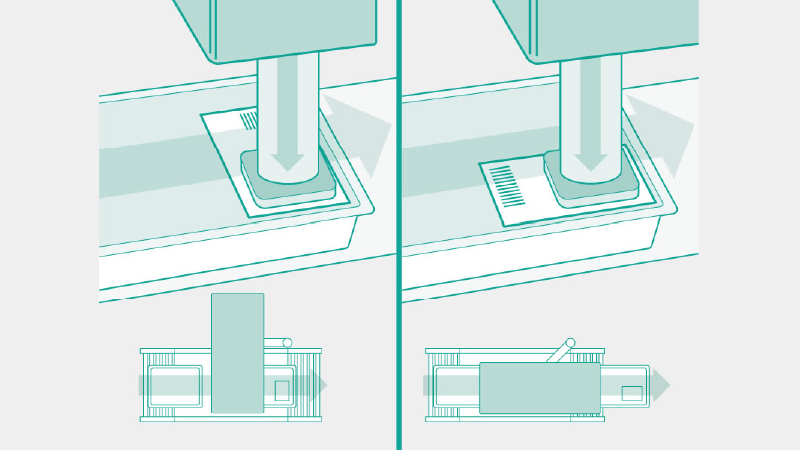

Stamp applicator for accurate labeling rotates 90 degrees to suit the direction of item flow.
User-friendly operation

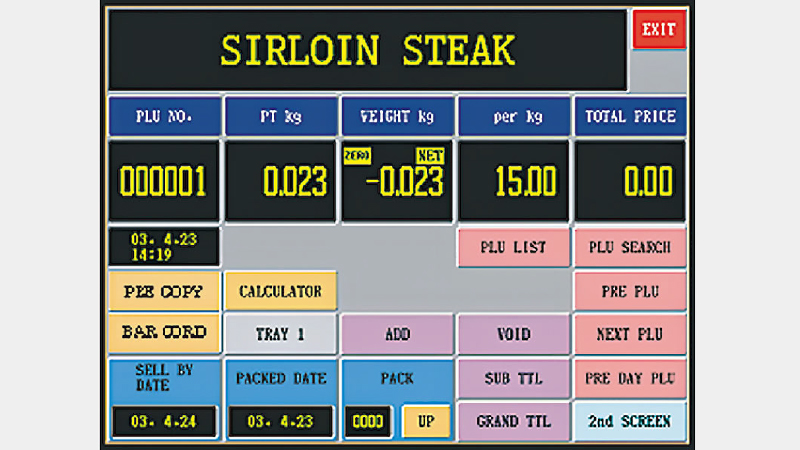

Large color touch screen provides various functions to simplify operation, such as easy PLU searching, convenient print viewing and free key layouts to increase speed and efficiency.

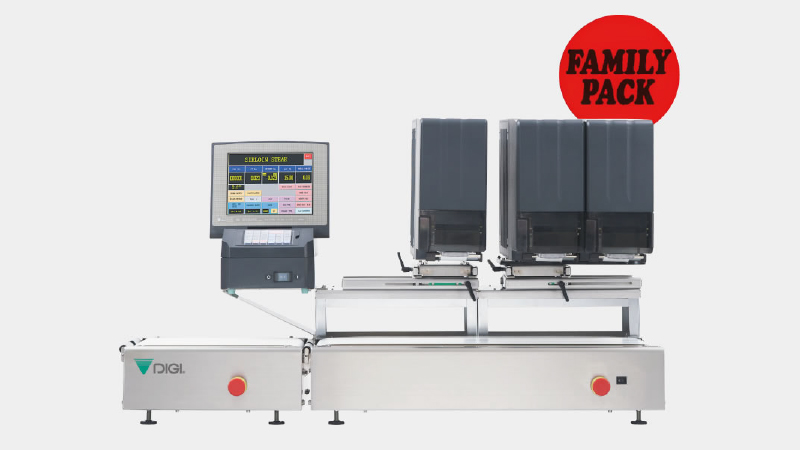

2nd labeler and POP labeler are available as options
Option labelers are available to improve store operations.
Specifications

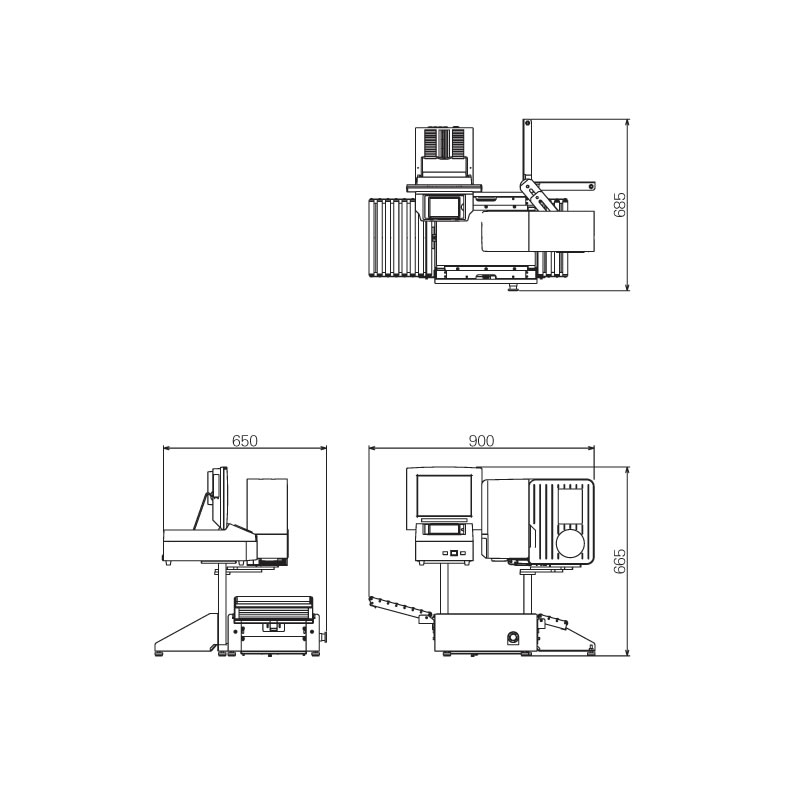

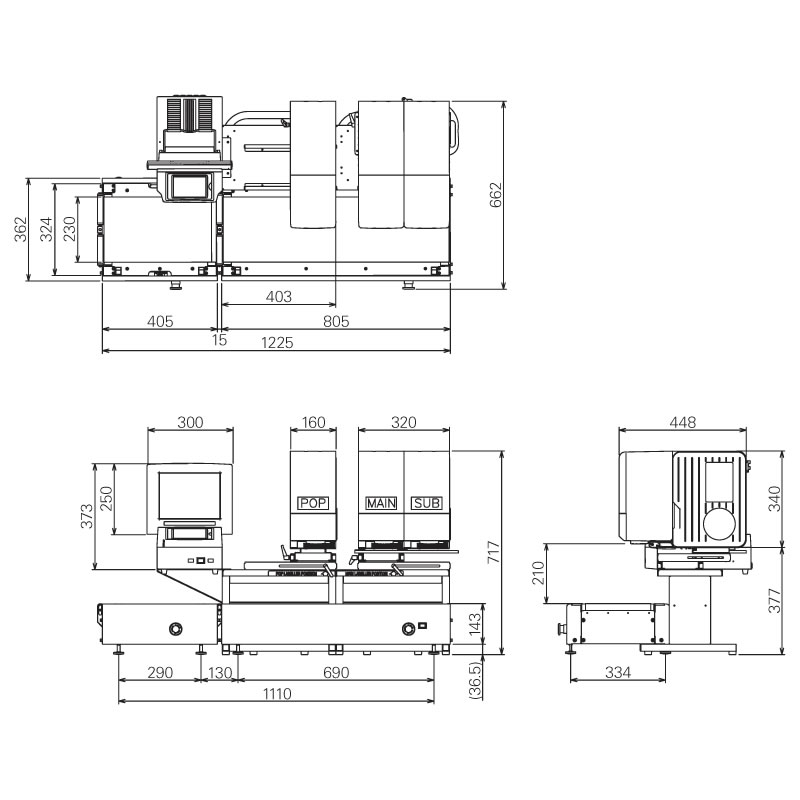

Dimensions
Conveyor
| Model | Type A | Type B | |
|---|---|---|---|
| Package Size | Width | 50-390mm/1.9-15.3 inches | |
| Height (Vertical labelling) |
Long Pole:
1-150mm/0.04-5.9inches
|
1-150mm/0.04-5.9inches | |
|
Short Pole:
1-100mm/0.04-3.9inches
|
|||
| Height (Horizontal labelling) |
Long Pole:
1-100mm/0.04-3.9inches
|
1 - 120mm/0.04-4.7inches | |
|
Short Pole:
1-50mm/0.04-1.9inches
|
|||
| Depth | 50-230mm/1.9-9inches | ||
| Speed | Max. 25 packages/min. | Max. 30 packages/min. | |
| Direction |
Left -> Right or Right->Left
(factory option)
|
Left -> Right | |
Weighing
| Model | Type A | Type A and B | |
|---|---|---|---|
| Capacity | Max 2kg | Max 4kg | Max 10lb |
| Scale interval | e=1g | e=2g | e=0.005lb |
| Weighing range | 20g-2kg | 40g-4kg | 0.1-10lb |
| Conveyor capacity | Max 2kg | Max 4kg | Max 10lb |
Labeling
| Model | Type A | Type B | ||
|---|---|---|---|---|
| Label type | Thermal paper | |||
| Labeling application | Automatic and Manual application | Automatic application | ||
| Label size | Automatic application | Width | 40-80mm/1.6-3.1inches | |
| Length | 28-100mm/1.1-3.9inches | |||
| Manual application | Width | 40-80mm/1.6-3.1inches | ||
| Length | 20-150mm/0.8-5.9inches | |||
Console/Display/User Interface
| Display panel | 10.4 inches TFT color |
|---|---|
| Keypad | Pictogram or English |
General
| Model | Type A | Type B |
|---|---|---|
| Externals | Resin and stainless steel construction | |
| Power source and power consumption |
100-120V, 50/60Hz, 120W
220-240V, 50/60Hz, 150W
|
220-240V, 50/60Hz, 150W |
| Net weight | Approx. 50kg/110 lb | Approx. 90kg/198lb (without Option) |
| Operation humidity | 90%RH (max.) | |
Variations

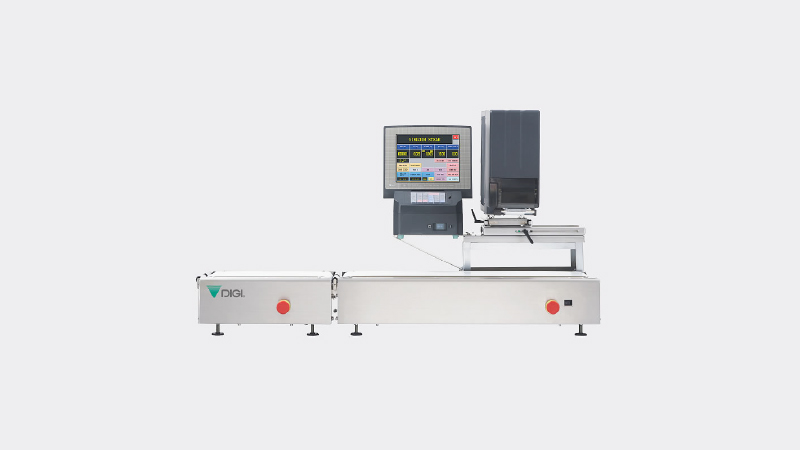

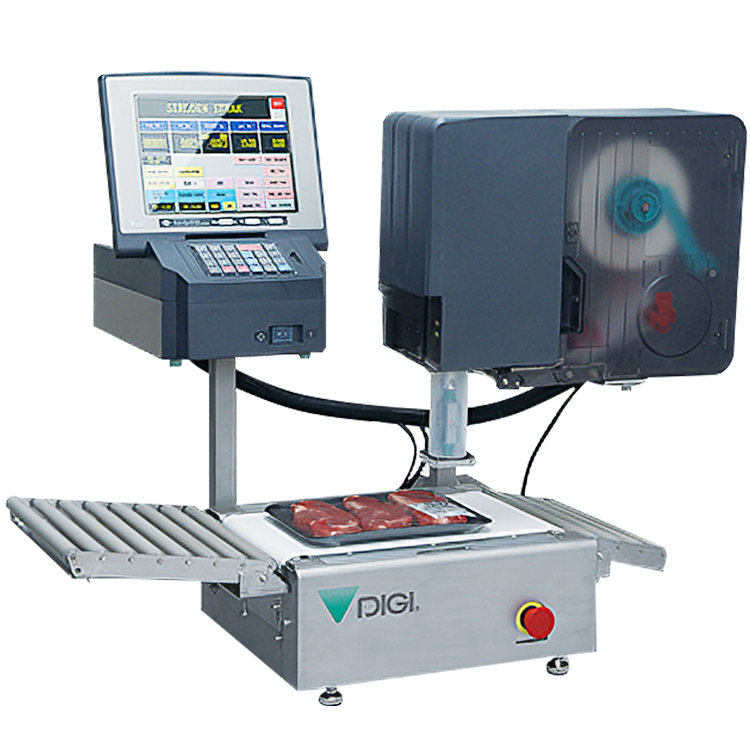

Single labeler type

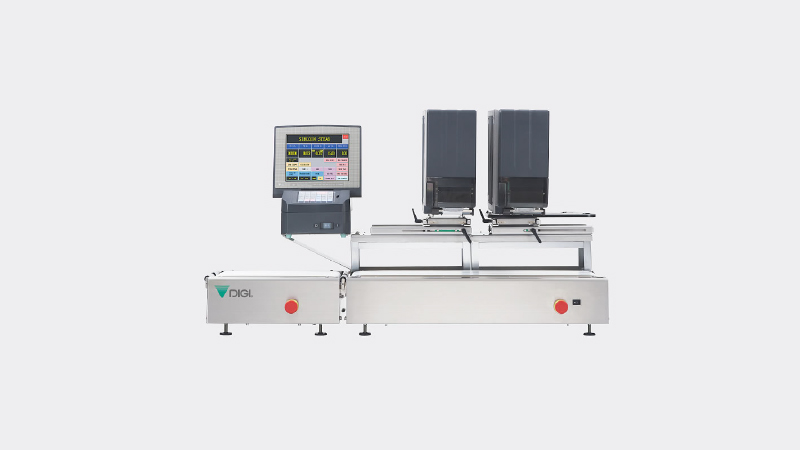

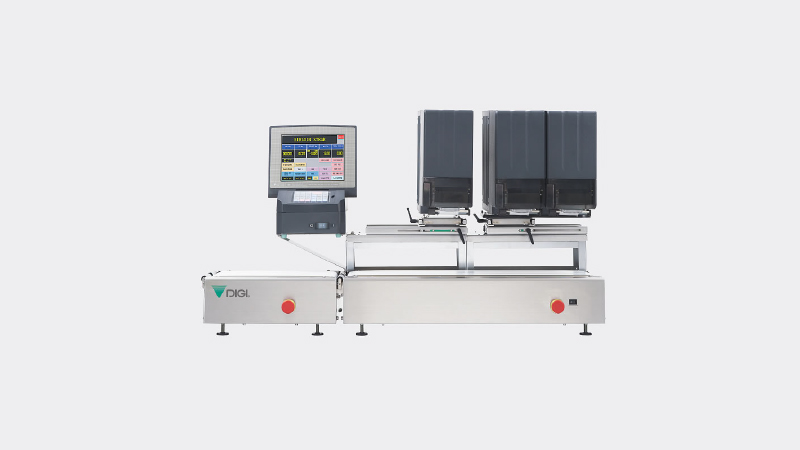

Twin labeler type
Single labeler with POP labeler
