Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

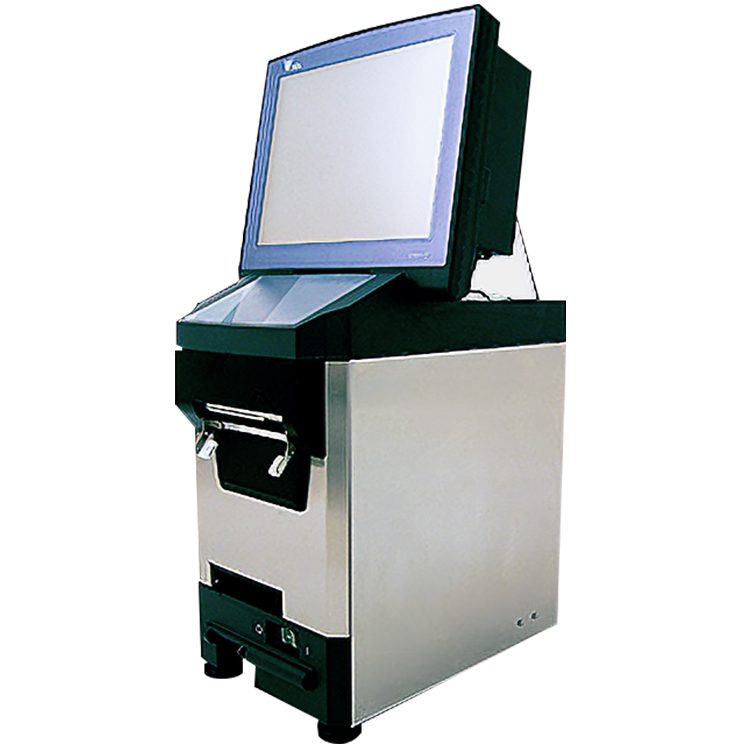

Manual weigh price labeler with integral printer
CM-700
Food IndustryMain Features
The CM-700 is a compact machine allowing connection of a suitable platform scale and producing large labels up to 128mm wide. The DIGI-700 series uses an industrial PC with embedded software on a Windows® operating system. This offers a flexible integration for bi-directional communication in XML format to back-office server data collection, programming and line monitoring

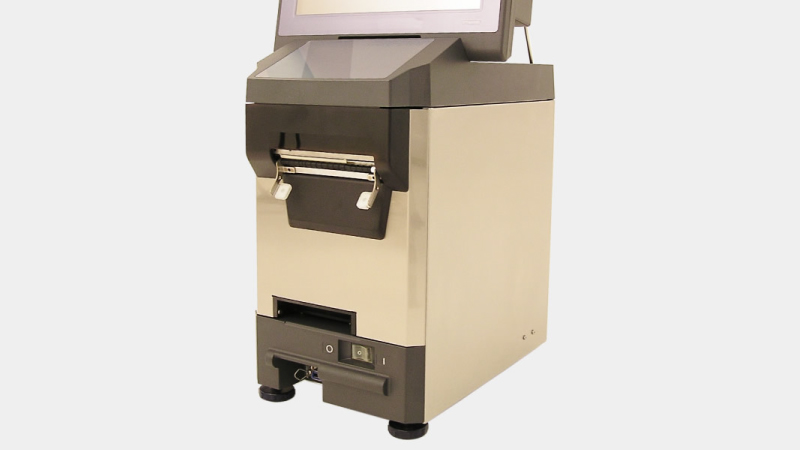

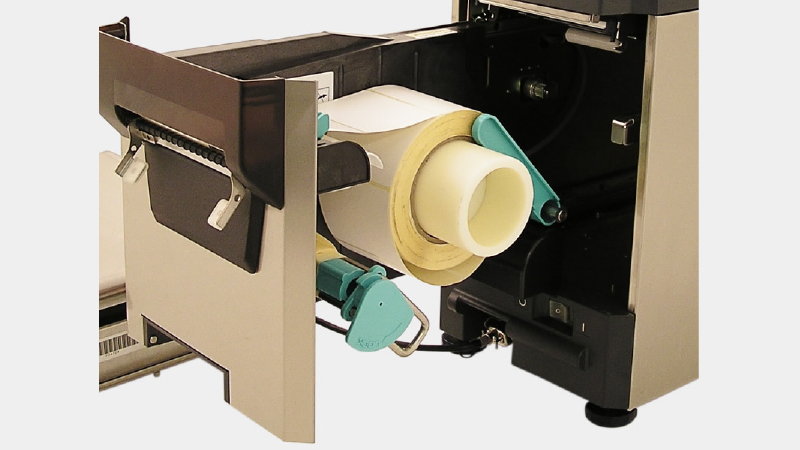

Quick accessibility
The front of the CM-700 opens fully to obtain a large access area for easy and quick label changes.
Wide thermal head
The CM-700 has a 128mm wide thermal head with a dot pitch of 300dpi allowing wide items such as EAN128 barcodes to be printed with ease.

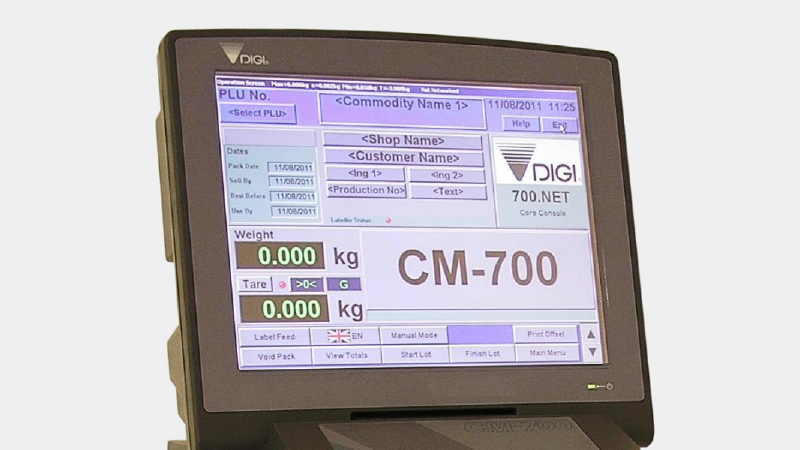

Large color touch screen
The CM-700 has a large color touch screen which aids easy programming of product information and recalling the required plu.
Stainless steel casing
The CM-700's printer casing is made from stainless steel giving protection from the environment and an easy wipe clean surface.
Specifications

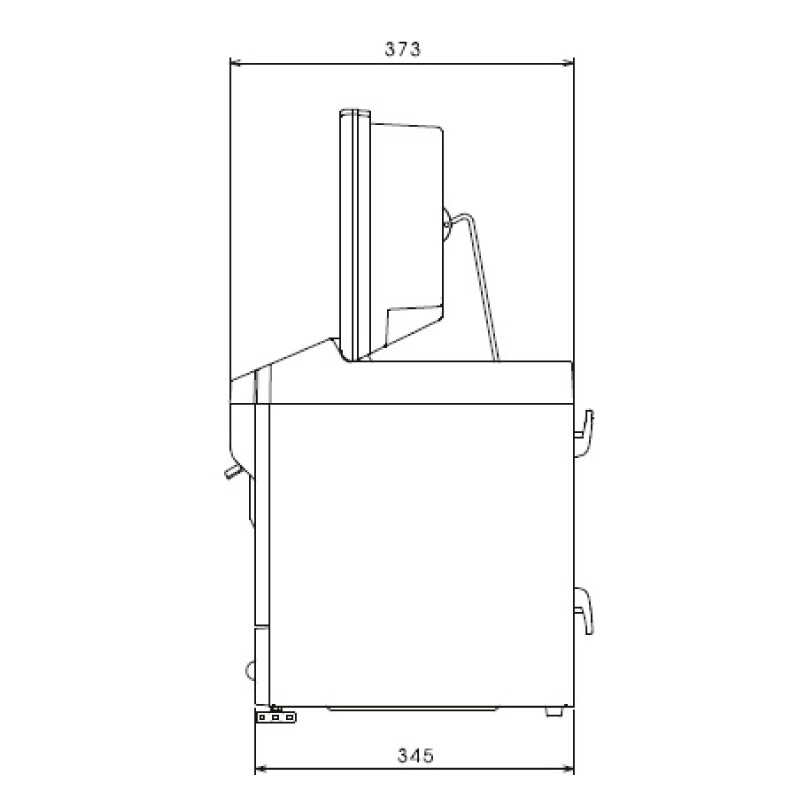

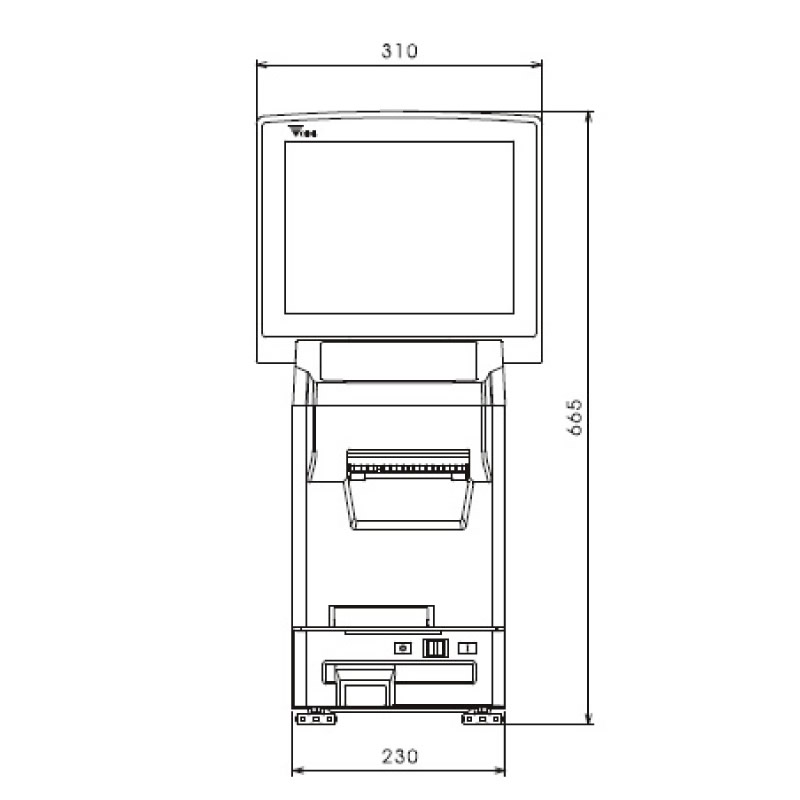

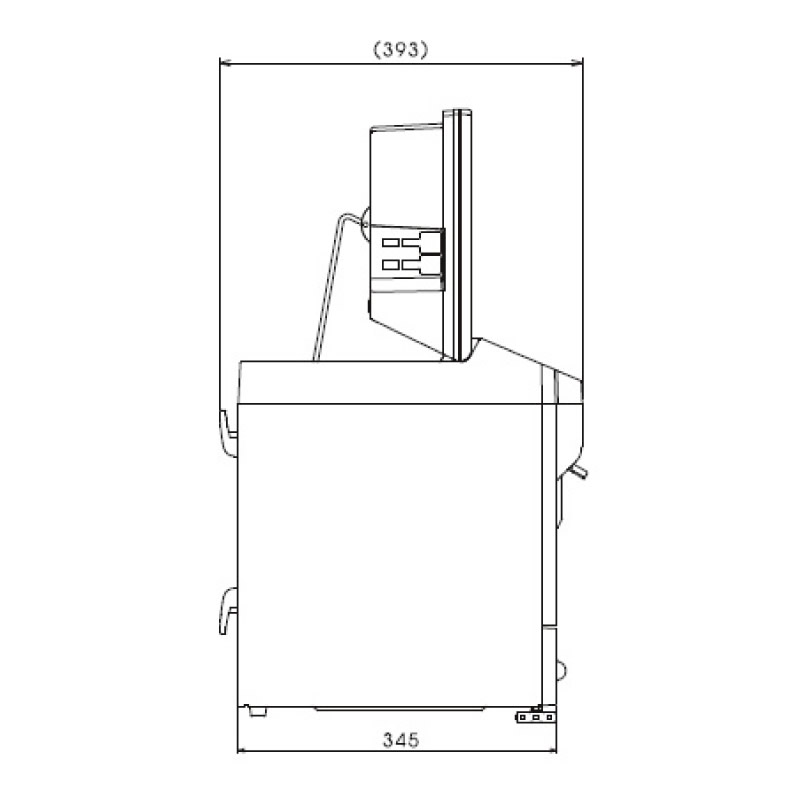

Dimensions
Weighing
| Capacity | Capacity and interval is dependent on scale platform connected | ||
|---|---|---|---|
| Single Interval | |||
Display
| Screen | 12.1 color LED display |
|---|---|
| Touch panel | 12.1 pen/finger resistive type |
Operation and general specification
| Print head | 128mm at 300dpi | ||
|---|---|---|---|
| Print method | Direct thermal | ||
| Print speed | 50 to 200mm/sec | ||
| Label size | width: max 128mm | height: max 200mm | |
| Label roll | max 190mm diameter | 76mm core | inside/outside wound |
Options

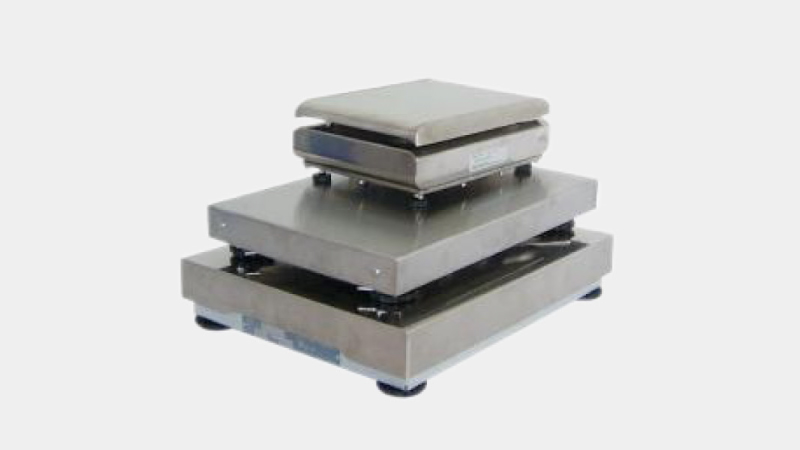

Scale platforms
FAQ
-
Can I connect another printer to the CM-700?If required, a 2nd printer such as the TP-700 can be connected to the CM-700.
The TP will then act as a total printer to the CM-700.
