Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

Fully integrated weigh-wrap-label system with super-stretching technology

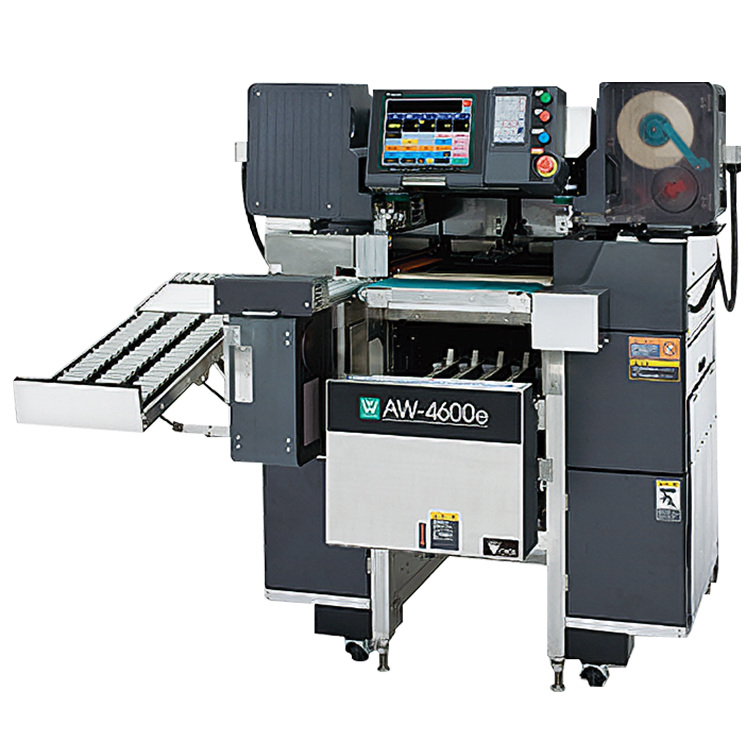

AW-4600eAT

Retail

Weigh-Wrap-Labelers

Main Features

Super-stretching technology reduces film consumption drastically and makes weigh-wrap-label operation extremely easy. AW-4600eAT automatically detects tray size and determine the required amount of film to wrap. Compactly designed body requires only a small foot print even though this model is capable enough for high production volume stores.

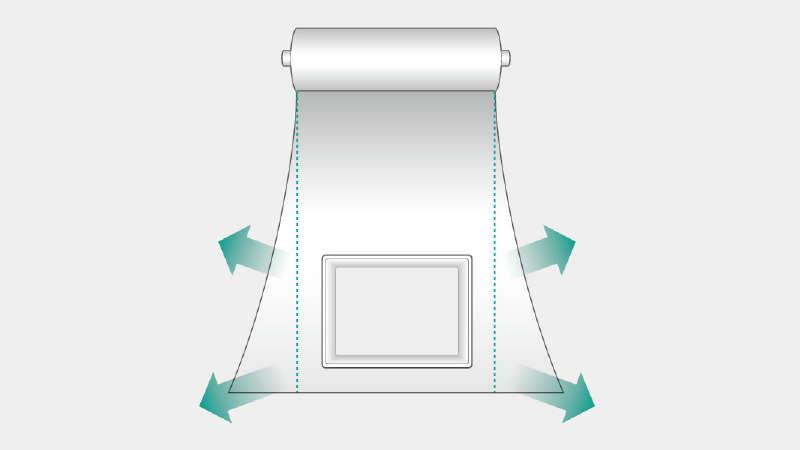

Economical & Ecological

Super-stretch technology makes the best use of film and helps reduce film usage. Eco mode reduces power consumption when the machine is not in use.

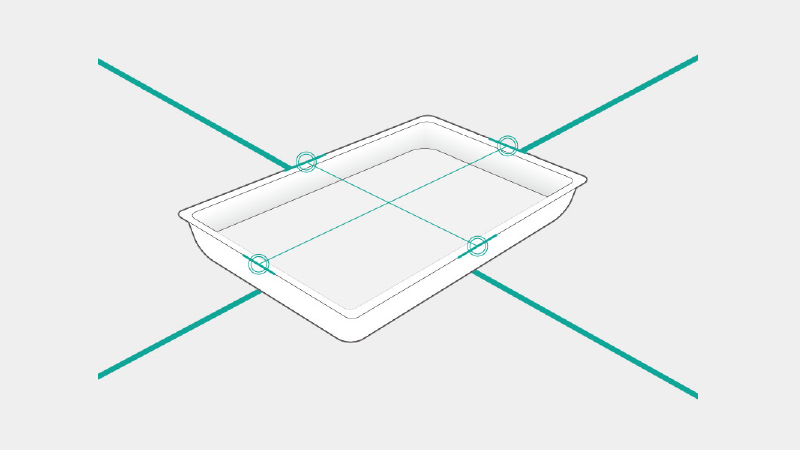

Automatic tray size detection

Tray sizes are detected as fed into AW-4600eAT, then optimum wrapping conditions are automatically determined accordingly. As the tray position is detected at the same time, the chances to jam the tray during wrapping operation is minimized with this feature.

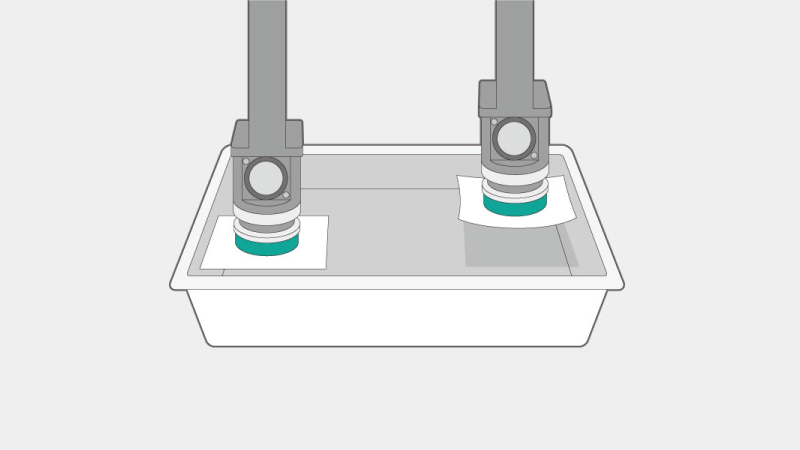

Applies two labels in one operation

POP labeler option prints and apply promotional labels at the same time as product labels. This reduces stock of preprinted POP labels and labeling workload at the same time. You can also design your own promotional label image freely.

Specifications

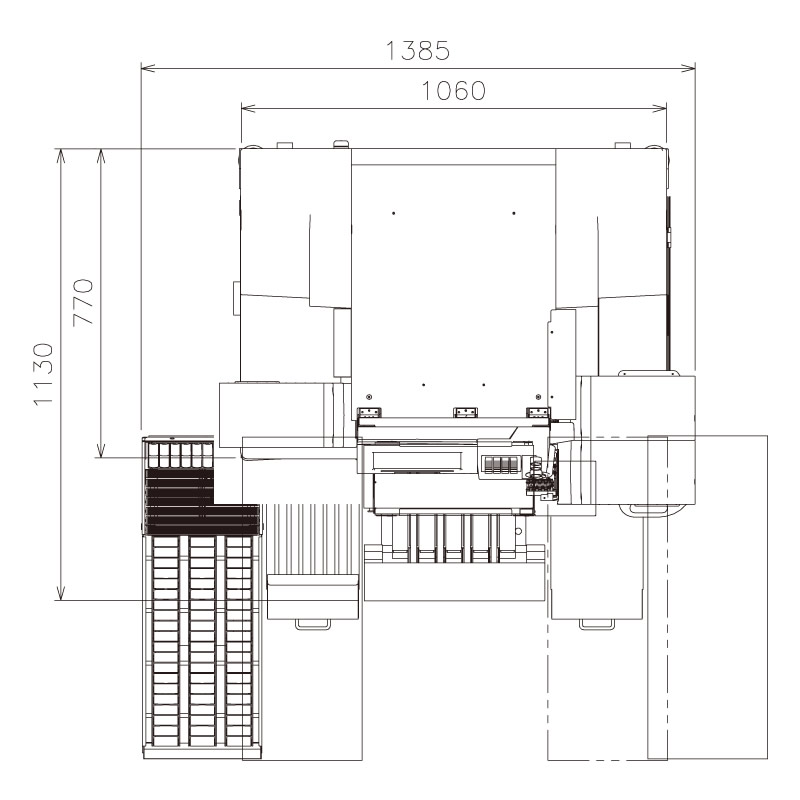

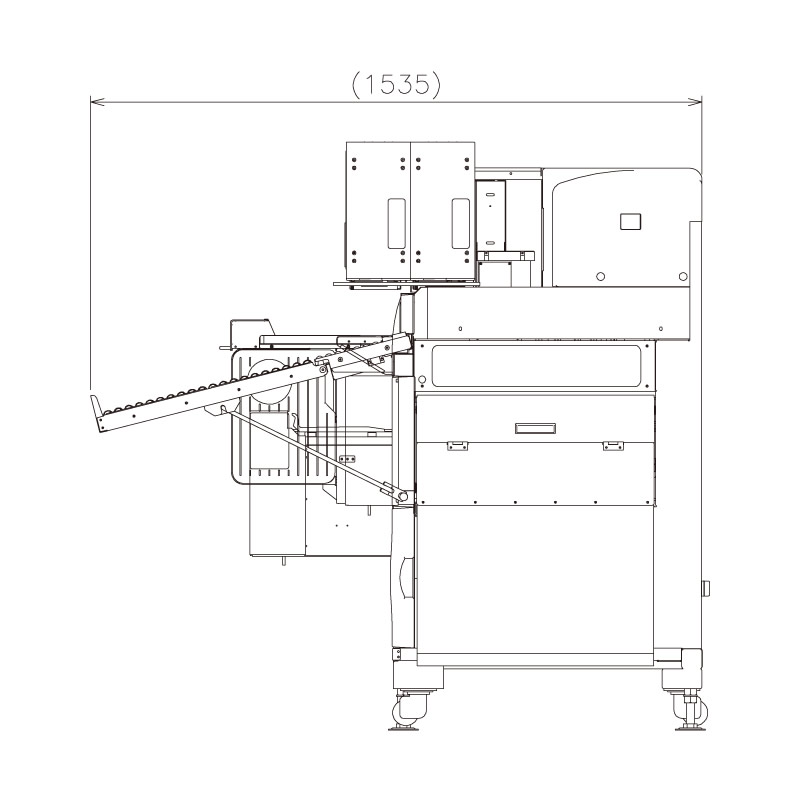

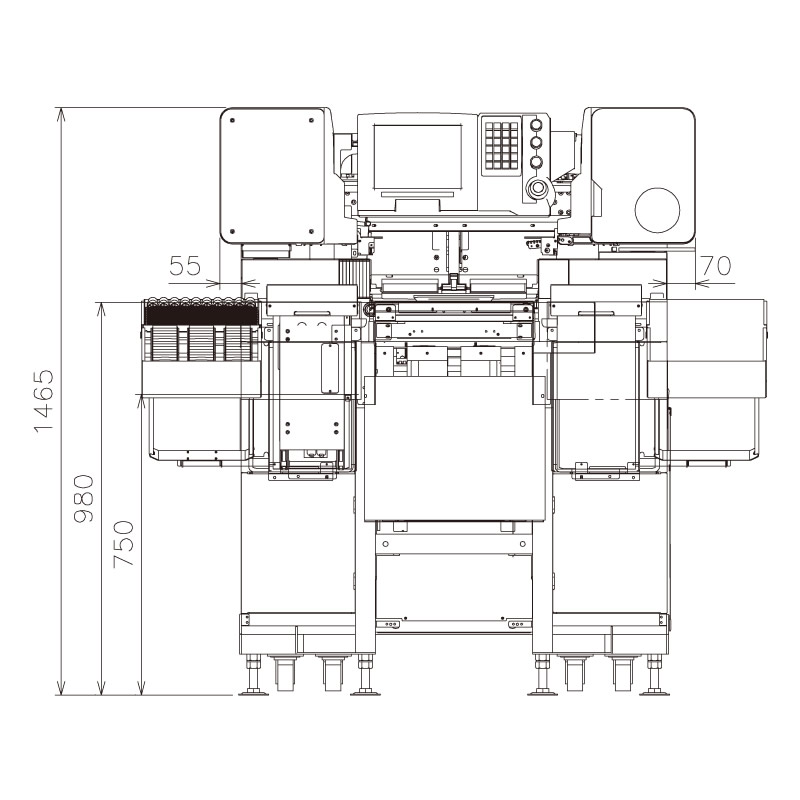

Dimensions

Wrapping

Wrapping Speed	Max. 36 packages/min.
Package Size	Width: 130 to 380mm / Height : 10 to 150mm / Depth : 80 to 260mm The maximum combination of the above dimension is not available and the available package size depends on the film width.
Film Roll Capacity	One
Film Size	Accepts 260 to 400mm rolls

Weighing

	Multi interval		Single interval
Capacity	Max. 6/15kg	Max. 3/6kg	Max. 30 lb
Scale Interval	e=2/5g	e=1/2g	e=0.01 lb

Labeling

Label Type	Thermal paper
Labeling Application	Automatic
Label Size	Width: 40 to 80mm

Net Weight	400kg Single labeler type

Variations

Linerless label model

AW-4600eAT LL

This model uses linerless labels. This reduces running cost and increases the efficiency of label application.

Twin labeler

AW-4600eAT W

Lets you print on two different types of labels according to application.

Model with promotional labeler

AW-4600eAT POP

In additional to product labels, this model is equipped with a labeler for promotional labels. The machine automatically applies both product labels and promotional labels simultaneously.

Model with bottom labeler for package bottom labeling

AW-4600eAT BP

Bottom labels can be automatically applied as the wrapped package moves to the accumulator.
