Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

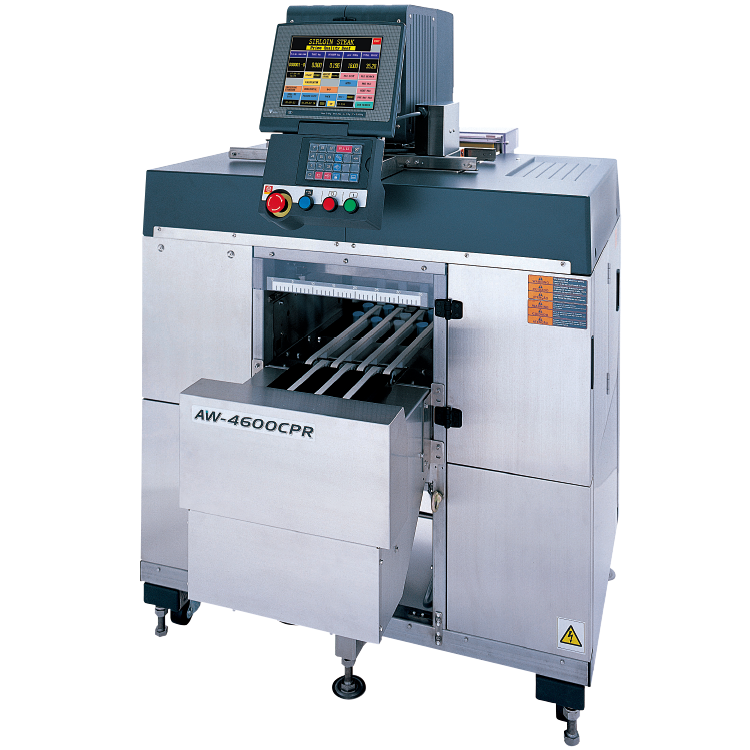

AW-4600CPR-WP02

Integrated in-line weigh-wrap-label system

AW-4600CPR

Retail

Main Features

AW-4600CPR is a fully automatic, integrated weigh/wrap/label system designed for in-line operation. It is capable of wrapping large packages in spite of its compact size.

AW-4600CPR-WP04-1

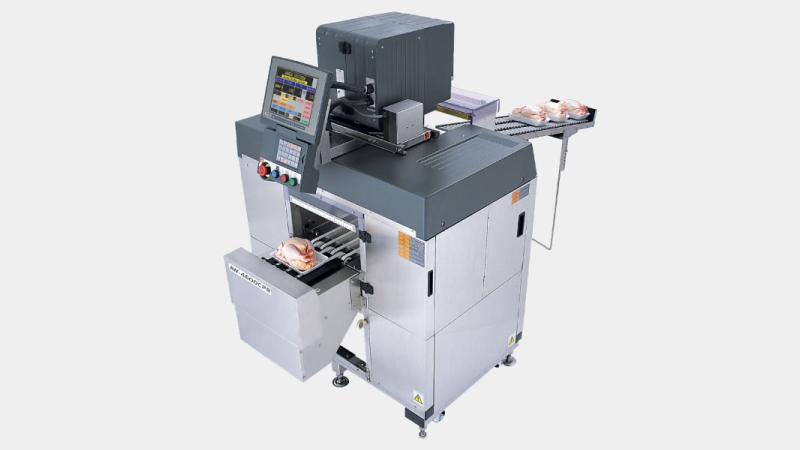

High productivity

Increases productivity with high speed processing of up to 30 packages a minute.

AW-4600CPR-WP04-2

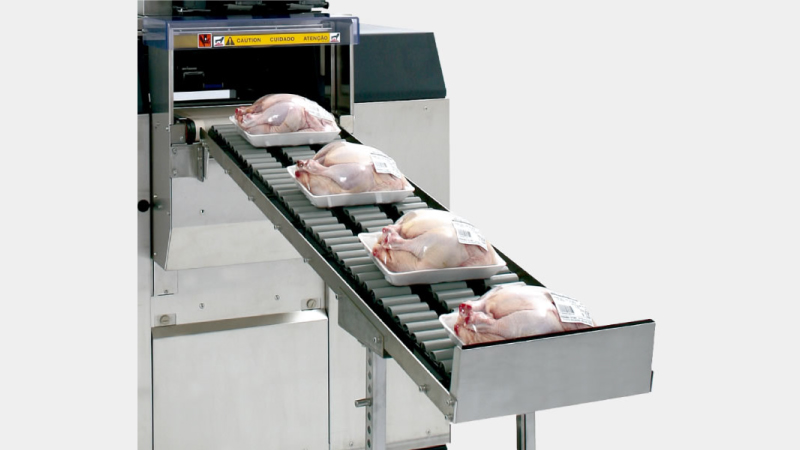

Streamlines in-line operation

With the optional automatic infeed conveyor, you can fully automate your production line.

AW-4600CPR-WP04-3

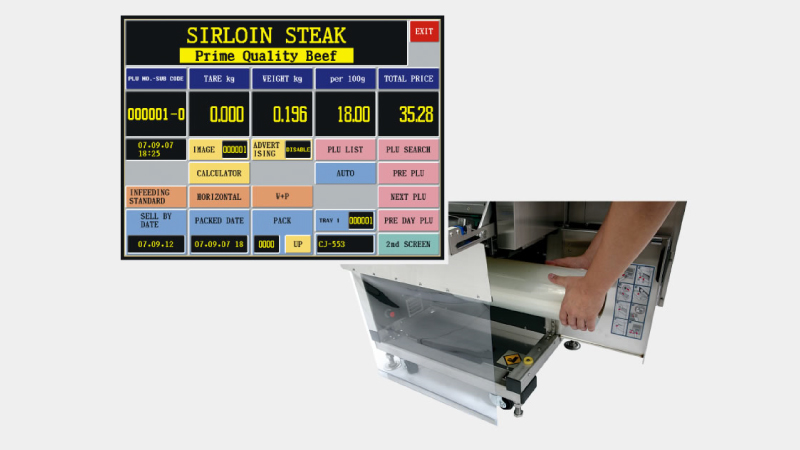

Easy operation

Operation through the large, clear color touch screen is easy for anybody. Simple construction also makes it very easy to change the film roll, so no time is wasted during operation.

Specifications

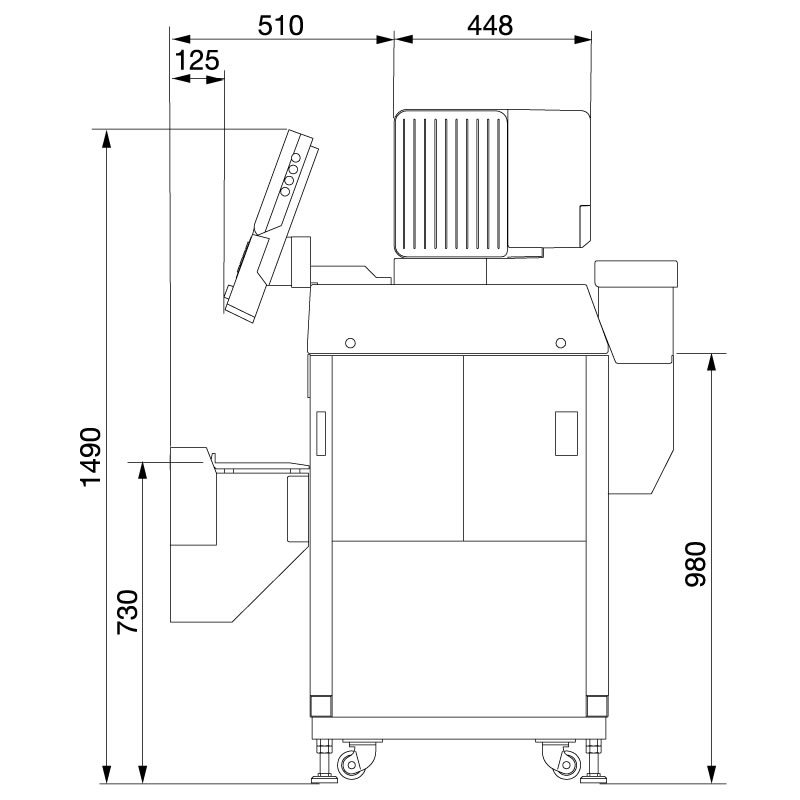

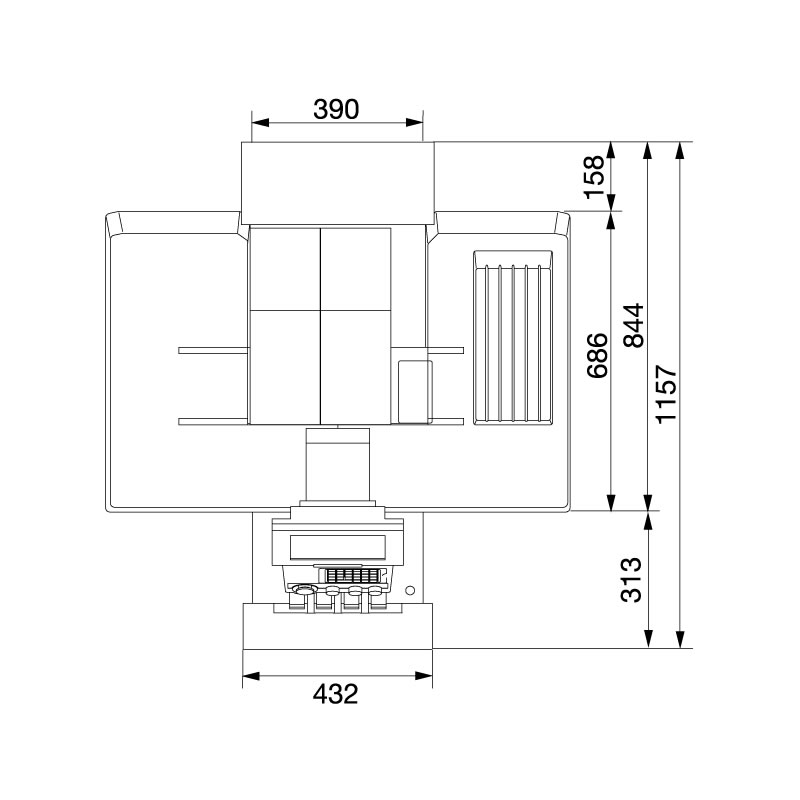

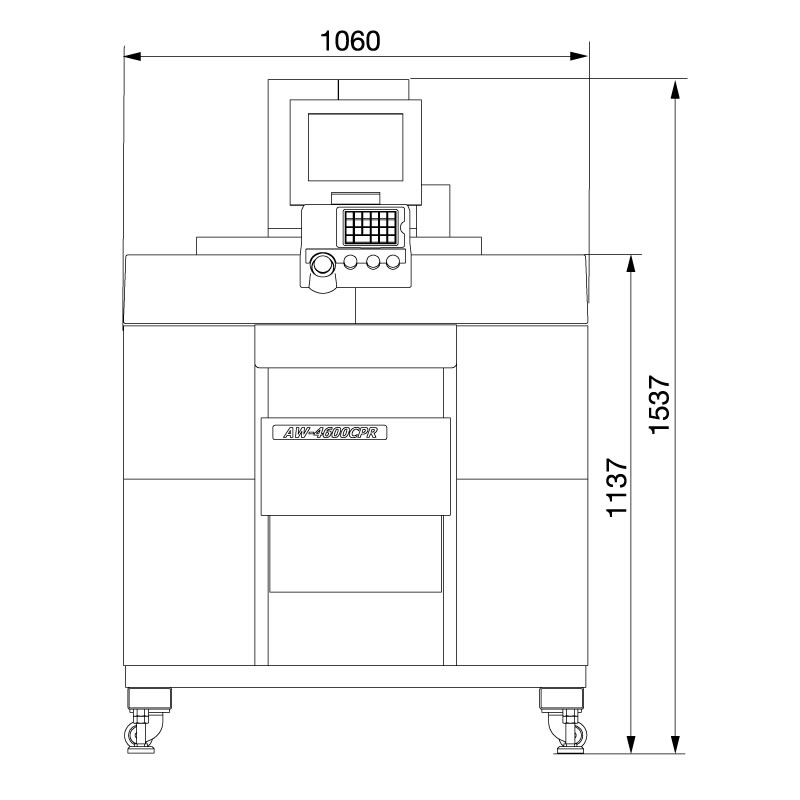

Dimensions

  • AW-4600CPR-WP05-1
  • AW-4600CPR-WP05-2
  • AW-4600CPR-WP05-3

Wrapping

Wrapping Speed Max. 30 packages/min.
Package Size Width: 130 to 380mm  /  Height :  10 to 150mm  /  Depth :  80 to 260mm

The maximum combination of the above dimension is not available and the
available package size depends on the film width.
Film Roll Capacity One
Film Size Accepts 300 to 500mm rolls

Weighing

Multi interval Single inerval
Capacity Max. 6/15kg Max. 3/6kg Max. 30 lb
Scale Inerval e=2/5g e=1/2g e=0.01 lb

Labeling

Label Type Thermal paper
Labeling Application Automatic
Label Size Width: 40 to 80mm

Net Weight 325kg
Single labeler type

Variations

AW-4600CPR-WP07-1

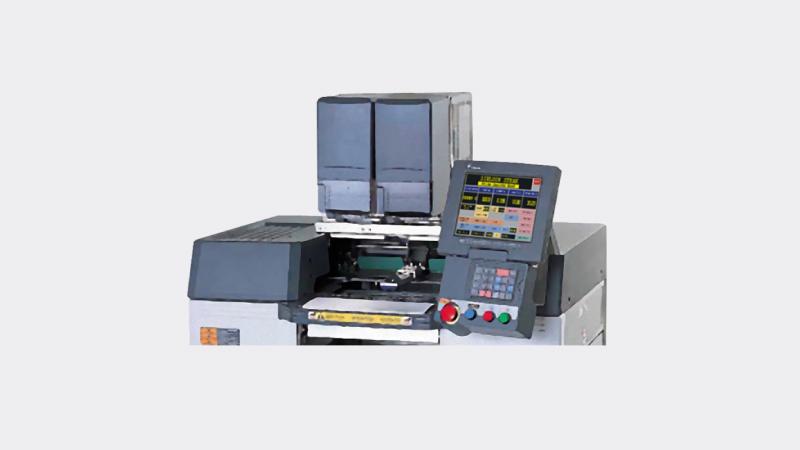

AW-4600CPR Twin

Twin labeler type

Twin labeler alters labels to be applied. Only one label is applied to each package. Good when altering labels by item or by destination.
AW-4600CPR-WP07-2

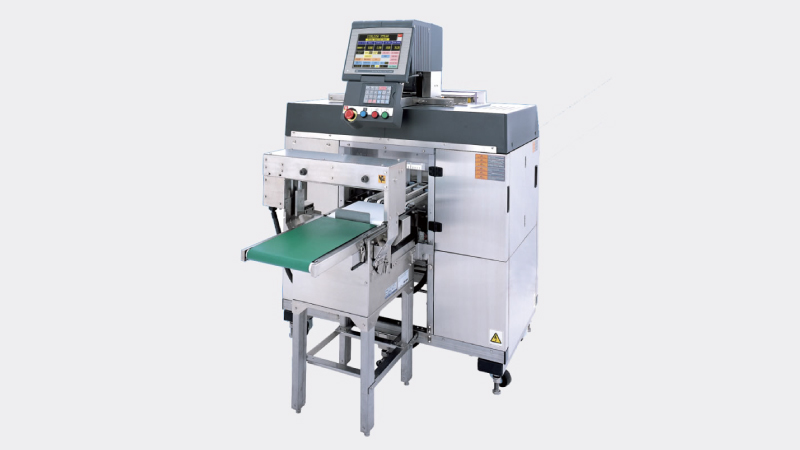

AW-4600CPR IWC

Auto infeed type

The AW-4600CPR IWC has an automatic infeed conveyor, allowing items to be fed directly from the conveyor in the previous stage.  A centering device helps correct the package figure and reduces wrapping errors.

Options

AW-4600CPR-WP09-1

Outfeed conveyor
