주요 제원

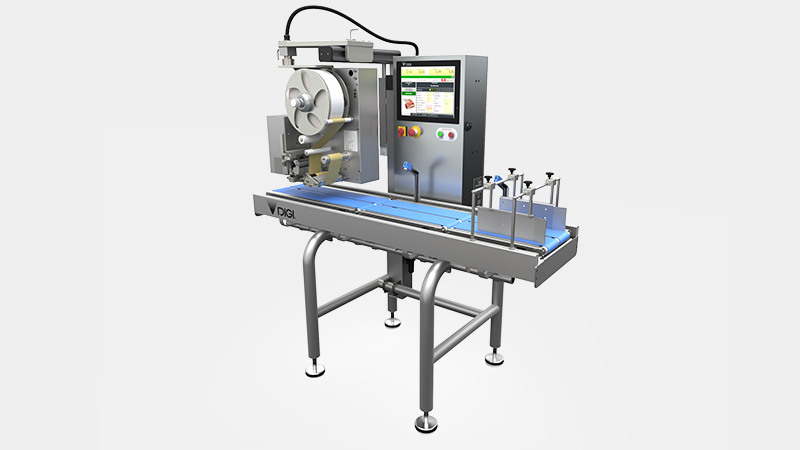

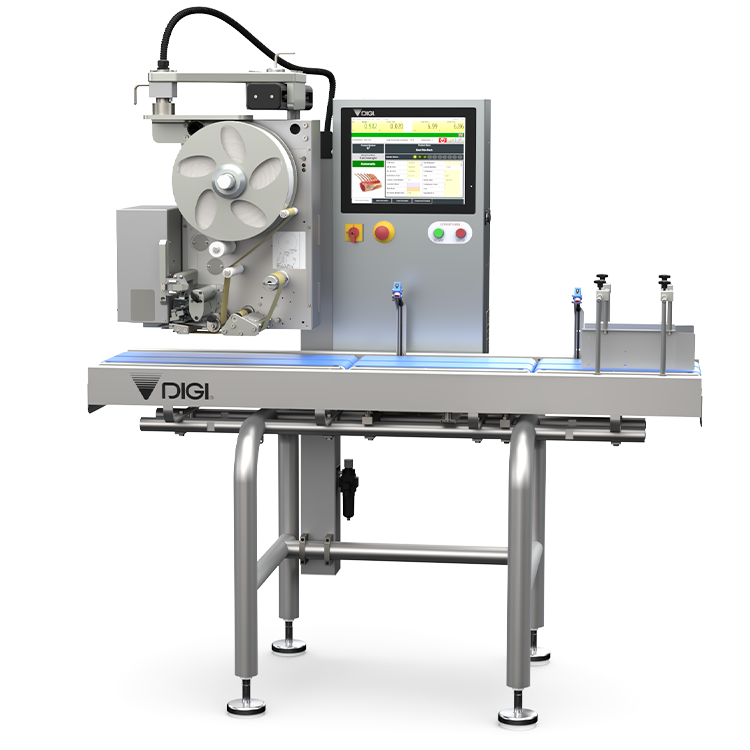

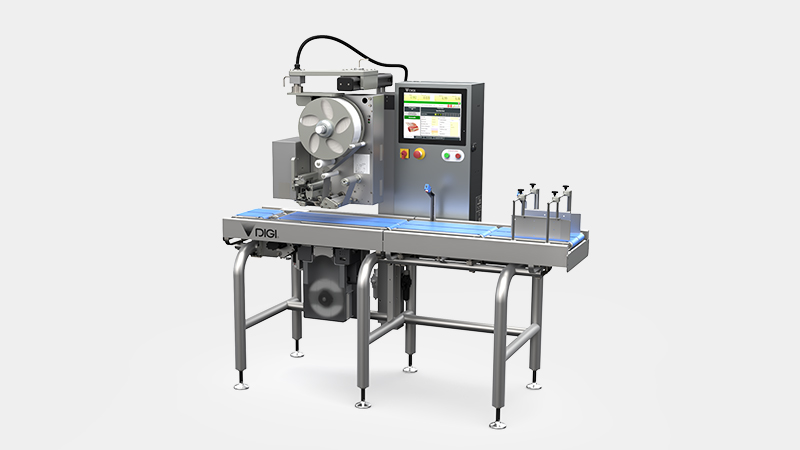

The LI-700 ll Weigh Price Labeler is designed for medium productivity environments, processing up to 65ppm. Featuring a single frame design running PC-based software, networking and integration with existing machines and back office systems is straightforward.
Compact Design

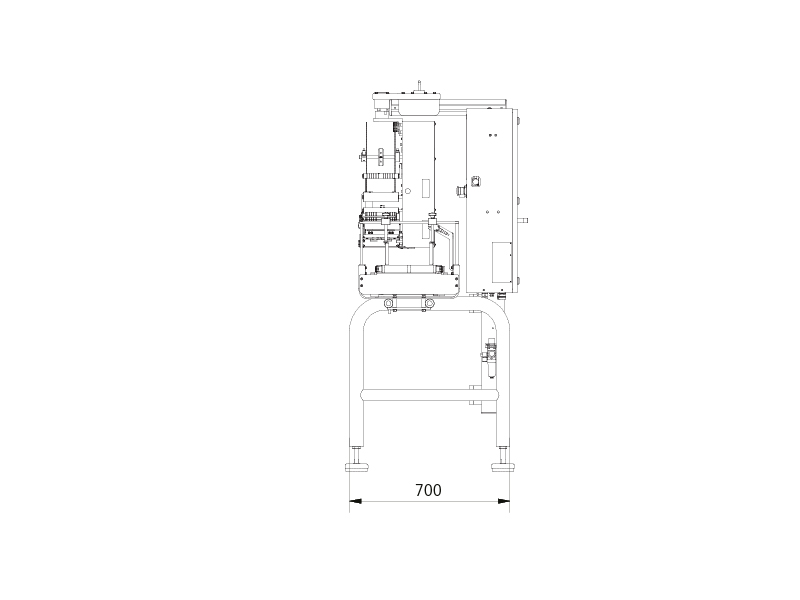

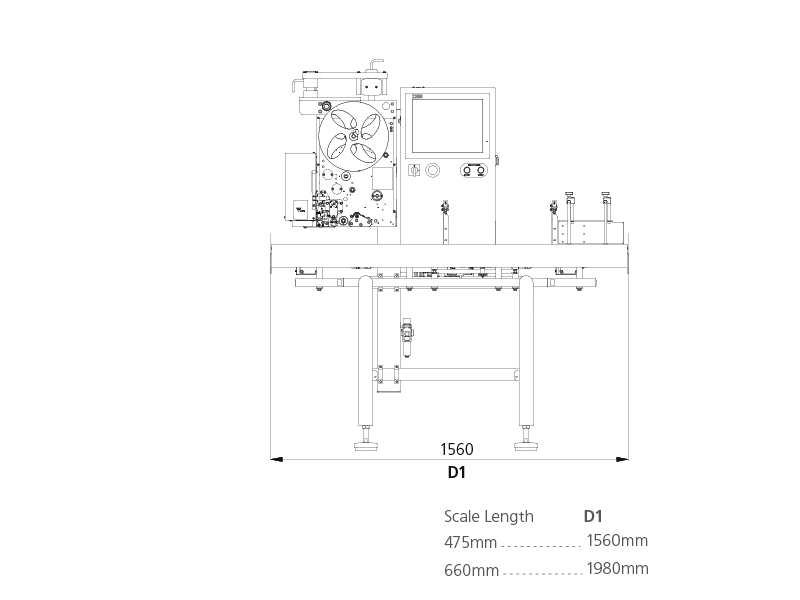

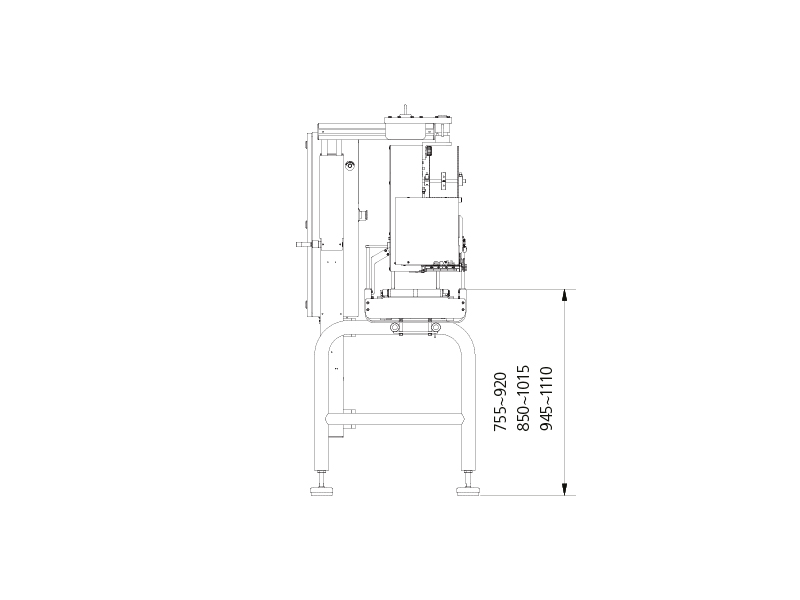

The LI-700 II's single frame design is compact, taking up 1560mm x 695mm of floor space, making it ideal for production lines where space is limited.

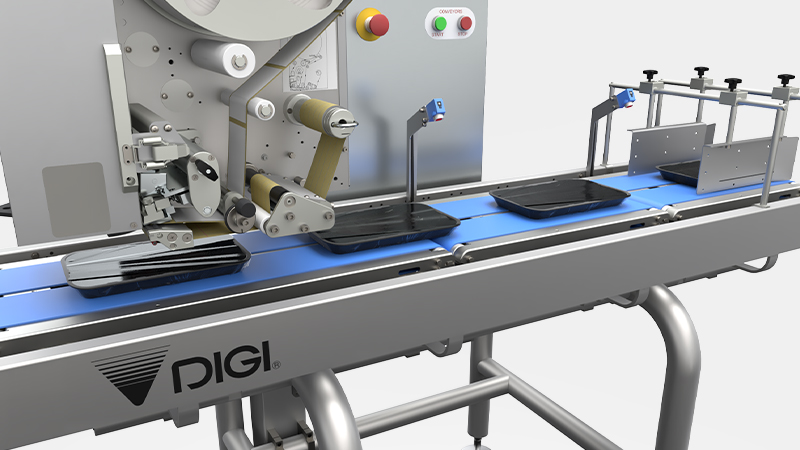

Signature Labeler
The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

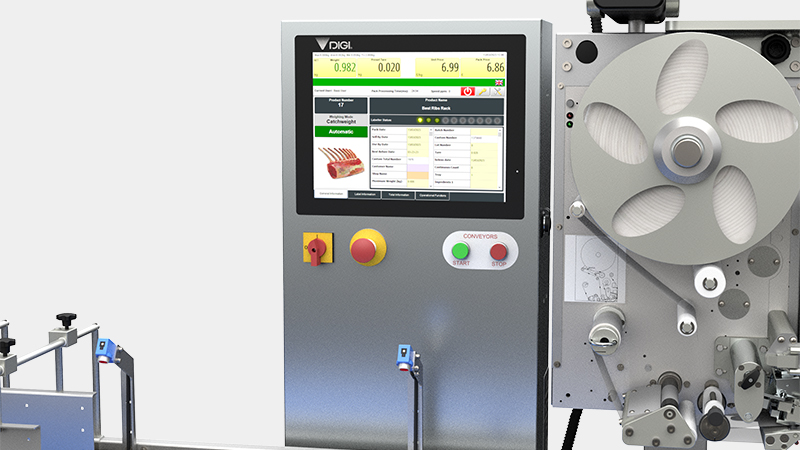

WorldView Operating Software
The LI-700 ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.
사양
규격
Weighing
| Capacity 2g min on 660mm scale |
Max 6 kg | Max 10kg | ||||
|---|---|---|---|---|---|---|
| Single Interval | e= 1g | e= 2g | ||||
| Pack Speed | up to 65 packs per minute | |||||
| Pack Size | L80-300mm x W40-250mm x H180mm | L80-485mm x W40-250mm x H180mm (660mm scale) |
||||
Display
| Screen | 15" Colour LCD touchscreen |
|---|---|
| Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
| Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
|---|---|
| Labelers | Multiple labelers/printers |
| Communication | Ethernet, USB, RS232 |
| Operating System | Windows 10 OS |
| Language | Multi-lingual Unicode |
| Software | WorldView (embedded application) |
| Database | SQL |
| Connectivity | Remote programming and control |
| Connectivity to meet industry standards | |
| Customisable output data | |
| Interconnectivity to back-office data management |
General
| Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
|---|---|
| Operating Temperature | 0 to +30°C |
Standard Features
| Scale Length | 475mm or 660mm |
|---|---|
| Scale Cover | 'lift-off' formed polycarbonate |
| Sensors | Overhead retro reflective |
| Labellers | Signature |
| Pack Guides | S100 tall guides |
| Conveyors | Split blue belts |
