주요 제원

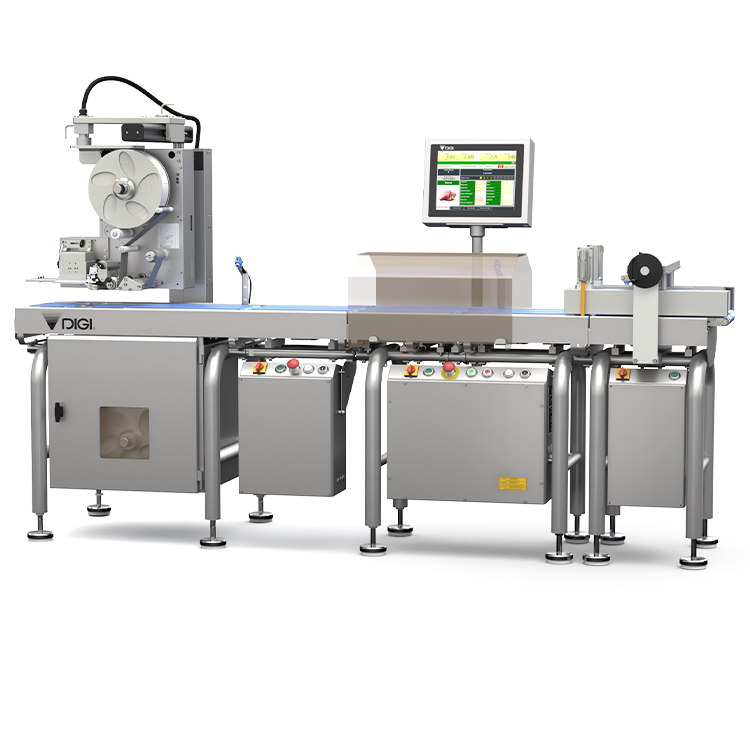

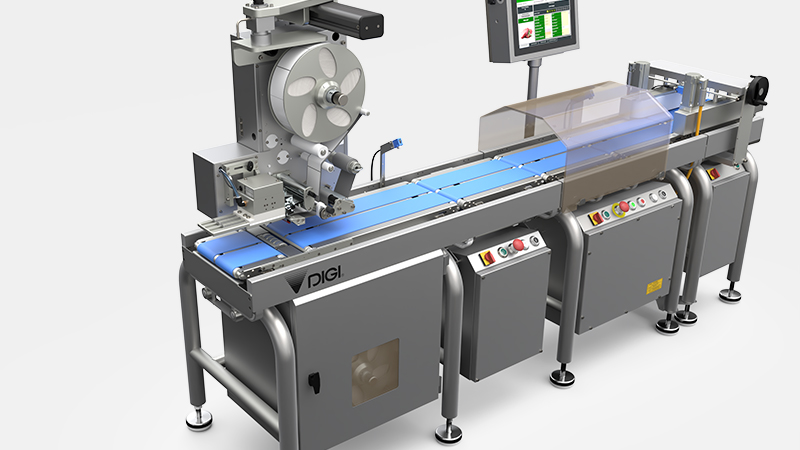

The HI-700HS ll high speed Weigh Price Labeler offers both increased efficiency and flexibility. Being powered by PC-based software means networking and integration with existing machines and back office systems is straightforward. Dynamic weighing coupled with DIGI’s high speed Signature labeler allows powerful weigh-price-labelling at up to 160ppm.

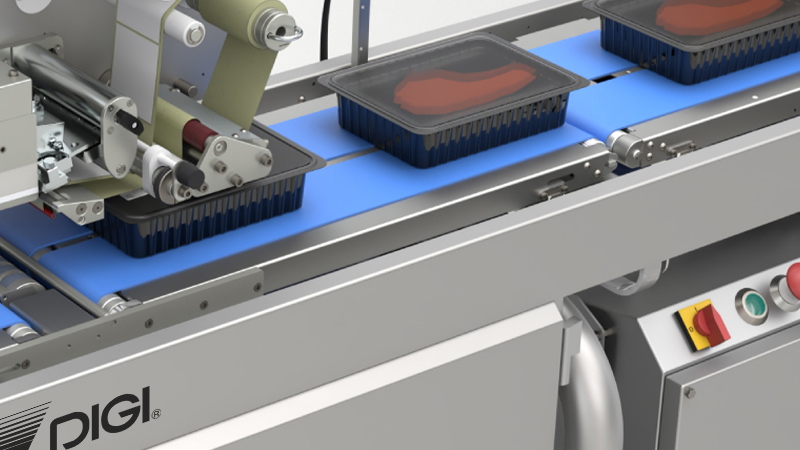

Fast Throughput
The HI-700HS II is designed to meet the fast-throughput required in many factory settings, and this is achieved thanks to features such as a servo belt driven infeed, direct drive conveyor system and DIGI's Signature labeler.

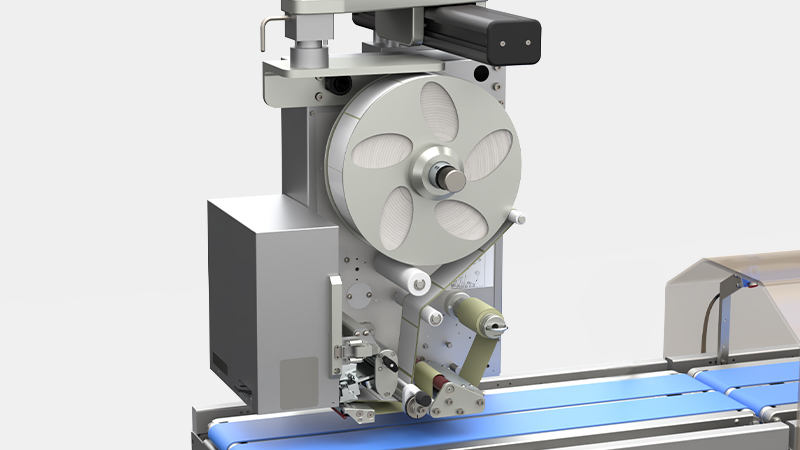

Signature Labeler
The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
WorldView Operating Software
The HI-700HS ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.
Modular Design

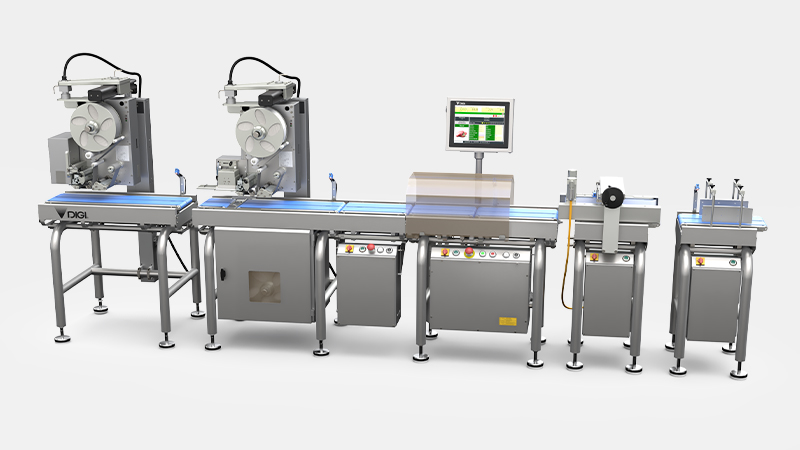

The modular design allows for the addition of extra labelling stations. Add more top and bottom labelers as required, providing a flexible solution to meet your requirements.
사양

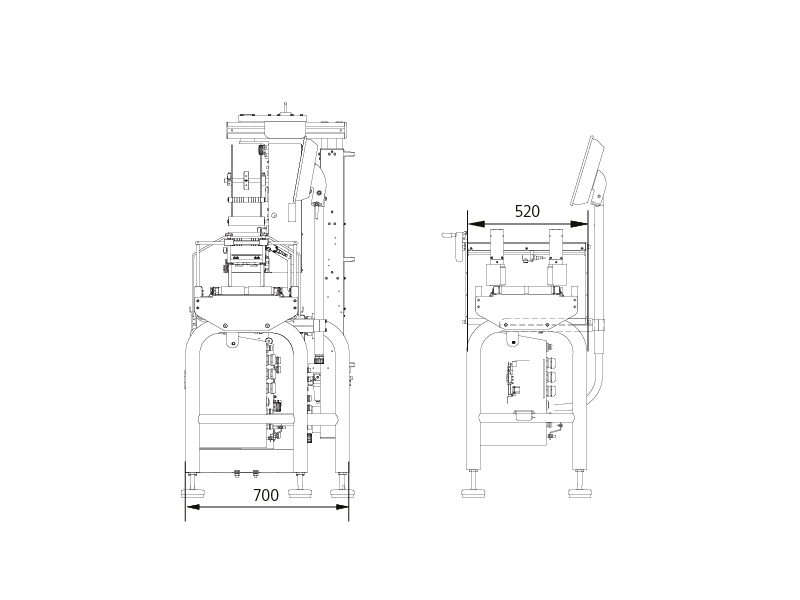

규격
Weighing
| Capacity | Max 6 kg | ||
|---|---|---|---|
| Single Interval | e= 1g | ||
| Pack Speed | up to 160 packs per minute | ||
| Pack Size | L80-300mm x W40-250mm x H180mm | ||
Display

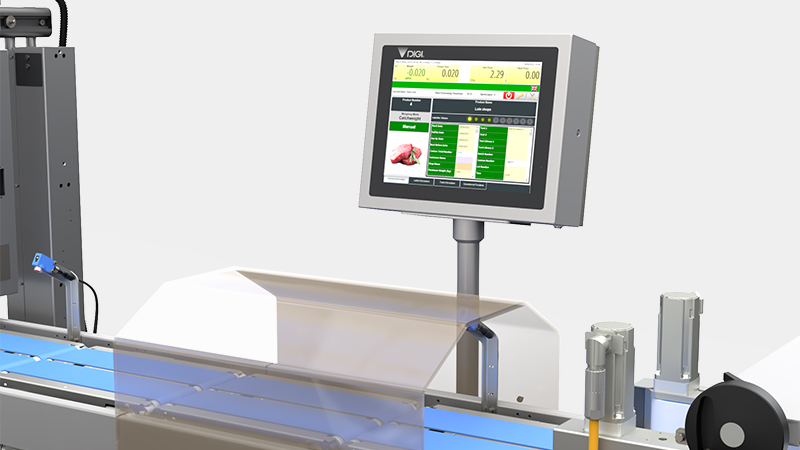

| Screen | 15" Colour LCD touchscreen |
|---|---|
| Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
| Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
|---|---|
| Labelers | Multiple labelers/printers |
| Communication | Ethernet, USB, RS232 |
| Operating System | Windows 10 OS |
| Language | Multi-lingual Unicode |
| Software | WorldView (embedded application) |
| Database | SQL |
| Connectivity | Remote programming and control |
| Connectivity to meet industry standards | |
| Customisable output data | |
| Interconnectivity to back-office data management |
General
| Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
|---|---|
| Operating Temperature | 0 to +30°C |
Standard Features
| Scale Length | 400mm |
|---|---|
| Scale Cover | 'lift-off' formed polycarbonate |

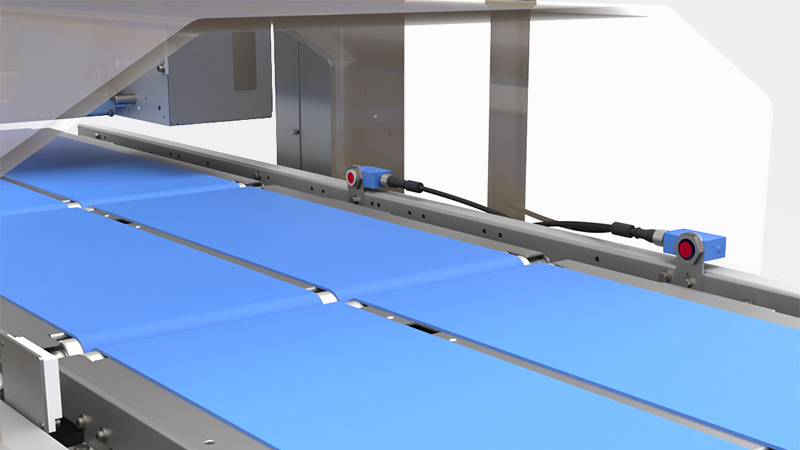

| Sensors | Overhead retro reflective |
| Labelers | Signature |
| Pack Guides | S100 tall guides |
| Conveyors | Split blue belts |
다양한 제품
Top and bottom labeling

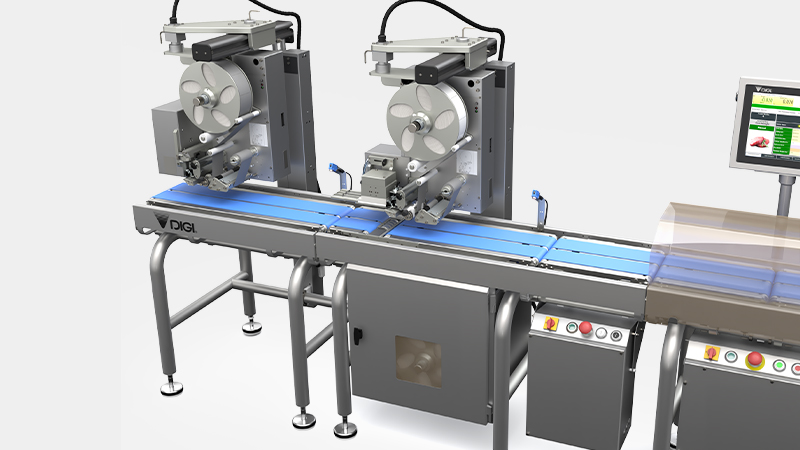

Multi Labeler
선택
Auto Labeler Height Adjustment

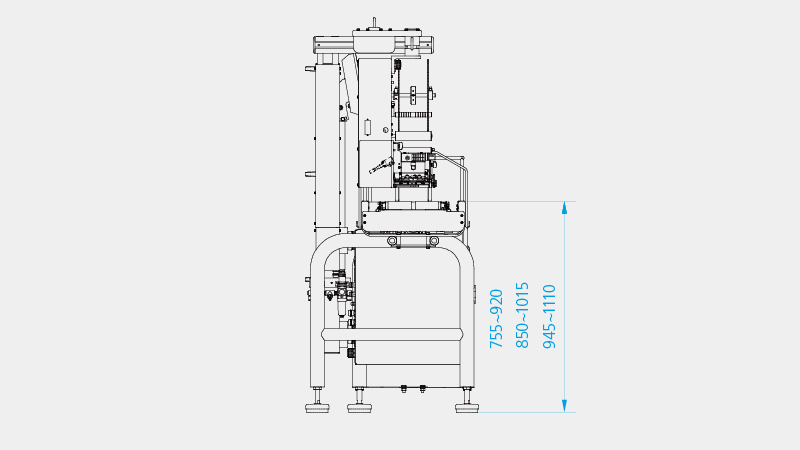

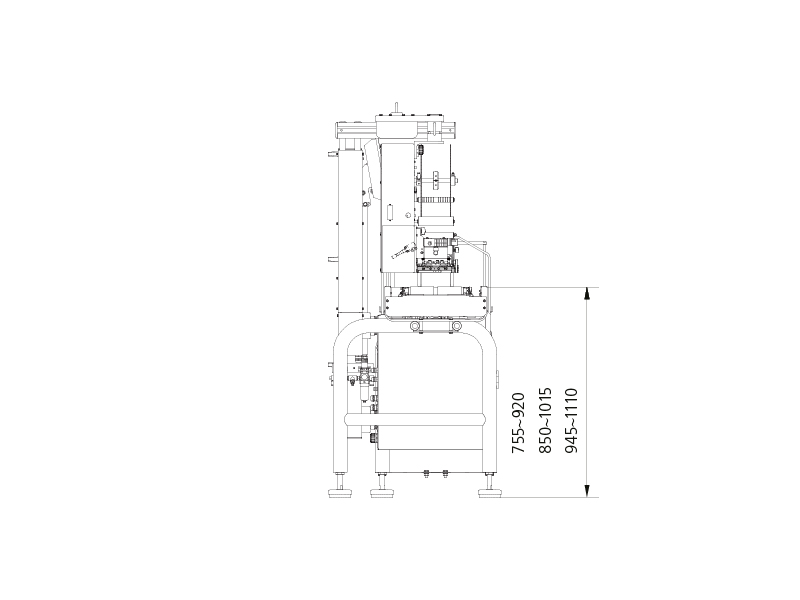

Frame Height Adjustment
