주요 제원

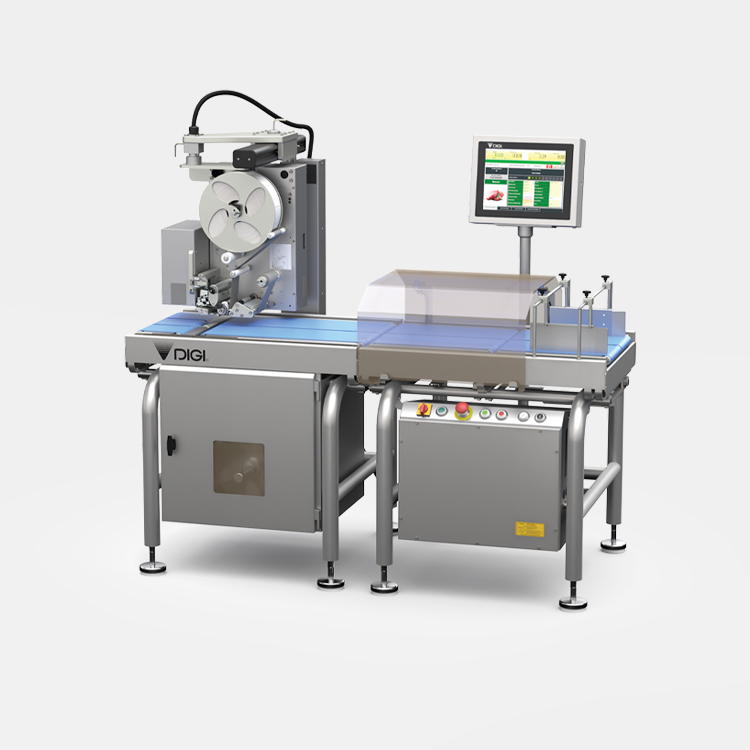

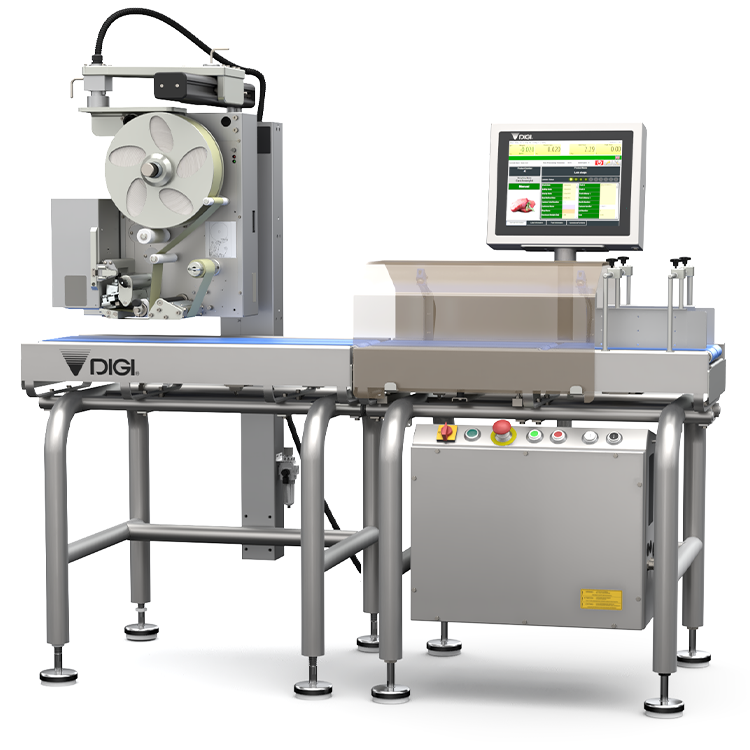

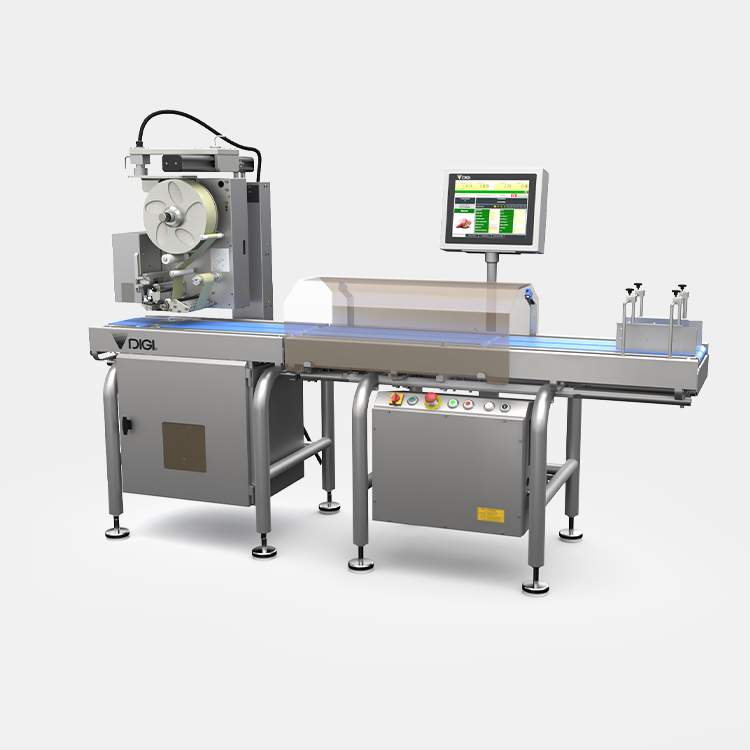

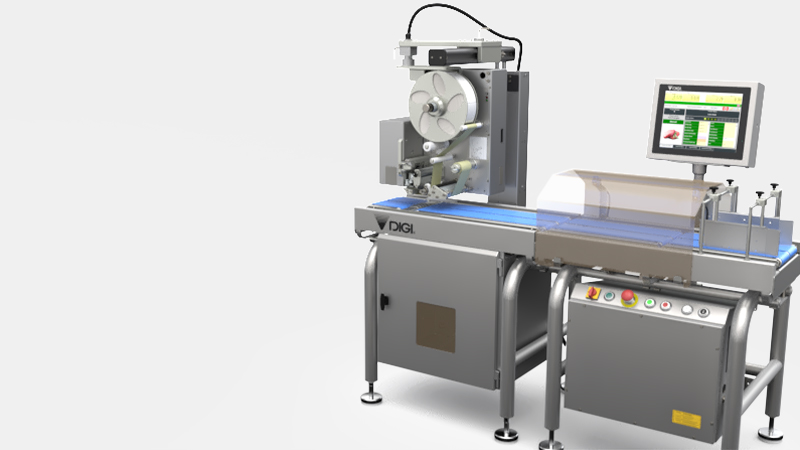

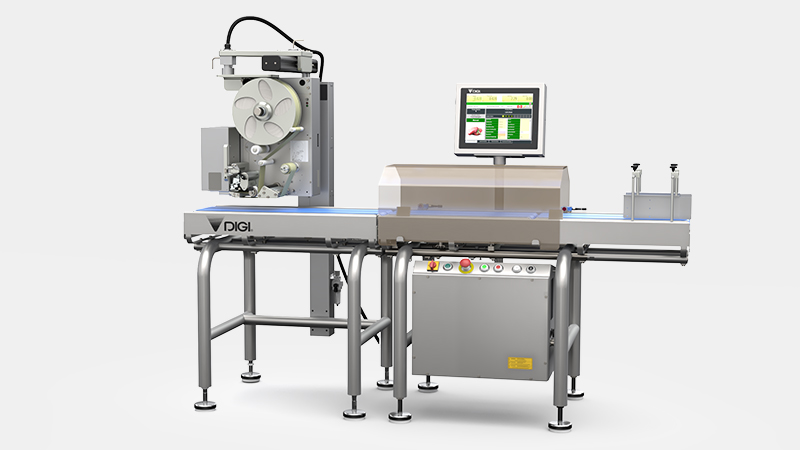

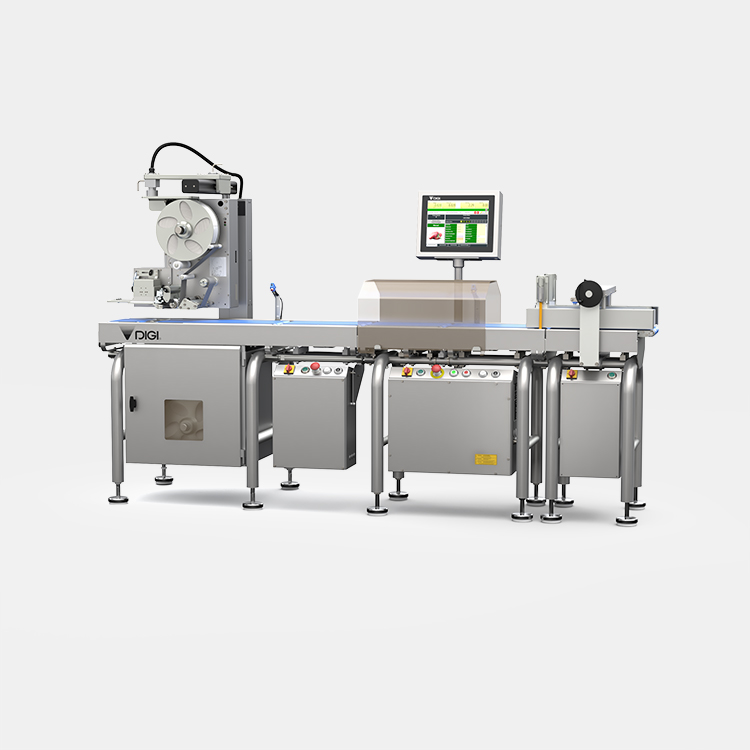

The HI-700 ll Weigh Price Labeler offers increased efficiency and flexibility. Powered by PC-based software, the HI-700 II is easily networked and integrated with existing machines and back office systems. Dynamic weighing coupled with DIGI’s high speed Signature labeller allows processing at a speed of up to 120ppm.
High Productivity
When an additional labelling unit is added, downtime can be further limited by auto-swapping of the labelling stations. Additional labelling units can also operate in ‘ping pong’ mode, alternating application between labellers to maintain higher throughput with larger labels.

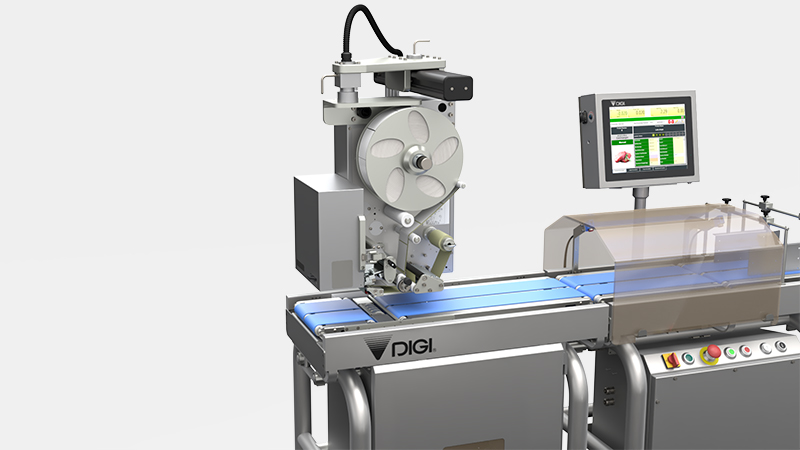

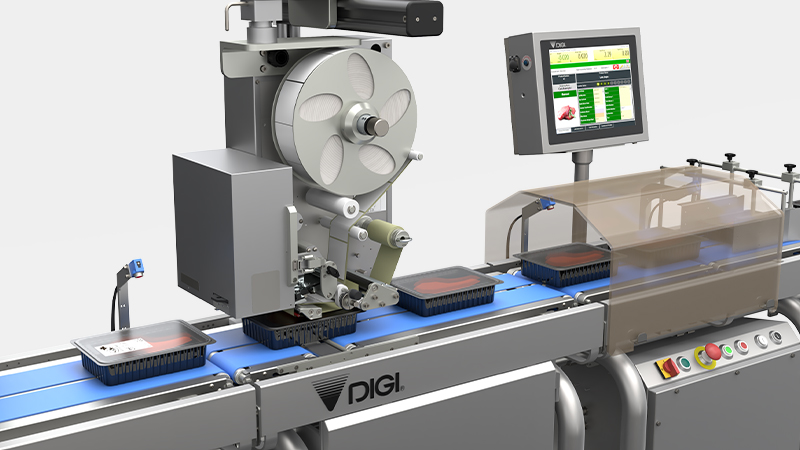

Signature Labeller
The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
WorldView Operating Software
The HI-700 ll series uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labelers.
Modular design
The modular design allows for the addition of extra labeling stations. Add more top and bottom labellers as required, providing a flexible solution to meet your requirements.
사양
규격
Weighing
| Capacity | Max 6 kg | Max 6 kg | Max 12kg |
|---|---|---|---|
| Single Interval | e= 1g | e= 2g (660mm scale) | e= 2g |
| Pack Speed | up to 120 packs per minute | ||
| Pack Size | 475mm scale | L80-300mm x W40-250mm x H180mm | |
| 550mm scale | L80-375mm x W40-250mm x H180mm | ||
| 660mm scale | L80-485mm x W40-250mm x H180mm | ||
Throughput dependant on product weight and size and scale length.
Display

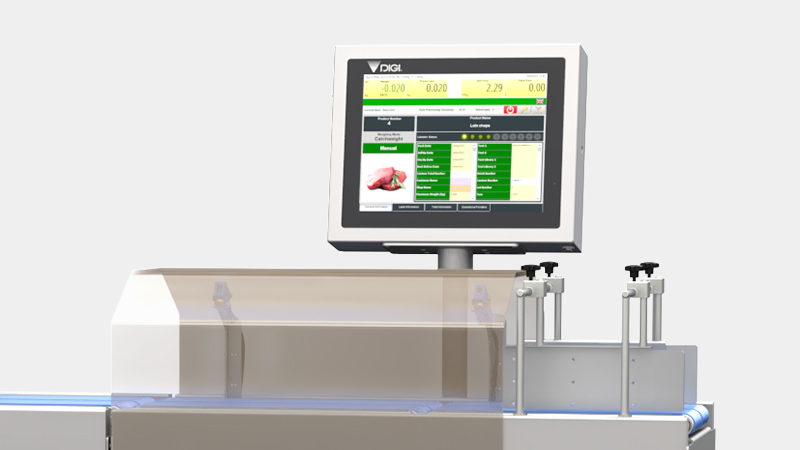

| Screen | 15" Colour LCD touchscreen |
|---|---|
| Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
| Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
|---|---|
| Labelers | Multiple labelers/printers |
| Communication | Ethernet, USB, RS232 |
| Operating System | Windows 10 OS |
| Language | Multi-lingual Unicode |
| Software | WorldView (embedded application) |
| Database | SQL |
| Connectivity | Remote programming and control |
| Connectivity to meet industry standards | |
| Customisable output data | |
| Interconnectivity to back-office data management |
General
| Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
|---|---|
| Operating Temperature | 0 to +30°C |
Standard Features

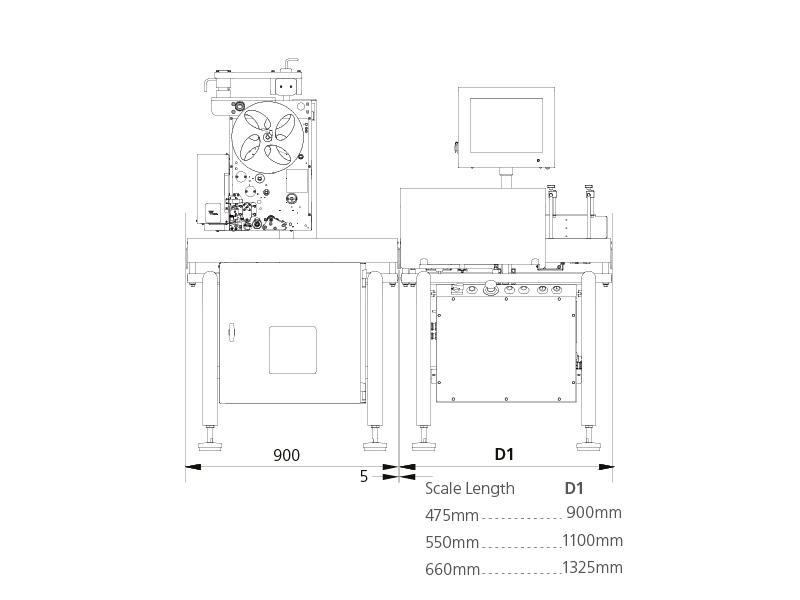

| Scale Length | 475mm, 550mm or 660mm |
|---|---|
| Scale Cover | 'lift-off' formed poycarbonate |
| Sensors | Overhead retro reflective |
| Labelers | Signature |
| Pack Guides | S100 tall guides |
| Conveyors | 2 or 3 conveyors |
| Split blue belts |
다양한 제품
Top and bottom labeling

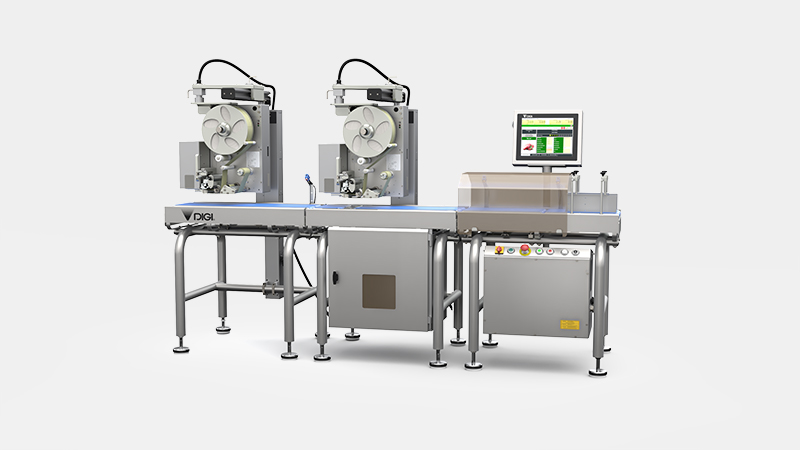

Multi Labeler
Long Scale
선택

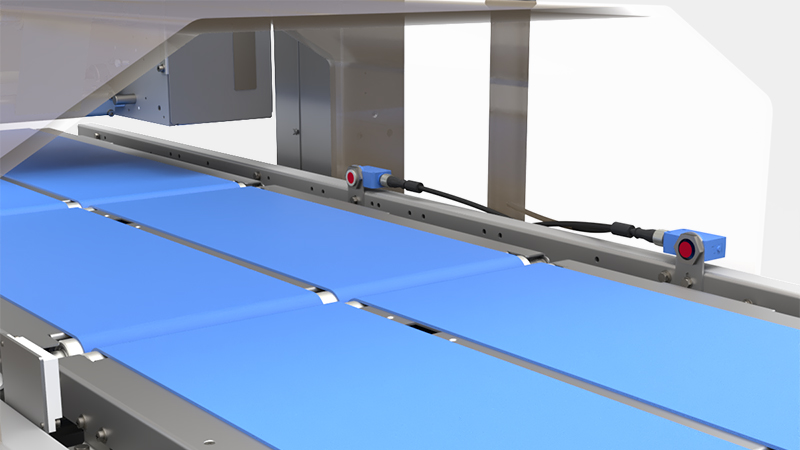

Pack Sensors

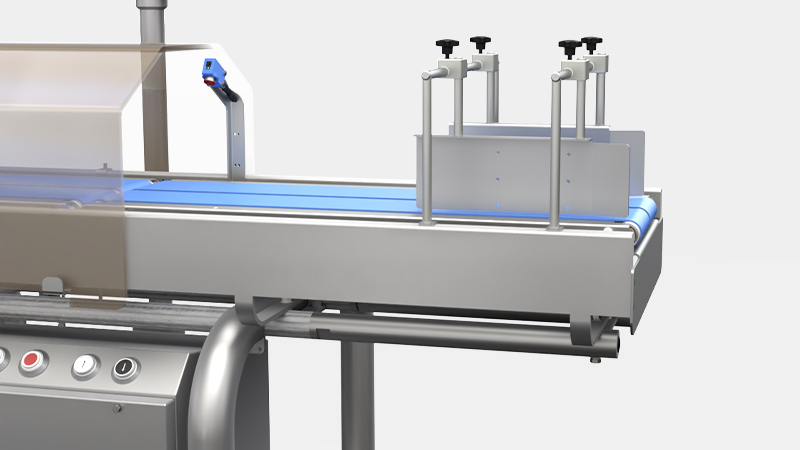

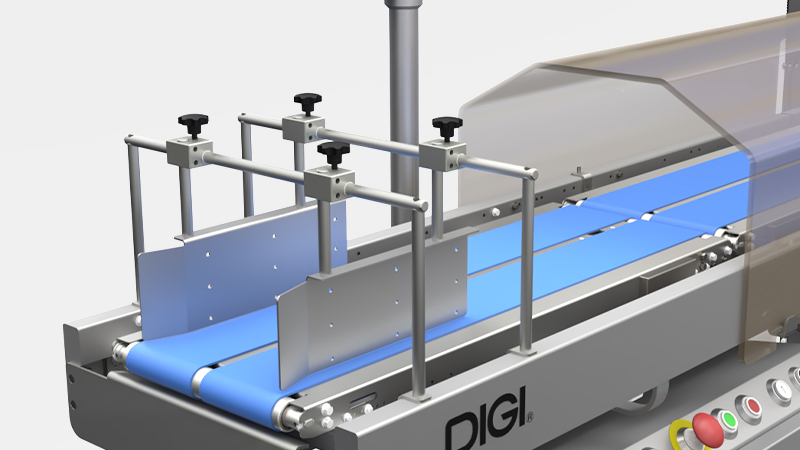

Pack Guides
Sub Infeed
Auto Labeler Height Adjustment via PLU
