주요 제원

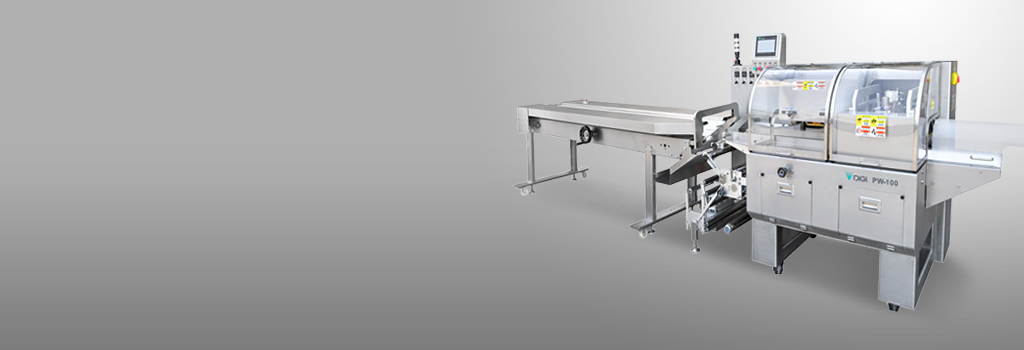

The PW-100 is a fully-automated high-speed vegetable flow wrapper that is especially suited for packing elongated and leafy vegetables. Advanced length-sensing technology ensures accurate and speedy packing. This product has a number of features that reduce packing errors and lock in freshness for a shelf-ready product.
PW-100 – Speedy and uniform wrapping
This flow wrapper excels at packing vegetables, such as elongated and leafy varieties. It protects the product from being damaged, giving you a fresh, long lasting and presentable product for your customers. Both POF shrink film or BOPP film options are available.
Advanced length-sensing & anti-pinch technology
Auto-length measuring ensures that items fit comfortably in the package, and an anti-pinch feature prevents leafy ends from being sealed. Cutting protection also keeps packed produce from being cut, assuring consistent packing quality. This feature also allows for mixed items to be packed in one line.
Ideal for elongated and leafy vegetables

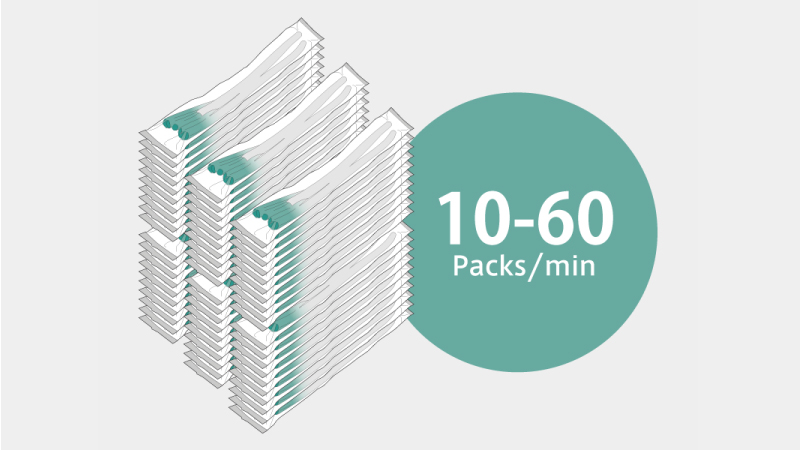

PW-100 uses advanced length-sensing technology for accurate and speedy packaging. Use to pack elongated and leafy vegetables, root vegetables, and fruits at speeds of 10-60 packages per minute, and 26 meters of film per minute.
The reliability is in the hardware
Because packing is all about quality, our machinery employs technology such as double pinching roll heating and a reciprocating cutter, and large hole punch jigs which allows the produce to breathe and stay fresh.
사양
규격
| Type | PW-100B | PW-100P |
|---|---|---|
| Film Material | BOPP | POF |
| Structure | Reciprocating | |
| Packing Speed | 10-60PPM | 10-50PPM |
| Max Packing Size | H: 130 mm | |
| W: 280 mm | W: 210 mm | |
| Max Packing Size | W: 580 mm | W: 450 mm |
| Φ: 330 mm | ||
| Max Packing Speed | 26m/min | 20m/min |
| Cutting Length Range | 180-900mm | |

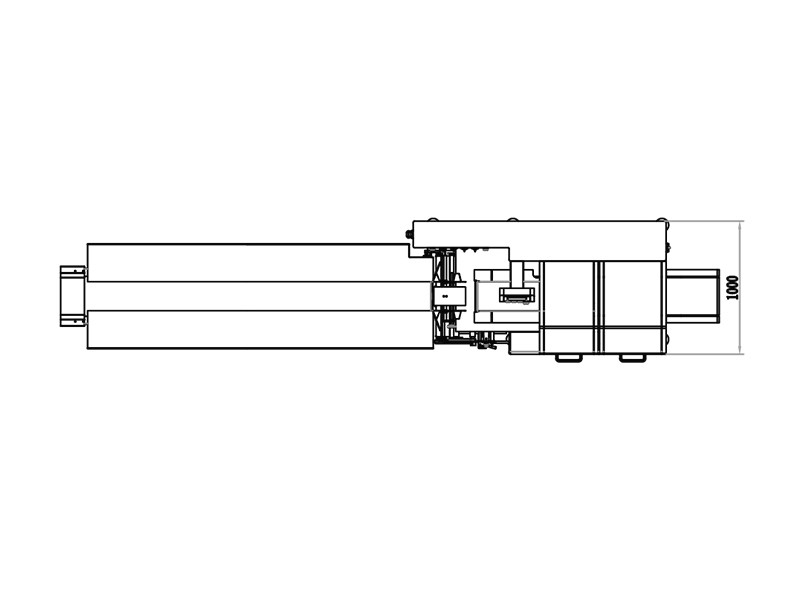

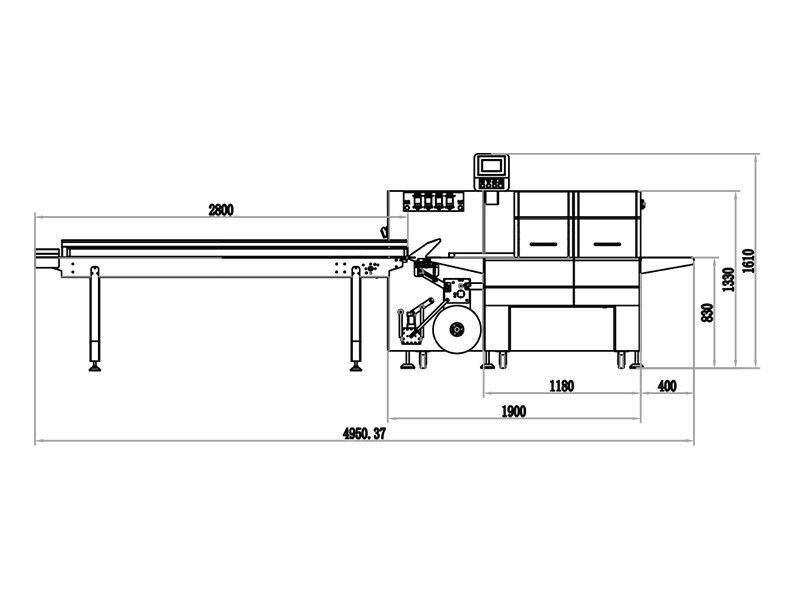

| Dimension (mm) | 5062 (L) * 1000 (W) * 1530 (H) | |
| Power Consumption | 5.0kW | |
| Power Supply | AC220V 50/60Hz | |
