주요 제원
AW-5600ATII는 조작의 쾌적함과 환경을 위해 설계된 고성능 자동계량라벨포장기입니다. 간편한 조작으로 작업의 부담을 줄이고, 라벨과 랩필름의 소비를 절약하며 로우 코스트와 환경에 미치는 영향을 줄여줍니다.
올인원 포장 솔루션
높은 생산성
경제적 & 체험적
다양한 라벨로 효과적인 프리젠테이션
사양

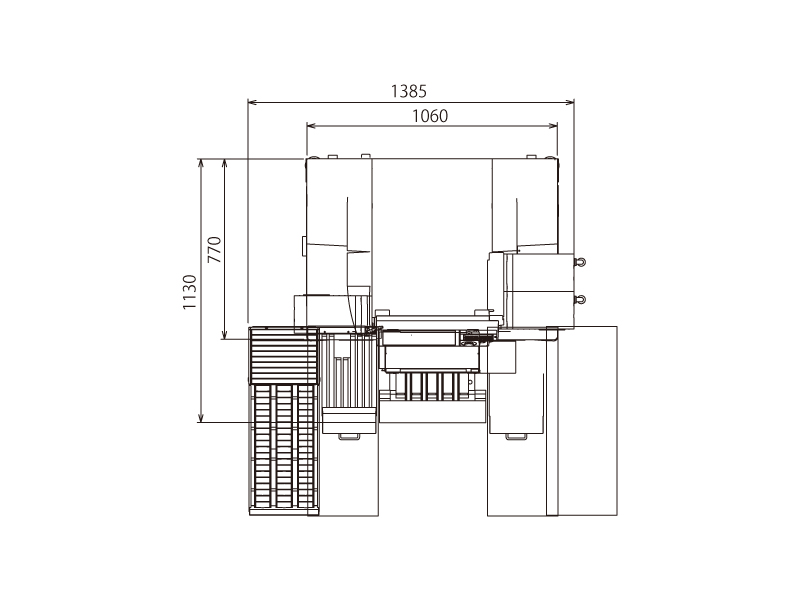

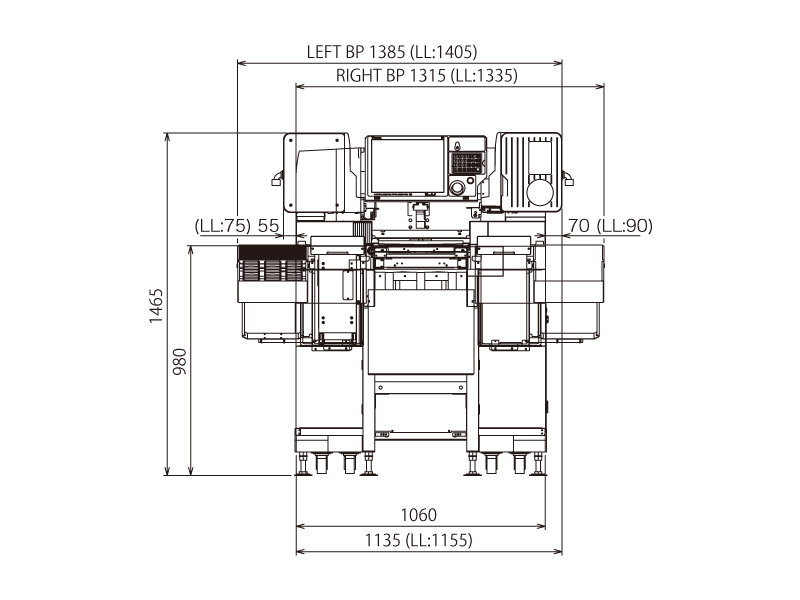

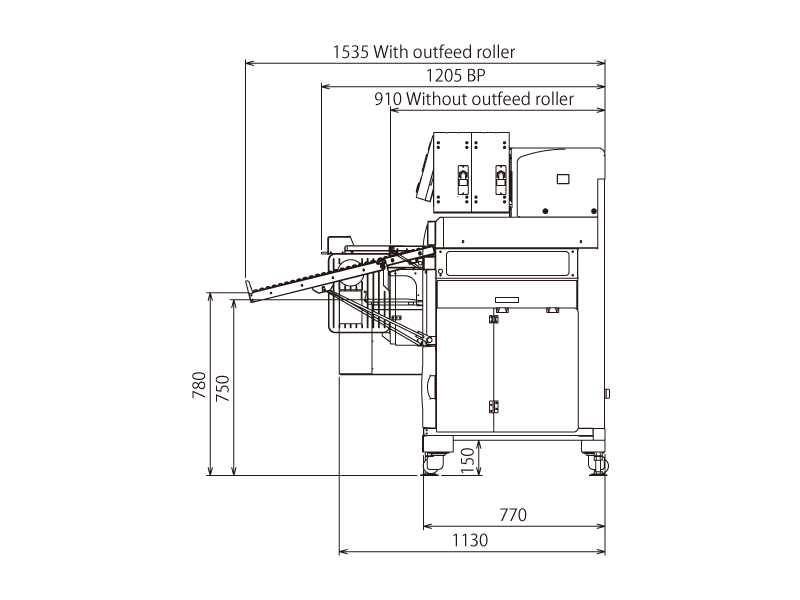

규격
Wrapping

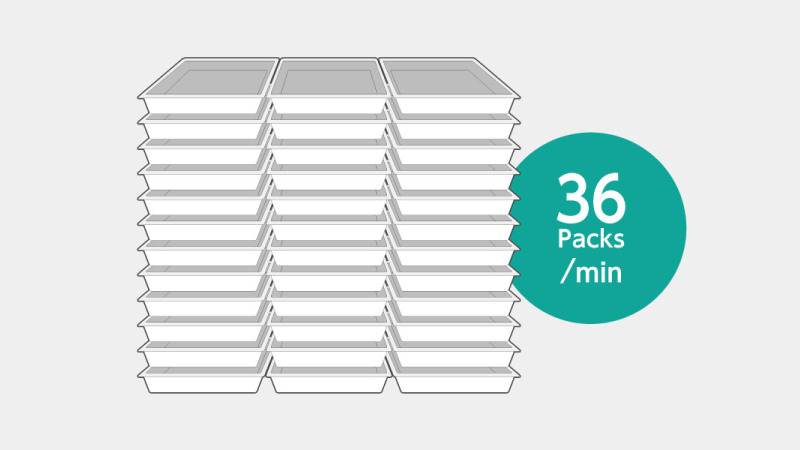

| Wrapping speed | Max. 36 packages/min. |
|---|---|
| Package size | Width: 130 to 380 mm / 5.1-15 inches Height: 10 to 130 mm /0.4-5.1 inches Depth: 80 to 254 mm / 3.1-10 inches The combination of maximum size of each dimensions cannot be used. The size of the package that can be wrapped also depends on the film to use. |
| Film roll capacity | One |
| Film width | 300 to 450 mm |
Weighing
| Interval type | Multi interval | Single interval | |
|---|---|---|---|
| Capacity | Max. 3/6 kg | Max. 6/15 kg | Max. 30 lb |
| Scale interval | e=1/2 g | e=2/5 g | e=0.01 lb |
| Weighing range | 20 g-6 kg | 40 g-15 kg | 0.20-30 lb |
| Max. wrapping capacity | 5 kg | 5 kg | 11 lb |
Labeling
| Label type | Thermal printer |
|---|---|
| Labeling application | Automatic |
| Label width | 40-80 mm/1.6-3.1 inches |
| Label length | 28-105 mm/1.1-4.1 inches |
Operation console
| Display panel | TFT LCD color (15 inches) touch panel |
|---|---|
| Operation keys | Mechanical keys and touch screen |
| Memory for programmable files | 18 GB |
General
| Power source and power consumption | 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.2 kW 220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.2 kW |
|---|---|
| Net weight | Approx. 400 kg / 882 lb |
다양한 제품

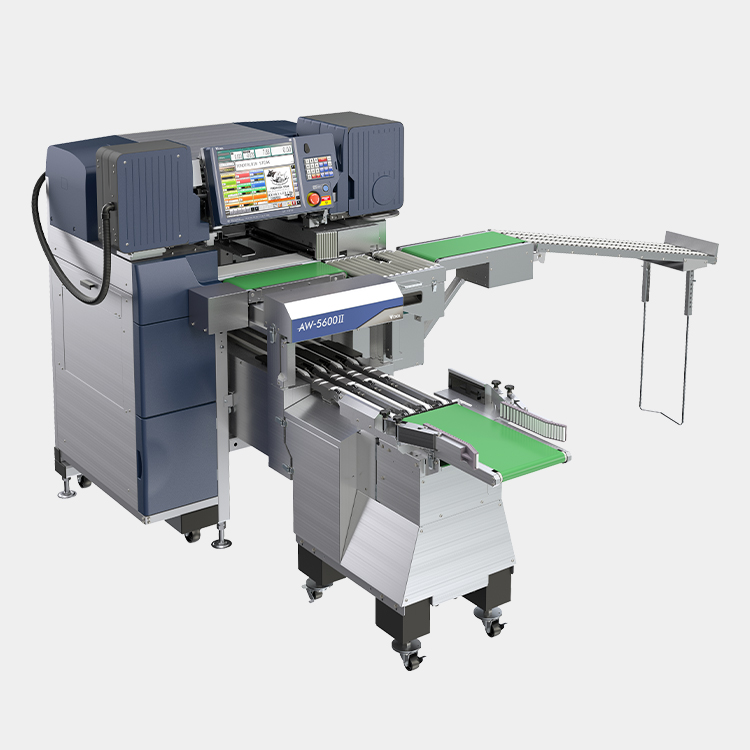

Model with pack accumulator

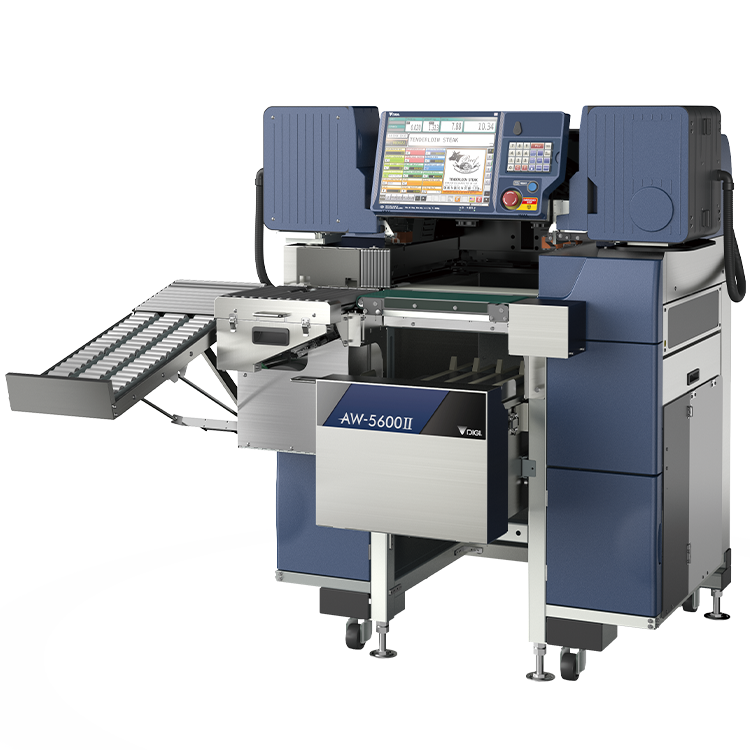

AW-5600ATII
This model is equipped with a pack accumulator to accommodate trays after wrapping and labeling.
Model with promotional labeler
AW-5600ATII POP
In additional to product labels, this model is equipped with a labeler for promotional labels. The machine can automatically apply both product labels and promotional labels simultaneously.
Linerless labels can be applied by all labelers.
Linerless labels can be applied by all labelers.
Model with bottom labeler
AW-5600ATII BP
In additional to product labels, this model is equipped with a labeler for bottom label. The machine can automatically apply both product labels and bottom labels simultaneously.
Linerless labels can be applied by all labelers.
Linerless labels can be applied by all labelers.
