주의: 이 제품은 더 이상 판매를 하지 않고 지원이 되지 않습니다. 이 모델 또는 교체 모델에 대한 유지보수에 대하여 현지 담당자와 상담을 해주시기 바랍니다.

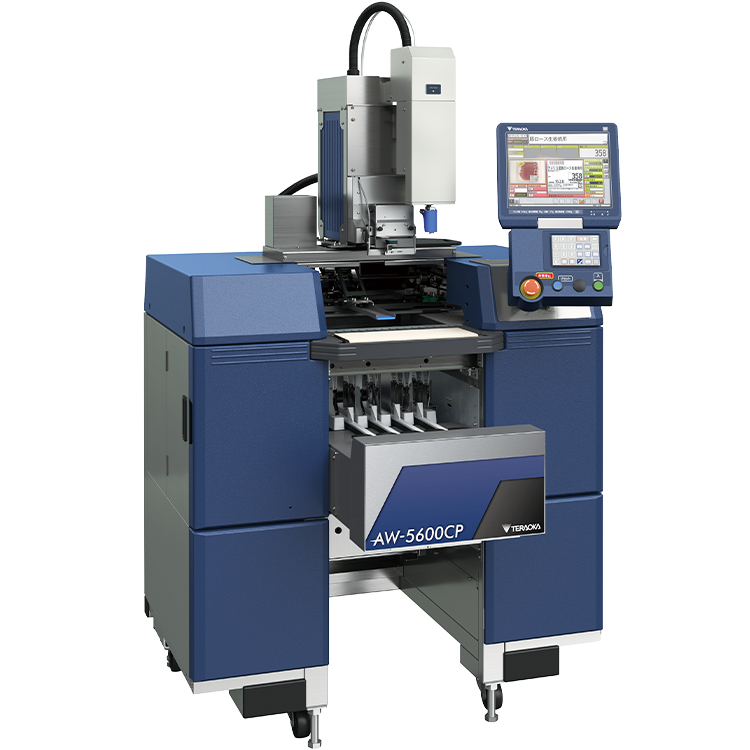

AW-5600CP-WP02

Compact integrated weigh-wrap-label system

AW-5600CP

소매

주요 제원

AW-5600CP is the basic model of the 5600 series, providing an impressive 30 packages/minute throughput in a reduced-cost design. The compact form factor retains the full-spec 300 dpi high-res printer and extra-large full-color touchscreen display that are standard with the 5600 series. The newly developed rotational labeler arm allows fully automatic application of linerless labels. Variations include models with manual or automatic label application.

AW-5600CP-WP04-1

High Productivity

Weighing, wrapping, and labeling can be done in one step at a maximum processing speed of 30 packages/minute. The user friendly extra-large 12.1" full color touch screen allows label print content to be previewed on the display, helping to prevent labeling errors.

A newly designed rotational labeler arm

Economical & Ecological

A linerless auto-label-sizing feature eliminates unused space on the label and automatically adjusts the label size. Use of linerless labels minimizes waste, integrating environmental friendliness into your everyday work process. AW-5600CP AUTO adopts a newly designed rotational labeler arm to enable automatic label placement of linerless labels.

Easy Clean-Up, Every Time

AW-5600CP is designed to be incredibly easy to clean. The parts that come into direct contact with food can be removed in seconds and washed in water. Also, the main unit sits well above the floor to accommodate mopping and sweeping.

사양

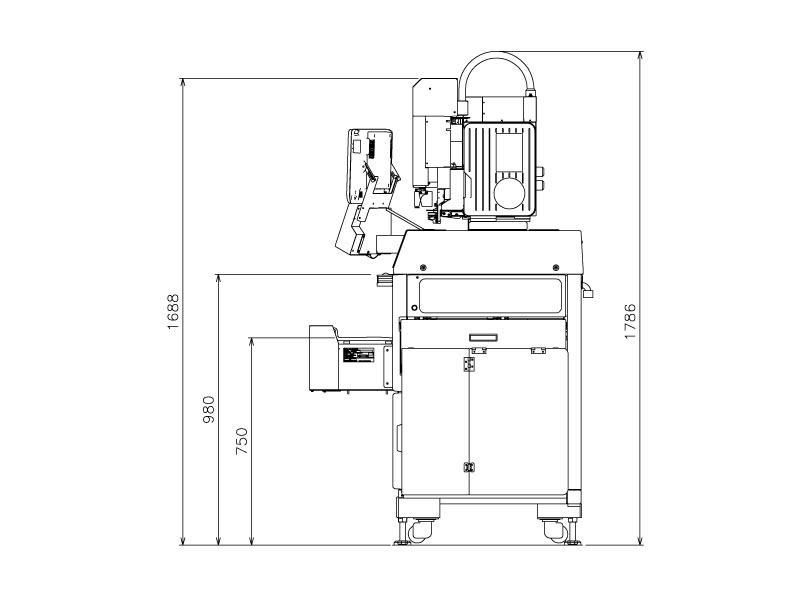

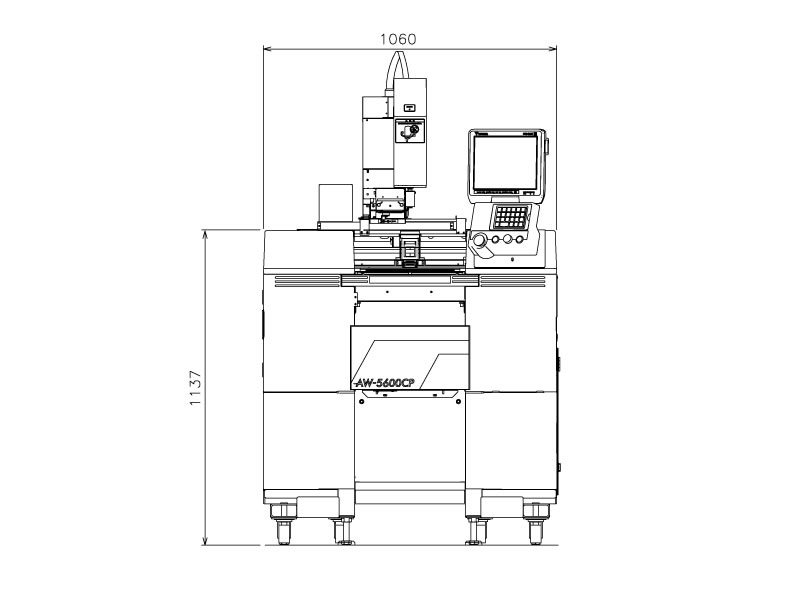

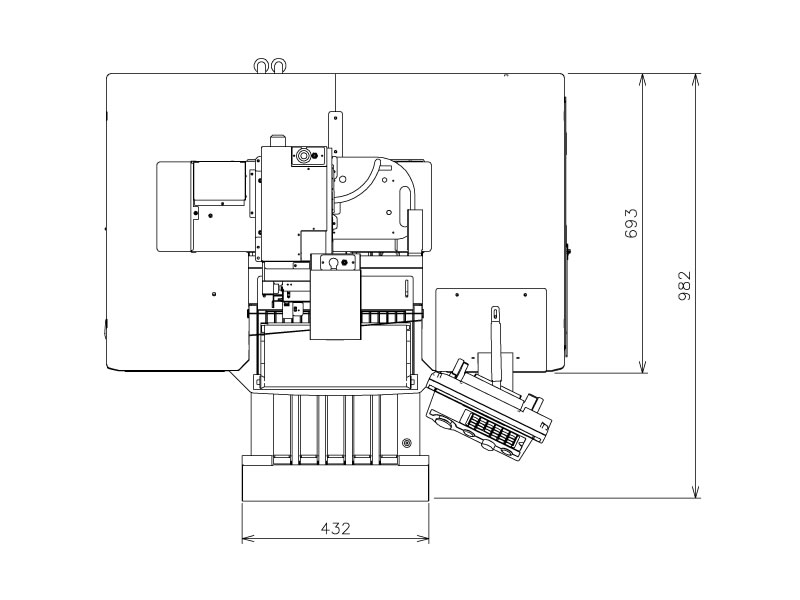

규격

  • AW-5600CP-WP05-1
  • AW-5600CP-WP05-2
  • AW-5600CP-WP05-3

Wrapping

Wrapping Speed Max. 30 packages/min.
Package Size Width: 130 to 350 mm  /  Height :  10 to 130 mm  /  Depth :  80 to 230 mm
* The combination of maximum size in each dimension cannot be used.
The size of the package that can be wrapped also depends on the film used.
Film Size Accepts 300 to 500 mm rolls

Weighing

Multi interval Single interval
Capacity Max. 6/15kg Max. 3/6kg Max. 30 lb
Scale Interval e=2/5g e=1/2g e=0.01 lb
Weighing Range  40 g - 15 kg  20 g - 6 kg  0.20 - 30 lb

Labeling

Label Type Die-cut Label  Linerless Label
Labeling Width Automatic label application: 40 - 80 mm
Manual label application: 25 - 80 mm
44/59 mm
Label Length Automatic label application: 28 - 105 mm
Manual label application: 20 - 150 mm
Automatic label application: 28 - 105 mm
Manual label application: 20 - 500 mm*
* Maximum printing length is 300 mm

Net Weight Approx. 355kg

다양한 제품

AW-5600CP-WP07-1

Twin labeler

AW-5600CP TWIN

For situations where you wish you had a second label, AW-5600CP TWIN offers  two label rolls in the configuration of your choice. An extra label format lets you quickly respond to in-store promotion needs, product discounts, and more.
AW-5600CP-WP07-2

Automatic label application

AW-5600CP AUTO

For fast and accurate labeling, AW-5600CP AUTO offers a newly designed rotational labeler arm for automatic label placement on packages.  This enables fast and accurate labeling, even with linerless labels. An automatic twin labeler model is also available.
