주의: 이 제품은 더 이상 판매를 하지 않고 지원이 되지 않습니다. 이 모델 또는 교체 모델에 대한 유지보수에 대하여 현지 담당자와 상담을 해주시기 바랍니다.
주요 제원

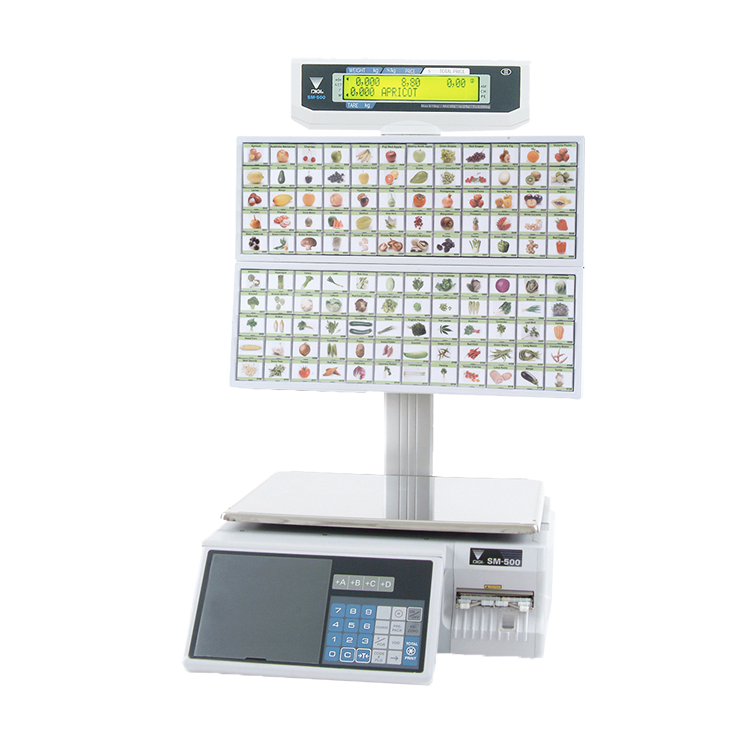

The SM-500MK4BS self service type system scale with a fast processing and printing speed up to 150mm/s will demonstrate its ability to reduce queues with its high throughput capability and efficiency.

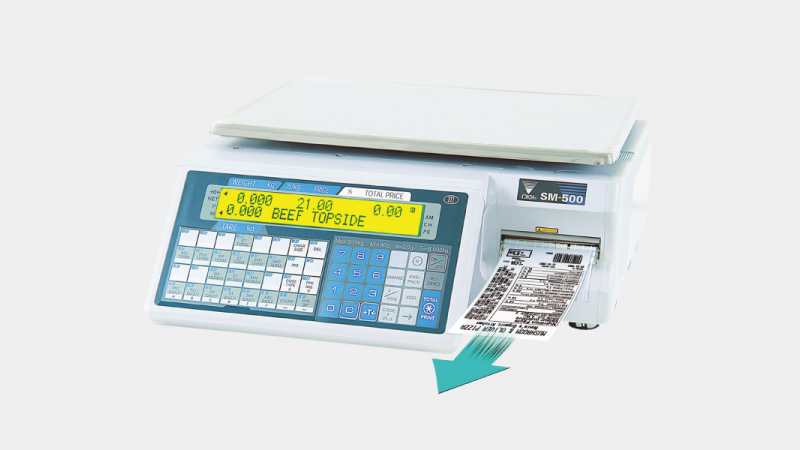

Fast processing and printing speed
Equipped with a faster processor and printing speed for higher performance in terms of throughput and operation efficiency.

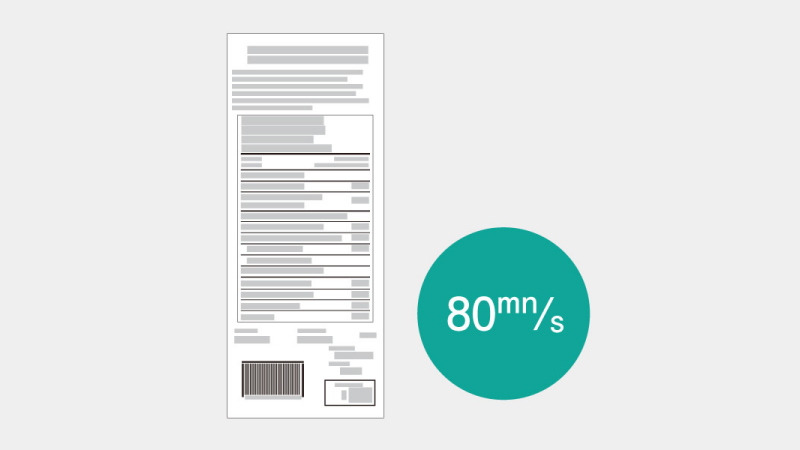

80mm wide printing capability
80mm wide printing capability satisfies most of the need for information to be printed on a label. Mandatory information such as ingredients, nutritional information and traceability data are covered.

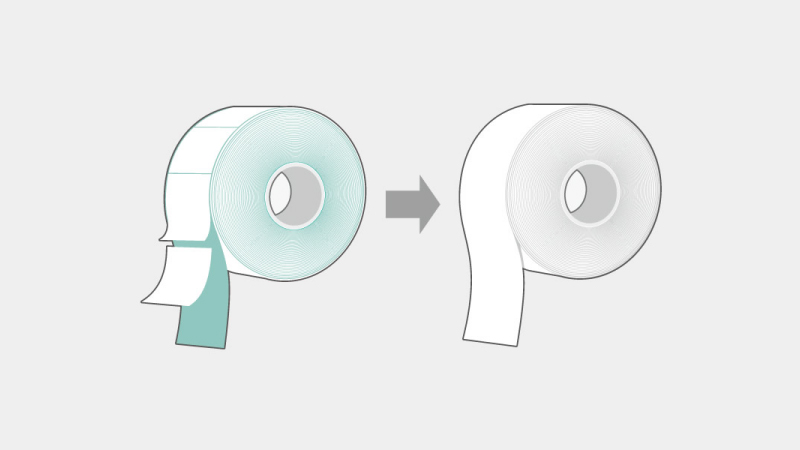

Linerless printing capability
Without the release liner, the number of labels per roll will be increased significantly. This translates to fewer roll changes as well as a reduction in label changing downtime. Label consumption is minimized when label length becomes flexible, saving money while being environmentally friendly.
Security features and diagnostic functions

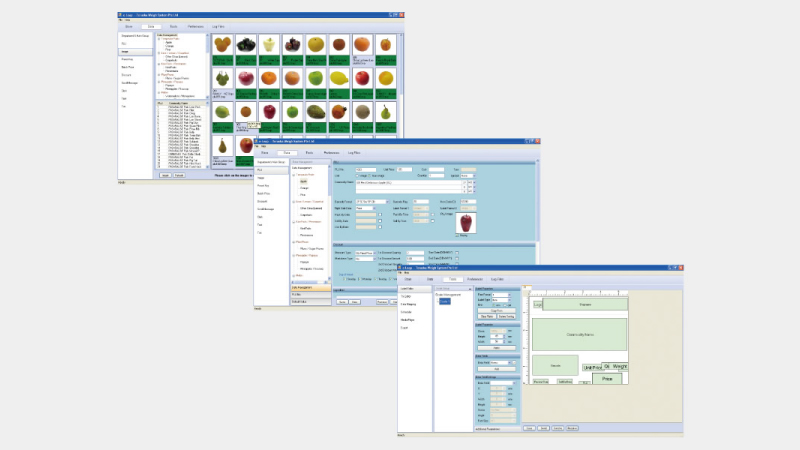

Scale application software
Besides remote diagnostics, PLU data programming, preset key assignment, label format editor and user security can also be done from one centralized location with the scale application e.Leap. The e.Leap application can also generate essential sales reports promptly from the system for management assessment.
사양

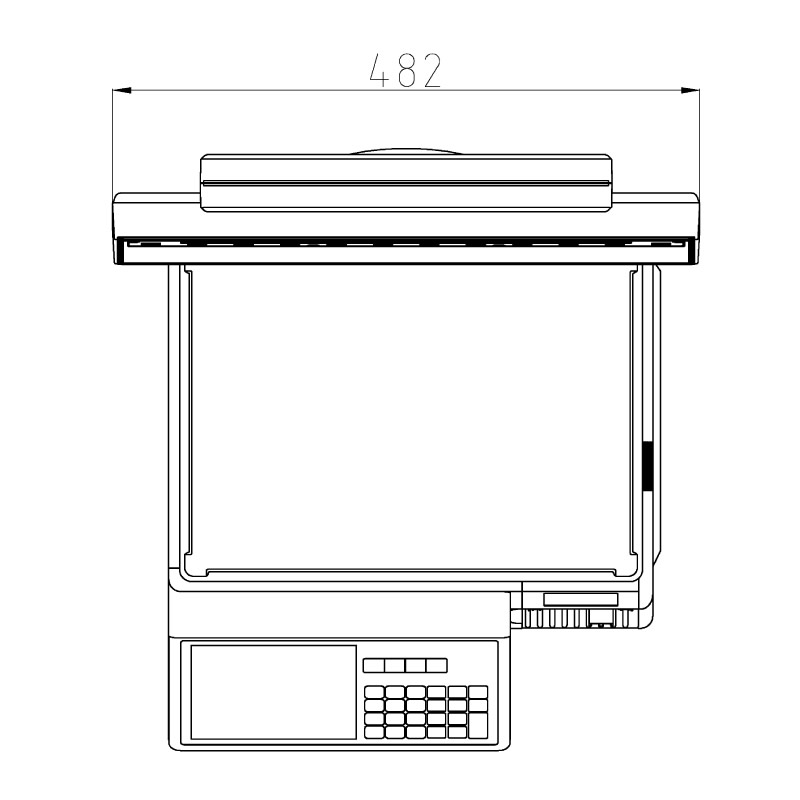

규격
Weighing
Capacity | Max 6kg | Max 15kg/ 30lb | Max 30kg | |
Single Interval | 1/ 3,000 | e= 2g | e= 5g/ 0.01lb | e= 10g |
1/ 6,000 or 1/ 7,500 | e= 1g | e= 2g | e= 5g | |
Capacity | Max 3/ 6kg | Max 6kg/ 15kg | Max 15kg/ 30kg | |
Multi Interval | 1/ 3,000 | e= 1/ 2g | e= 2/ 5g | e= 5/ 10g |
Display | LCD with Backlight (16x134 Dots) | |||
Number of Preset Keys | 96 or 120 | |||
Memory Capacity | 2MB (Std), 10MB (Max) | |||
Display Resolution | 1/ 3,000, 1/ 6,000, 1/ 7,500 | |||
Label Size | 72mm x 240mm (Max) | |||
Label/ Receipt Roll Diameter | 105mm | |||
Paper Width | Label | 80mm | ||
Receipt | 60mm | |||
Printing Speed | Label | Up To 150mm/s* | ||
Receipt | Up To 150mm/s* | |||
Power Source | AC 100/ 110/ 220/ 230/ 240 Volts (50/60Hz) | |||
Operating Temperature | -10°C to +40°C | |||
Humidity | 15% to 85% RH | |||
Standard Interface | RS232C, Ethernet 10/ 100 Base T, PS2 Keyboard, Cash Drawer | |||
Net Weight | 17.1kg |
