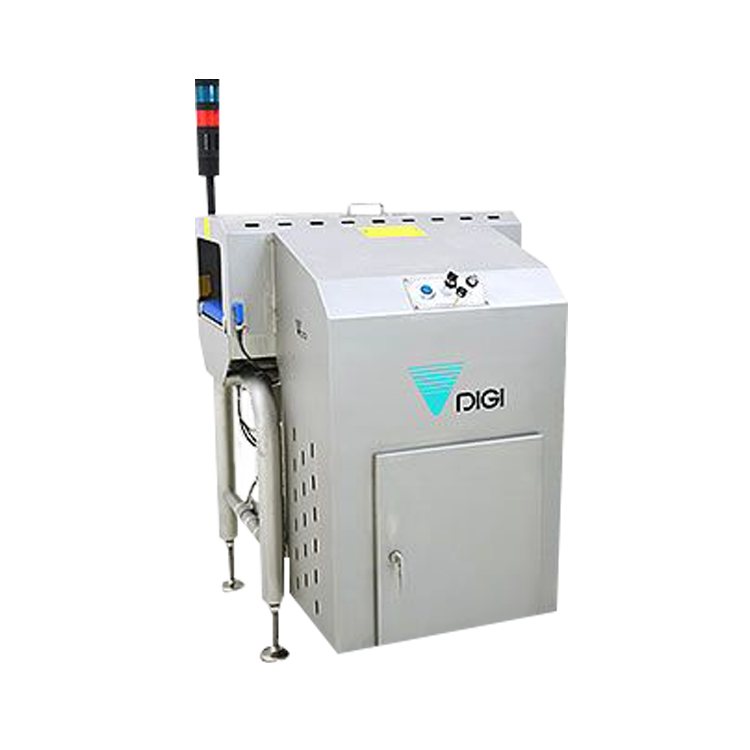

DIGI offers a range of rejectors that are easily linked to the 700 series of weigh / labeling machines. The modular design allows rejectors to be integrated onto the frame-work of the weigh/labeler or as a stand alone unit. An optional intelligent pack can be added to giving advanced features.
Stainless steel construction
The stainless steel tubular frame construction of these machines ensures a high quality, durable and strong structure.

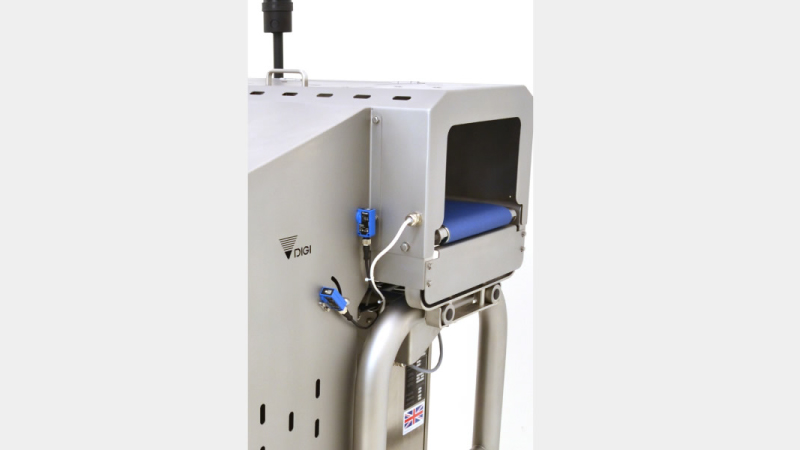

Intelligent detection
To ensure pack rejection, the unit can have advanced features such as reject confirmation, bin full and low air detection. Other features include on/off of rejector and reset of rejector, both operated and protected by key lock.

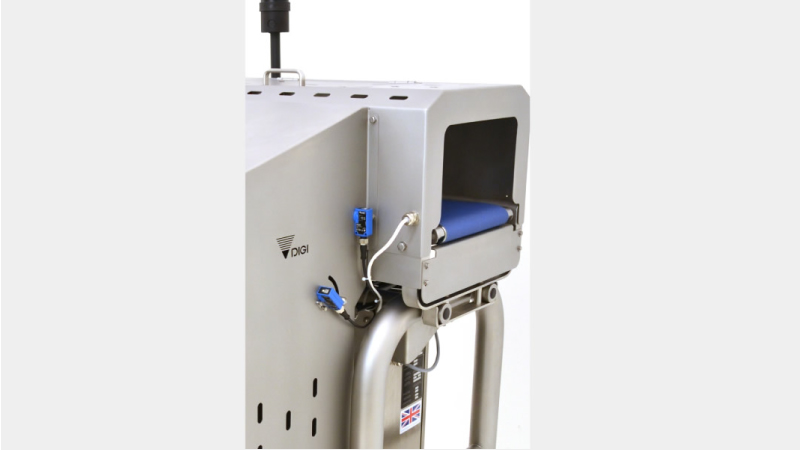

Rejector security

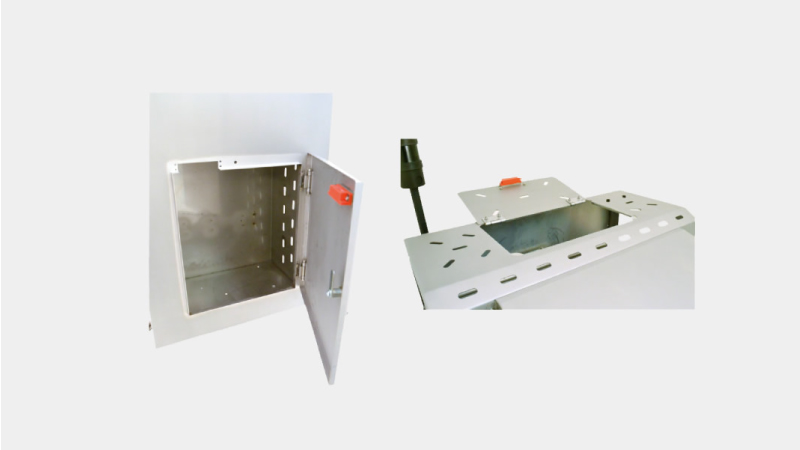

The rejector has a enclosed top guard with interlock and lockable bin with interlock. The high level warning light system ensures any visual alarm is seen. An audible alarm is also present

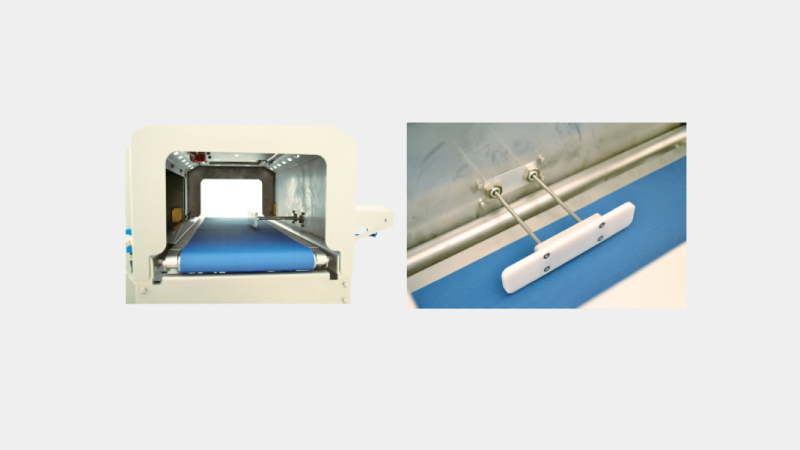

Push arm rejection
The twin cylinder push arm type rejection offers a high speed, accurate and reliable method to reject a wide range of packs.
사양
규격
| Pack speed | up to 150ppm (dependant on pack size) |
|---|---|
| Pack size (for 800mm conveyor) | Length: 80 to 475mm, Width: 40 to 250mm |
| Pack size (for 425mm conveyor) | Length: 80 to 300mm, Width: 40 to 250mm |
| Alarms - audible & visual (intelligent pack) | Open guard/bin, bin full, pack confirmation, low air pressure |
| Cover | Stainless steel / polymer |
다양한 제품

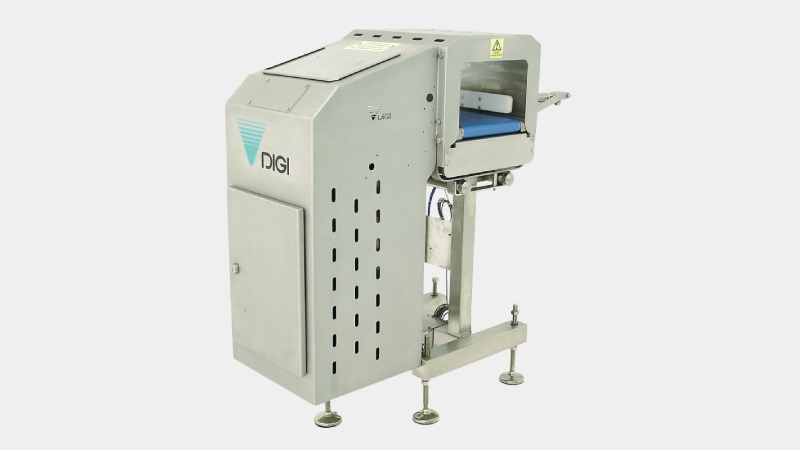

RJ-700 with 425mm long conveyor

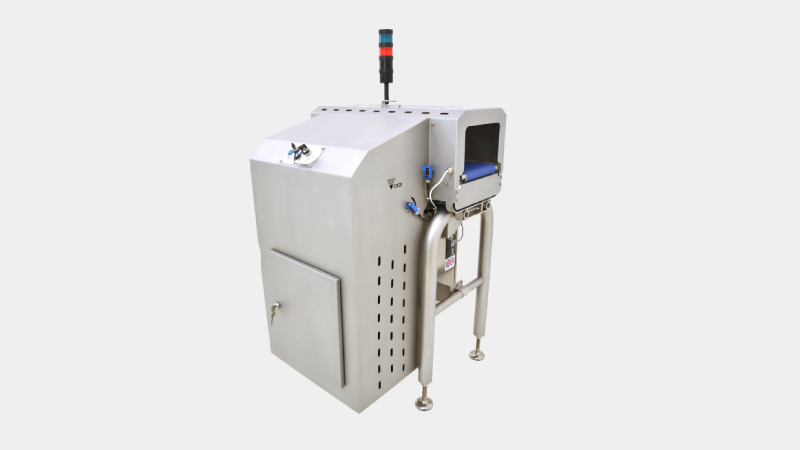

RJ-700 425mm conveyor

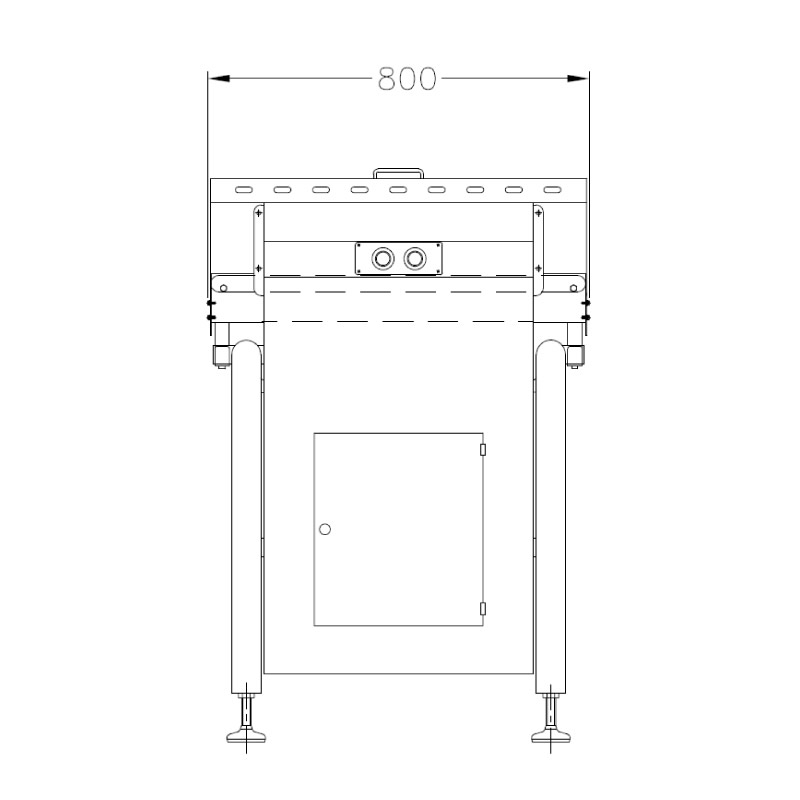

The standard 800mm and 425mm. The two sizes are build to the same specification with both having the option to be intelligent or non-intelligent.

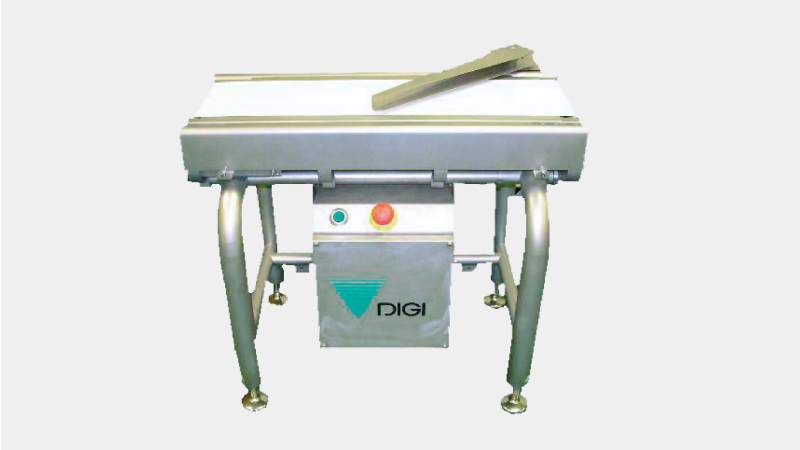

Sweep arm rejector (Diverter)
Sweep arm rejector

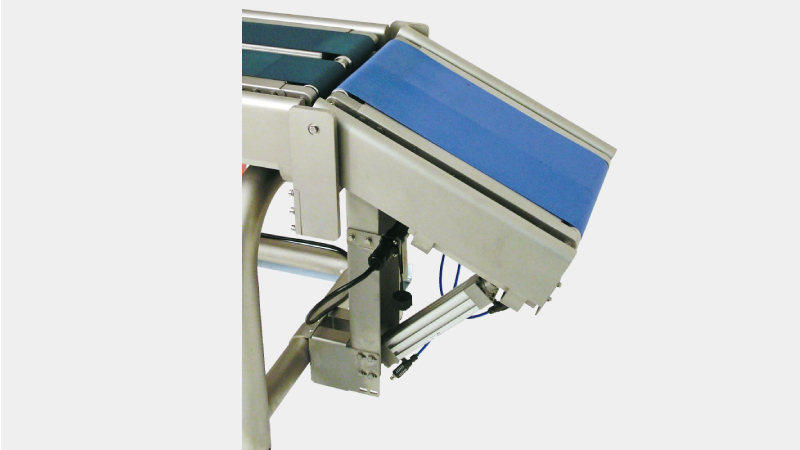

Drop flap rejector
Drop flap rejector
선택
Intelligent pack for RJ-700
자주하는 질문
-
Are the machines stand alone?The RJ-700 ( 425mm & 800mm) and sweep arm are independent framed units but must be connected to the weigh unit (E.G. HI-700) for conveyor motor speed power and control. The Drop flap rejector is mounted to the chassis of the 700 series weigh price labeler.
-
Does the machine stop if there is no air pressure?If the optional intelligent pack is fitted, when the air pressure falls below the pre-set value to operate the machine, the machine will stop and an alarm will sound.
-
Will the machine stop if reject pack is not rejected?If the optional intelligent pack is fitted, a reject pack must be seen by the pack confirmation sensor when rejected, if not the machine will stop and alarm will sound.
