주의: 이 제품은 더 이상 판매를 하지 않고 지원이 되지 않습니다. 이 모델 또는 교체 모델에 대한 유지보수에 대하여 현지 담당자와 상담을 해주시기 바랍니다.

DRV-800-WP02

DIGI reverse vending machine for non-refillable containers

DRV-800

소매

주요 제원

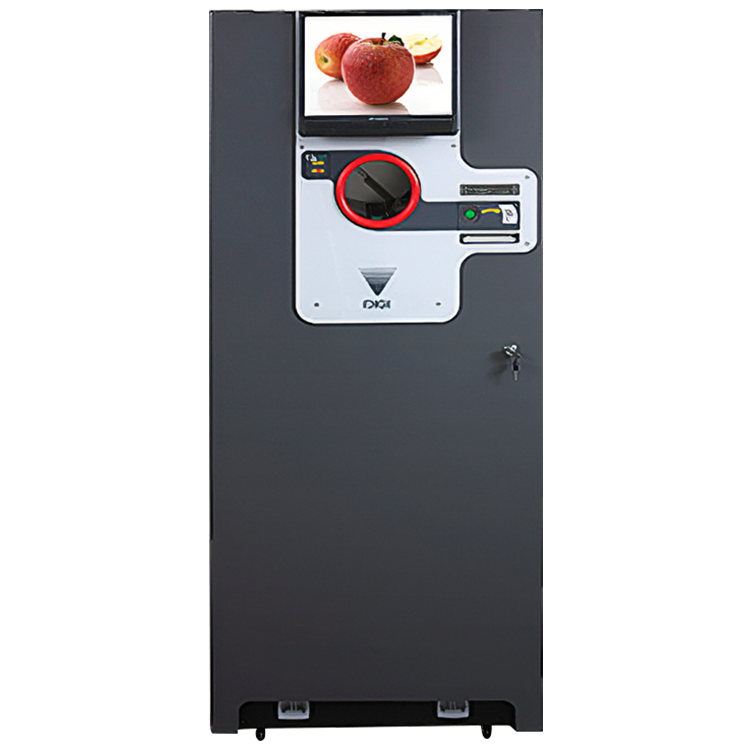

The DRV-800 is a standalone reverse vending machine for returns of non-refillable PET bottles and cans (without compacting). With its small footprint, this model is ideal for small stores (gas stations, convenience stores, etc.).

DRV-800-WP04-1

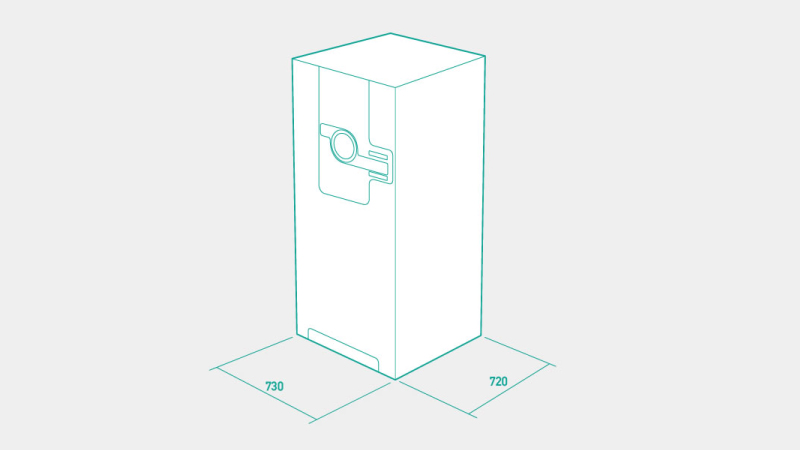

Compact size

Its small footprint of 730mmx720mm (WxD) saves installation space.

DRV-800-WP04-2

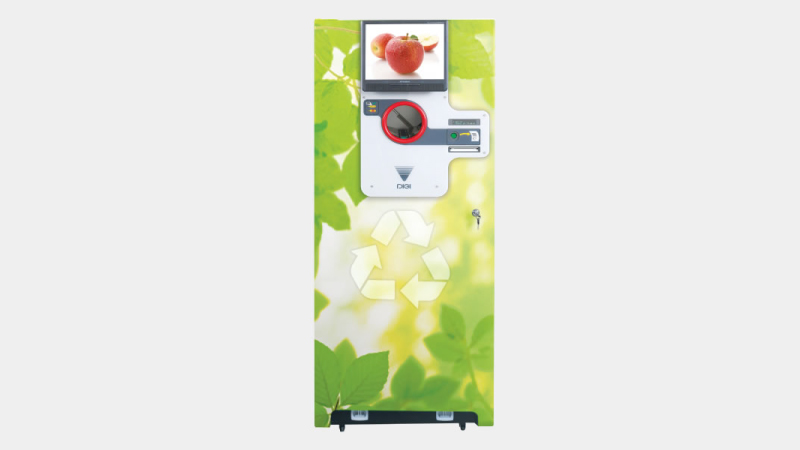

Choose your design

Customized graphic design can be applied to the front (optional) to help you build your branding and CSR image.

DRV-800-WP04-3

Advertising

An optional stand-alone LCD screen is available for displaying advertisements.

사양

규격

Basic data

Model name DRV-800
Dimentions (mm) W: 730 x D: 1,830 x H: 720
Net weight (Approx.) 130kg
Power source 220-240V, 50-60Hz
Power consumption 350W
Operating temparature 10 to 35 degrees C
Operating humidity 90%RH (max)

Type of containers

Model name DRV-800
Refillable PET See 'FAQ'
Glass
Crate
Non-refillable PET
Can

Container Recognition

Model name DRV-800
Container feeding Horizontal, 1 insertion slot
Container feeding rate Up to 30 containers per minute
Container types Non-refillable PET bottles, cans
Container size φ52mm diameterx150mm-φ130mm diameterx360mm
Container recognition Barcode, Safety mark
Container weight detection

Storage Box

Model name DRV-800
Storage box size (mm) W: 600 x D: 650
Number of storage box 1 storage box

Display & Printer

Model name DRV-800
Display VFD 16 Digits (5 x 7 dots), 2 lines
Number of display 1 unit
Receipt printer Thermal printer for text, images and barcodes.
Number of printer 1 unit
Receipt roll size φ80mm diameter, 57.5mm width

선택

DRV-800-WP09-1

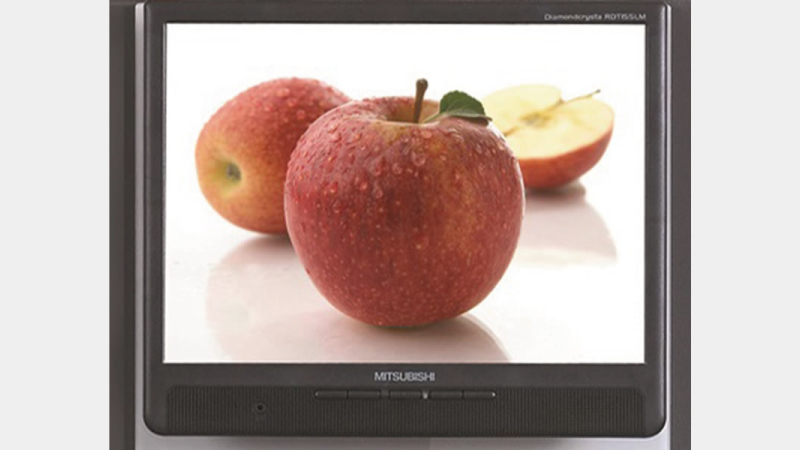

LCD screen for advertisements

An optional stand-alone screen is available for displaying advertisements.

자주하는 질문

  • Can the DRV-800 sort refillable PET bottles and cans?
    No, the DRV-800 can't sort refillable PET bottles and cans. If sorting capability is necessary, please select the DRV-1000 or the DRV-5000.
  • How many beverage containers can ordinarily be collected in one storage box?
    It depends on the type and size of the containers. One storage box will hold approximately 160 non-refillable PET bottles or 450 cans (without compacting).
