주의: 이 제품은 더 이상 판매를 하지 않고 지원이 되지 않습니다. 이 모델 또는 교체 모델에 대한 유지보수에 대하여 현지 담당자와 상담을 해주시기 바랍니다.

DI-2000Ⅱ-WP02

Powerful ally for blending process standardization
Indicator with full dust and water ingress protection

DI-2000Ⅱ

물류

주요 제원

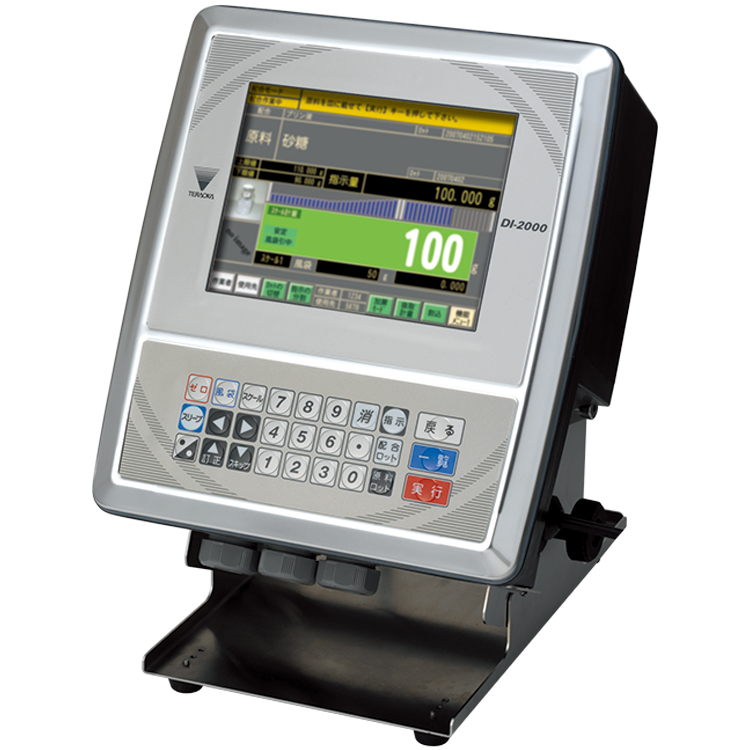

The DI-2000 II is a dust and waterproof indicator designed for weighing of blending ingredients at food and manufacturing facilities. It can be connected to up to 3 scales, allowing indication of a large range of weights with a single unit. During blending operations, workers follow displayed instructions interactively for all steps from ingredient verification to weighing, helping to prevent errors. Weighing history is automatically stored in indicator memory. Weighing systems incorporating the DI-2000 II help make great quality improvements, reduce work cost and help rationalize traceability of blended products.

DI-2000Ⅱ-WP04-1

Efficiency enhancement through networking

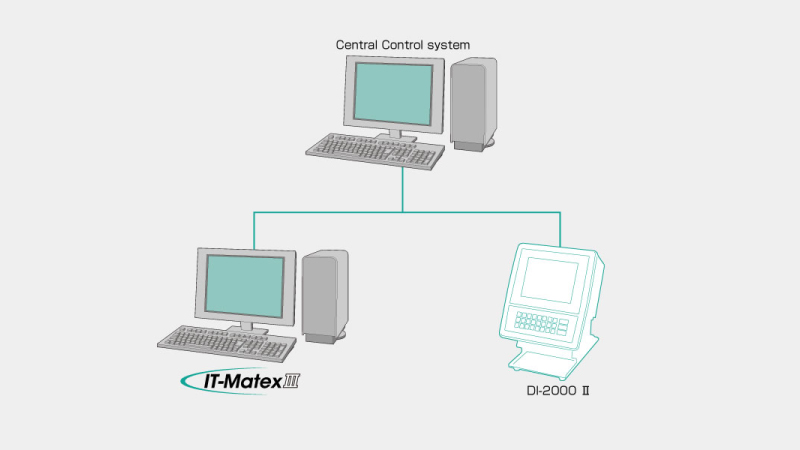

The DI-2000 II can exchange data with existing systems by USB memory or by LAN connection, enabling output of blending instruction entries and history data. When adopted together with the It-Matex III shipping/receiving/inventory management system, weighing histories and instruction data transferred can be used for dual purposes, such as printing labels and managing inventory. This dramatically increases work efficiency.

사양

규격

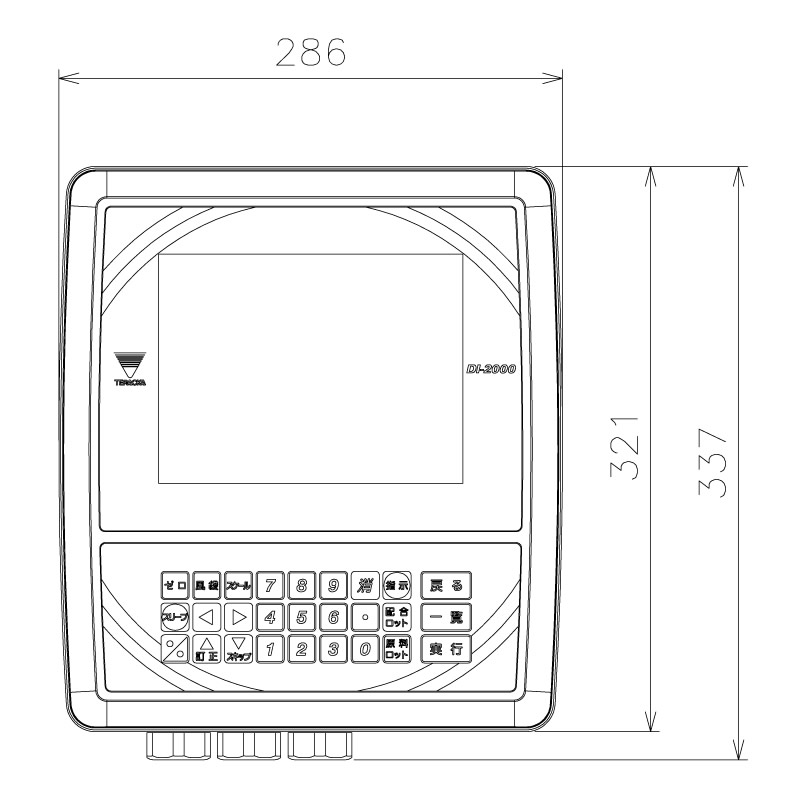

  • DI-2000Ⅱ-WP05-1

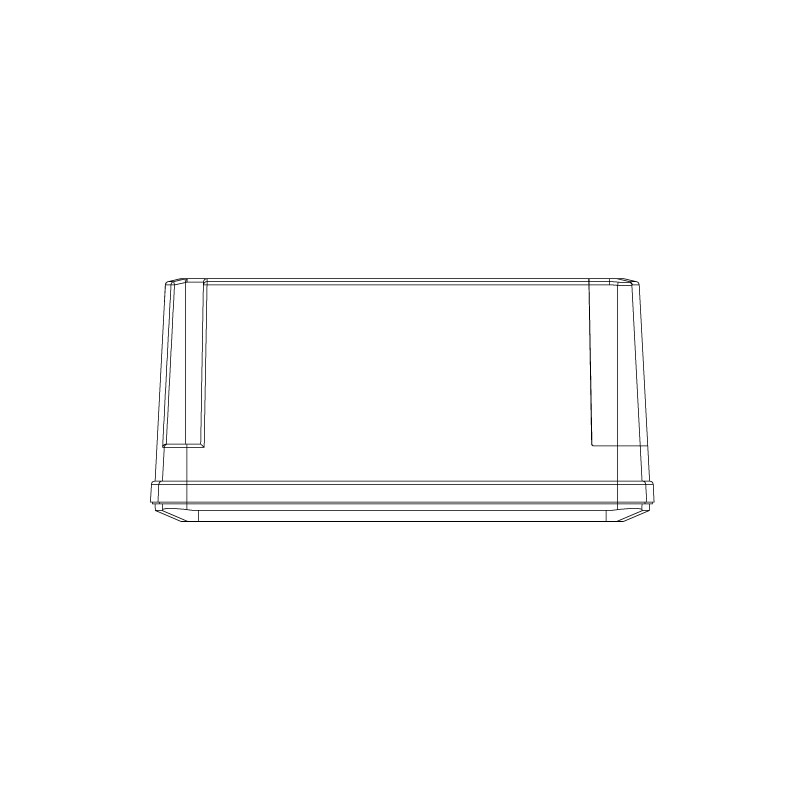

  • DI-2000Ⅱ-WP05-2

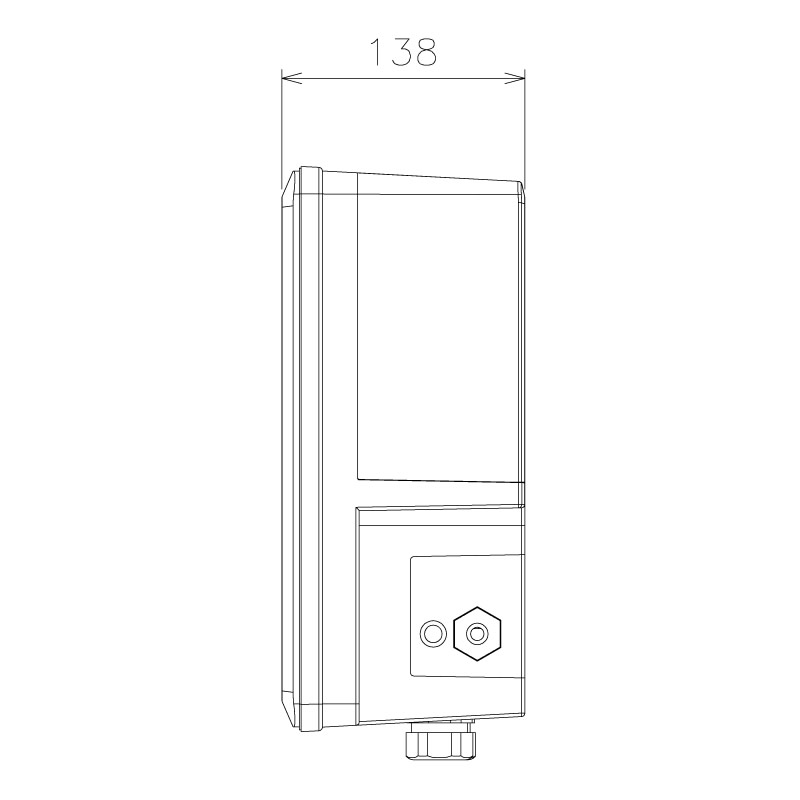

  • DI-2000Ⅱ-WP05-3
Display resolution Max. 1/20,000
Internal resolution 1/600,000
Scale connection Max. 3 scales
Display
8.4-inch color LCD touch panel
VGA 480(H)x640(W) dots
Programmable items
 Ingredient: 10,000
Combination: 2,000
Recipe: 2,000 (max. 50 ingredients/recipe)
Input/ output signal Open Collector OUT5 IN5
Power source AC100V, 35W
Service environment
Temperature:  0 to 40 degrees C (no condensation)
Humidity: Under 80%(no condensation)
Weight Approx. 5.5 kg (Approx. 7.7 kg with a stand)

선택

DI-2000Ⅱ-WP09-1

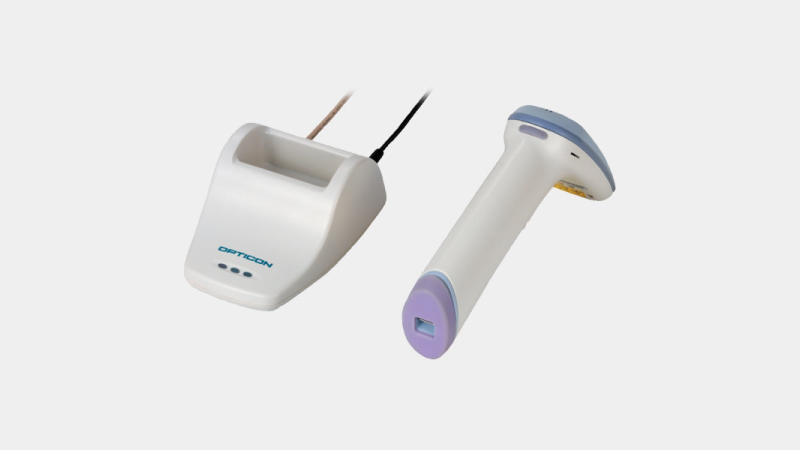

Wireless scanner

Ingredient selection errors are prevented by scanning ingredient barcodes prior to weighing. When using RS-232C connection, the communication range is about 30 meters.
DI-2000Ⅱ-WP09-1

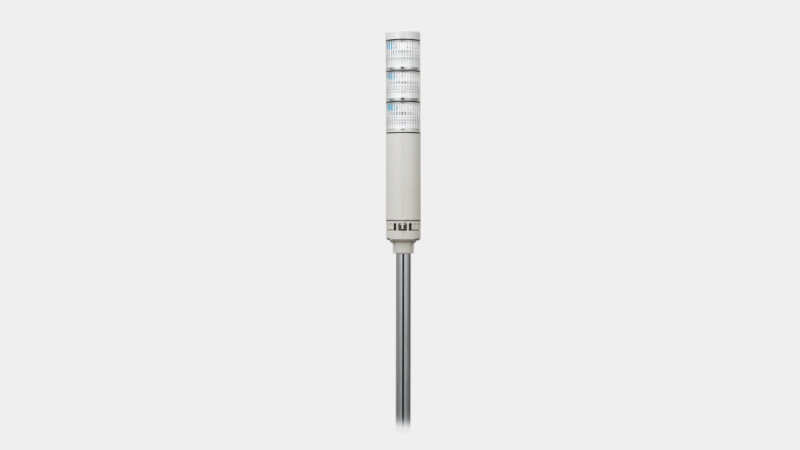

Alert lamp & buzzer

When connected to a weighing system that uses the DI-2000 II, the alert lamp & buzzer make it possible to determine whether weight is under, on target, or over even from locations where the indicator display cannot be seen.

자주하는 질문

  • Can blending data that has been prepared on a computer be sent to the DI-2000 II?
    Yes. Data prepared as a CSV file in the prescribed data format can be loaded onto the DI-2000 II via USB memory or LAN.
