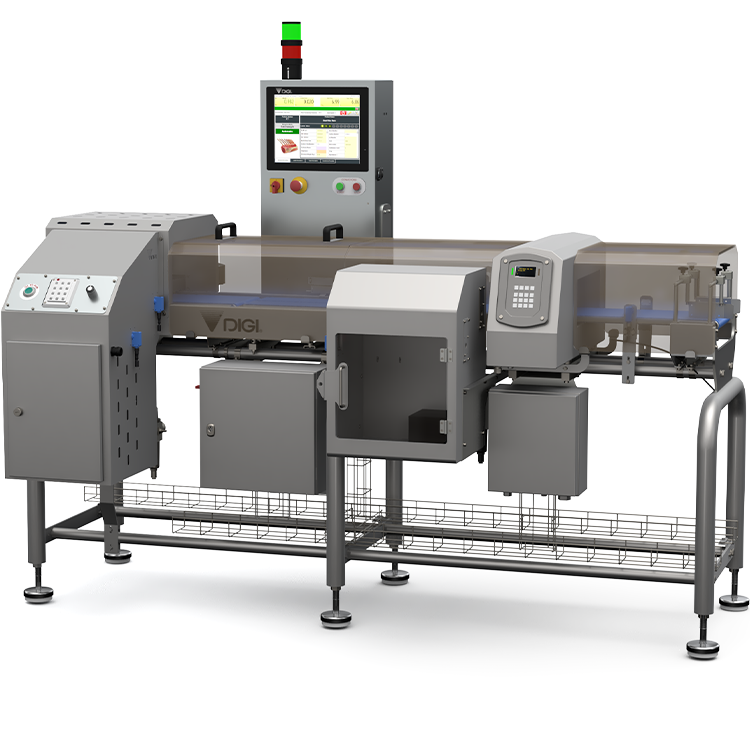

Checkweighing System With Integrated Metal Detection and Rejection

CW-800 Combi

Food Industry

Main Features

The CW-800 Combi is a fully-automated checkweighing system with integrated metal detection and rejection, capable of processing 150 packs per minute. Its high productivity will ensure targets are met, whilst your brand is protected by ensuring target weight is met and foreign contaminants are kept out.

cw800combi_WP04_01

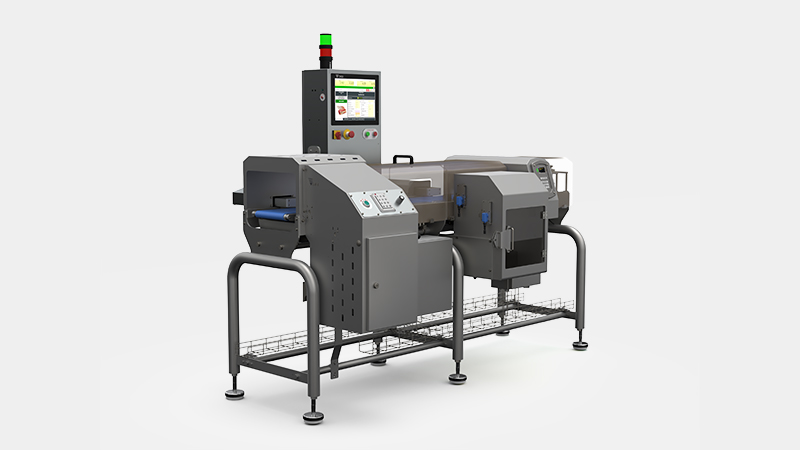

Integrated Metal Detector and Rejector

Fully integrated and working seamlessly together, the CW-800 Combi provides powerful metal detection and rejection on top of the reliable weighing provided by the CW-800. As well as protection against metal contaminants, you will have complete control of the weight of your batches, accepting all that meet your specified weight and rejecting those that do not.

cw800combi_WP04_02

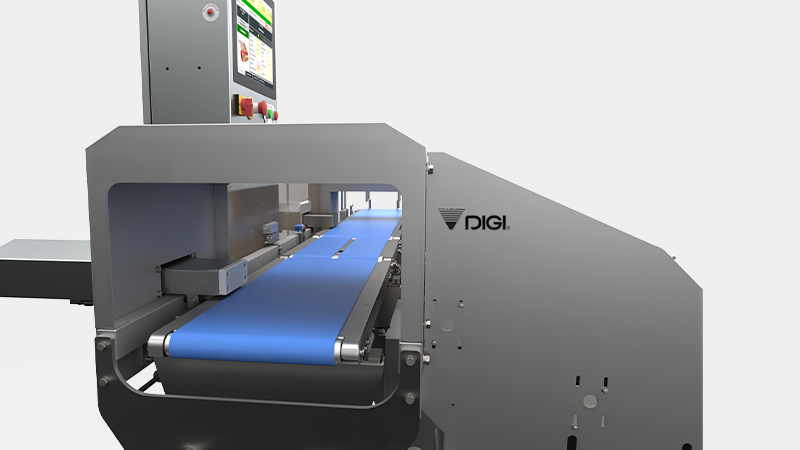

Automatic Checkweighing of up to 150ppm

Understanding the demands of the modern production environment, the CW-800 Combi has been designed with a direct drive conveyor system that provides reliable processing of up to 150 packs per minute.

cw800combi_WP04_03

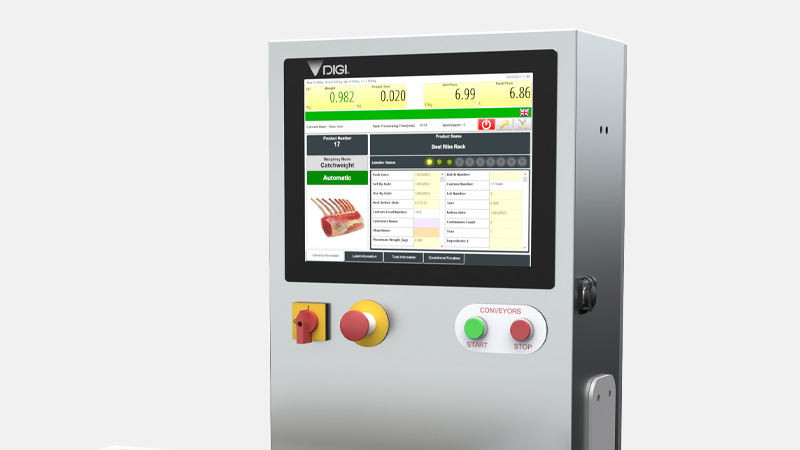

User-Friendly Interface

The CW-800 Combi uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows®  operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.

Specifications

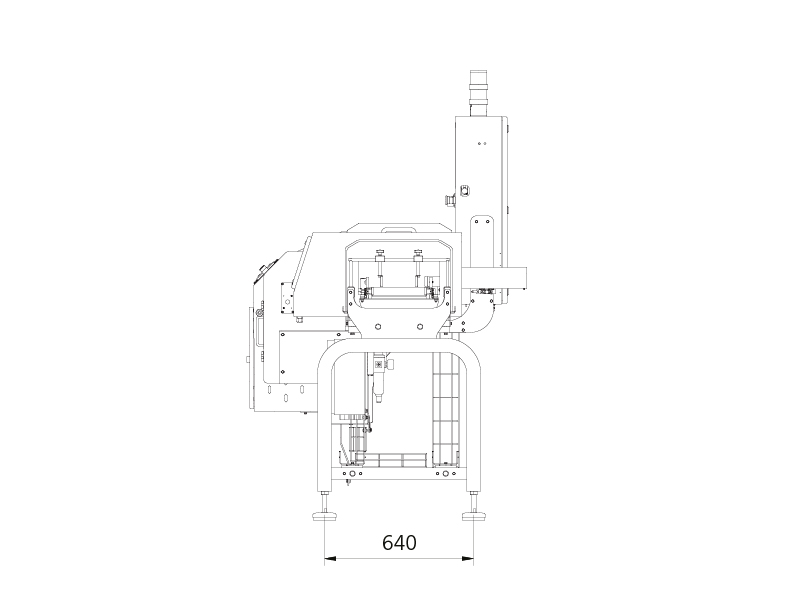

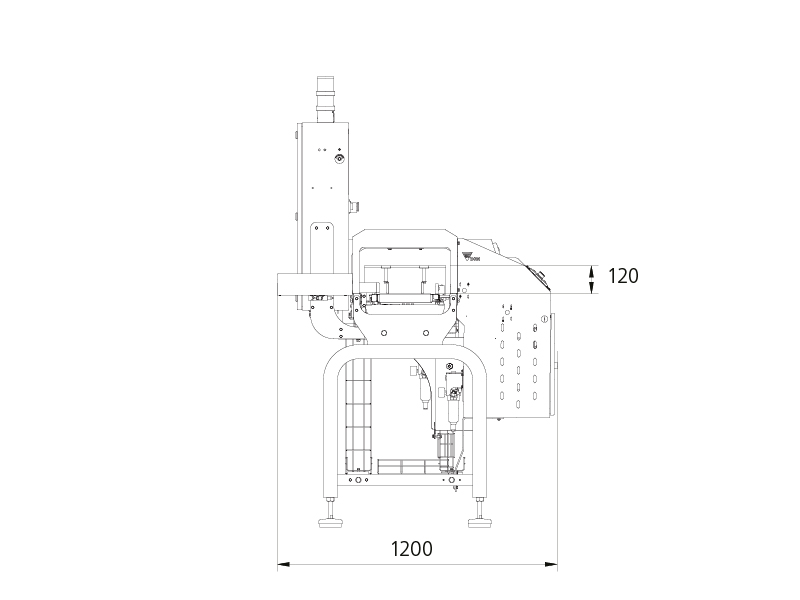

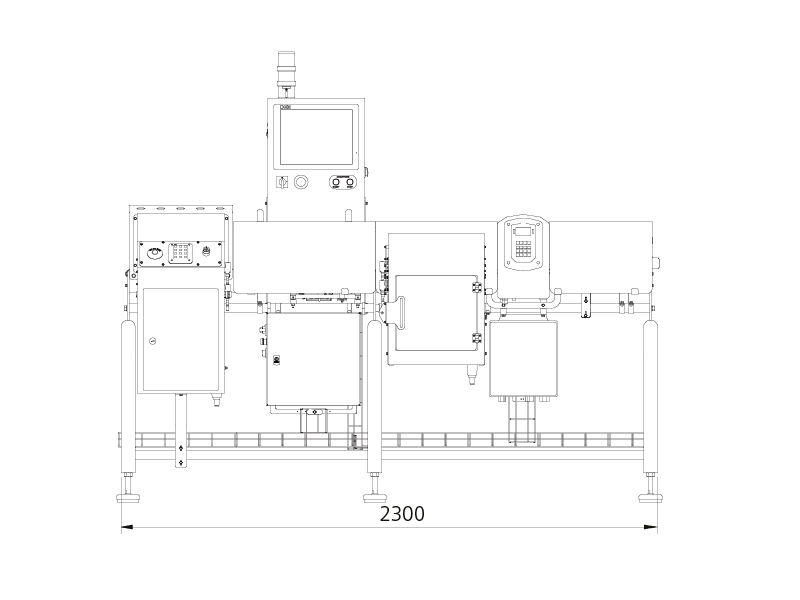

Dimensions

  • cw800combi_WP05_01
  • cw800combi_WP05_02
  • cw800combi_WP05_03

Weighing


Capacity Max 6 kg
Single Interval e= 1g
Pack Speed up to 150 packs per minute
Pack Size   L80-300mm x W40-250mm


Throughput dependant on product weight and size.

Display


Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Fixed Weight, Average (Emark)
Communication Ethernet, USB, RS232
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General


Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature 0 to +30°C


Standard Features

Scale Cover Interlocked 'lift-off' formed polycarbonate
Sensors Overhead retro reflective
Pack Guides Adjustable width pack guides
Conveyors Blue belts

Variations

cw800combi_WP07_01

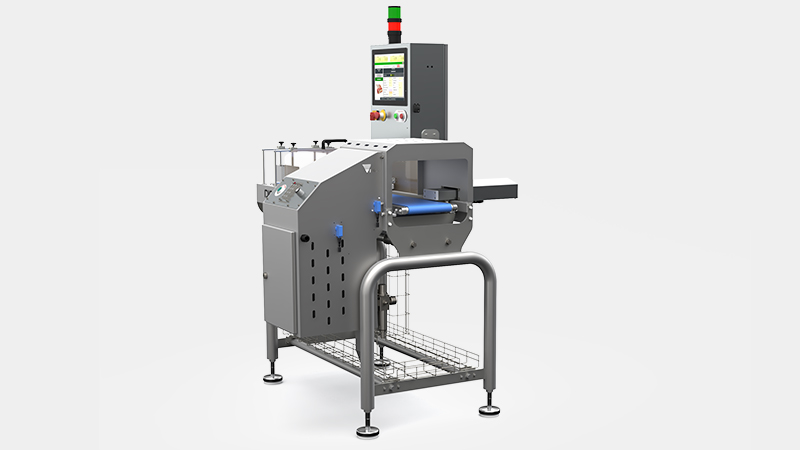

CW-800 with Rejection (CW-800RJ)

An automated solution that allows you to control the exact weight of your batches, accepting all that meet your specified weight and rejecting those that do not. Visit the CW-800RJ product page for more details.
cw800combi_WP07_02

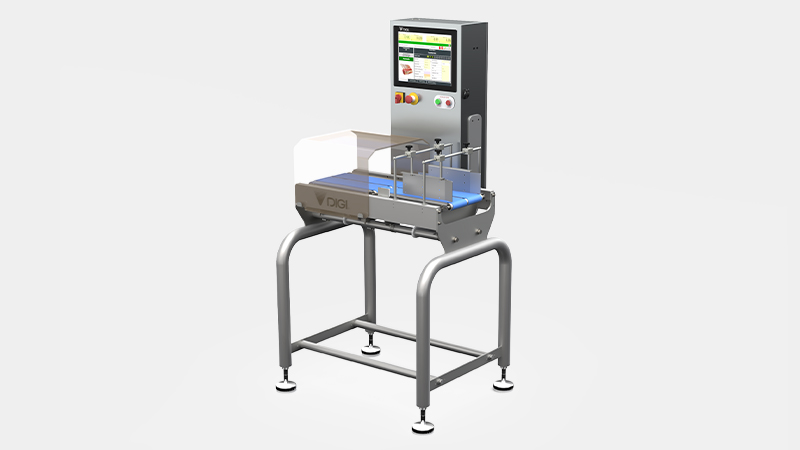

Standalone Checkweighing (CW-800)

Compact, single-framed checkweighing system for high productivity. Visit the CW-800 product page for more details.

Options

Options

Options Barcode scanners/controllers, Pack sensors, Pack guides
