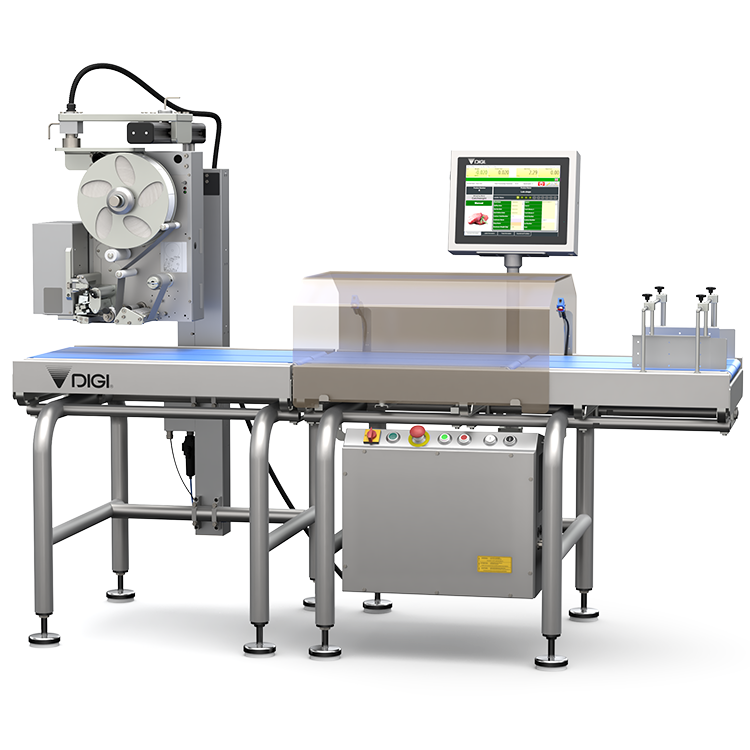

wil700-2_WP02_01

Wide and Long Conveyors for Weigh Price Labeling of Larger Products

WIL-700 II

Food Industry

Main Features

The WIL-700 II Weigh Price Labeler's conveyor is both wider and longer, designed specifically for processing larger products at a speed of up to 36ppm. Running PC-based software, networking and integration with existing machines and back office systems is straightforward.

Specifications

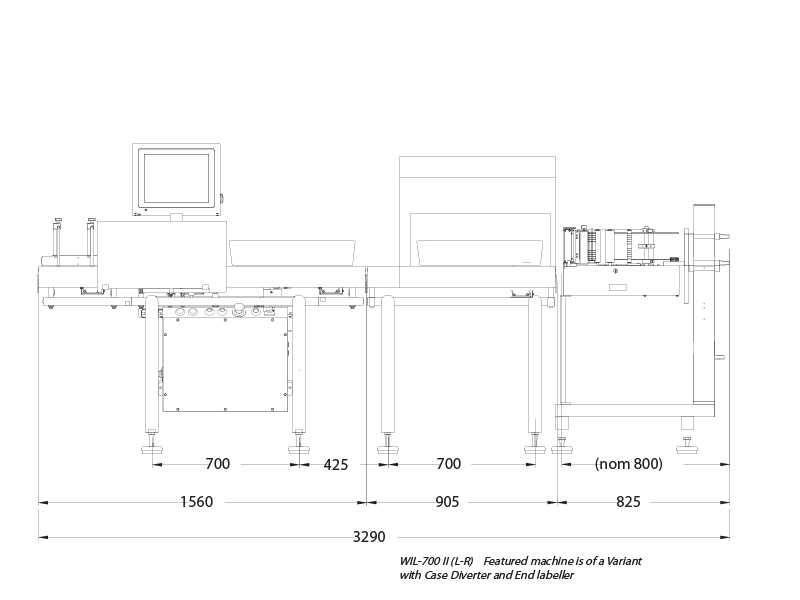

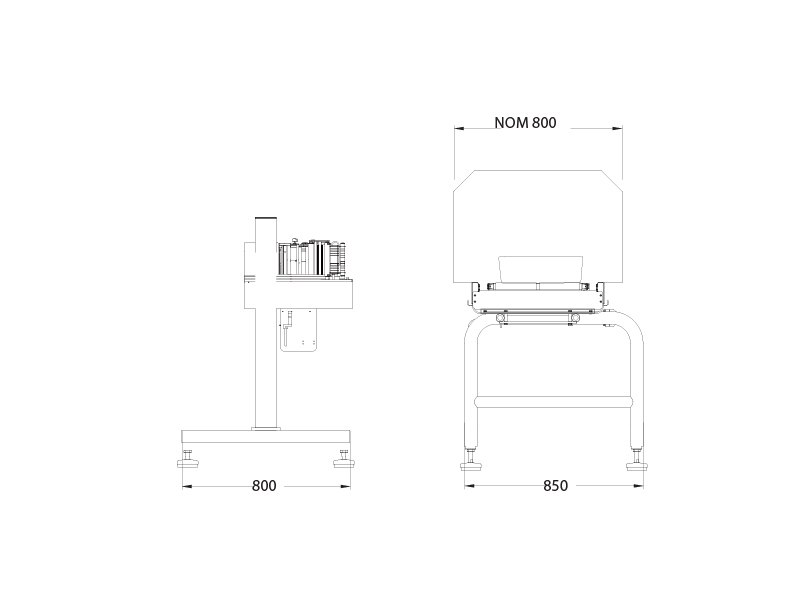

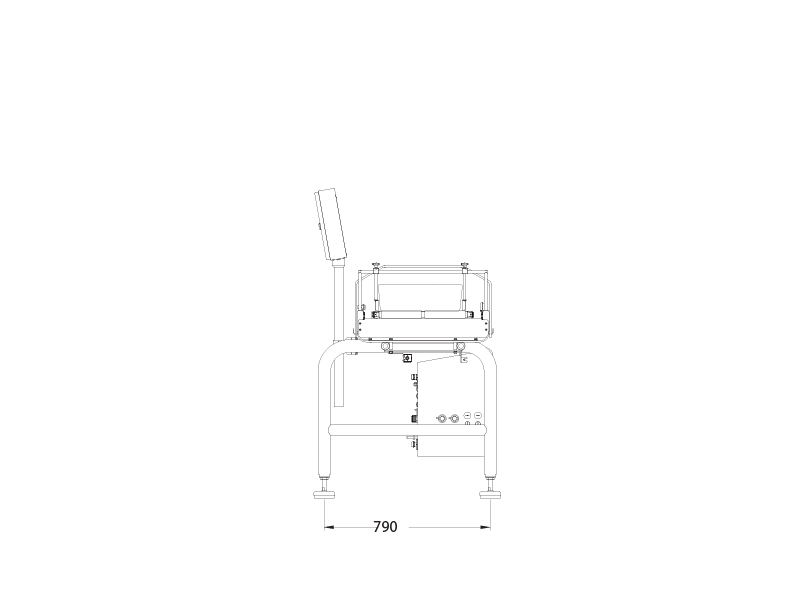

Dimensions

  • wil700-2_WP05_01
  • wil700-2_WP05_02
  • wil700-2_WP05_03

Weighing

Capacity Max 15 kg
Single Interval e= 5g
Pack Speed up to 36 packs per minute
Pack Size   L80-600mm x W40-400mm x H180mm
Throughput dependant on product weight and size.


Display

Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Catch Weight, Fixed Weight/Price, Average (Emark)
Labelers Multiple labelers/printers
Communication Ethernet, USB, RS232
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General

Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature 0 to +30°C


Standard Features

Scale Length 660mm
Scale Width 400mm
Scale Cover 'lift-off' formed polycarbonate
Sensors Horizontal retro reflective
Labellers Signature
Pack Guides S100 tall guides
Conveyors Split blue belts

Variations

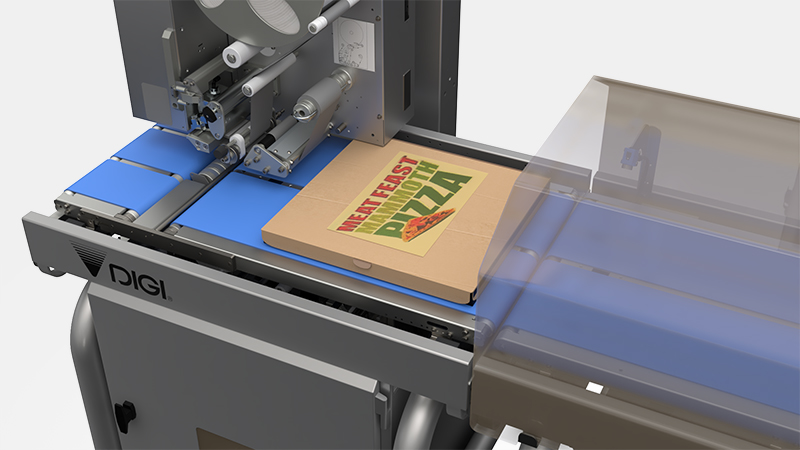

wil700-2_WP07_01

Top, Bottom, Side and Front Labeling

The Signature labeler can be positioned differently to suit the products being weighed and labeled.

Options

Pre-printed label applicator, Direct protocol Honeywell (PM43/45), Direct protocol Zebra (ZPL II), Windows printers, Case diverter, Gravity infeed/outfeed rollers, Pack guides
