Integrated in-line weigh-wrap-label system

AW-5600CPRII-IWC

Retail

Main Features

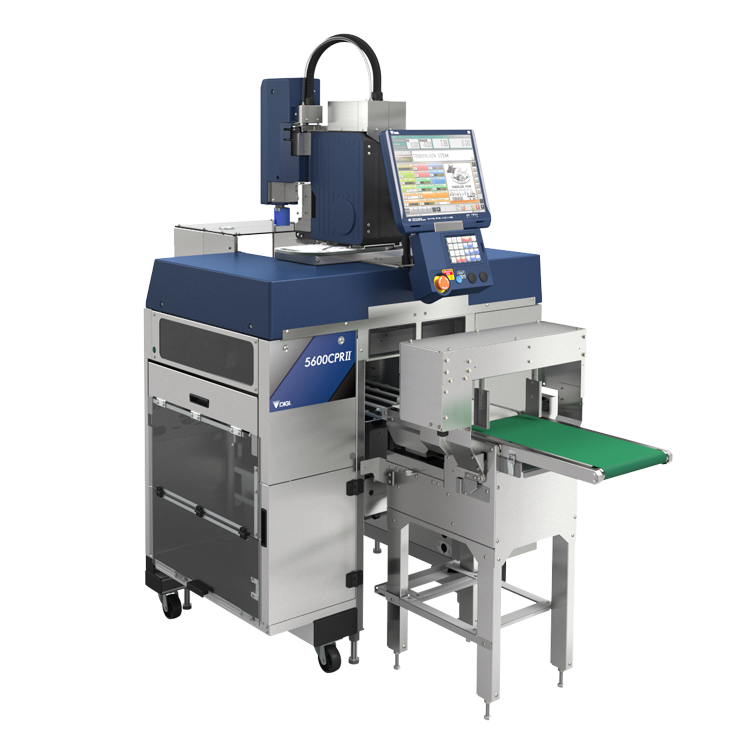

The AW-5600CPRII IWC  is a fully automatic, integrated weigh/wrap/label system designed for in-line production and equipped with centering device.

Download brochure here

Integrated in-line weigh-wrap-label system

The latest in-line automatic weigh-wrap-label system to meet various layout options.

aw5600cpr-2

High productivity

The AW-5600CPRII IWC provides high productivity, achieving up to 30 packages/min of integrated weigh/wrap/label operation.

It also features tray press that ensures strong sealing to maintain tight and beautiful wrapping finish.

aw5600cpr-2_WP04_01

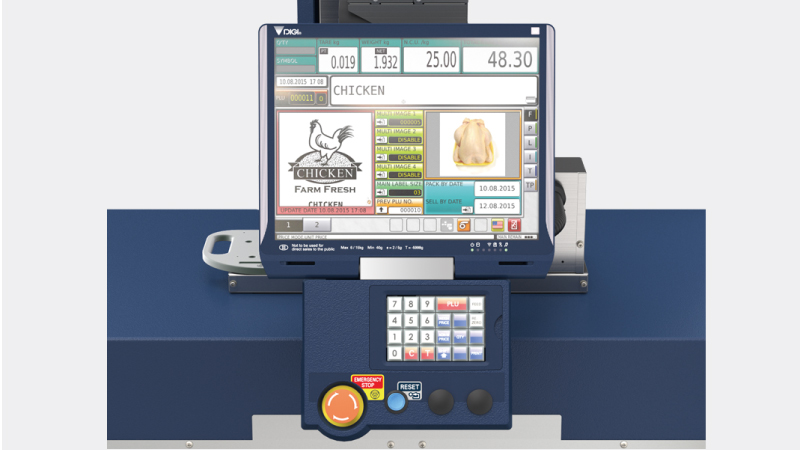

Easy operation

The operation of AW-5600CPRII IWC is easy and user-friendly with its large, clear and quick response touch screen, as well as preset keys to call up PLU by a single touch. Operators can also preview the label image to ensure that correct information will be printed on the labels.

aw5600cpr-2

Quick film change and easy daily maintenance

A simple and easy film change mechanism allows operator to change film quickly and minimize machine down time.

The design for easy daily maintenance also secures reliable production and hygenic condition.

aw5600cpr-2_WP04_02

Unique and value-added Linerless label

The Linerless label is continuous label without base paper, which is more economical and more eco-friendly.  The auto-cutting and auto label sizing capability provides users with extremely flexible labeling solution that allows users to optimize label presentation and make more attactive promotion at minimum cost, a real value-added and effective solution to users.

Specifications

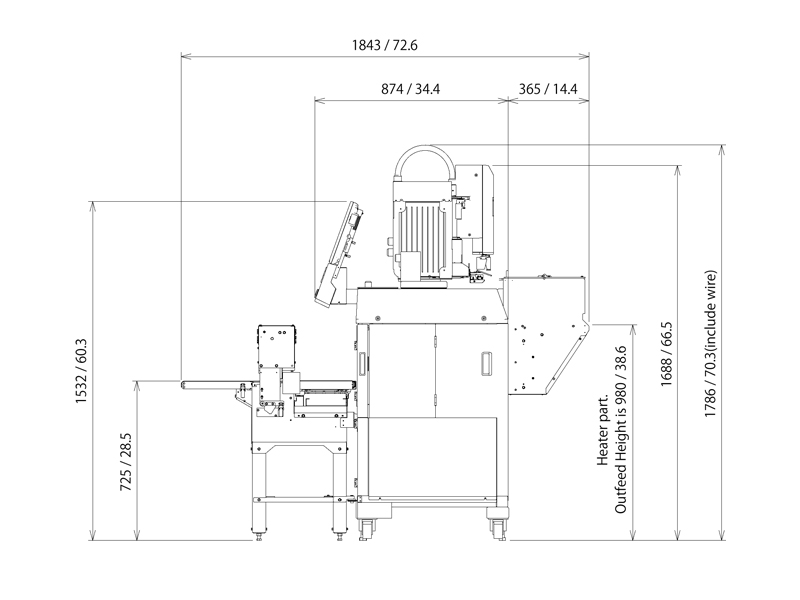

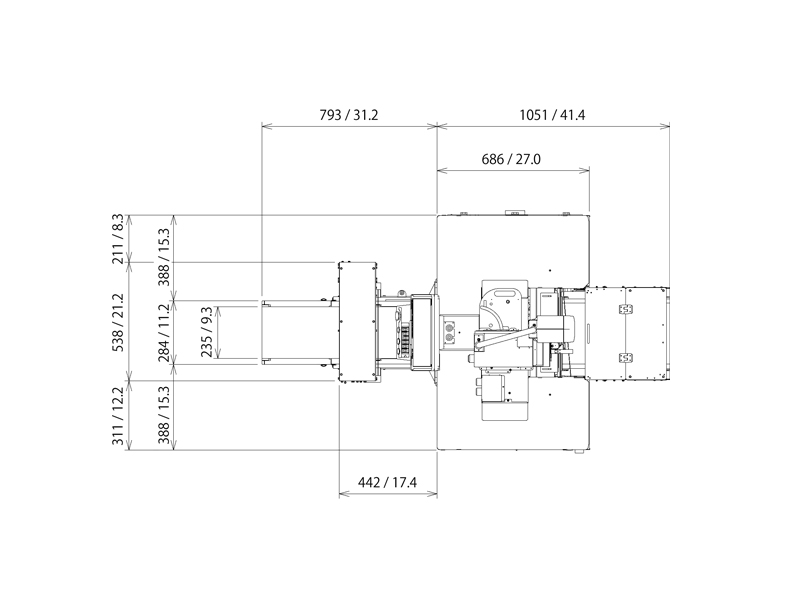

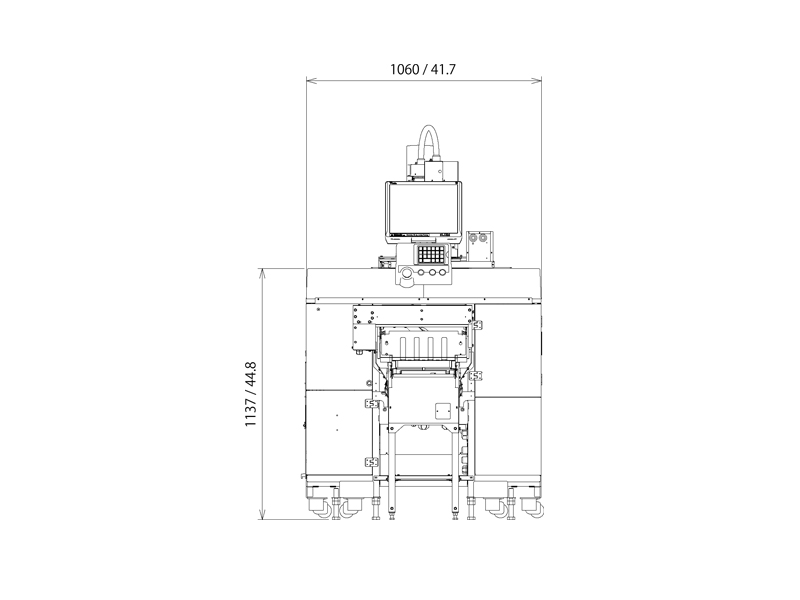

Dimensions

  • aw5600cpr-2_WP05_02
  • aw5600cpr-2_WP05_01
  • aw5600cpr-2_WP05_03

Wrapping

Wrapping speed Max. 30 packages/min.
Package size Width: 130-350 mm/5.1-13.8 inches
Height: 10-150 mm/0.4-5.9 inches
Depth: 80-230 mm/3.1-9.0 inches
Packages with the combined maximum measurements of the 3 dimensions cannot be accommodated. The available sizes of package also depends on the film size.
Number of film roll One
Film width 300 to 500 mm


Weighing

Interval type Multi interval Single inerval
Capacity Max 3/6 kg Max 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb


Thermal printer

Label type Die-cut label Linerless label
Label width 40-80 mm/ 1.6-3.1 inches 44-59 mm/ 1.73-2.3 inches
Label length 28-105 mm/ 1.1-4.1 inches 28-105 mm/1.1-4.1 inches*
* Maximum printing length is 300 mm/ 11.8 inches
Label roll diameter Max. 210 mm (8.2 inches)
Label roll core diameter 76 mm (3.0 inches)


Operation console

Operation console TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.0 kW
220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.0 kW
Net weight Approx. 372 kg (AW-5600CPRII IWC Single Labeler Type)

Variations

aw5600cpr-2_WP07_01

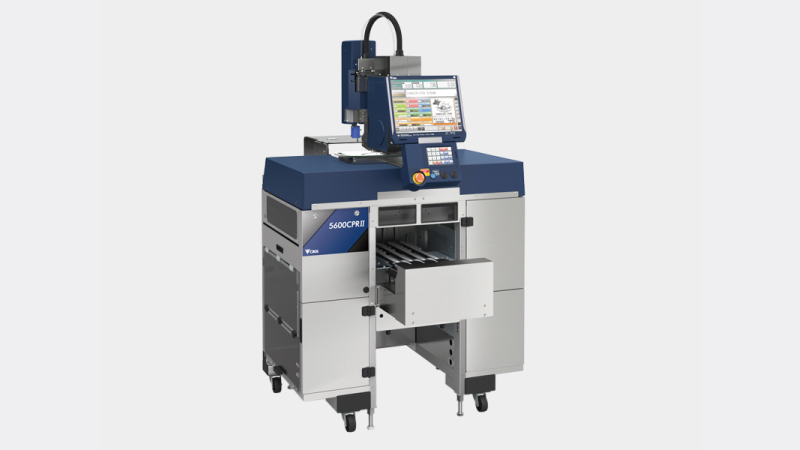

Manual infeed

AW-5600CPRII

AW-5600CPRII is the manual product infeed version for users with limited installation space.

Options

aw5600cpr-2

Straight outfeed conveyor

Wrapped packages are discharged from machine's rear side.
