Network printer, makes label design easy using DIGI special-purpose software

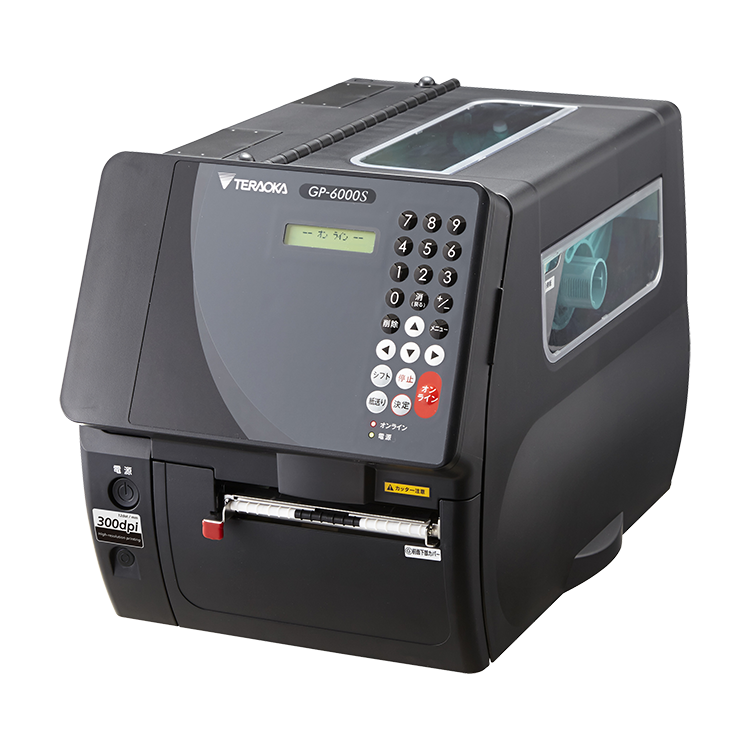

GP-6000S
LogisticsMain Features
This network label printer, used together with DIGI's "Label Hakase" software for Windows®, makes it easy to do labeling tasks from layout to printing. You can print from existing software using the available printer driver, and can incorporate the printer into your operations in a variety of ways. Printing with a density of 12 dots/mm (300dpi), high readability is assured even with small characters. The large opening provided by the movable 2-way cover allows smooth replacement of labels and ribbons.
Specifications

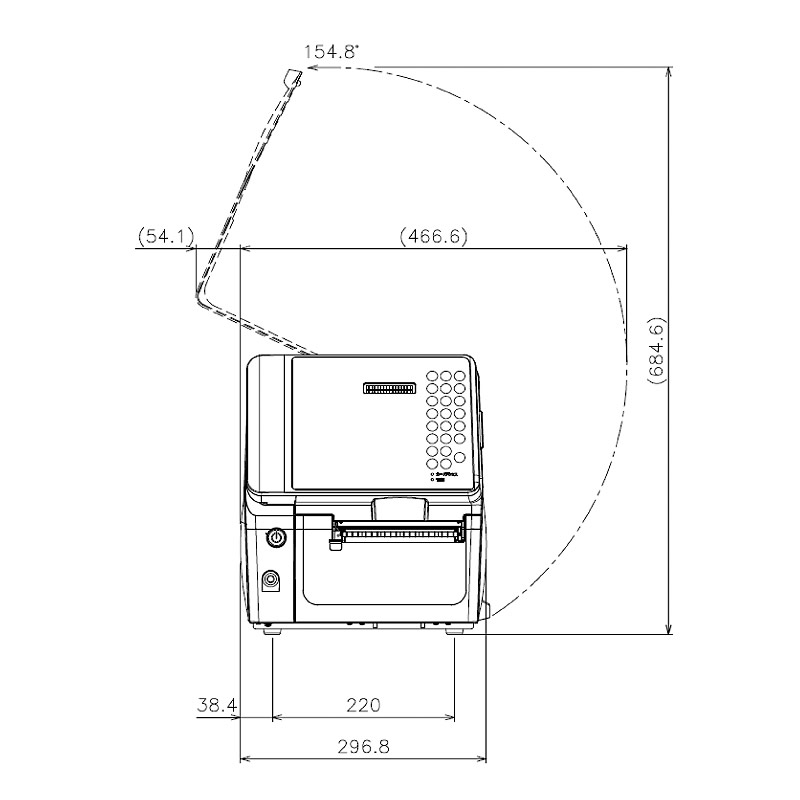

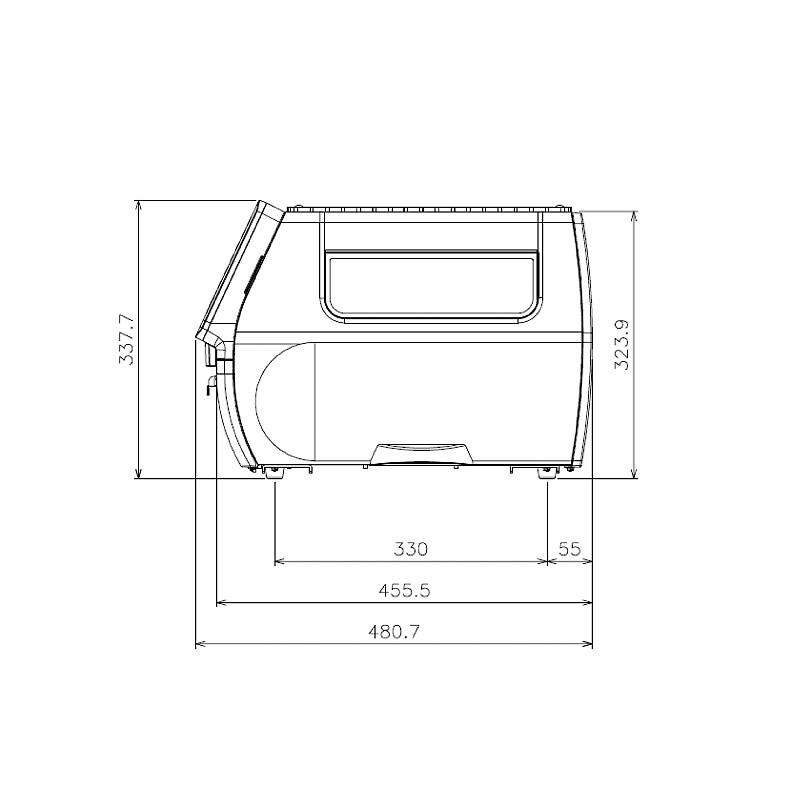

Dimensions
| Type | Normal type | Auto-cutter built-in type |
|---|---|---|
| Method | Direct thermal/ thermal transfer | |
| Speed | 70 to 200mm/sec. | |
| Print head width | 128mm | |
| Thermal head density | 12 dots/mm (300 dots/inch) | |
| Label size | Width: 40 to 130mm, Length: 40 to 500mm | |
| Modes | Present, Tear-off, Rewind (optional) | Auto-cutting, Tear-off |
| Printer driver available | Windows® XP to 7(32bit/64bit) | |
| Barcodes | EAN/ UPCA/ UPCE/ CODE39/ ITF/ NW-7/ MATRIX2 of 5/ CODE128/ EAN128/ GS1 Databar(Expanded)/ QR Code/ PDF417 | |
| Communication interface | LAN, RS-232C, PS/2, USB | |
| Operating temperature | 5℃ to 35℃(10℃ to 35℃ for thermal transfer) | |
| Operating humidity | Under 80% RH (non-condensing) | |
| Power supply | AC100V±10%(50/60Hz)/Max. 265W | |
Variations
GP-6000S with auto cutter
This model us equipped with an auto-cutting function that automatically cuts specified quantities of labels printed. Specify this option at time of order.
Options

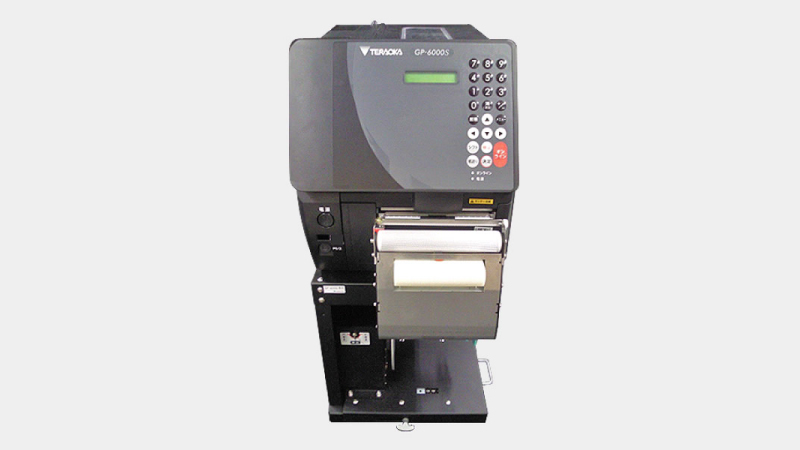

External label winder for GP-6000S
This is an external winding device for labels printed out by the printer. Available in floor and front-placed versions.

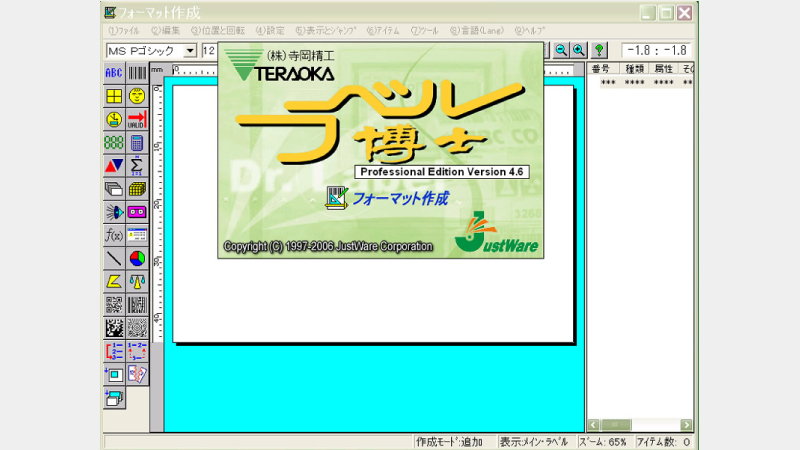

Dr. Label
This Windows®-compatible label management software lets you design and print labels on a PC.
FAQ
-
Can the "Dr. Label" management software be used on multiple computers?Use on multiple computers is possible, but a license is required for each computer. For details, please contact your nearest dealer.
