Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.
DIGI reverse vending machine for non-refillable & refillable containers, plus crates
DRV-5000 Series
RetailMain Features
The DRV-5000 is a Reverse Vending Machine for return of non-refillable and refillable containers and crates. DIGI's outstanding recognition technology accurately detects the type of containers and crates, and sorts them into the designated locations. Furthermore, its modular structure allows various combinations of sorting and compacting to meet specific customer requirements.

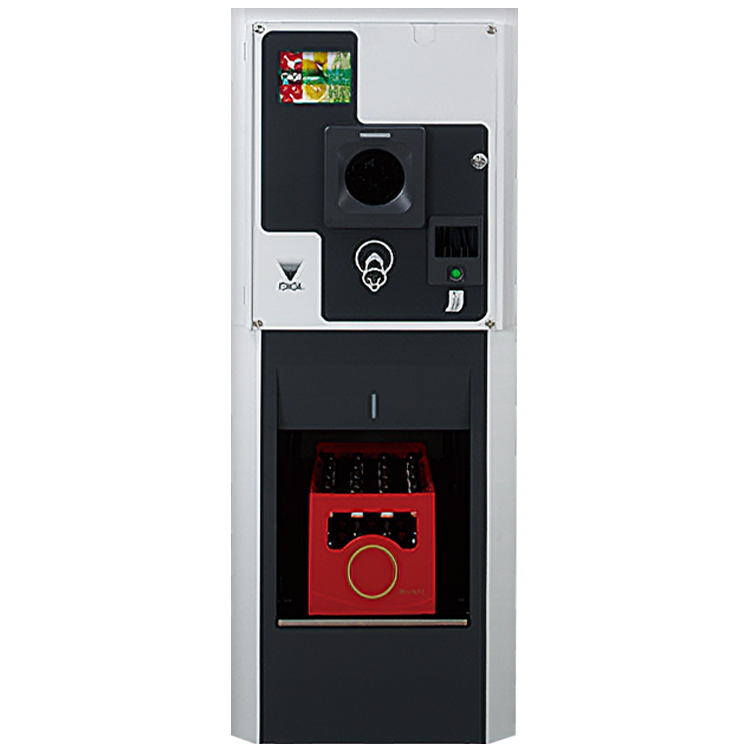

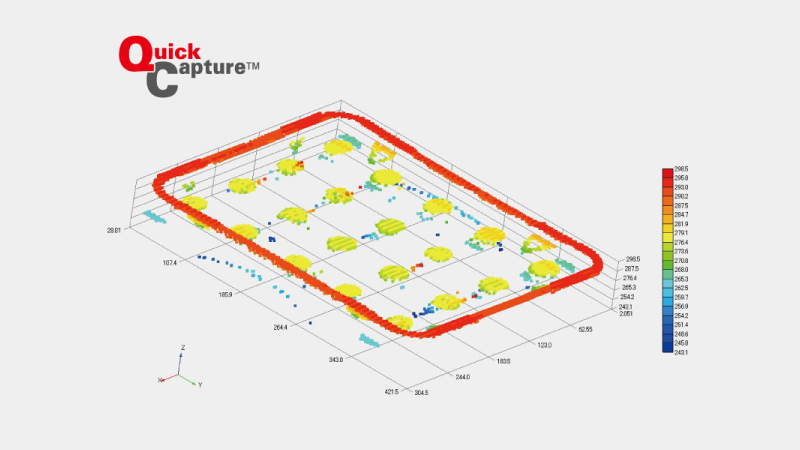

Crate recognition
DIGI's unique crate recognition technology uses a laser and camera. Creating accurate 3D images by DIGI Quick Capture™ software, almost all different types of crates and the number of bottles in crates are quickly and accurately recognized.

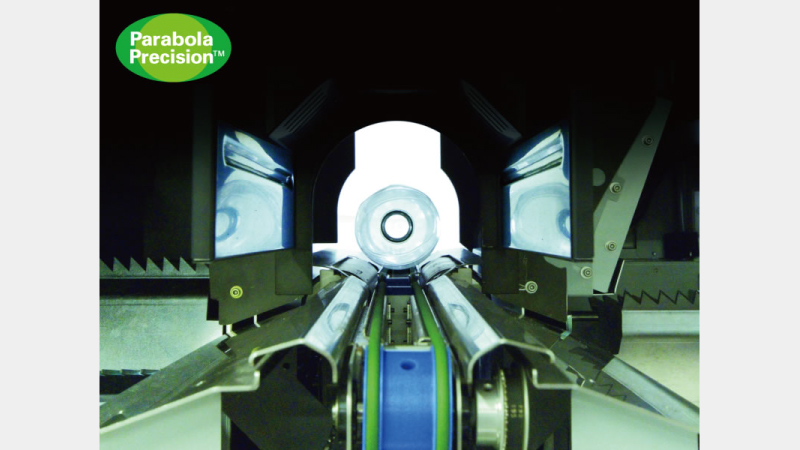

Quick & accurate recognition
DIGI's unique shape recognition technology uses a parabolic mirror to provide uniform light for the camera. This minimizes the influence of outside light and enables quick and accurate detection of various container shapes.

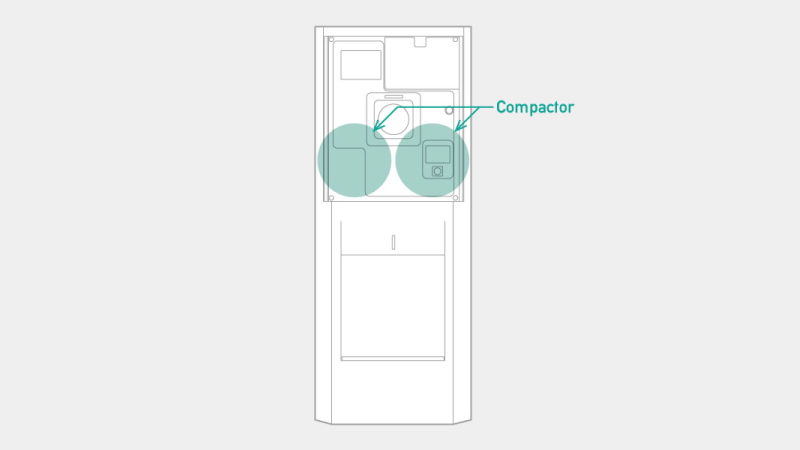

Small & light compactor
DIGI developed robust and durable, yet small and light compactors for non-refillable PET bottles and cans. Two separate compactors are located behind one insertion slot, splitting the burden of each compactor. Also the small, light compactor design is easy to maintain and service.

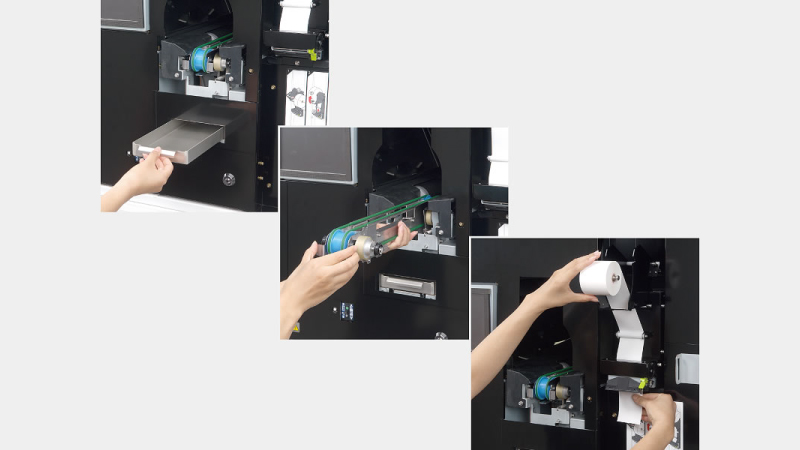

Easy maintenance
The DRV-5000 is designed to allow easy cleaning and maintenance for store personnel and service engineers. All cleaning areas are ergonomically accessible from the front of the machine. The easy cleaning helps keep the machine neat and sanitary, and presents an image of store cleanliness to shoppers.

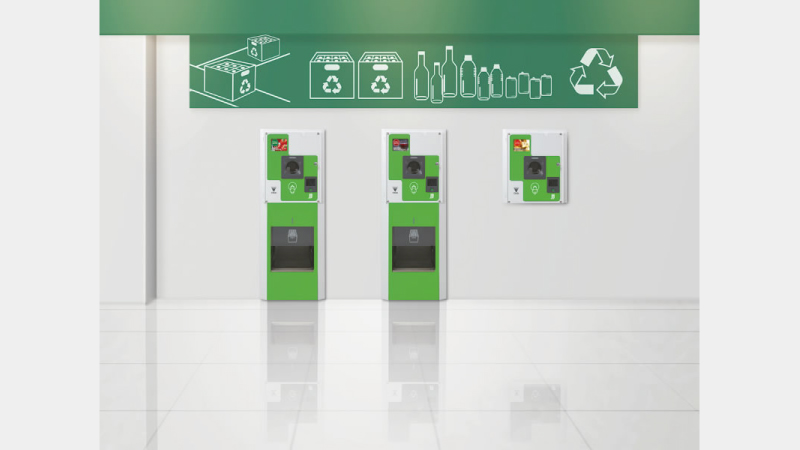

Design
The front panel is available in various colors to complement your store's color or atmosphere. With a space-saving modular structure, the DRV-5000 easily blends in with any store design.
Specifications
Dimensions
Basic data
| Model name | DRV-5100 | DRV-5122 | DRV-5200 | DRV-5222 |
|---|---|---|---|---|
| Dimentions (mm) | W: 780 x D: 1,550 x H: 1,850 | W: 780 x D: 1,550 x H: 1,850 | ||
| Net weight (Approx.) | 280kg | |||
| Power source | 220-240V, 50/60Hz | |||
| Power consumption | 1.5A, 340W | |||
| Operating temparature | 10 to 35 degree C | |||
| Operating humidity | 90%RH (max) | |||
Type of containers
| Model name | DRV-5100 | DRV-5122 | DRV-5200 | DRV-5222 |
|---|---|---|---|---|
| Refillable PET | ● | ● | ● | ● |
| Glass | ● | ● | ● | ● |
| Crate | ● | ● | ||
| Non-refillable PET | ● | ● | ||
| Can | ● | ● |
Crate recognition
| Model name | DRV-5100 | DRV-5122 | DRV-5200 | DRV-5222 |
|---|---|---|---|---|
| Crate feeding | 1 rectangle hole for crates | 1 rectangle hole for crates | ||
| Crate feeding rate | Up to 16 crates per minute | Up to 16 crates per minute | ||
| Crate size (mm) | Max. W: 400 x D: 390 x H: 500 *The maximum combination is not available. |
Max. W: 400 x D: 390 x H: 500 *The maximum combination is not available. |
||
| Crate recognition | Laser and camera | Laser and camera |
Container recognition
| Model name | DRV-5100 | DRV-5122 | DRV-5200 | DRV-5222 |
|---|---|---|---|---|
| Container feeding | Horizontal, 1 insertion slot | |||
| Container feeding rate | Up to 50 containers per minute | |||
| Container types | See 'Spec 1:Type Of Containers' | |||
| Container size | φ52mm diameterx150mm-φ130mm diameterx360mm | |||
| Container recognition | Barcode, Safety mark, Container shape | |||
| Container weight detection | Electronic scale | |||
Storage box
| Model name | DRV-5100 | DRV-5122 | DRV-5200 | DRV-5222 |
|---|---|---|---|---|
| Storage box size (mm) | Euro pallet collection (W: 800 x D: 1200) or 1/2 Euro pallet collection (W: 600 x D: 800) | |||
| Number of storage box | Depend on the types of the collected containers | |||
Display & printer
| Model name | DRV-5100 | DRV-5122 | DRV-5200 | DRV-5222 |
|---|---|---|---|---|
| Display | 8.4 inch TFT color display with touch screen function for maintenance. | |||
| Number of display | 1 unit | |||
| Receipt printer | Thermal printer for text, images and barcodes. | |||
| Number of receipt printer | 1 unit | |||
| Receipt roll size | φ150mm diameter, 57.5mm width | |||
Others
| Model name | DRV-5100 | DRV-5122 | DRV-5200 | DRV-5222 |
|---|---|---|---|---|
| Warning/Flashing light | ||||
| Number of Warning/Flashing light | ||||
| Monitoring / Remote control | Counter and clock are located inside the machine, Progress log with detailed information, Machine status is shown in the display, Diagnostic check remotely and through maintenance menu in the display. | |||
Variations

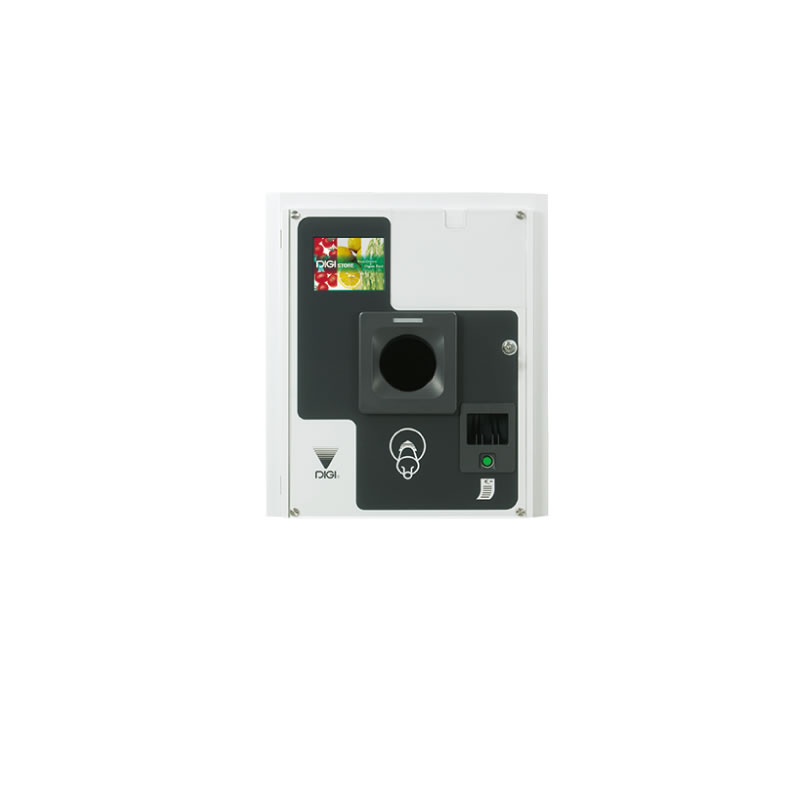

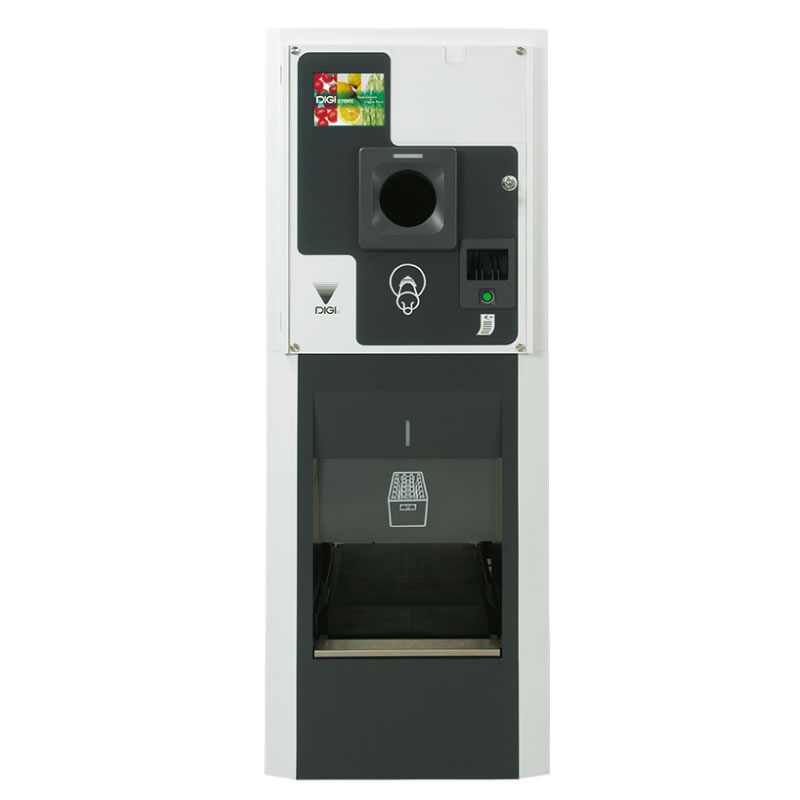

| DRV-5122 | DRV-5100 | DRV-5222 | DRV-5200 | ||
 |
 |
 |
 |
||
| Refillable | PET | ● | ● | ● | ● |
| Glass | ● | ● | ● | ● | |
| Crate | ● | ● | |||
| Non-Refillable | PET | ● | ● | ||
| Can | ● | ● | |||
Case Studies
Case studies
DRV Reverse Vending Machine chosen by Edeka Endt store, Germany
Edeka Gruppe
Edeka, one of the leading retailers in Germany, selected DIGI Reverse Vending Machines for the collection of beverage containers in the store. In Germany, collection of empty beverage containers by retailers is mandated by law, and the store was looking for a reliable Reverse Vending Machine to ensure quick and simple collection.
FAQ
-
Does the DRV-5000 have networking capability?Yes. Using PC technology, the DRV-5000 provides flexible networking capability with POSsystems and back-office software. With DIGI's on-line remote system, remote maintenance is also available.
-
We need more collection capacity. Can we have a Euro pallet size (W:800mmxD:1200mm) storage box for DRV-5000?Yes. A Euro pallet size storage box is available for the DRV-5000.
-
Can we use the machine display for advertisements?Yes. The 8.4-inch TFT color display can be used to display advertising for shoppers. Advertisements can be displayed on the screen as messages, slide shows, or videos.
