Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

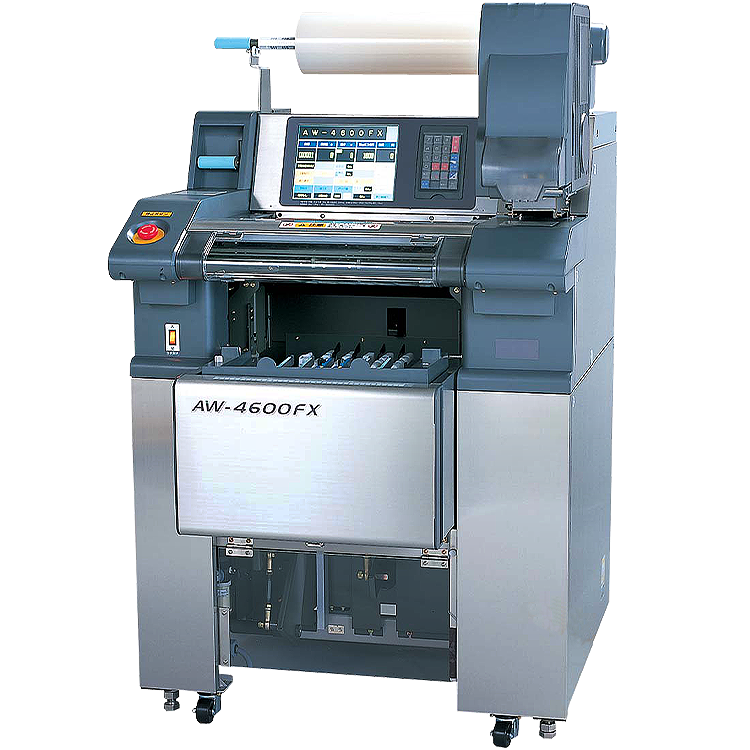

AW-4600FX-WP02

Semi-automatic weigh-wrap-label system with flexible product handling

AW-4600FX

Retail

Main Features

AW-4600FX is an unique capability of wrapping items on normal trays or without tray.  This model even handles items on fragile trays which is difficult for other stretch wrapping systems.  The compactly designed body requires only a 1m-square of foot print.  Capable of wrapping up to 14 packs/min.

AW-4600FX-WP04-1

Wraps a wide range of products

AW-4600FX is not limited to conventional foam trays, also wraps items on odd shaped trays, fragile trays or even without tray.  Makes it easy for anyone to wrap difficult packages, such as cheese or fruit and vegetable, attractively, and greatly increases work efficiency.

AW-4600FX-WP04-2

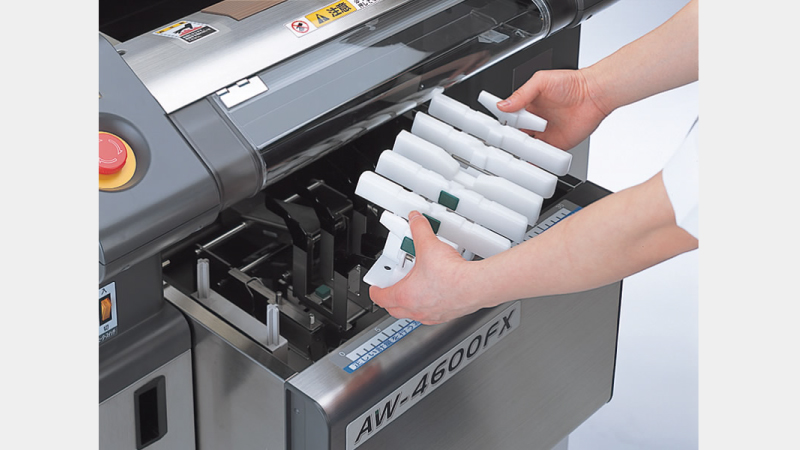

Easy cleaning

Parts that touch the product, such as the elevator head and scale tray, can all be easily removed. Parts removed can be washed in water. Helps maintain hygienic work conditions.

Linerless labeler option is available

Linerless labeler option lets you eliminate wasteful label liners and reduce total label cost. This also helps designing more eye-catching labels with less restrictions from label size.

Specifications

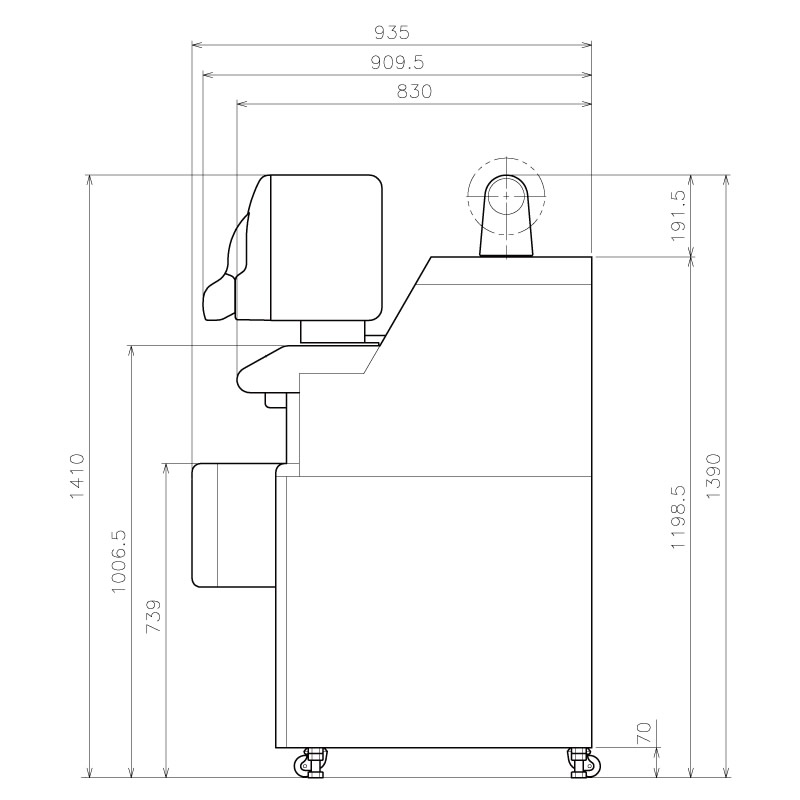

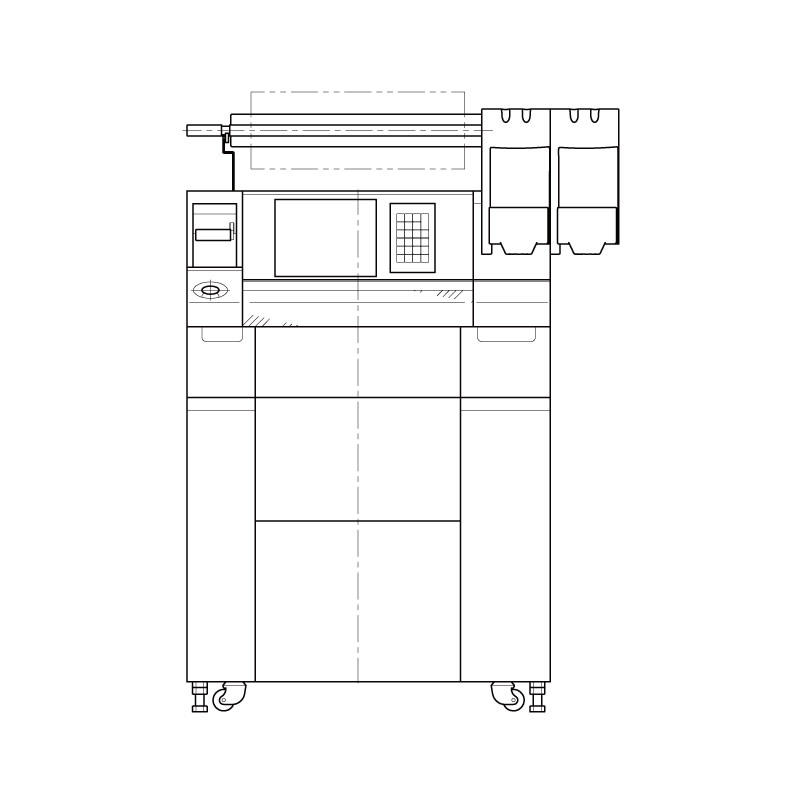

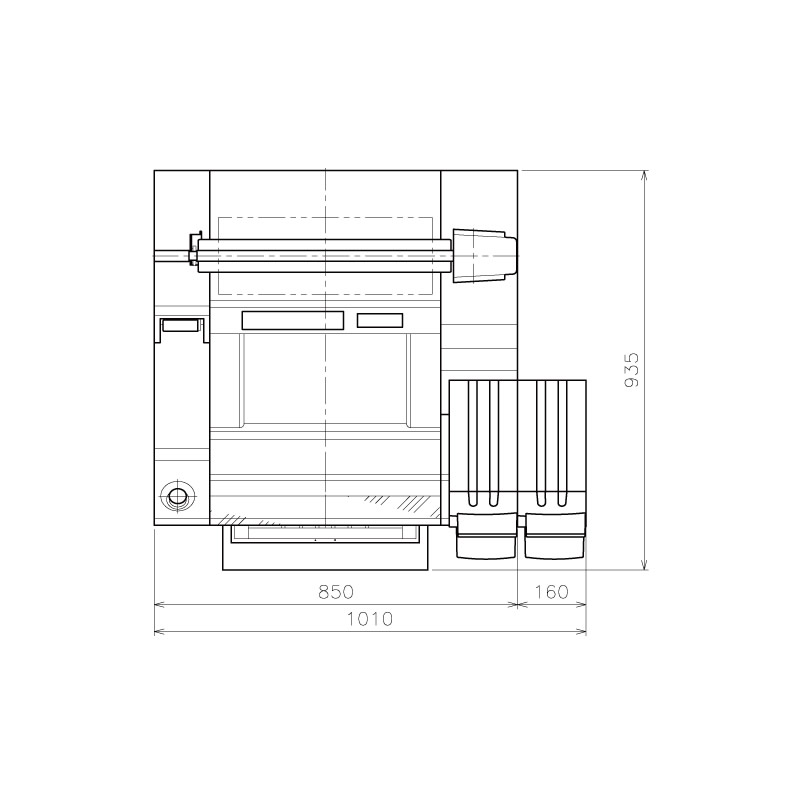

Dimensions

  • AW-4600FX_W Model (1).pdf
  • AW-4600FX-WP05-2
  • AW-4600FX-WP05-3

Wrapping

Wrapping Speed Max. 14 packages/min.
Package Size Width: 80 to 350mm  /  Height :  10 to 130mm  /  Depth :  80 to 230mm

The maximum combination of the above dimension is not available and the
available package size depends on the film width.
Film Roll Capacity One
Film Size Accepts 350 to 500mm rolls

Weighing

Multi interval Single interval
Capacity Max. 6/15kg Max. 3/6kg Max. 30 lb
Scale Interval e=2/5g e=1/2g e=0.01 lb

Labeling

Label Type Thermal paper
Labeling Application Manual
Label Size Width: 40 to 80mm

Net Weight 280kg
Single labeler type



Variations

AW-4600FX-WP07-1

Linerless label model

AW-4600FX LL

This model prints on linerless labels.
This reduces running cost and increases the efficiency of label application work.
AW-4600FX-WP07-2

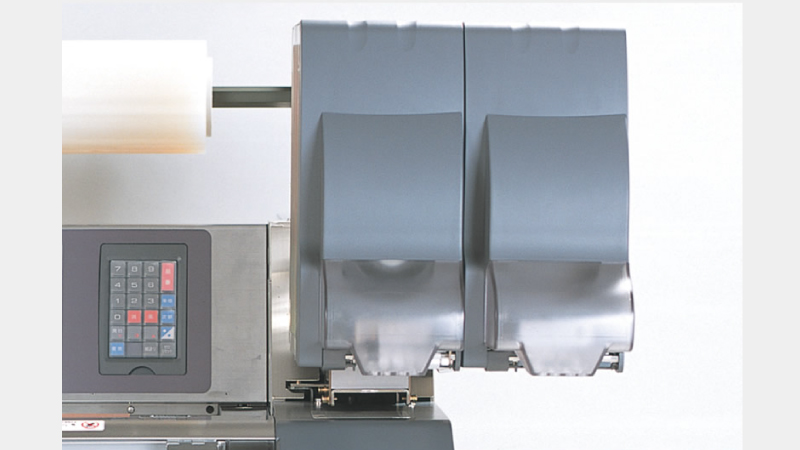

Twin labeler

AW-4600FX W

Lets you use either of two different types of labels according to application.
AW-4600FX-WP07-3

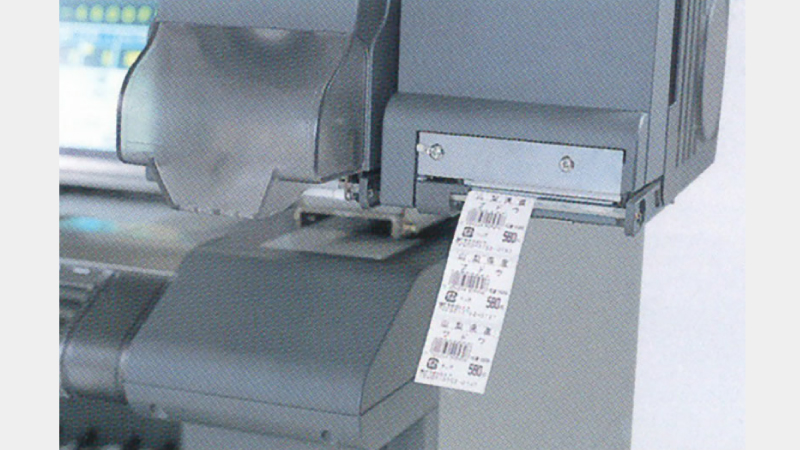

Vertical flow label printing

AW-4600FX FV

One of the twin labeler's printers prints on labels with paper liners. This allows labels to be affixed in a location away from the labeler.
