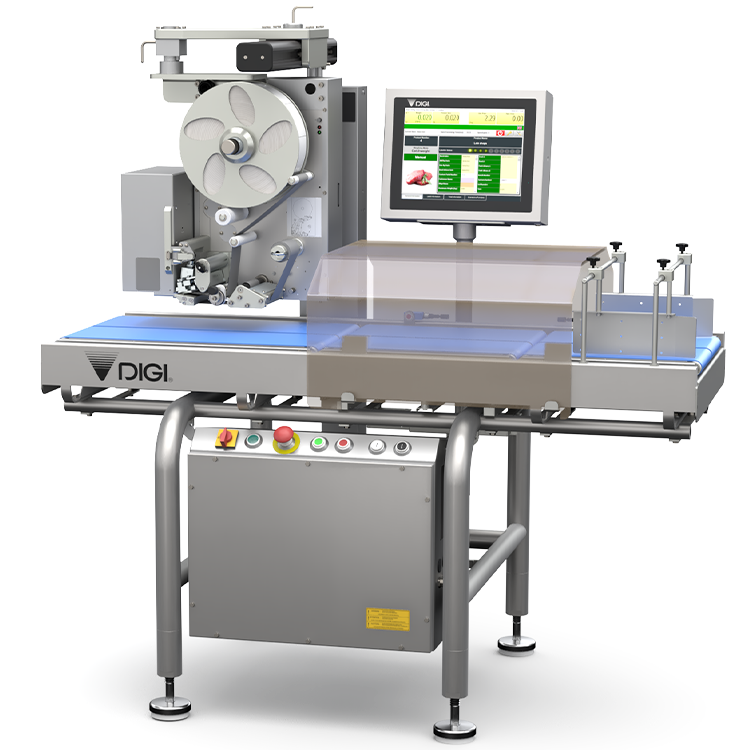

mi700w-2_WP02_01

Mid-Speed Weigh Price Labeler For Wider Products

MI-700W II

Industrie agroalimentaire

Présentation

The MI-700W ll is a mid-range Weigh Price Labeler, featuring a single frame design and wider conveyors, processing wider products at a speed of up to 80ppm. Running PC-based software, networking and integration with existing machines and back office systems is straightforward.

Téléchargez la brochure ici
mi700w-2_WP04_01

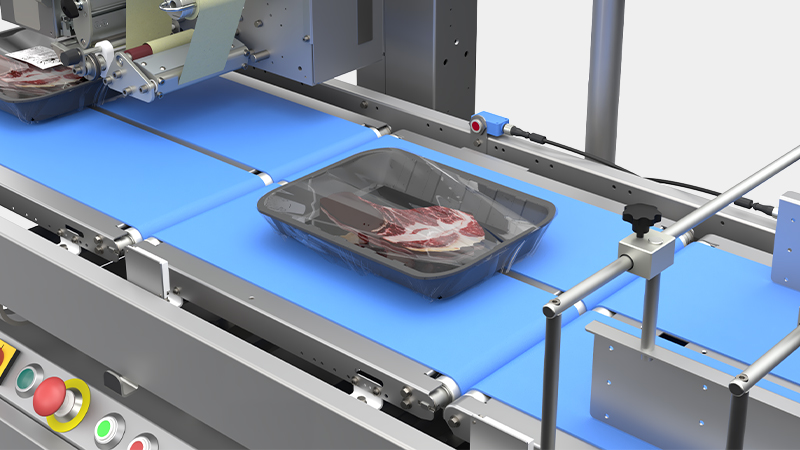

Wide Conveyors

The 400mm wide conveyor allows the processing of packs up to 400mm wide at a speed of up to 80ppm.

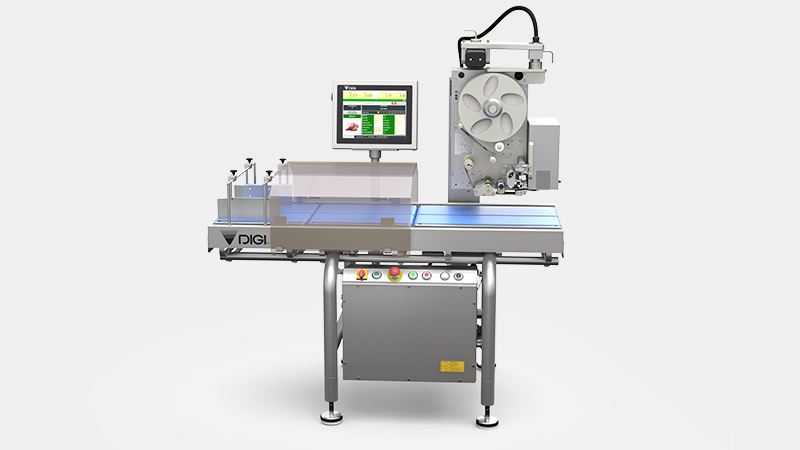

mi700w-2_WP04_02

Signature Labeler

The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

Caractéristiques

Dimensions

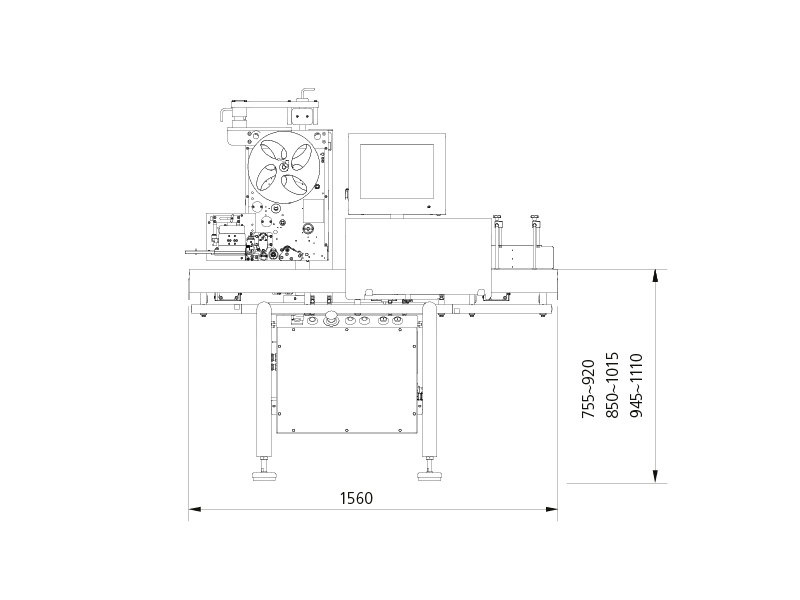

  • mi700w-2_WP05_01

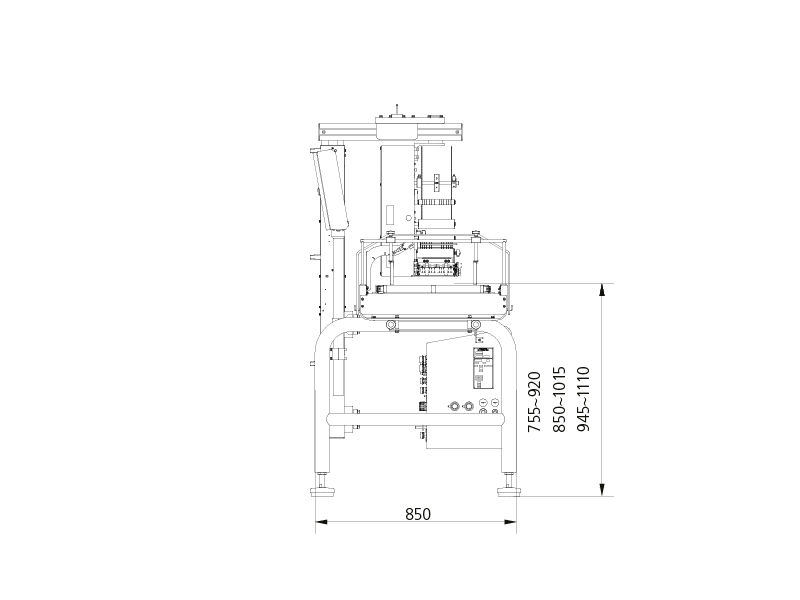

  • mi700w-2_WP05_02

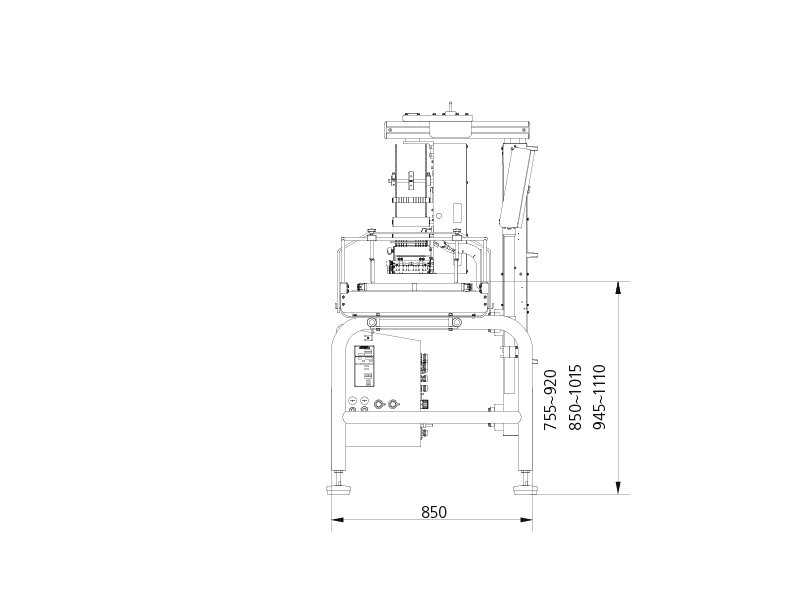

  • mi700w-2_WP05_03

Weighing


Capacity Max 6 kg (or greater)  Max 12kg (or greater)
Single Interval e= 1g e= 2g
Pack Speed up to 80 packs per minute
Pack Size   L80-300mm x W40-400mm x H180mm


Throughput dependant on product weight and size.

Display


Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Catch Weight, Fixed Weight/Price, Average (Emark)
Labelers Multiple labelers/printers
Communication Ethernet, USB, RS232
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General


Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature 0 to +30°C


Standard Features

Scale Length 400mm
Scale Cover 'lift-off' formed polycarbonate
Sensors Overhead retro reflective
Labellers Signature
Pack Guides S100 tall guides
Conveyors Split blue belts

Options

mi700w-2_WP09_01

Auto Labeler Height Adjustment

The height of the Signature labeler can be automatically adjusted via the Product Look Up (PLU).

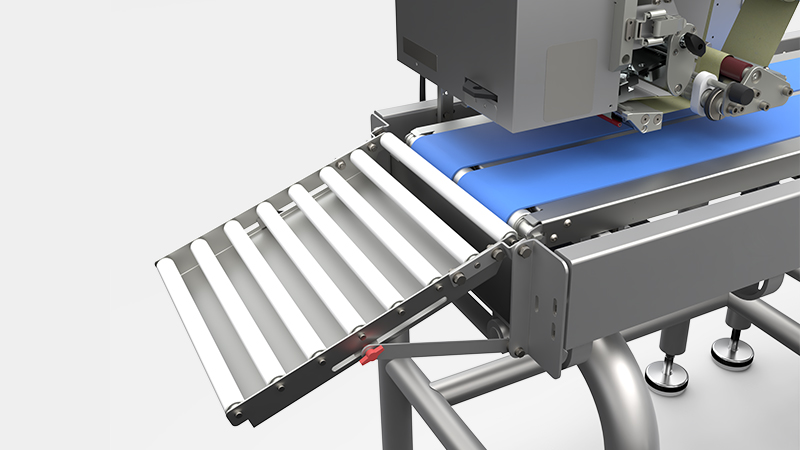

mi700w-2_WP09_02

Gravity Infeed/Outfeed Rollers

Gravity infeed/outfeed rollers can be added to the MI-700W II for transport of your products without the need for power.

Options

Options Pre-printed label applicator, Direct protocol Honeywell (PM43/45), Direct protocol Zebra (ZPL II), Windows printers, High level warning beacon, Horizontal Retro Reflective Sensors
