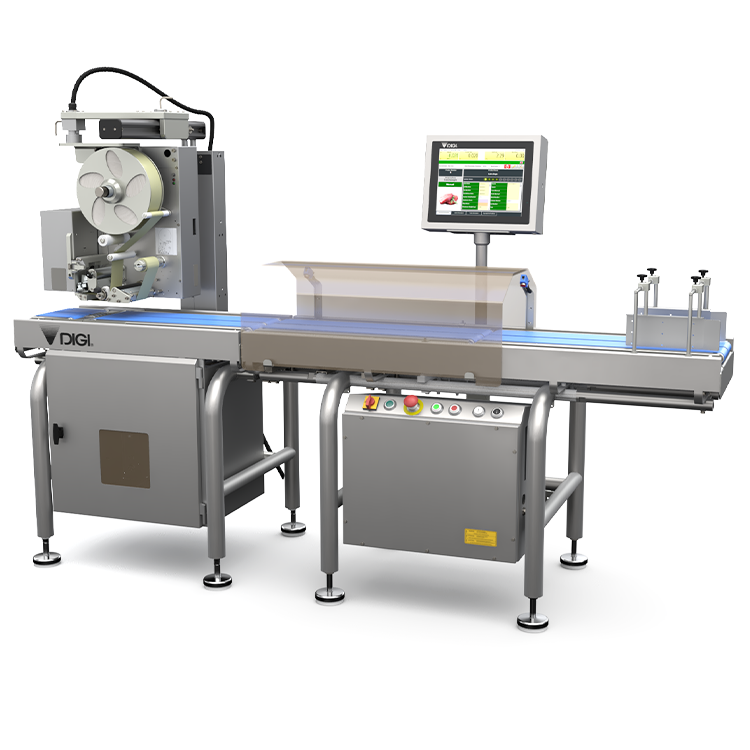

Long Scale Dynamic Weigh Price Labeler
HI-700L II
Industrie agroalimentairePrésentation

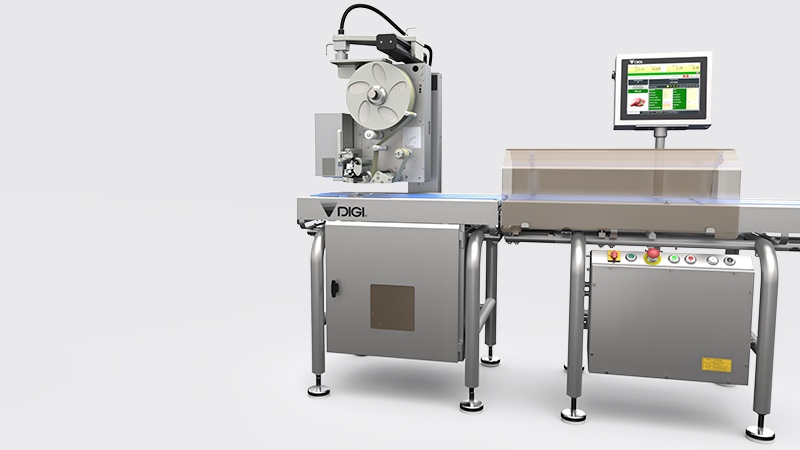

The HI-700L ll Weigh Price Labeler offers both increased efficiency and flexibility, designed for dynamic weighing and labelling of longer packs at up to 60ppm.
Long Conveyor
The 780mm long conveyor of the HI-700L II allows processing of packs up to 605mm in length, at a speed of up to 60ppm.
Signature Labeler
The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

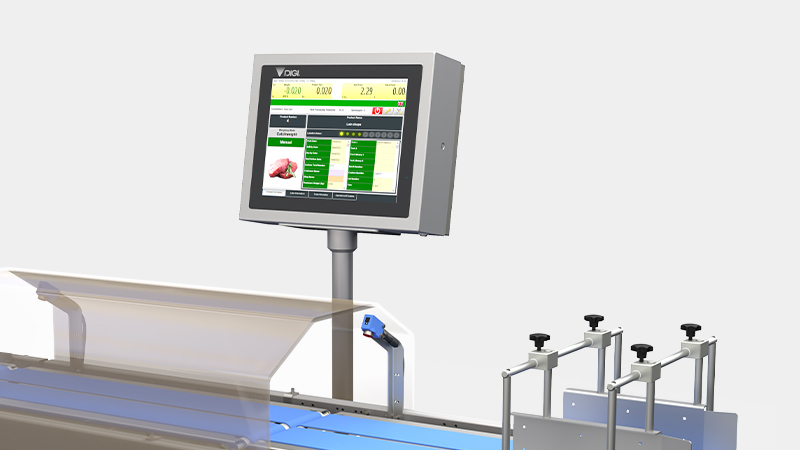

WorldView Operating Software
The HI-700L ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labelers.

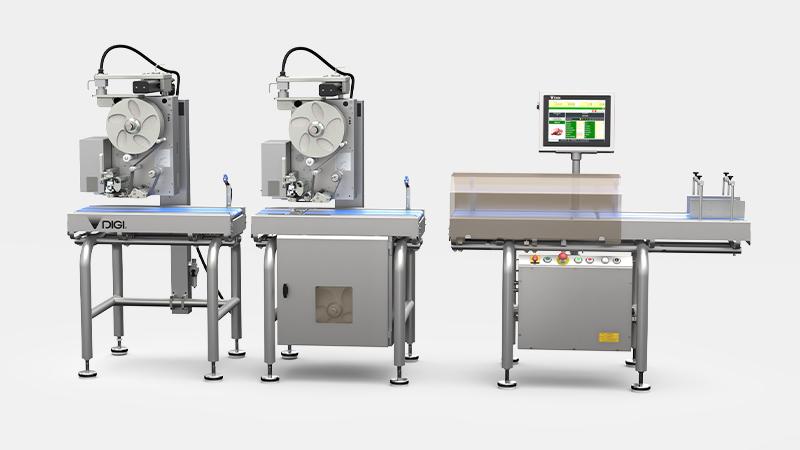

Modular Design
The modular design allows for the addition of extra labeling stations. Add more top and bottom labelers as required, providing a flexible solution to meet your requirements.
Caractéristiques

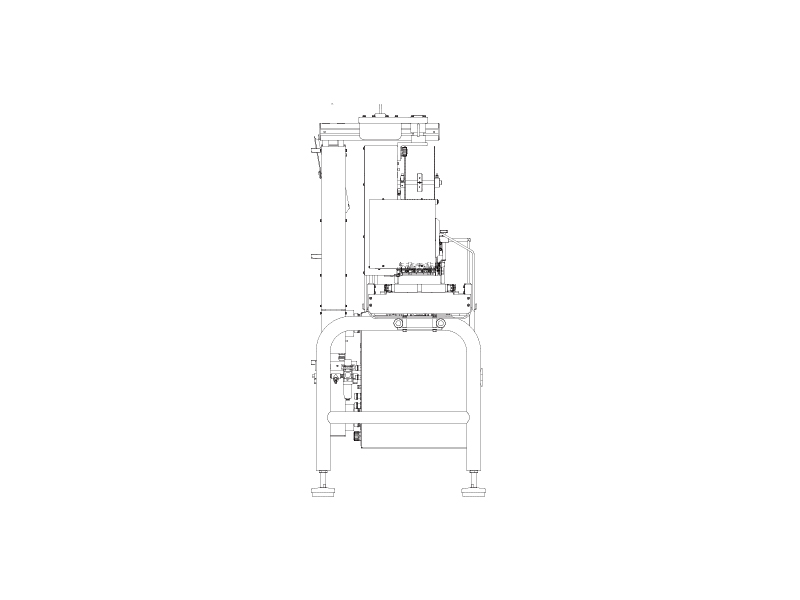

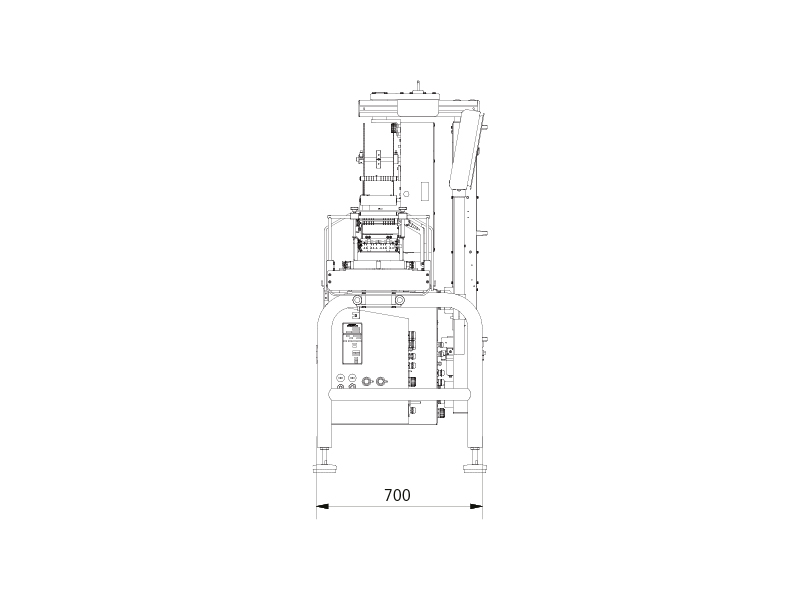

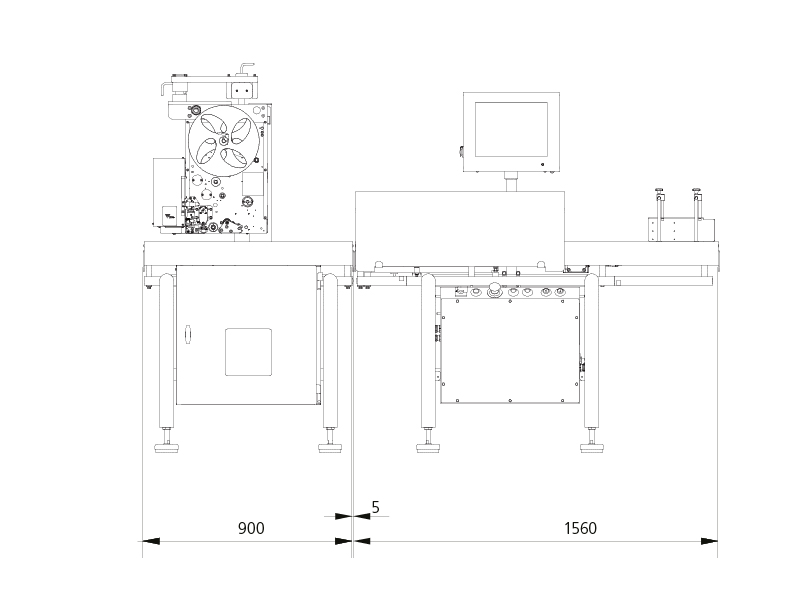

Dimensions
Weighing
| Capacity | Max 12 kg | ||
|---|---|---|---|
| Single Interval | e= 2g | ||
| Pack Speed | up to 60 packs per minute | ||
| Pack Size | L80-605mm x W40-250mm x H180mm | ||
Display
| Screen | 15" Colour LCD touchscreen |
|---|---|
| Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
| Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
|---|---|
| Labelers | Multiple labelers/printers |
| Communication | Ethernet, USB, RS232 |
| Operating System | Windows 10 OS |
| Language | Multi-lingual Unicode |
| Software | WorldView (embedded application) |
| Database | SQL |
| Connectivity | Remote programming and control |
| Connectivity to meet industry standards | |
| Customisable output data | |
| Interconnectivity to back-office data management |
General
| Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
|---|---|
| Operating Temperature | 0 to +30°C |
Standard Features
| Scale Length | 780mm |
|---|---|
| Scale Cover | 'lift-off' formed polycarbonate |

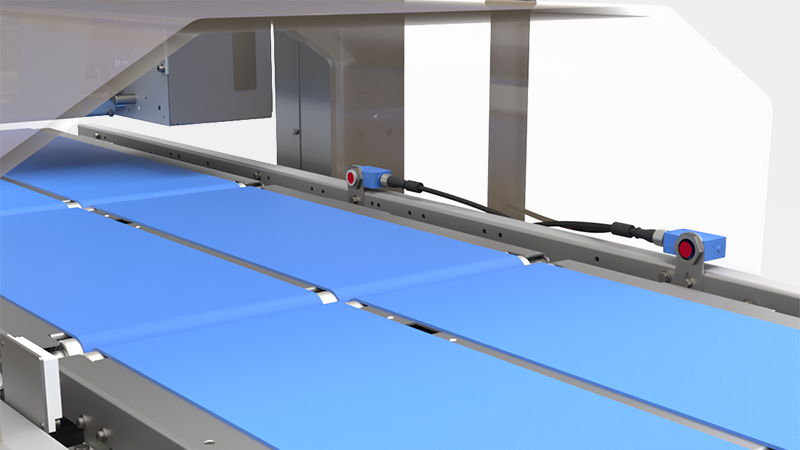

| Sensors | Overhead retro reflective |
| Labellers | Signature |
| Pack Guides | S100 tall guides |
| Conveyors | Split blue belts |
Modèles

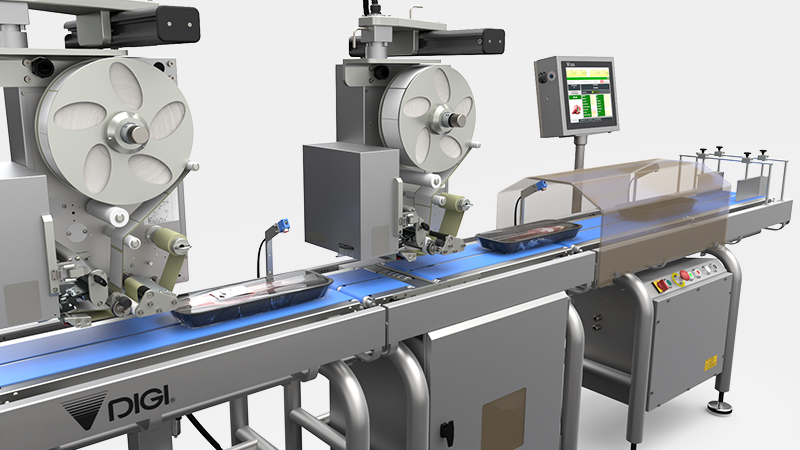

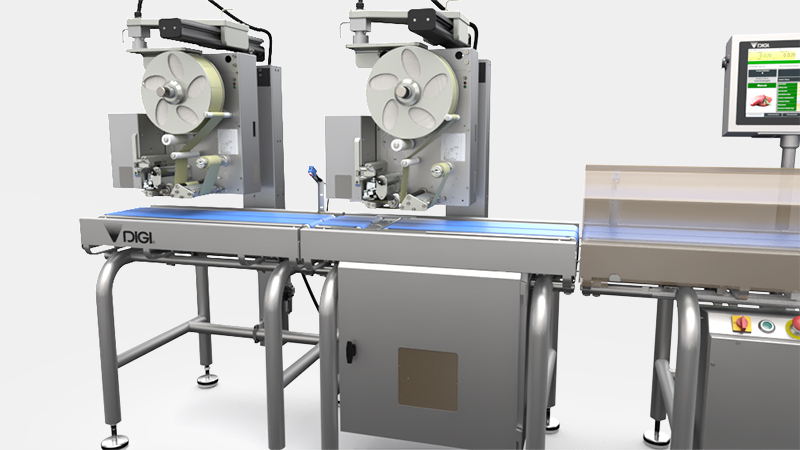

Top and Bottom Labeling

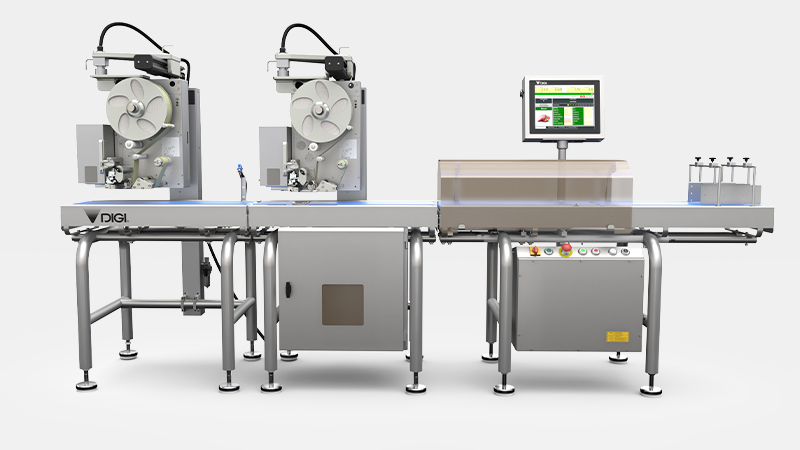

Multi Labeler
Options
Auto Labeler Height Adjustment
