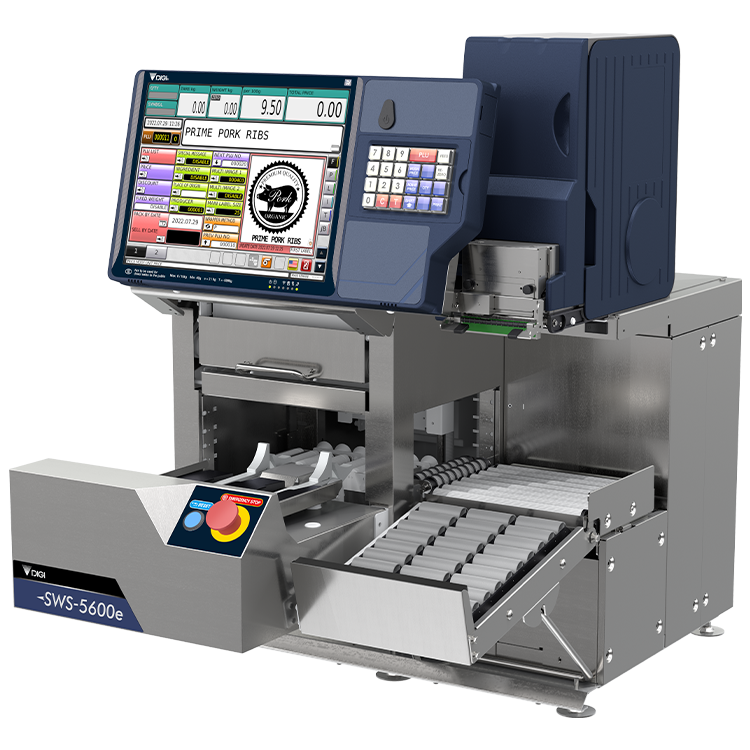

A tabletop tray sealer with integrated weigh-seal-label functionality
SWS-5600e
RetailPrésentation
A tabletop weigh-seal-label system that improves backroom productivity and operational efficiency while reducing film usage.
Top seal packing reduces plastic use
Rather than wrapping film the whole way around the tray, this machine utilizes top seal packing, which attaches a sheet of film to only the top of the tray. This leads to a significant decrease in film usage compared to conventional wrapping methods. The environmental impact can further be reduced by using trays made from recycled materials.
Weigh, seal, and label with a single machine
Only one machine is needed for weighing, sealing, and labeling, leading to increased productivity. It’s a solution that provides increased value for consumers, operators, and the environment.

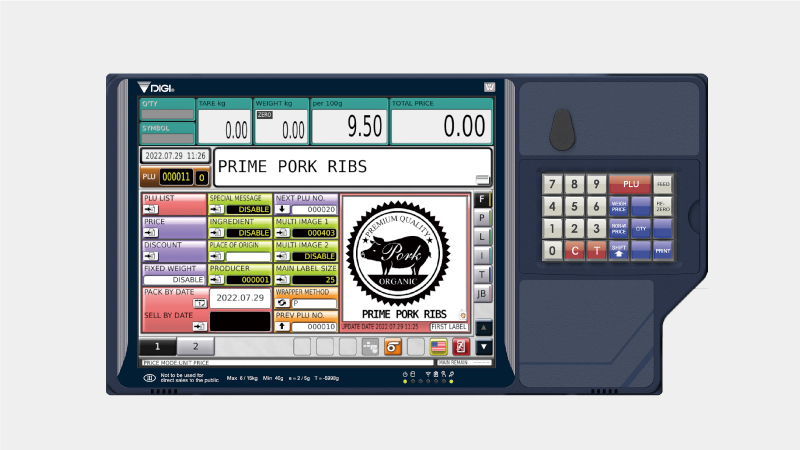

Simple operation panel
The 5600 series console boasts a large operation panel with high visibility that is easy to use. Since it is the same as other 5600 series equipment, operators familiar with other DIGI models will have no trouble adjusting.
Space-saving compact footprint

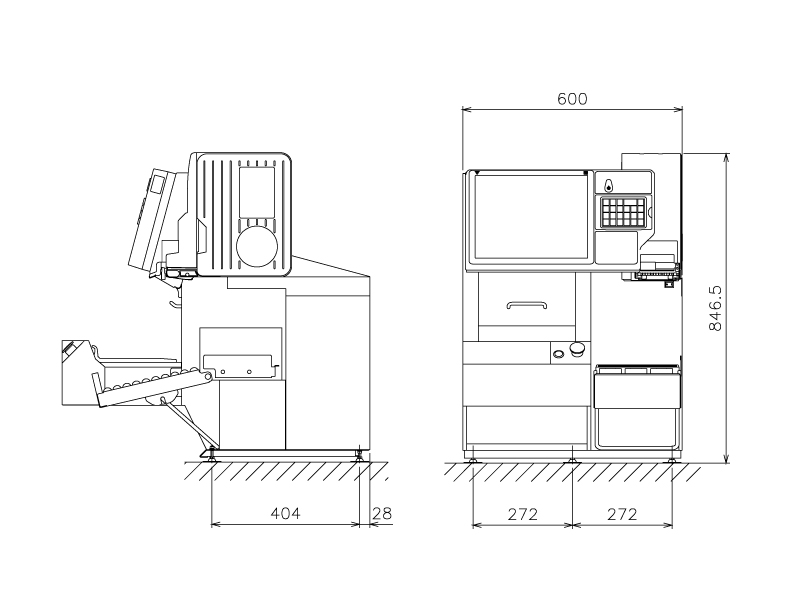

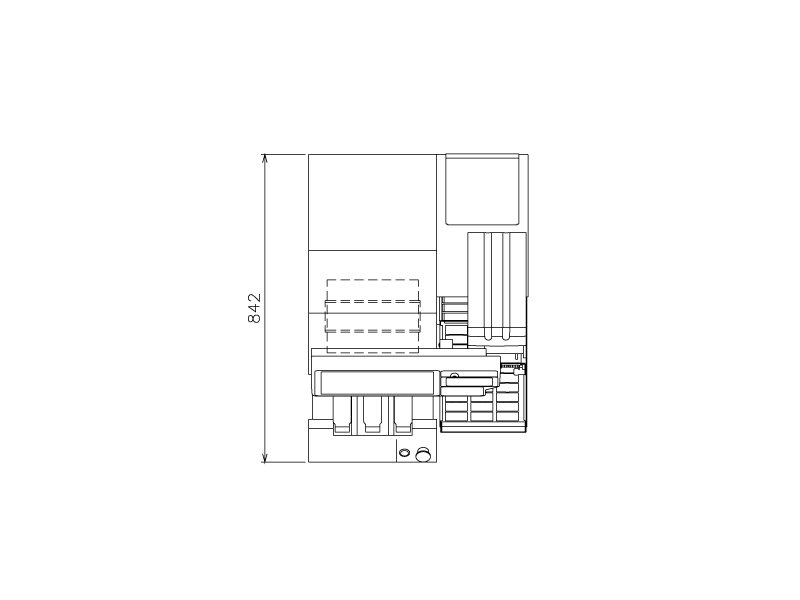

The footprint of SWS-5600e is 60 cm (W) x 84 cm (D). Its compact design allows it to be easily placed in narrow spaces, such as behind the sales counter.
Caractéristiques

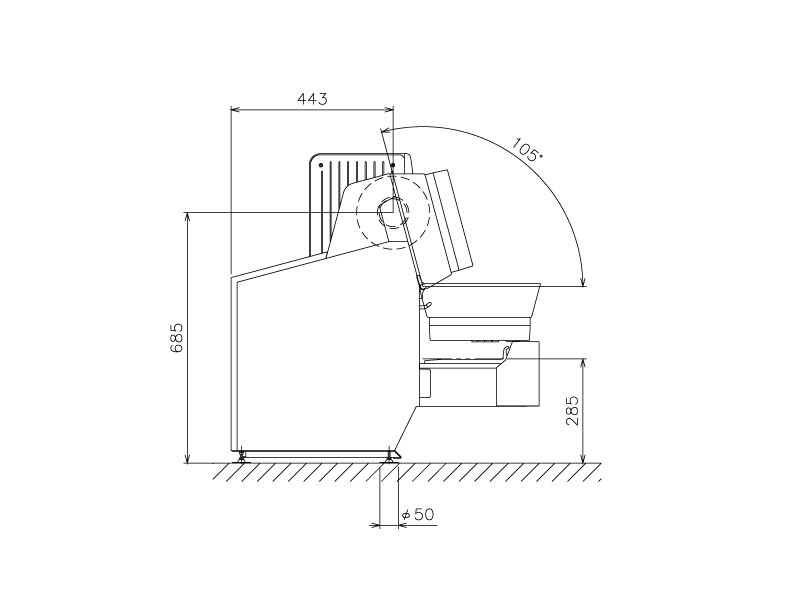

Dimensions
Packing
| Package Size | Width: 240mm (9.4 inches) |
|---|---|
| Depth: 140mm or 190mm (5.5 or 7.5 inches) | |
| Height: 30-80mm (1.2-3.1 inches) | |
| Packing Speed |
Max. 10 packages/min
|
| Number of Film Rolls | 1 roll |
| Film Width | 250mm (9.8 inches) |
Weighing
| Interval Type | Multi Interval | Single Interval |
|---|---|---|
| Capacity |
Max. 3/6kg
|
Max. 30 lbs |
| Scale Interval | e=1/2g | e=0.01 lbs |
| Weighing Range | 20g-6kg | 0.20lb-30 lbs |
| Max. Packing Capacity | 50g-1kg | 0.11lb-2.2 lbs |
Thermal Printer
| Label Type | Linerless Label |
|---|---|
| Label Print Width | Max. 44/59mm (1.73/2.3 inches) |
| Label Print Length | Max. 300mm (11.8 inches) |
| Dot Density | 12 dot/mm (300dpi) |
General
| Display Panel | TFT LCD color (15 inches) touch panel |
|---|---|
| Power Consumption | 220-240V;1φ;50/60Hz;1.0Kw |
| Net Weight | 100kg |
| Operating Temperature | 10 to 30℃ with no condensation |
| Operating Humidity | 80% RH (Max.) with no condensation |
