Create space-efficient production lines with this all-in-one integrated in-line weigh-wrap-label system
AW-5600CPR
RetailPrésentation

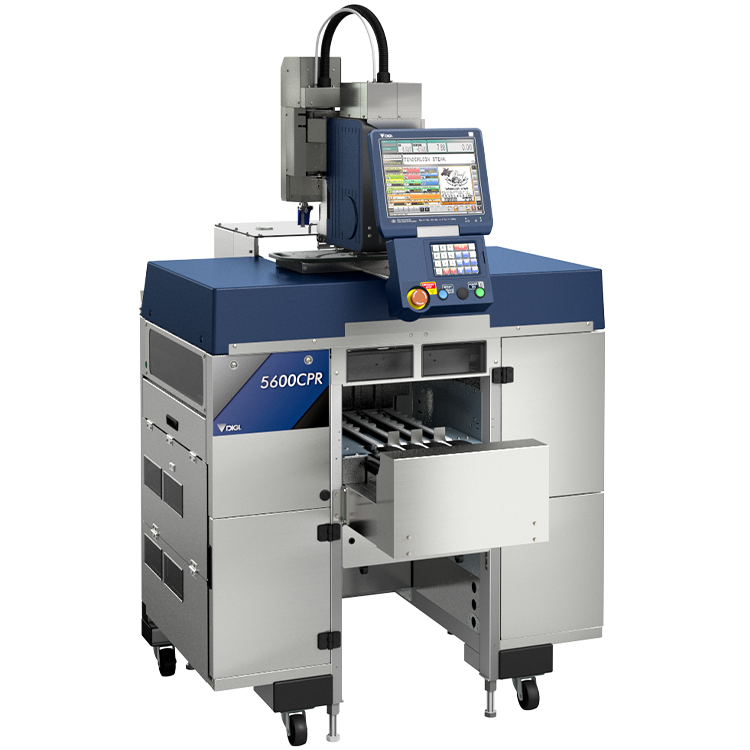

AW-5600CPR is a fully automatic, integrated weigh-wrap-label system designed for in-line operation. Even with its compact form factor, it can wrap large packages at a maximum rate of 30 packages per minute.
High productivity
In addition to maintaining a high maximum packaging speed, performance improvements to AW-5600CPR have pushed its average wrapping speed well beyond that of previous models.

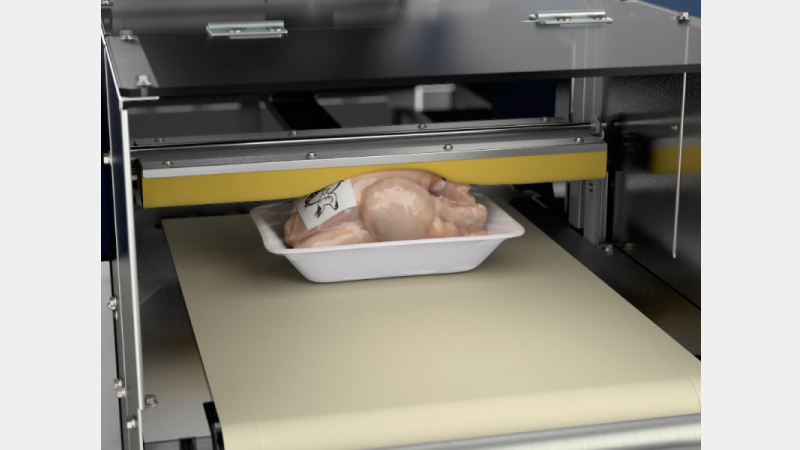

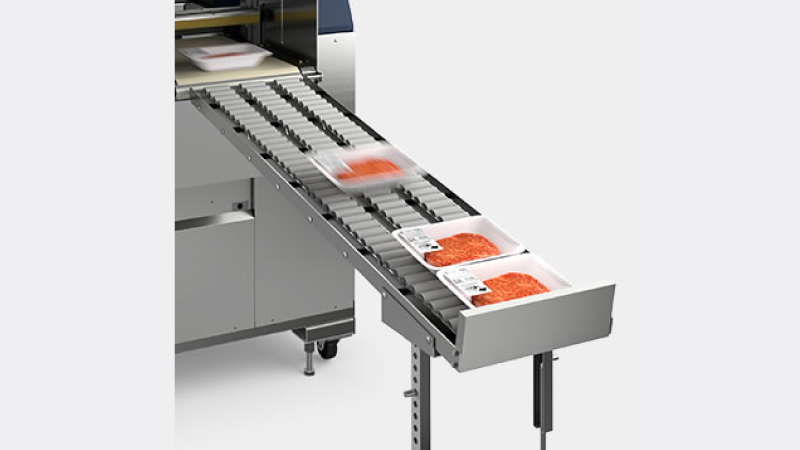

The combination of tray presser and enhanced heater conveyor ensures a tight film seal and a beautiful finish for the packaged product.

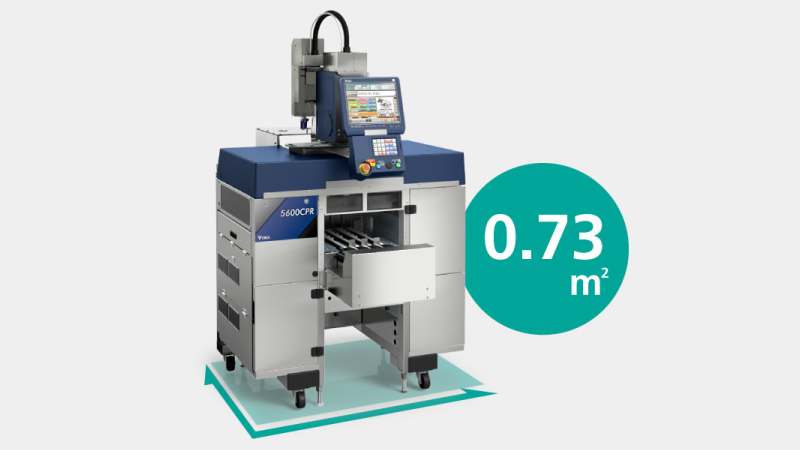

Space-efficient production lines
AW-5600CPR's remarkably compact 0.73 m2 footprint (excluding conveyor) helps you design an inline weighing and wrapping operation with maximum space efficiency.
Easy operation

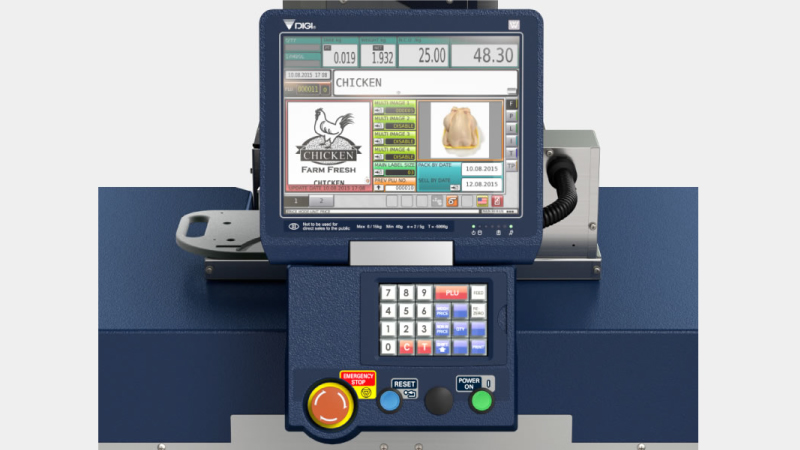

AW-5600CPR’s user interface allows quick response to store needs. With fewer screens to tap through, creating and printing labels is quick and simple, even for first-time users. Operators can preview labels on the 12.1” full-color display and print only what they need.
Quick film loading and easy clean-up

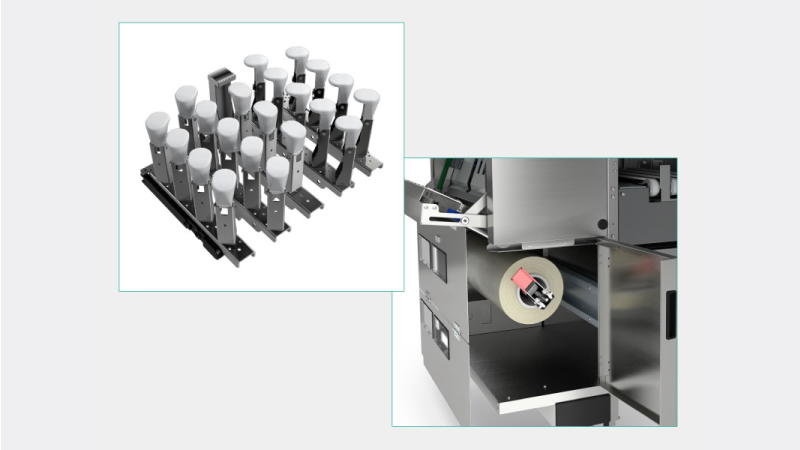

A new quick film loading mechanism lets you change film sizes with minimal downtime.
Easy access to the detachable elevator head helps take the effort out of daily cleaning.
Variable length label printing using auto-sizing and auto-cutting
Linerless labels automatically adjust the label size to the content, using a continuous roll of adhesive label material. This means you can print a different-sized label for each product, and longer labels are simple to print. DIGI's auto-cutting feature assures that the label has a clean, smooth edge.
Caractéristiques

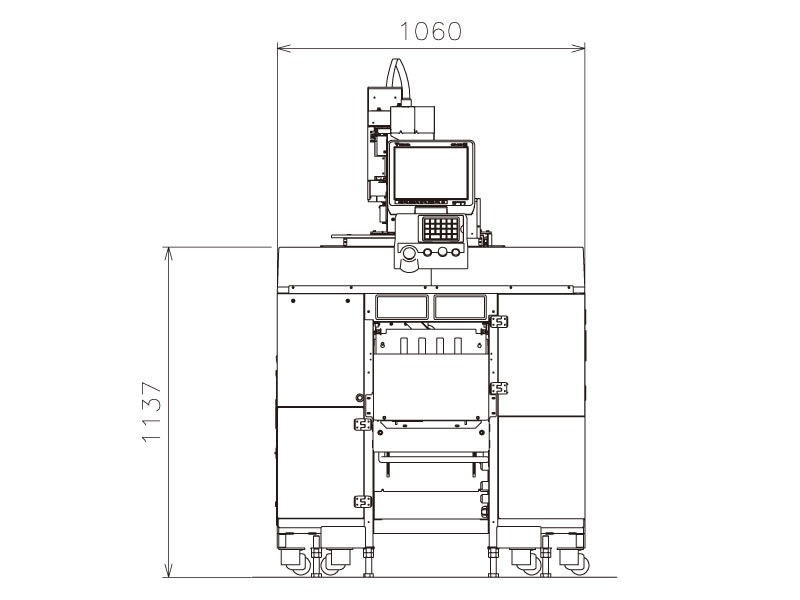

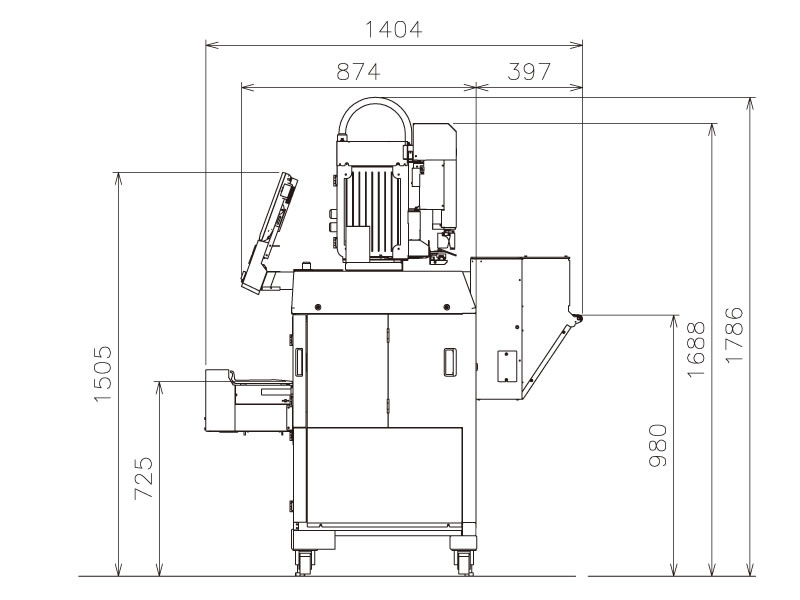

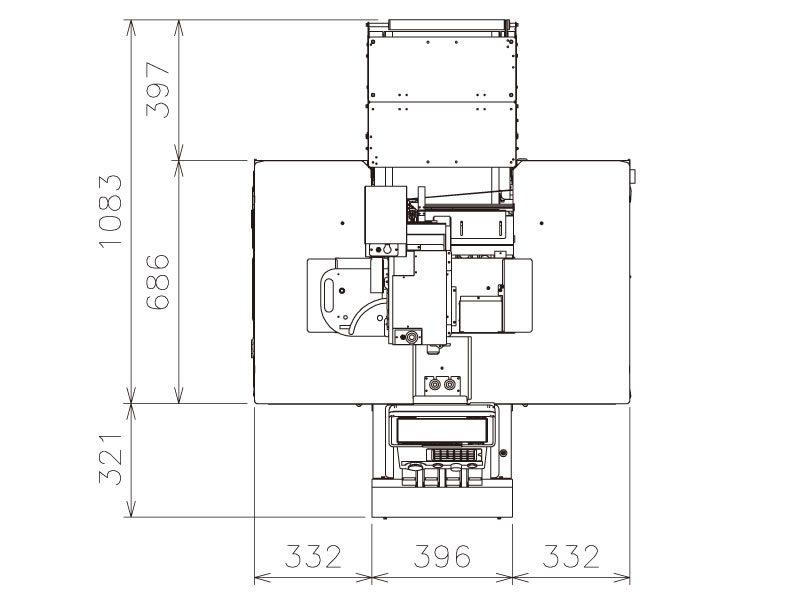

Dimensions
Thermal printer
| Label type | Die-cut label | Linerless label |
|---|---|---|
| Label width | 40-80mm/ 1.6-3.1 inches | 44-59mm/ 1.73-2.3 inches |
| Label length | 28-105mm/ 1.1-4.14 inches | 28-105mm/1.1-4.1 inches* *Maximum printing length is 300mm/ 11.8 inches |
| Label roll diameter | Max. 210mm (8.2 inches) | |
| Label roll core diameter | 76mm (3.0 inches) | |
| Dot density | 12 dot/mm (300dpi) | |
Operation console
| Display panel | TFT LCD color (12.1 inches) touch panel |
|---|---|
| Operation keys | Mechanical keys and touch screen |
| Memory for programmable files | 8.8 GB |
General
| Power source and | 208/240V; 3φ; 50/60Hz; 2.1kVa |
|---|---|
| Power consumption | 220-240V; 1φ; 50/60Hz; 2.0kW |
| Net weight | Approx. 340kg (AW-5600CPR Single Labeler Type) |
Modèles
Twin labeler
AW-5600CPR Twin

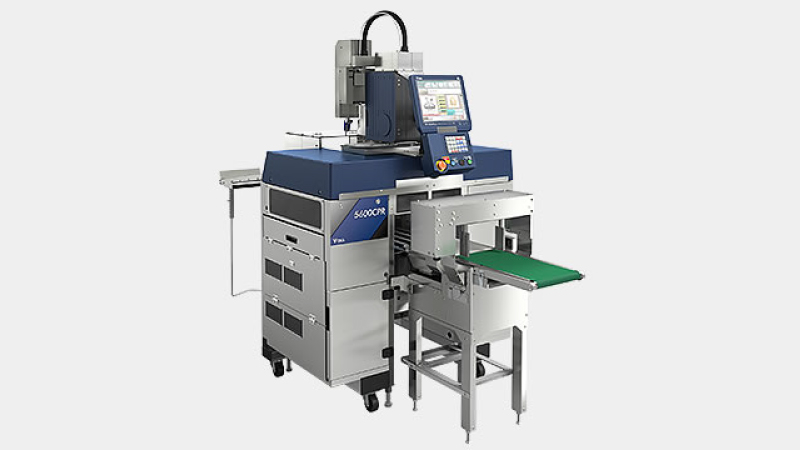

Auto infeed
AW-5600CPR IWC
