Manual Weigh Price Labeler
DPS-800 II
Industria AlimentariaCaracterísticas principales

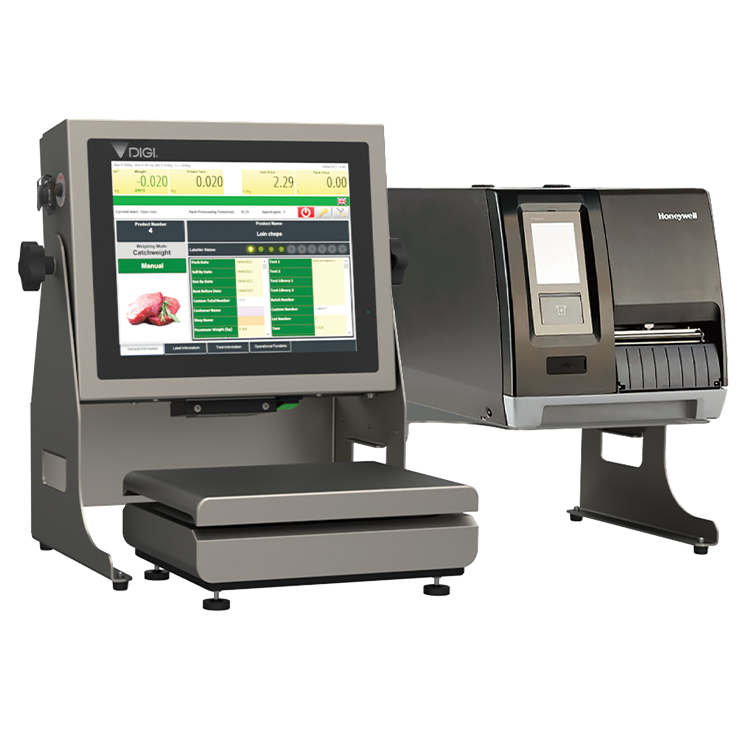

The DPS-800 II manual weigh price labeler is a versatile system with various printer and mounting options, making it ideal for almost any environment or application.
Simple and Efficient Operation

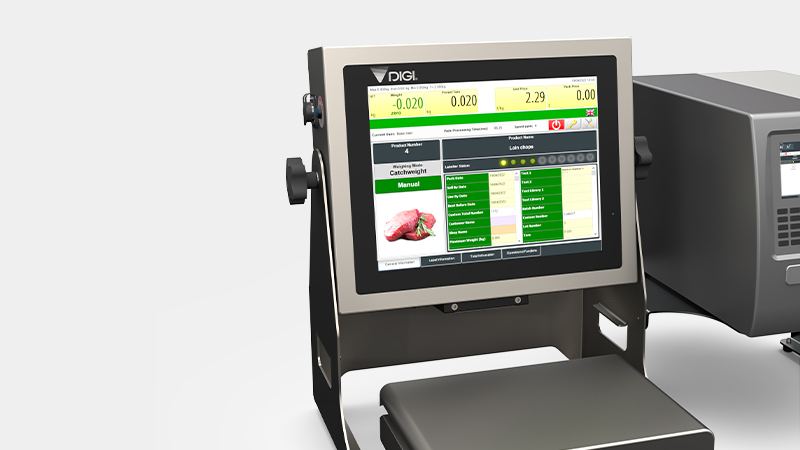

Manual weigh labeling of packs is straightforward with the DPS-800 II. With the 15" touchscreen, users can manage label design and weighing modes amongst other settings.
Quality Features
As a weigh-price-labeler, the DPS-800 II can be used in catch weight and fixed weight modes and can be employed in a range of different settings. Its networking capabilities allow it to be easily integrated into existing lines and provide back-office data collection as well as online programming and monitoring.
User-Friendly Interface
The DPS-800 II utilises DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labelers.
Especificaciones

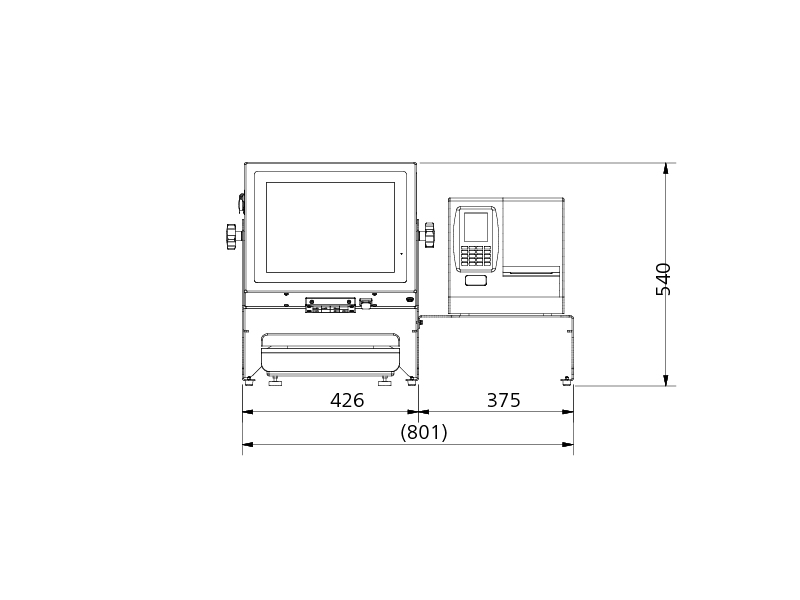

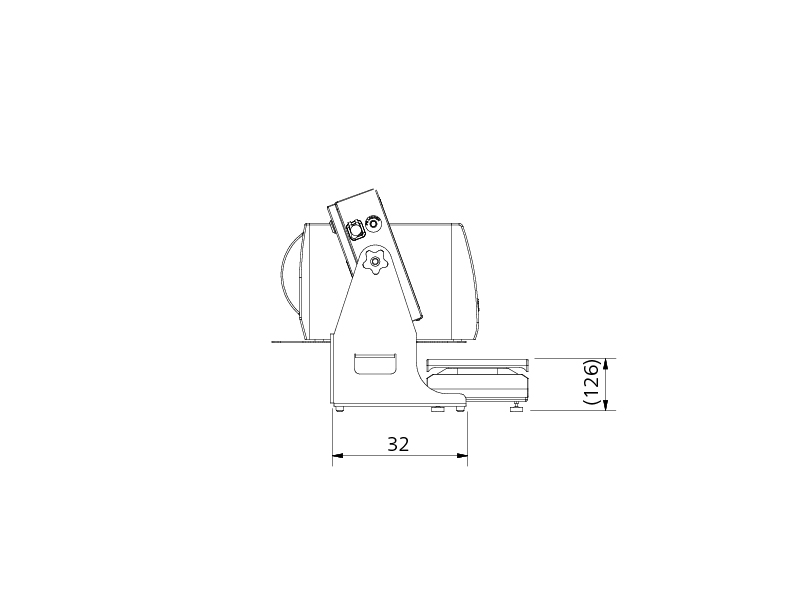

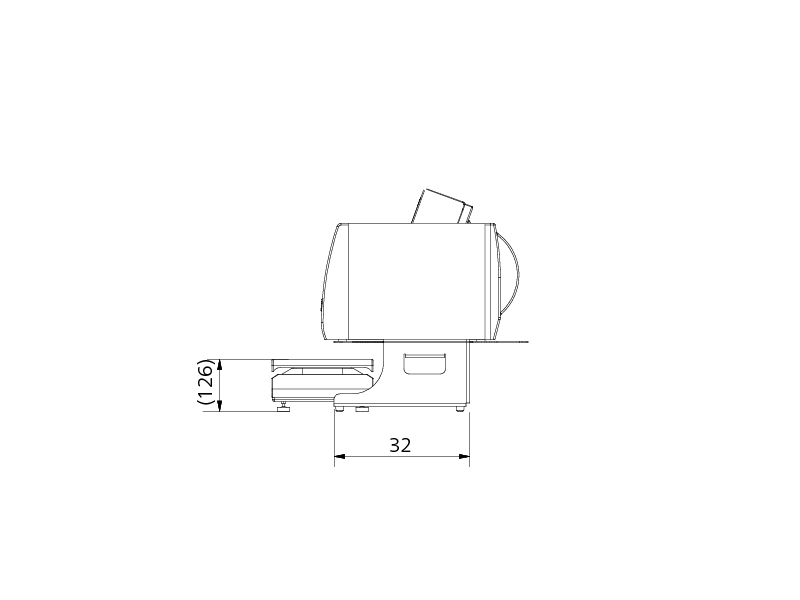

Dimensiones

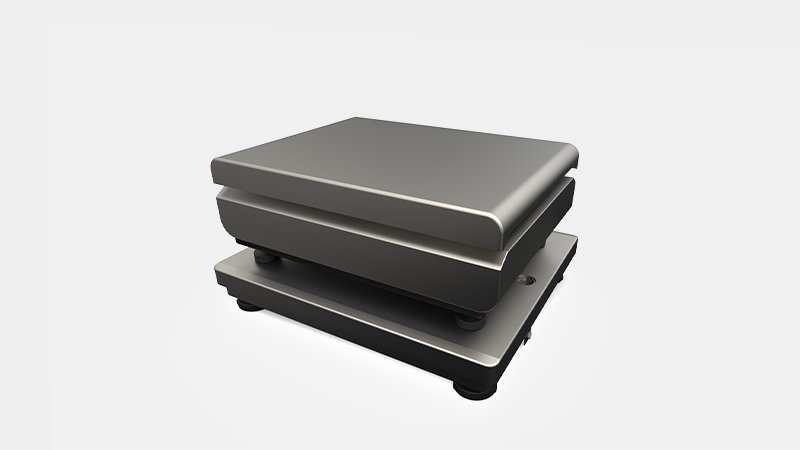

Weighing
| Capacity | Max 6 kg | Max 6kg | Max 15kg | Max 30kg | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Interval | e= 1g | e= 2g | e= 5g | e= 10g | ||||||||
| Multi Interval 15kg Platform |
Max 6kg | Max 15kg | ||||||||||
| e= 2g | e= 5g | |||||||||||
| Multi Interval 30kg Platform |
Max 15kg | Max 30kg | ||||||||||
| e= 5g | e= 10g | |||||||||||
Display
| Screen | 15" Colour LCD touchscreen |
|---|---|
| Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
| Weighing Modes | Catch Weight, Fixed Weight/Price, Manual (Non-Weighing) |
|---|---|
| Communication | Ethernet, USB, RS232, Additional Ethernet and USB optional |
| Operating System | Windows 10 OS |
| Language | Multi-lingual Unicode |
| Software | WorldView (embedded application) |
| Database | SQL |
| Connectivity | Remote programming and control |
| Connectivity to meet industry standards | |
| Customisable output data | |
| Interconnectivity to back-office data management |
General
| Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
|---|---|
| Operating Temperature | -10 to +40°C non-condensing |
Opciones

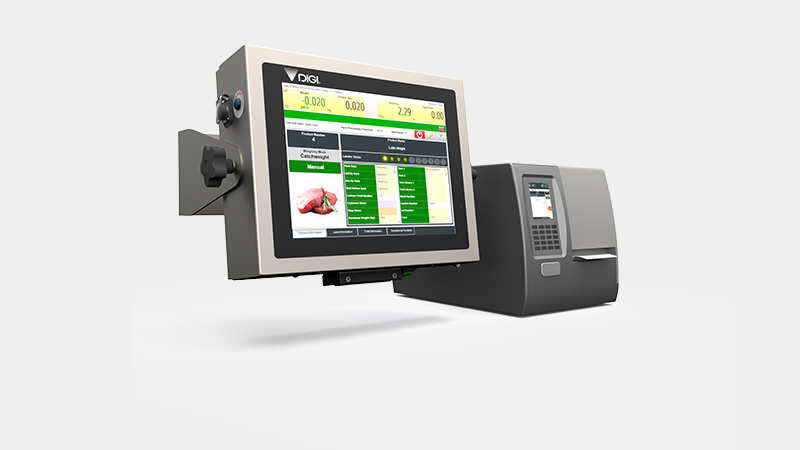

Wall Mounted with Optional Printer
