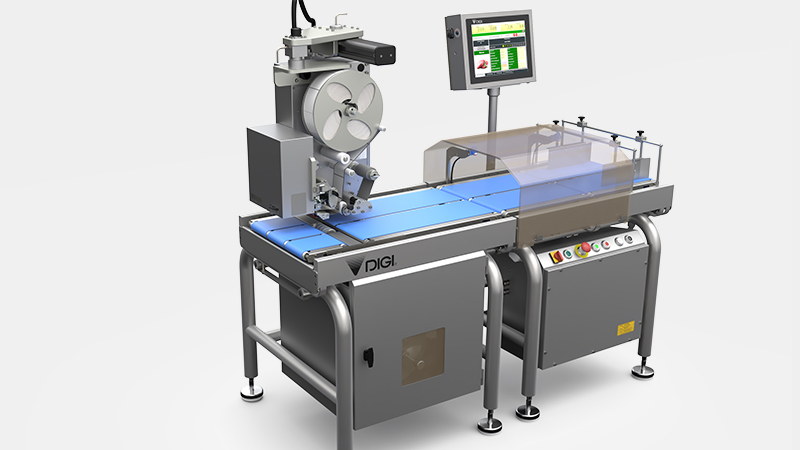

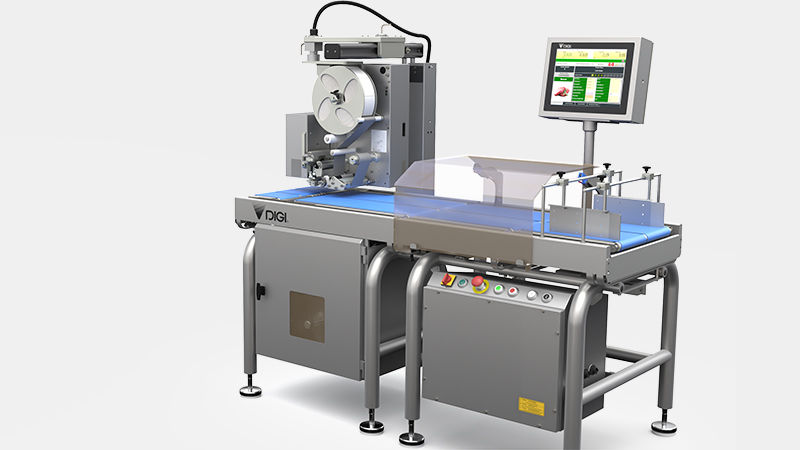

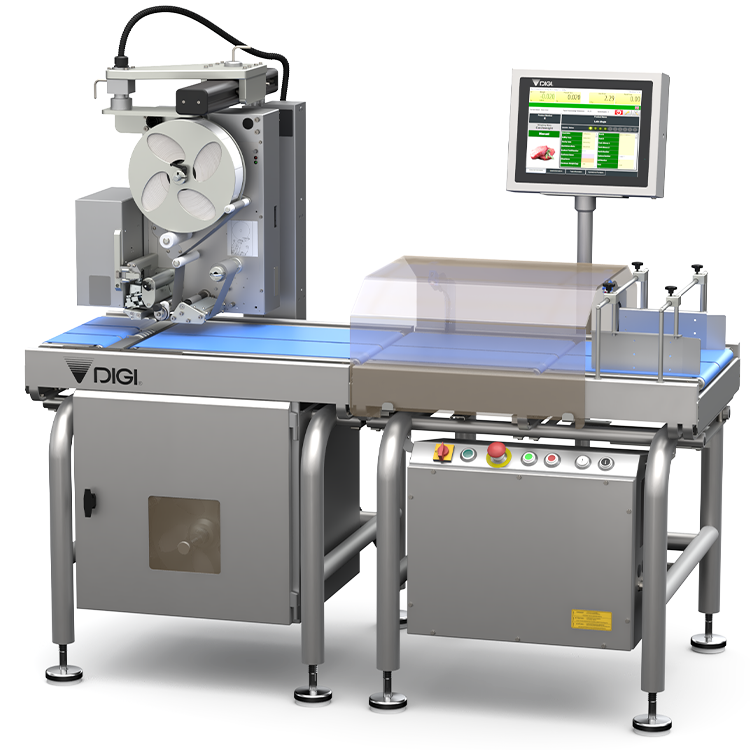

Wide Scale Dynamic Weigh Price Labeler
HI-700W II
Industria AlimentariaCaracterísticas principales
The HI-700W II Weigh Price Labeler features a wider conveyor, designed for processing wider products at a speed of up to 120ppm.

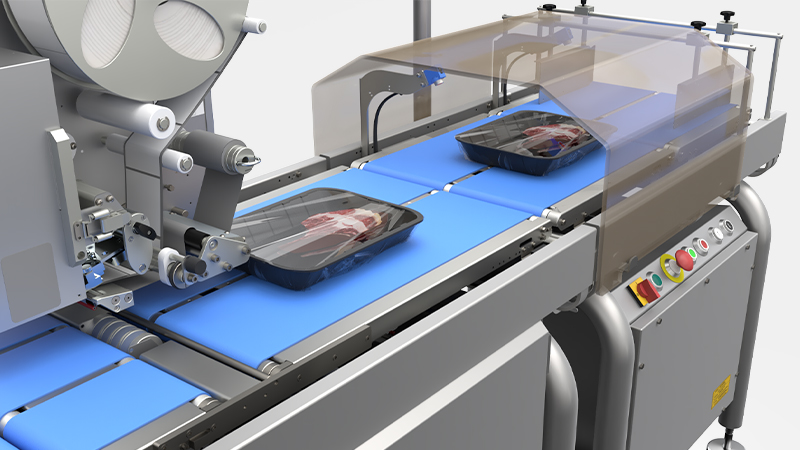

Wide Conveyor
The extra wide conveyor allows the processing of packs up to 400mm wide at a speed of up to 120ppm.

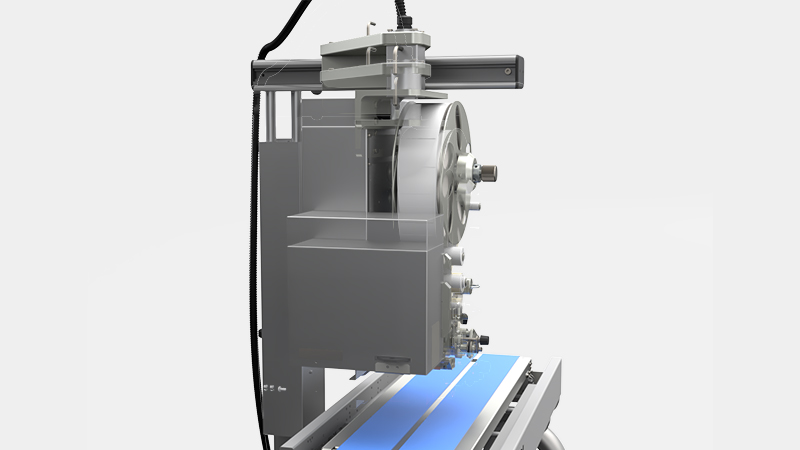

Signature Labeler
The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

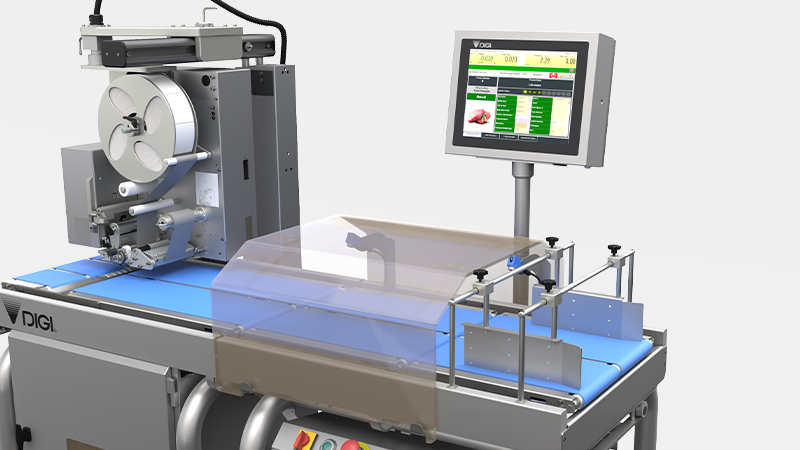

WorldView Operating Software
The HI-700W ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.

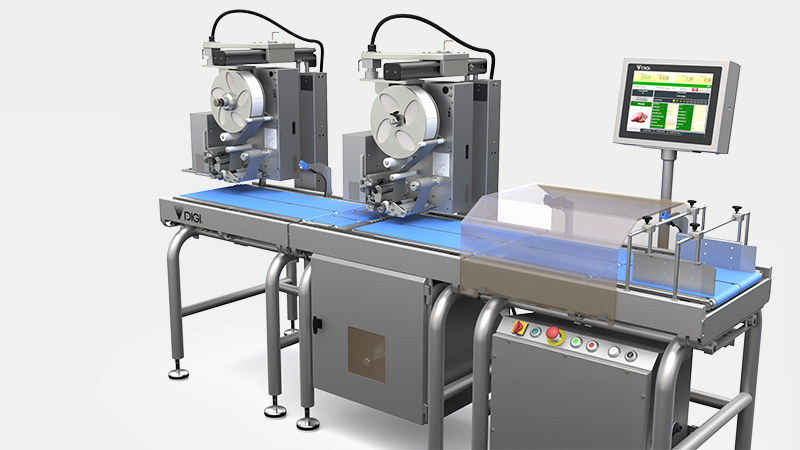

Modular Design

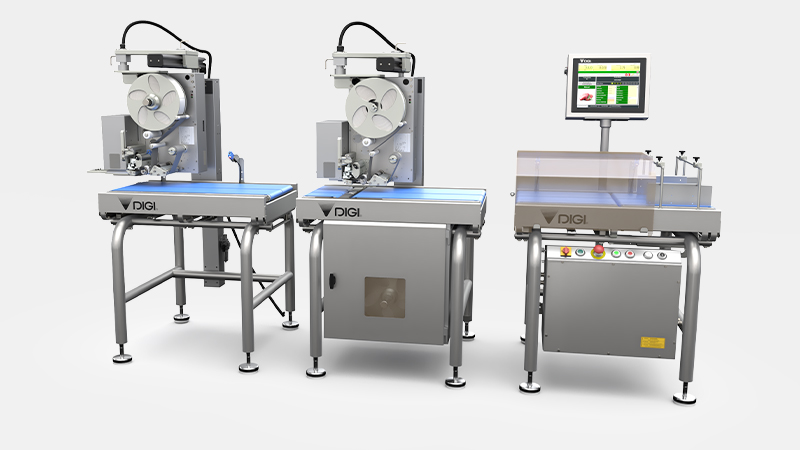

The modular design allows for the addition of extra labeling stations. Add more top and bottom labelers as required, providing a flexible solution to meet your requirements.
Especificaciones

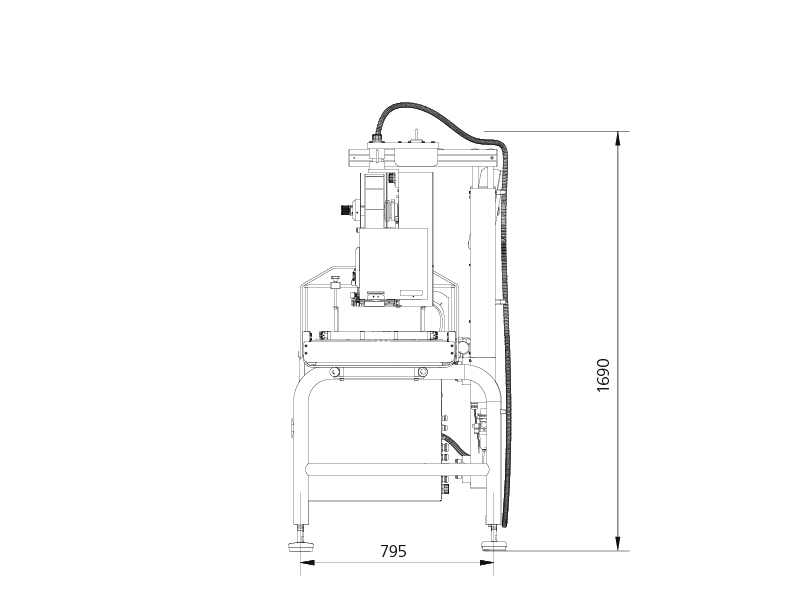

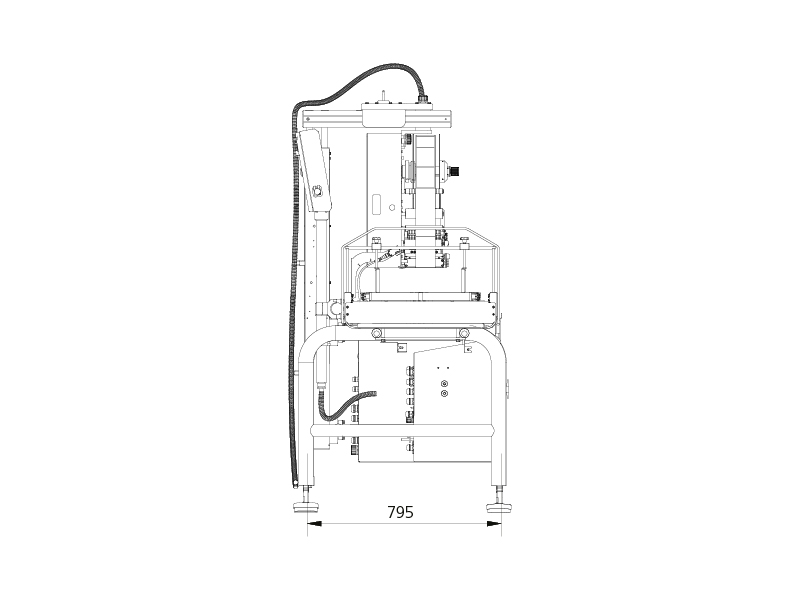

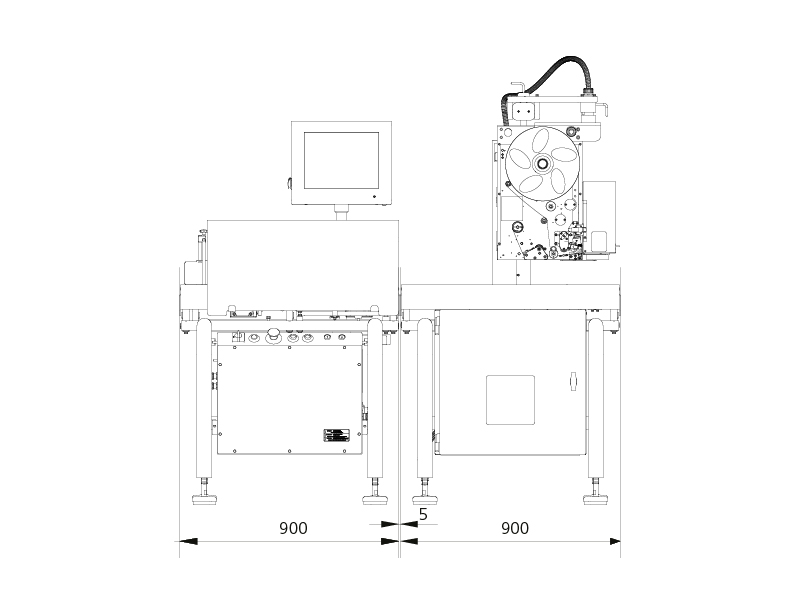

Dimensiones
Weighing
Capacity | Max 6 kg | (660mm scale) Max 12kg |
||||
---|---|---|---|---|---|---|
Single Interval | e= 1g | e= 2g | ||||
Pack Speed | up to 120 packs per minute | |||||
Pack Size | L80-300mm x W40-400mm x H180mm | L80-485mm x W40-400mm x H180mm |
Display
Screen | 15" Colour LCD touchscreen |
---|---|
Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
---|---|
Labelers | Multiple labelers/printers |
Communication | Ethernet, USB, RS232 |
Operating System | Windows 10 OS |
Language | Multi-lingual Unicode |
Software | WorldView (embedded application) |
Database | SQL |
Connectivity | Remote programming and control |
Connectivity to meet industry standards | |
Customisable output data | |
Interconnectivity to back-office data management |
General
Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
---|---|
Operating Temperature | 0 to +30°C |
Standard Features
Scale Length | 475mm or 660mm |
---|---|
Scale Cover | 'lift-off' formed polycarbonate |

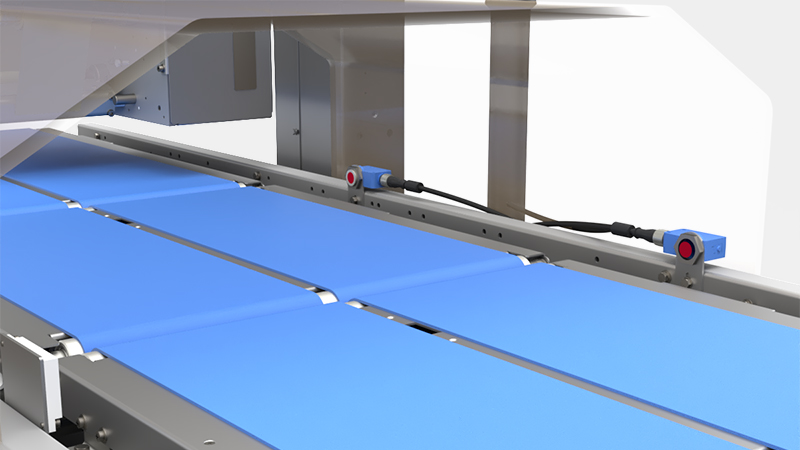

Sensors | Overhead retro reflective |
Labelers | Signature |
Pack Guides | S100 tall guides |
Conveyors | Split blue belts |
Variaciones

Top and Bottom Labeling
