Versatile and Compact Prepack Scale Solution

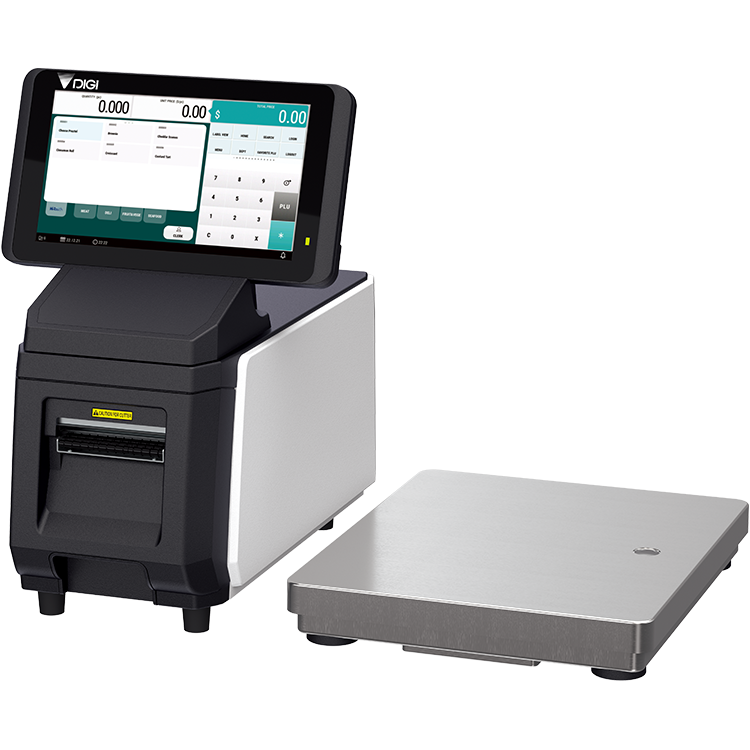

DPS-5000e Plus
RetailCaracterísticas principales
The DPS-5000e Plus PC-based Prepack Scale Printer offers a space-saving and versatile solution. Boasting high-speed performance, it streamlines prepacking operations, ensuring exceptional efficiency without compromising on workspace.
• Enhance efficiency with the Auto Linerless Dispenser Kit, streamlining workflow for continuous label printing
• Accommodate a wide range of packing needs
• Small Footprint
• Compatible With DIGI ESL & POS
Product Highlights

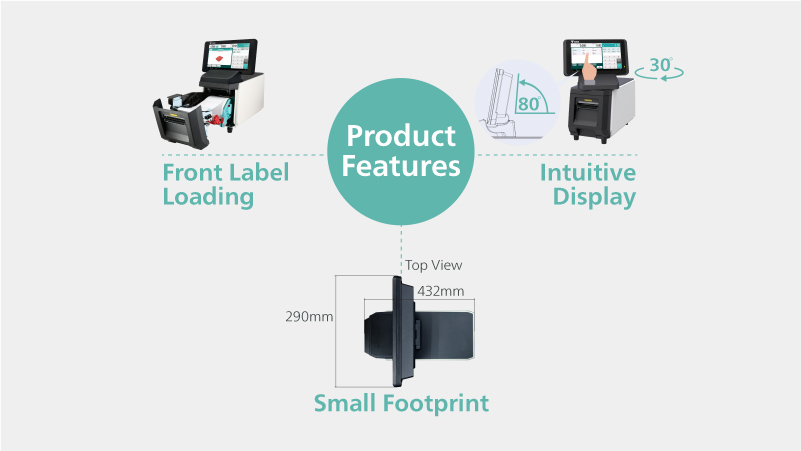

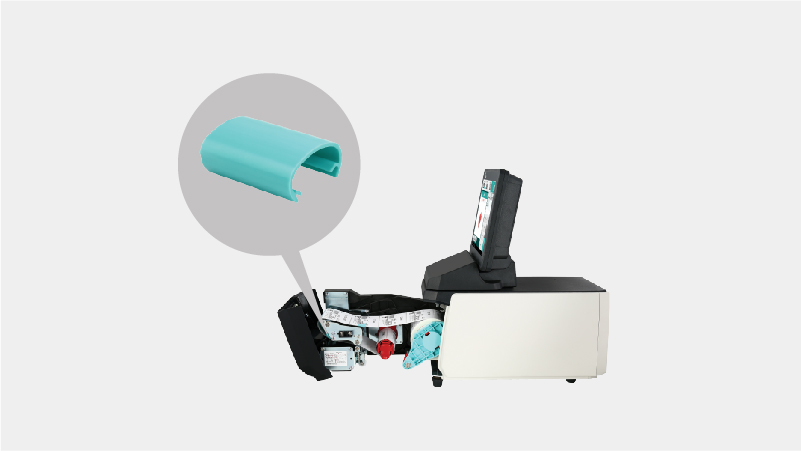

Front Label Loading
The DPS-5000e Plus features a front-loading mechanism for easy label roll replacement, ensuring uninterrupted operation and enhancing overall productivity.
Intuitive Display
The 10.1" Capacitive touch screen can be adjusted easily to offer eye-catching details at optimal viewing comfort. The ergonomic user interface comes with a customisable screen layout that further enhances the operation process.
Small Footprint
With a space-efficient design and a small footprint, the compact Prepack Scale Printer can be easily adapted to different workspaces and small operations settings.

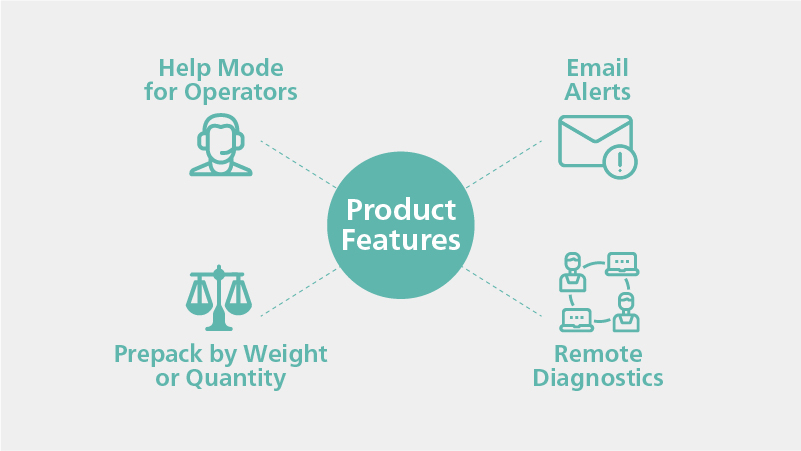

Accommodate Wide Range Of Packing Needs
This solution comes with a feature-packed application to cater to diverse industry packing needs and requirements to prepack by weight or quantity.
Additionally, the DPS-5000e Plus includes notable features such as remote diagnostics, email alerts and an operator help mode for enhanced monitoring and support management.
Fast And Sustainable Printing with Linerless
Designed to excel in both speed and performance, the DPS-5000e Plus achieves rapid printing at up to 150mm/second with linerless auto-cutter technology.
This capability enables retailers to create flexible label designs of variable lengths, promoting ecological savings in label consumption while delivering crisp and appealing readability with 300dpi resolution.

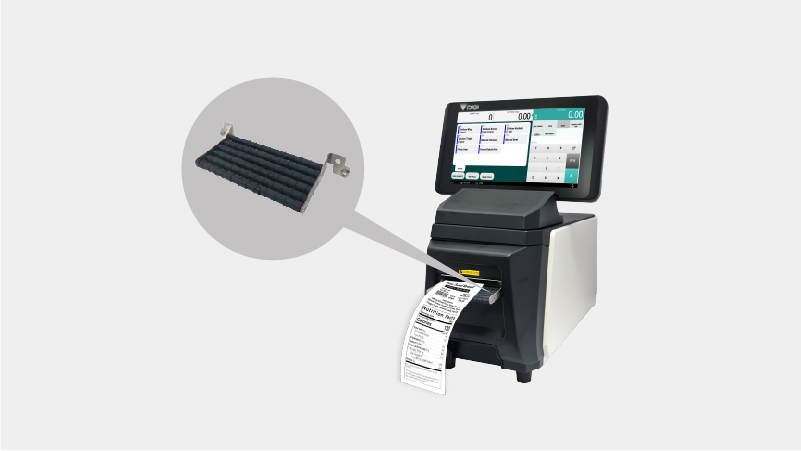

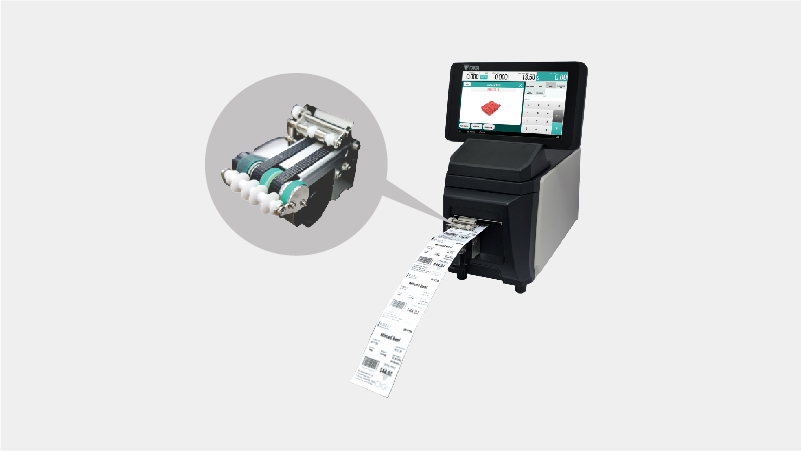

Auto Linerless Dispenser Kit
Boost productivity using the Auto Linerless Dispenser Kit to facilitate uninterrupted label printing in a high-volume packing environment.

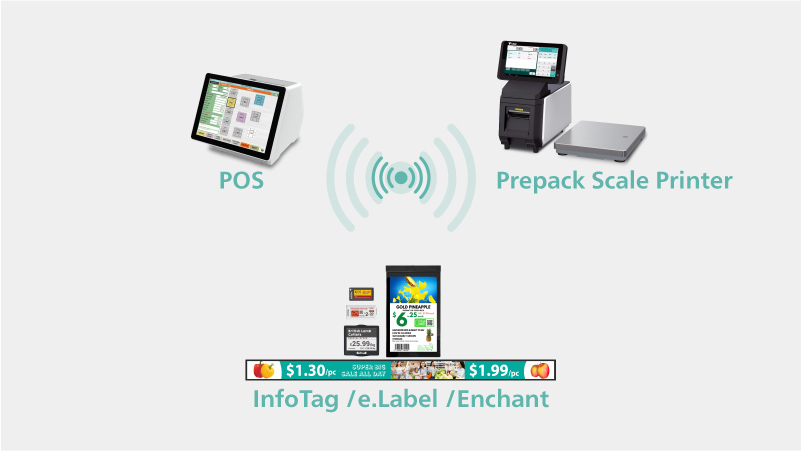

Compatible With DIGI ESL & POS
Retailers currently in operation have the opportunity to effortlessly integrate the Prepack Scale Printer with DIGI's ESL or POS solutions. This provides an affordable way for retailers already utilising DIGI's solutions to incorporate the technology into their stores seamlessly, eliminating the need for costly remodeling.
ESL Solution
Replace paper labels with our e.Label, InfoTag or Enchant while enjoying dynamic pricing that is always in sync with the scale solution.
DIGI POS Integration
DIGI's POS system and Prepack Scale Printer can be updated with new PLU information simultaneously by connecting to the same network, saving you valuable time to serve your customers better.
Especificaciones

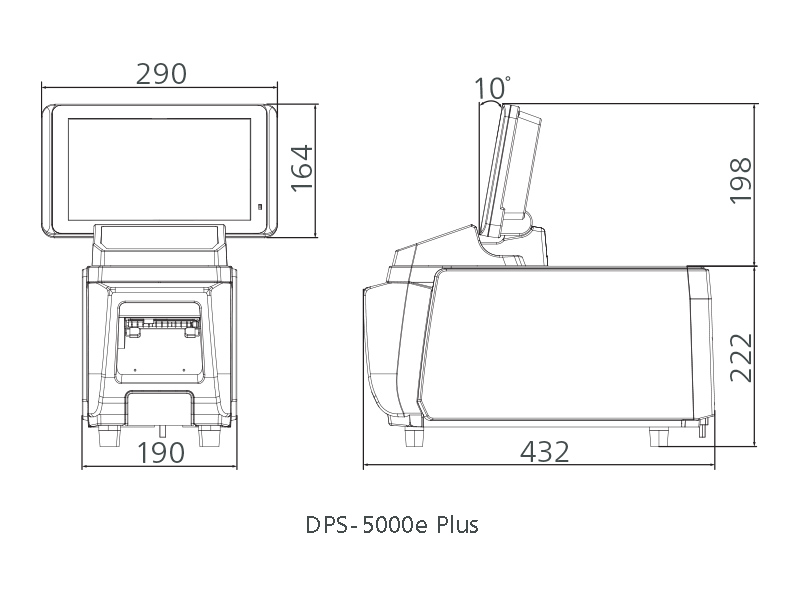

Dimensiones
Specification
| Capacity Resolution | Max 15kg/ 30lb | Max 30kg | |
|---|---|---|---|
| Single Interval | 1/ 3,000 | e= 5g/ 0.01lb | e= 10g |
| 1/ 6,000 | - | e= 5g | |
| 1/ 7,500 | e= 2g | - | |
| Capacity Resolution | Max 6/ 15kg | Max 15/ 30kg | |
| Multi Interval | 1/ 3,000 | e= 2/ 5g | e= 5/ 10g |
| Model | DPS-5000e Plus | ||||
|---|---|---|---|---|---|
| Dimension W x D x H (mm) | DPS-5000e Plus | 290 x 432 x 420 | |||

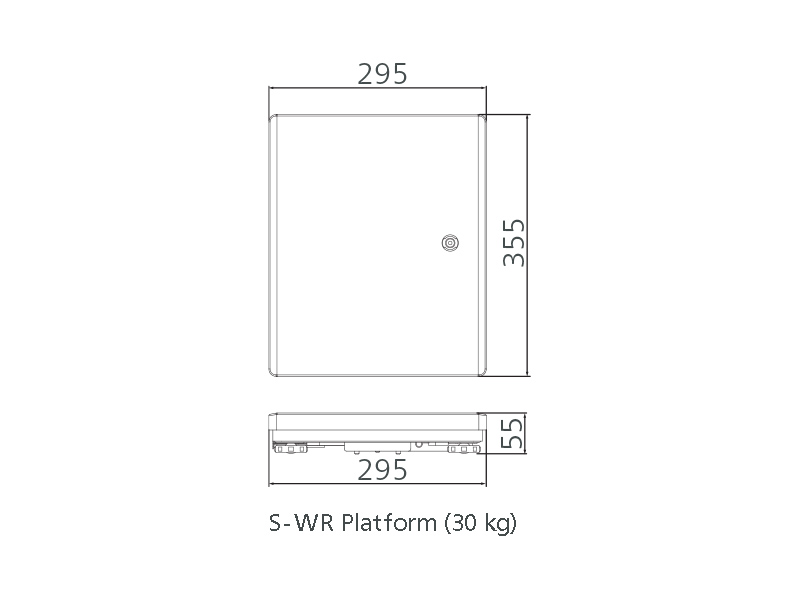

| S-WR Platform (30kg) | 295 x 355 x 55 | ||||

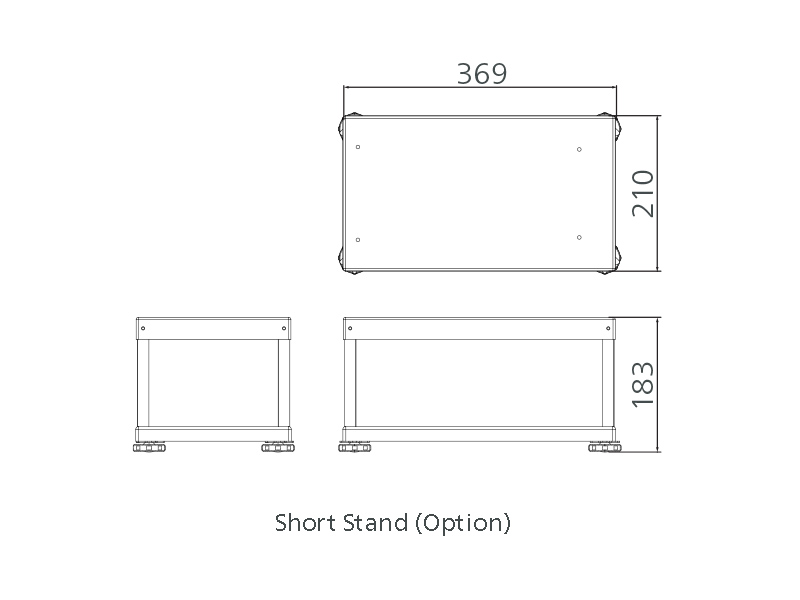

| Short Stand (Option) | 210 x 369 x 183 | ||||
| Operator Display | 10.1" TFT WSVGA with Capacitive Touch | ||||
| Display Size W x D (Pixels) | 1024 x 600 | ||||
| Display Rotatable Degree | + / - 30 degree left and right ; 80 degree up and down | ||||
| Label / Receipt | Types | Liner | Linerless with Auto-Cutter | ||
| Roll Diameter | Max 125mm | Max 125mm | |||
| Roll Width | Max 80mm | Max 80mm | |||
| Print Width | Max 80mm | Max 80mm | |||
| Printing Speed | Max 150mm / second* | Max 150mm / second* | |||
| Print Resolution | 300 dpi | 300 dpi | |||
| Barcode Type | Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix | ||||
| Power Source | AC 100V / 220V (Compliance to 80PLUS Power Saving**) | ||||
| Operating Temperature | -10℃ to +40℃ | ||||
| Humidity | 15% to 85% RH Non-Condensation | ||||
| Standard Interface | 1 x RJ45 (Ethernet 10Base-T / 100Base-T), 4 x USB 2.0, 1 x SD Socket |
||||
| Net Weight | DPS-5000e Plus | 12 kg | |||
| S-WR Platform | 4.5 kg | ||||
| Short Stand (Option) | 3.4 kg | ||||
** 100-120Vac Gold (North America, Canada and Japan)
210-240Vac Silver (European, UK and most of Asia)
Opciones
Auto Linerless Dispenser Kit
Internal Rewinder Kit
Long Linerless Label Holder
