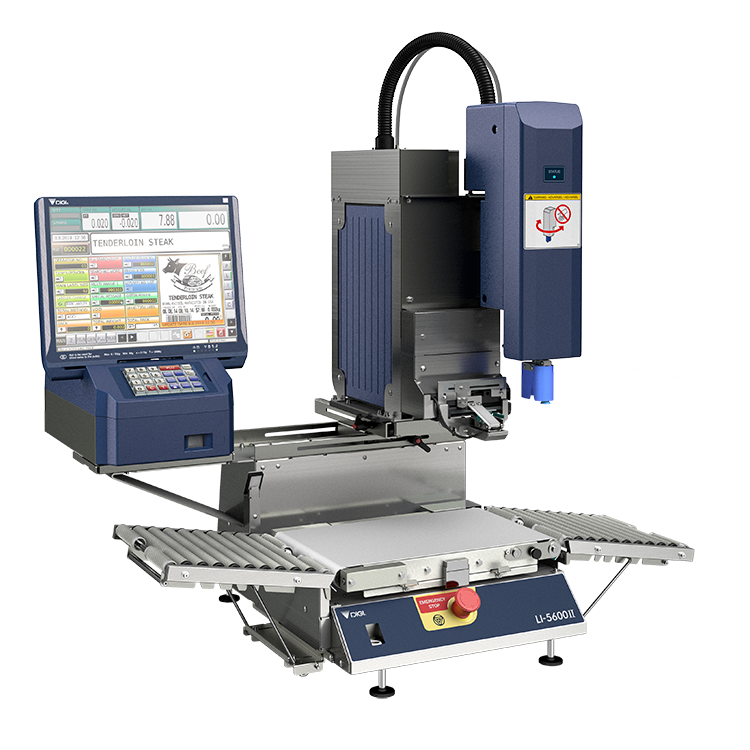

li5600-2_WP02_01

A convenient and complete solution for a wide range of in-store applications

LI-5600II

Retail

Características principales

The LI-5600II maximizes the efficiency of in-store pre-packaging operation and has a compact, space-saving design.  Its compact design provides opportunities in various applications that require a simple, unique solution for automatic and semi-automatic labeling. The LI-5600II is also highly compatible with existing equipment such as MAP packaging machines in the pre-packaging area.

Automatic weigh-label-system, a convenient and complete solution for a wide range of in-store applications

The LI-5600II, automatic weigh-label system, maximizes efficiency in the pre-packing operation and has a compact and space saving design. Easy to be combined into existing equipment in the pre-packing area.

li5600-2_WP04_01

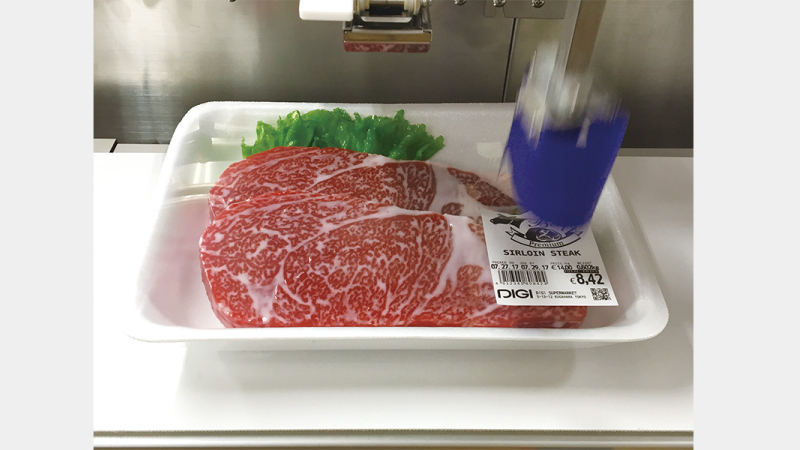

Fast, accurate and flexible labeling

The newly designed 360° rotating labeler arm offers automatic label placement on packages even with long-cut linerless labels.

li5600-2_WP04_02

Catch the Shoppers' Eyes While Generating Savings on Labels

Linerless Label (LL) allows automatic adjustment of the labels to fit various lengths of texts and graphics. Custom labels are printed on a continuous roll of LL and are cut according to the sizes needed. With the new 300dpi label printers, high-resolution prints can be produced while maintaining high readability even for very small characters (e.g. nutrition and allergen information).

li5600-2_WP04_03

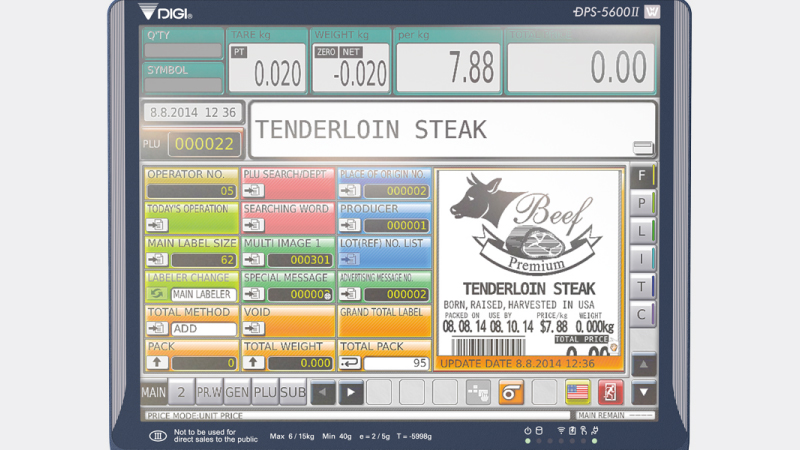

User-friendly operation

Wide color touch screen displays various functions such as PLU search to simplify operation, and provides convenient print viewing and free key layouts to increase speed and efficiency.

li5600-2

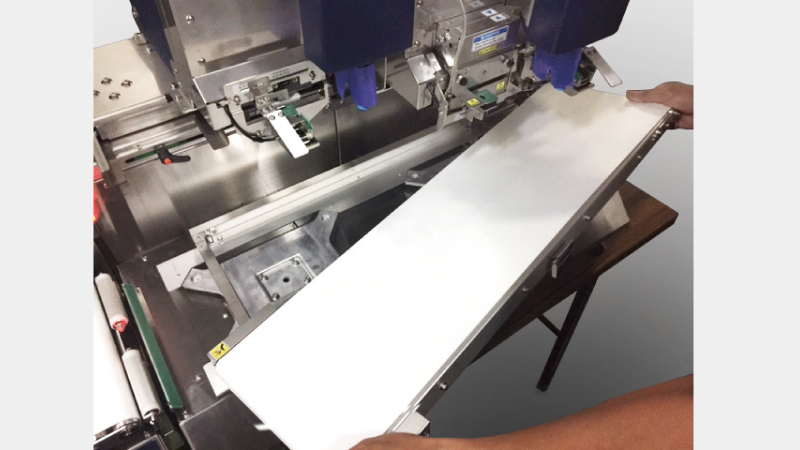

Detachable conveyor for easy cleaning

To help maintain hygienic work conditions, clean the machine interior by simply detaching the conveyor.  No tool is required!

Especificaciones

Dimensiones

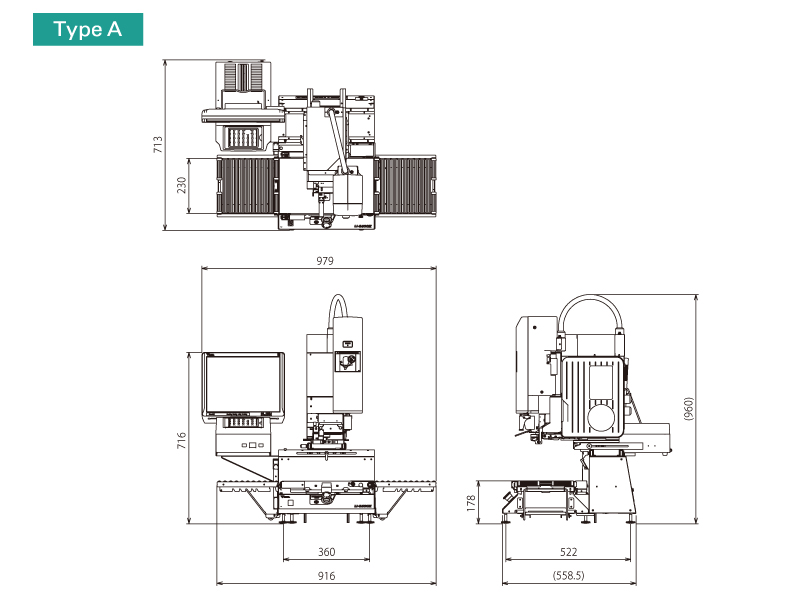

  • li5600-2_WP05_01

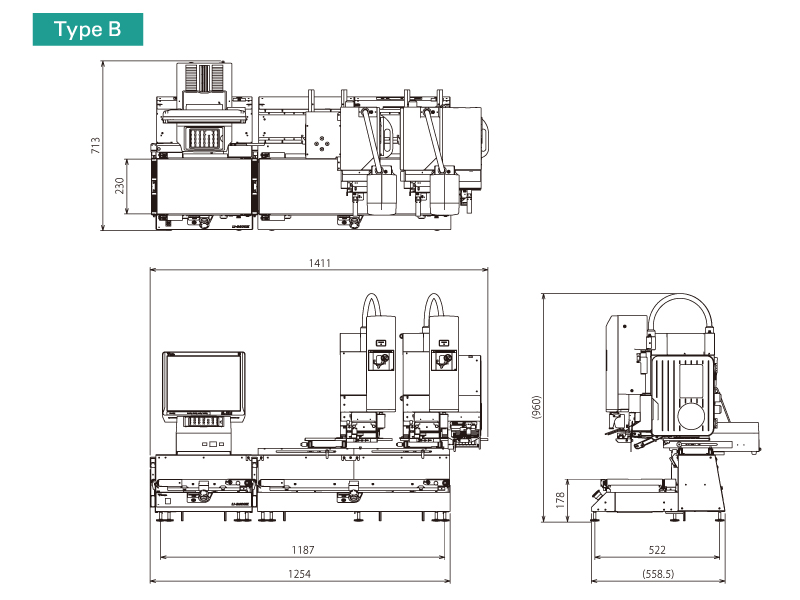

  • li5600-2_WP05_02

Conveyor

Model Type A Type B
Speed Max. 26 packages/min. Max. 35 packages/min.
Package Size Width: 50-390 mm/1.9-15.4 inches
Height: 1-150 mm/0.04-5.9 inches
Depth: 50-230 mm/1.9-9.1 inches
Direction Left → Right or Right → Left


Weighing

* Unit varies by country
Interval type Multi-interval Single-interval
Capacity Max 3/6 kg Max 6/15 kg Max 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Conveyor capacity Max 6 kg Max 15 kg 30 lb


Thermal printer

* Maximum printing length is 300 mm/11.8 inches
Model Type A and B
Labeling application Automatic application Manual application
Label type Die-cut Label Linerless Label Die-cut Label Linerless Label
Label size Width: 40-80 mm/
1.57-3.15 inches
Length: 28-105 mm/
1.10-4.13 inches
Width: 44-78 mm/
1.73-3.07 inches
Length: 28-105 mm/
1.10-4.13 inches
Width: 40-80 mm/
1.57-3.15 inches
Length: 20-150 mm/
0.79-5.91 inches
Width: 44-78 mm/
1.73-3.07 inches
Length: 20-500 mm/
0.79-19.69 inches*
* Maximum printing length is 300 mm/11.8 inches
Labeling angle 0 or 90 or 180 or 270 degree
Font True type font


Operation console

Display panel TFT LCD color (15 inches) touch panel
Memory for programmable files 32 GB


General

Model Type A Type B
Power source and power consumption 230 V;1 φ;50/60 Hz;0.7 A;160 W Scale Conv: 230 V;1 φ;50/60 Hz;0.8 A;160 W
Labelling Conv: 230 V;1 φ;50/60 Hz;0.9A;165 W
Net weight Approx. 59 kg Approx. 112 kg (TWIN + POP labeler type)

Variaciones

li5600-2WP07_01

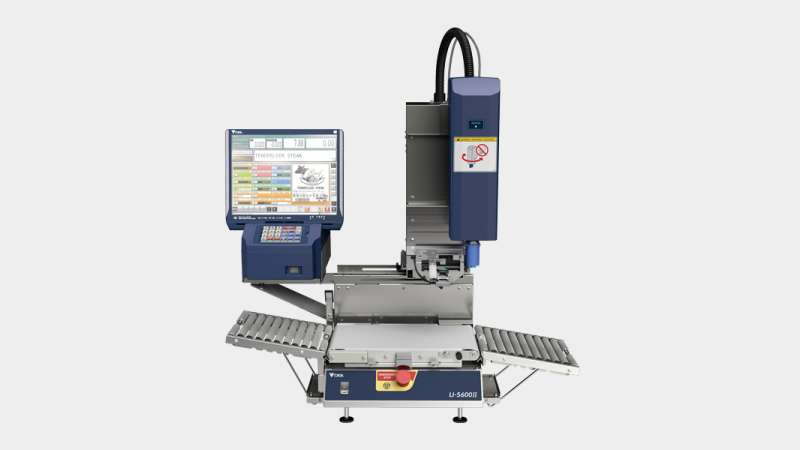

Single labeler type

LI-5600II type A Single

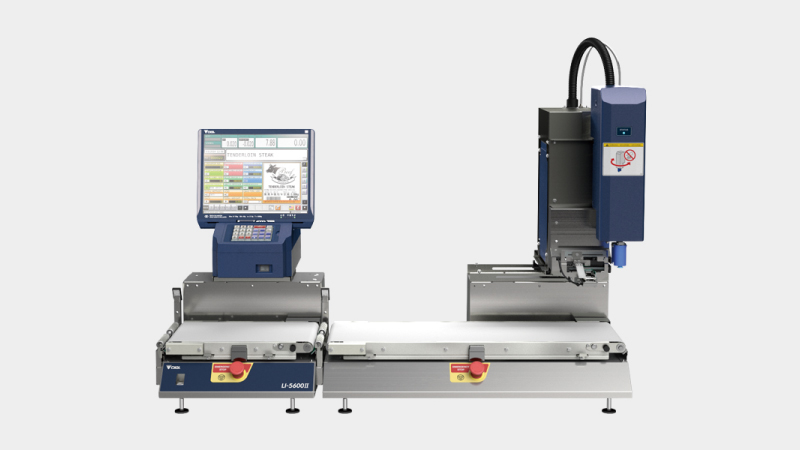

li5600-2WP07_02

Single labeler type

LI-5600II type B Single
li5600-2WP07_05

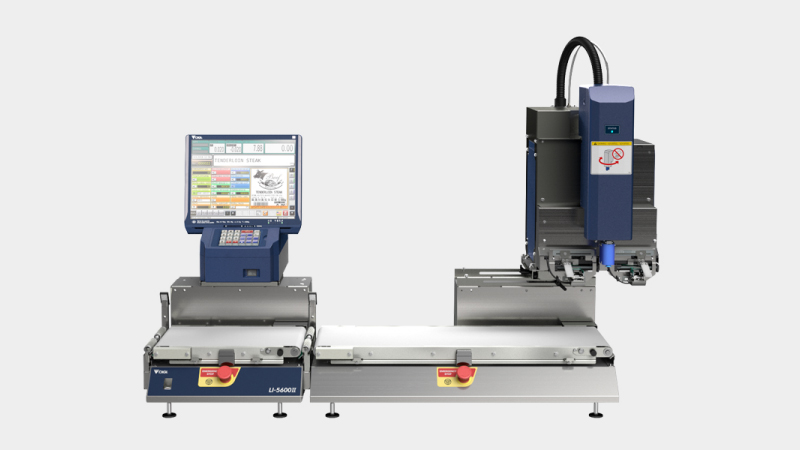

Twin labeler type

LI-5600II type B Twin

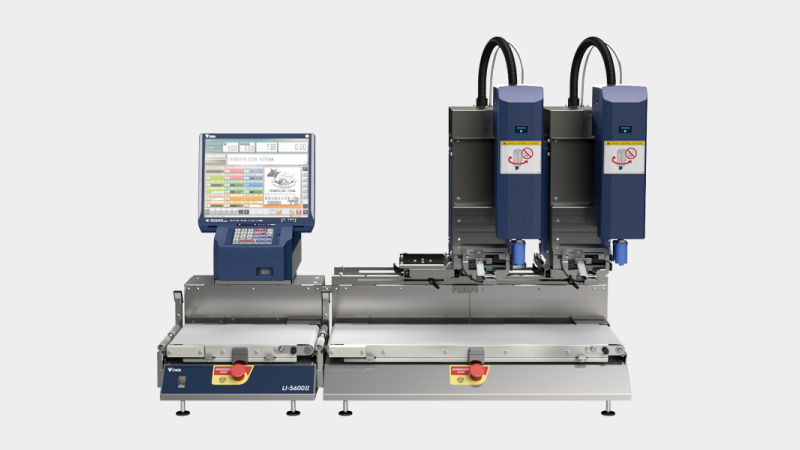

li5600-2WP07_03

Single labeler with POP labeler

LI-5600II type B Single with POP

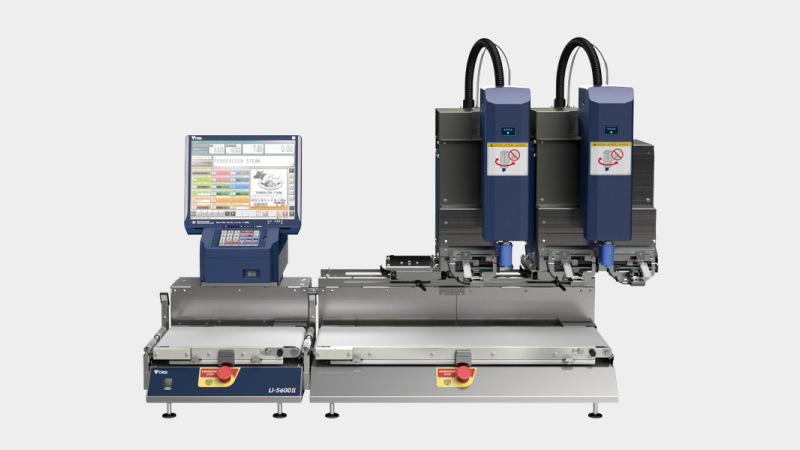

li5600-2WP07_04

Twin labeler with POP labeler

LI-5600II type B Twin with POP

Opciones

li5600-2_WP09_01

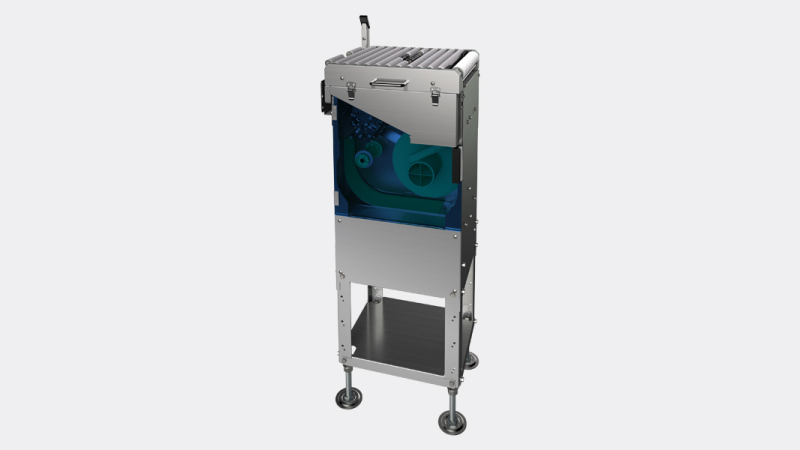

Auto BP LL Labeler

Auto BP LL Labeler can be installed to both LI-5600ll Type-A and Type-B.

Estudio de Casos

Case study

Globus Butcher Shop investing in more comfortable and efficient processes with the latest LI-5600 with top and bottom LL printer

Globus Butcher Shop

Mr. Holland, master butcher at Globus Neutraubling had already made good experiences with DIGI packaging machines and is convinced of the advantages of our additional products, such as the Linerless technology.
