The latest upgrade tackles hard-to-wrap items with ease

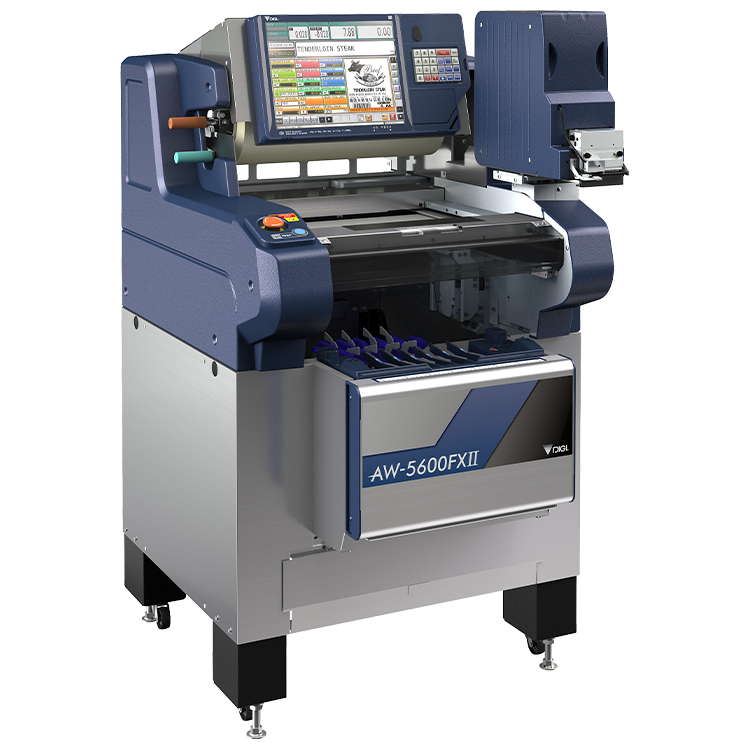

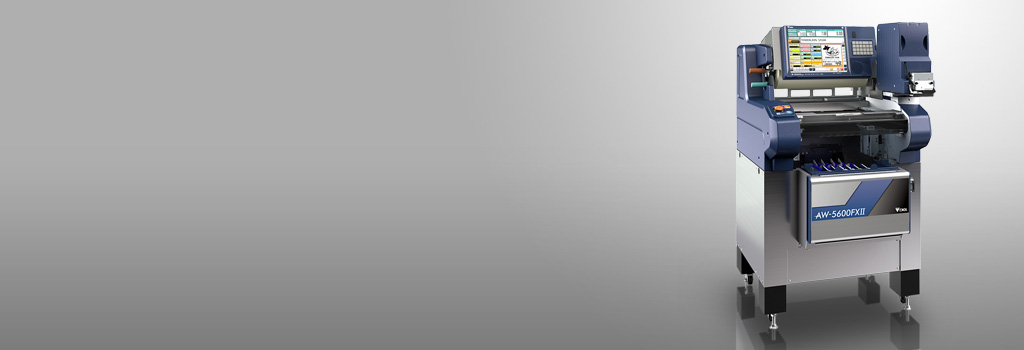

AW-5600FXII

Retail

Sistemas de pesado-empaquetado-etiquetado

Características principales

Flexibility is supreme in the latest generation of DIGI’s integrated semi-automatic weigh-wrap-labelers. Able to work with fragile trays, irregular shapes, and even items without trays, the AW-5600FXⅡ packs even more efficiency and usability into its small footprint. DIGI’s popular pick-pack system is complemented by new hardware enhancements such as a larger impulse heat sealer and double the air supply. The result is a durable, attractive package.

Key Offerings:

Flexible wrapping capability
An installation footprint of just 31.5” x 36.8” (800mm x 935mm)
User friendly extra-large 15" full color touch screen that reduces operator error
Maximum processing speed of 17 packs/minute
Linerless label use enables greater label customizability while reducing label waste

Descargue el folleto aquí

Flexible, versatile and reliable partner

AW-5600FXII LL, integrated semi-automatic weigh-wrap-label system enables flexible, faster wrapping and linerless labeling. Makes the superior wrapping finish even better.

Handles a Wide Range of Wrapping Needs

FX stands for flexible, and the AW-5600FXII is superb at wrapping a challenging array of products. Fragile trays, irregularly-shaped trays, and even items without trays like whole fruits and cheeses are quickly and beautifully wrapped and labeled. The AW-5600FXII will drastically reduce the need for a cumbersome hand wrapping operation.

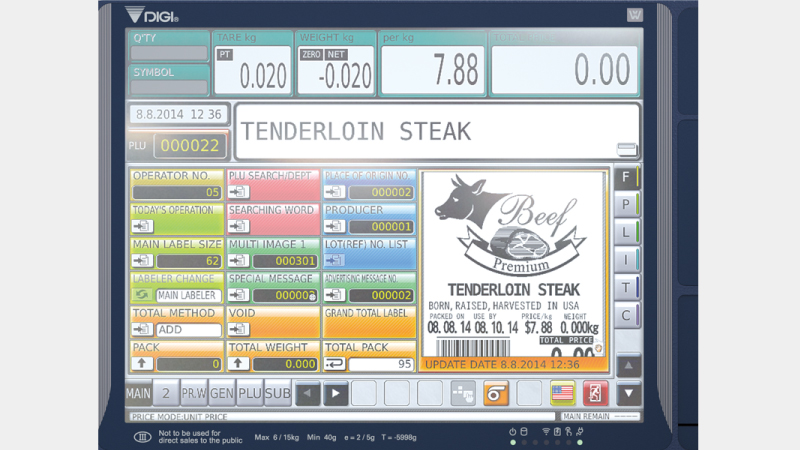

Ease of Use for Operators

The AW-5600FXII’s user interface supports users as they respond quickly to store needs. With fewer screens to tap through, labels are quick and simple to create and print, even for first-time users of weigh-wrap-labelers. Operators can preview the label right on the 15” full-color touch screen and print only what is needed. Extremely large memory easily supports an increasing need for print items.

Easy Clean-Up, Every Time

DIGI knows that for food retailers, cleanliness is crucial. That’s why the AW-5600FXII is designed to be incredibly easy to clean. The parts that come into direct contact with food can be removed in seconds and washed in water. Also, the entire unit sits well clear of the floor to accommodate mopping and sweeping.

Catch the Shopper’s Eye While Saving on Labels

The AW-5600FXII automatically adjusts the label size to fit various amounts of text and graphics. Custom labels are printed on a continuous roll of linerless labels and cut according to the size needed. The new, higher resolution of 300 dpi makes the fine print for nutrition and allergen information crisp and easy to read. There’s even a twin-labeler option for POP labelling (see “Variations” tab).

Especificaciones

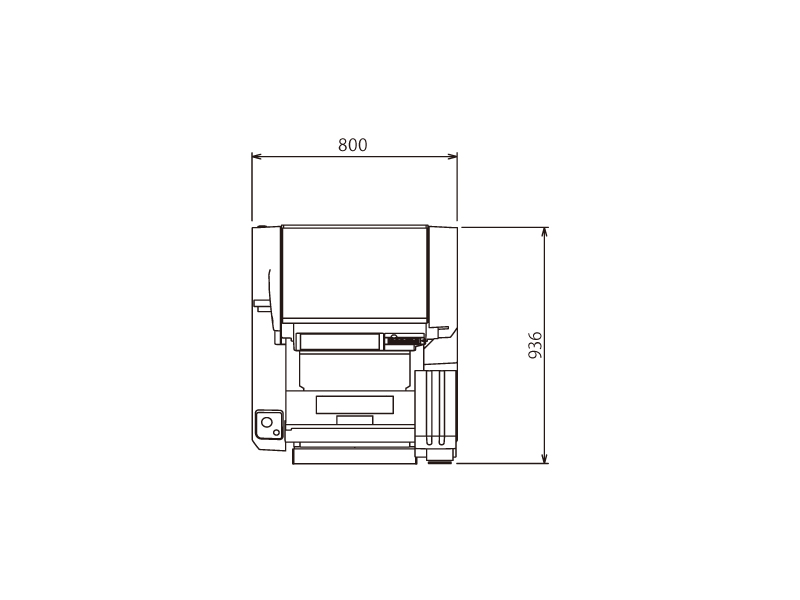

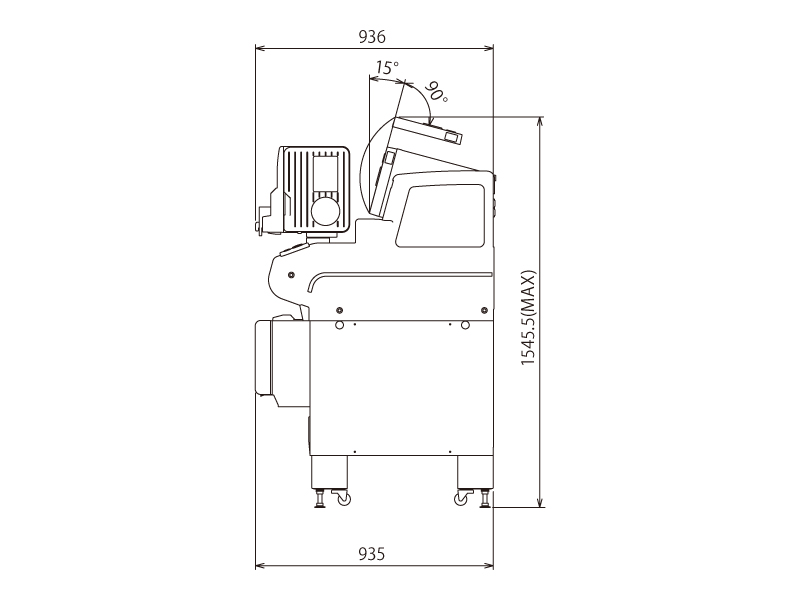

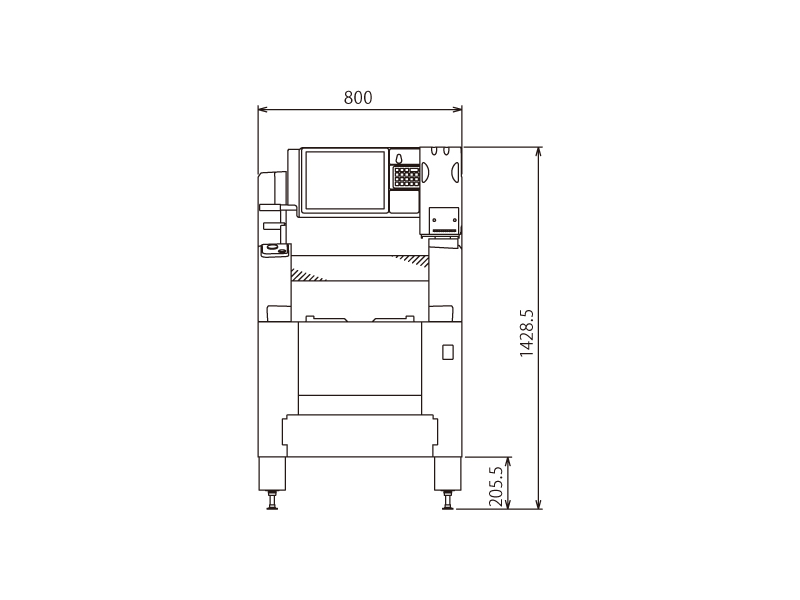

Dimensiones

Wrapping

Wrapping Speed	Max. 17 packages/min.
Package Size	Width: 80 to 350 mm/ 3.1-13.8 inches Height: 10 to 130 mm/ 0.4-5.1 inches Depth: 80 to 230 mm/ 3.1-9.0 inches * The combination of maximum size of each dimensions cannot be used. Maximum size of the package that can be wrapped also depends on the film to use.
Film width	350 to 500 mm

Weighing

Interval type	Multi interval		Single inerval
Capacity	Max. 3/6 kg	Max. 6/15 kg	Max. 30 lb
Scale Inerval	e=1/2 g	e=2/5 g	e=0.01 lb
Weighing range	20 g-6 kg	40 g-15 kg	0.20-30 lb
Max. wrapping capacity	5 kg	5 kg	11 lb

Labeling

Label Type	Die-cut label	Linerless label
Label width	25-80 mm/ 0.98-3.1 inches	44-59 mm/ 1.73-2.3 inches
Label length	20-150 mm/0.79-5.9 inches	20-500 mm/0.79-19.7 inches * Maximum printing length is 300 mm/ 11.8 inches

Operation console

Display panel	TFT LCD color (15 inches) touch panel
Operation keys	Mechanical keys and touch screen
Memory for programmable files	18 GB

General

Power source and power consumption	208-240 V; 1 φ/3 φ; 60 Hz; 1.8 kVA,1.8 kW 220-240 V; 1 φ; 50/60 Hz; 1.8 kVA,1.8 kW
Net weight	Approx. 250 kg

Variaciones

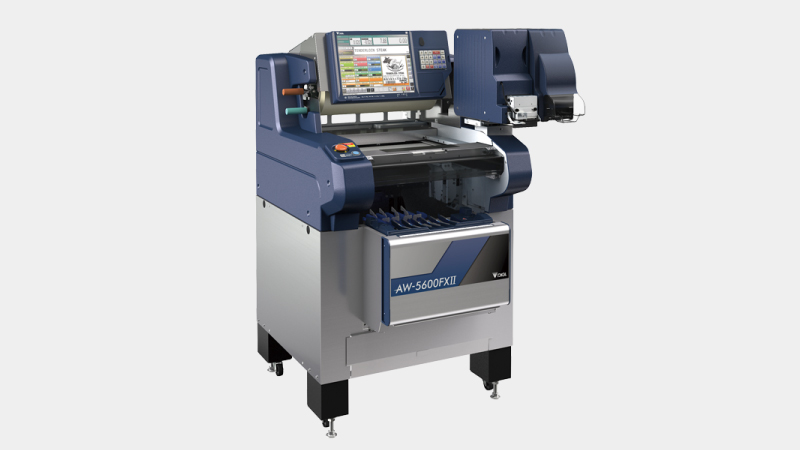

Twin Labeler Type

For situations where just one label won’t do, the AW-5600FXII Twin labeler type provides customers with two label rolls in the configuration of their choice: two regular, two linerless, or one of each type. Having an extra roll enables customers to respond quickly to in-store promotion needs, product discounts, and more.
