Nota: Este producto ya no se vende. Consulte con su contacto local el mantenimiento de este modelo o de los modelos de sustitución.

Sustainable PET plastic bottle recycling in a compact form factor

DRV-100

Retail

Máquinas receptoras de Envases

Características principales

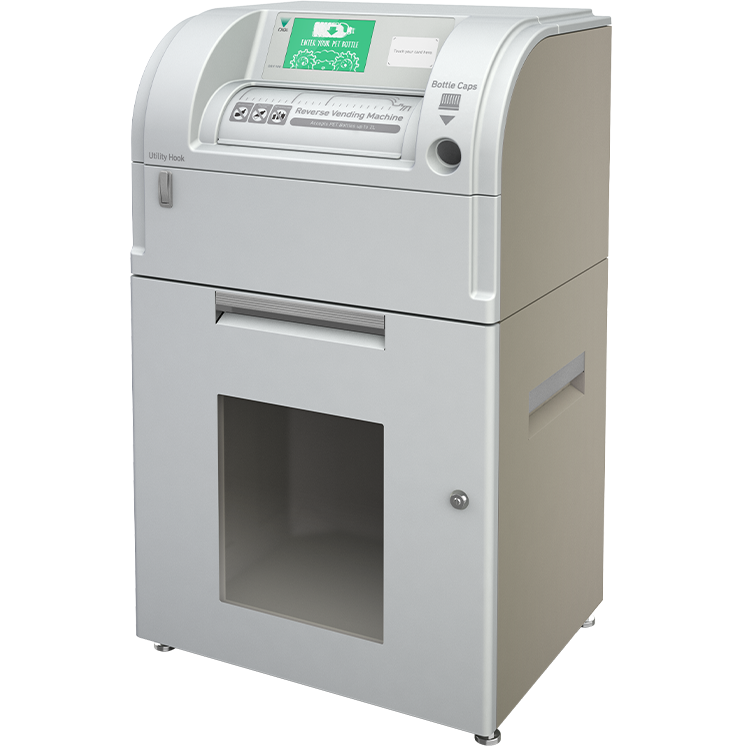

DRV-100 is a reverse vending machine that significantly reduces the volume of PET plastic drink bottles. Thanks to a newly developed compression mechanism, DRV-100 realizes both space savings and high-quality resource recovery. And, by connecting a loyalty card point server to the unit, customers can collect points as they recycle, so you can attract more customers and increase repeaters. In addition to the standard DRV-100 model, the DRV-100T offers higher storage capacity, which decreases the number times the unit needs to be emptied.

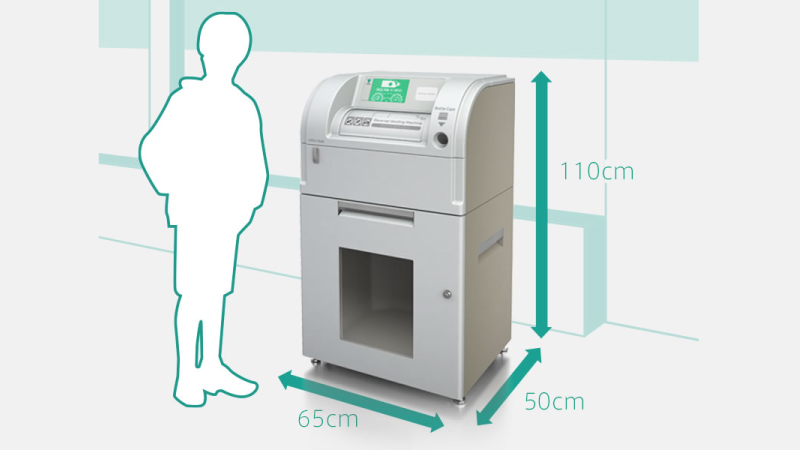

A form factor focused on space savings

With its space-saving design, DVR-100 can fit into small shops and offices, where reverse vending machines typically could not be installed. So, now more recycling stations can be created without having to worry about the location. Additionally, the bottle inlet is located lower down on the unit, so even children can have a chance to enjoy the experience of recycling their PET bottles.

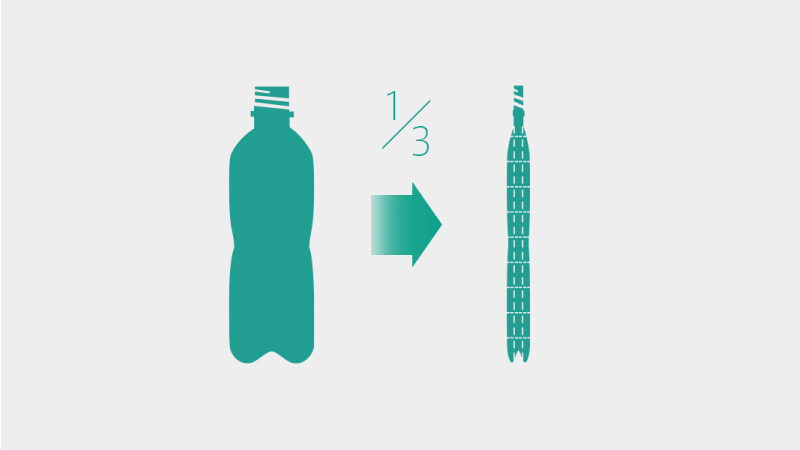

Increases recycle material value through a newly developed compression scheme

A newly developed compression scheme (pre-cutting method) ensures the compressed bottle stays flat after processing. Also, this new method does not rupture the comparatively heavier bottle spout portion, so the value of the recycling material is significantly increased. The unit also has an inlet for bottle caps, which are made of a non-PET plastic, to promote separation of the two materials for recycling.

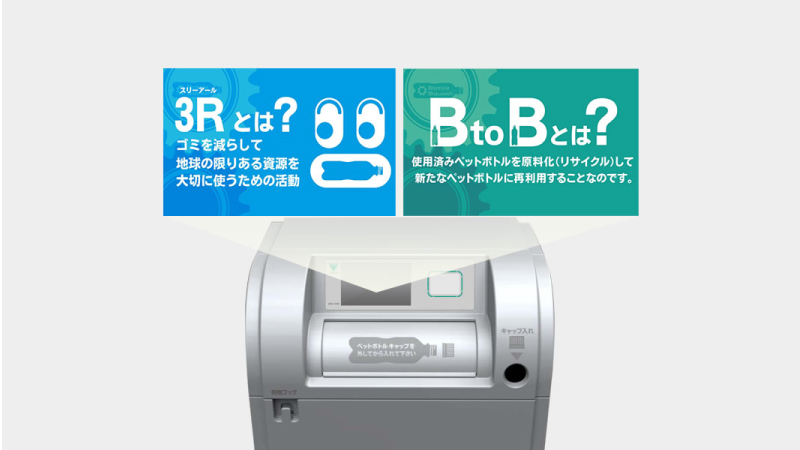

Promoting recycling awareness (eco-education)

DRV-100 is equipped with a display screen that can show 3R and Bottle-to-Bottle recycling educational content while the bottles are being processed. This offers an excellent opportunity for the machine owner to show that they are actively contributing to the protection of the environment.
Visit the link below to view a concept video for the DRV-100:

IoT support system

DRV-100 offers a wireless router-based IoT support system that lets you comprehensively manage your daily collection numbers. The IoT system supports stable operation by monitoring machine status 24/7/365 and instantly notifying you by email when errors occur or collection bins are full.

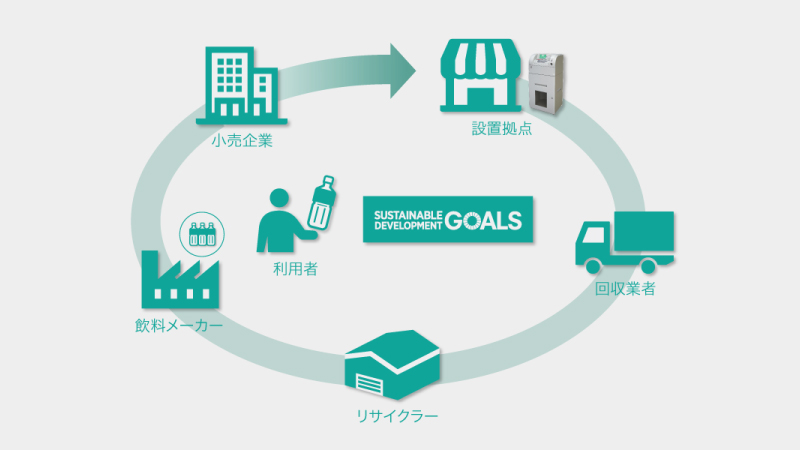

Creating a sustainable recycling system with the customer

Installing a PET bottle reverse vending machine in your store not only increases work efficiency, it provides an entry point to Bottle to Bottle*1 recycling. DIGI is contributing to the realization of an SDGs*2 oriented PET bottle recycling scheme that has merit for each and every stakeholder.

*１：A recirculating recycling system where used food-use PET bottles are recycled into new food-use PET bottles.
*２：The 2030 agenda for sustainable development adopted by the United Nations.

Especificaciones

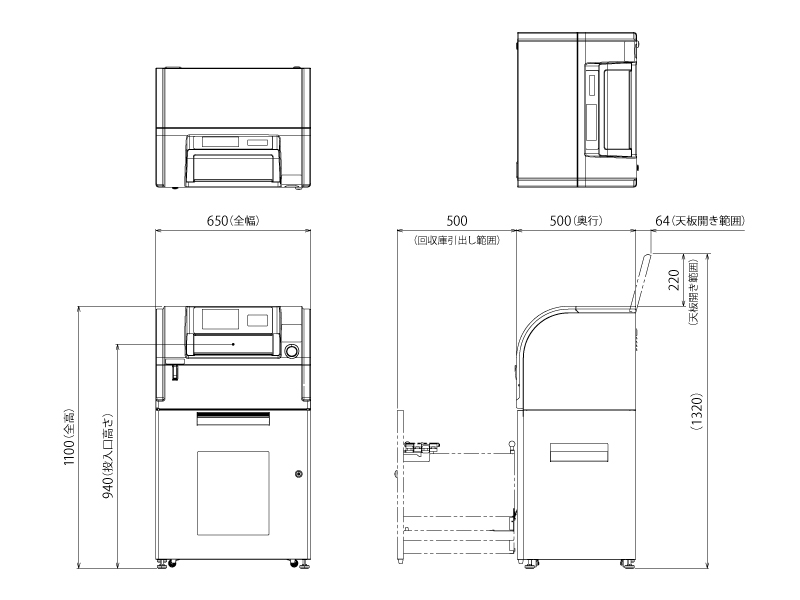

Dimensiones

Basic specifications

	DRV-100	DRV-100T
External Dimensions (W × D × H)	650mm × 500mm × 1,100mm	650mm × 500mm x1,330mm
Net Weight	Approx 149 kg	Approx 172 kg
Storage Box Size (W × D × H)	530mm x 450mm × 440mm (Max)	525mm x 445mm × 649mm (Max)
Collection Bag Capacity (W × D × H) *Estimated Size	For bottles:100ℓ For caps 180mm × 120mm × 400mm	For bottles :120ℓ For caps: 180mm × 120mm × 400mm
Power Supply Voltage/ Power Consumption	Single phase 100V / 1.05kW
Power Supply Connector	Flat blade two-pole plug with grounding prong 125V 15A rating
Operating Environment (Temperature/ Humidity)	0 to 40℃　90%RH (Max) *with no condensation
Processing Speed	About 10/ min
Compatible Bottle Sizes	φ45 × 116mm – φ120 × 340mm
Operating Noise Level	68.7dB (Max)
Bottle Material Recognition	Combination of all sensor inputs
Display	7.0 inch TFT color display
Touch Panel	Resistive pressure-sensitive membrane touch panel
Communications	Wireless mobile router

Note: The above specifications are for models sold in Japan.

Variaciones

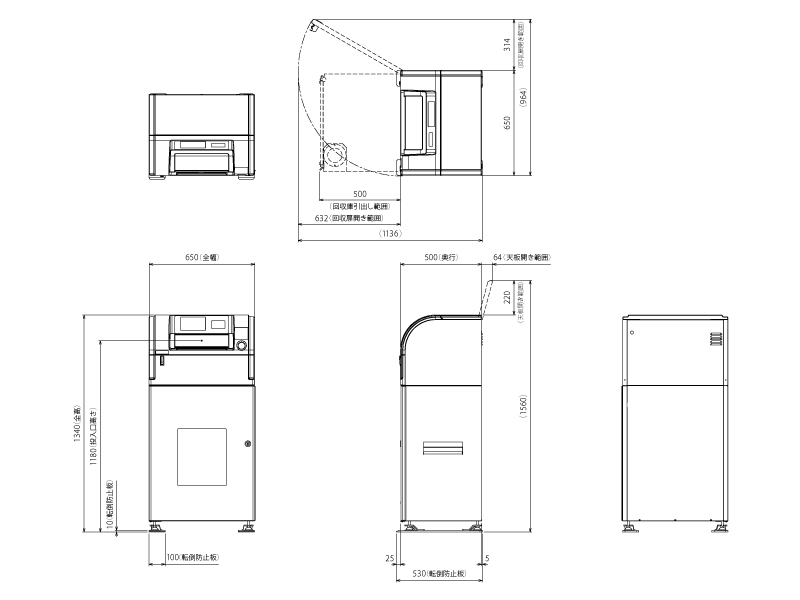

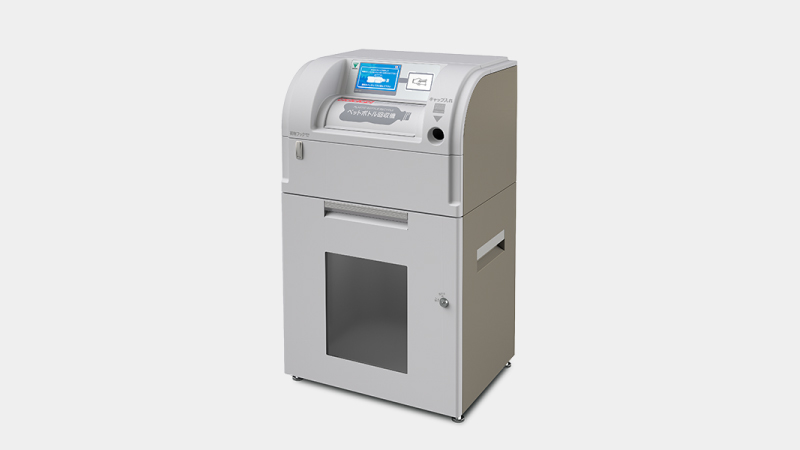

Mid-size model

DRV-100T

DRV-100T is a higher storage capacity model that reduces the number of times the collection bag must be replaced. It holds about 200 PET bottles (500 ml size), which is 30% more than the standard model. And the collection bin is carefully designed to allow quick and easy replacement of the full bag.

Preguntas frecuentes

How many bottles can be processed in one minute?

Ten bottles can be processed in one minute (six seconds per bottle).
What types of PET bottles can be processed?

The machine can process beverage PET bottles that are up to 340 mm tall and 120 mm in diameter.
Note: The machine may not be able to process certain types of very small PET bottles.
