For confidence and security, a label printer with anti-misprint features

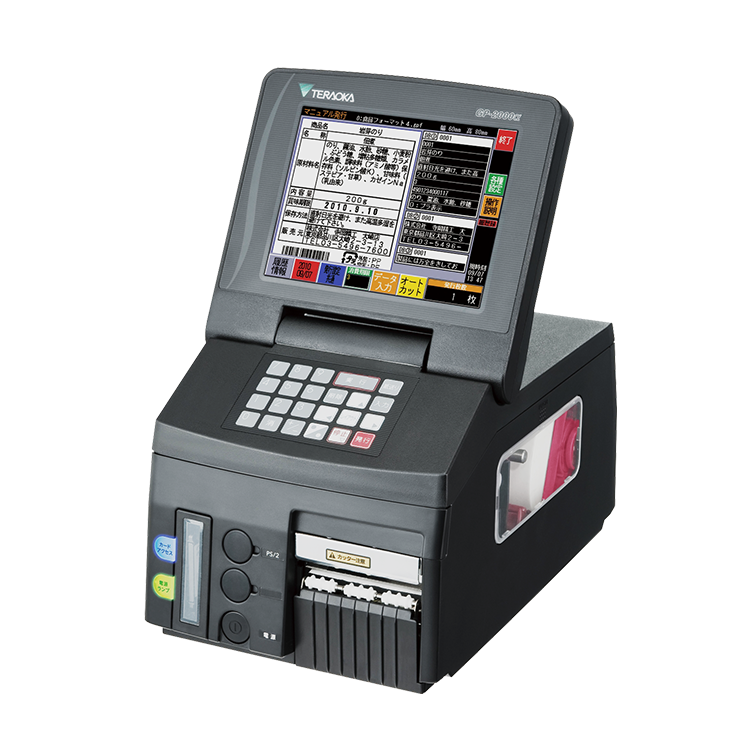

GP-2000αR
LogísticaCaracterísticas principales
A large 8.0-inch TFT color LCD touch panel makes it easy to select label design and register label data. Besides allowing you to display label layout and check print content on screen, errors are reduced by using messages and audible tones to signal entry of incorrect data.
A print density of 12 dots/mm (300dpi) ensures crisp readability with even small characters. Ability to connect to DIGI scales and support for a variety of barcode types allow this printer to be used in a variety of industries.
Especificaciones

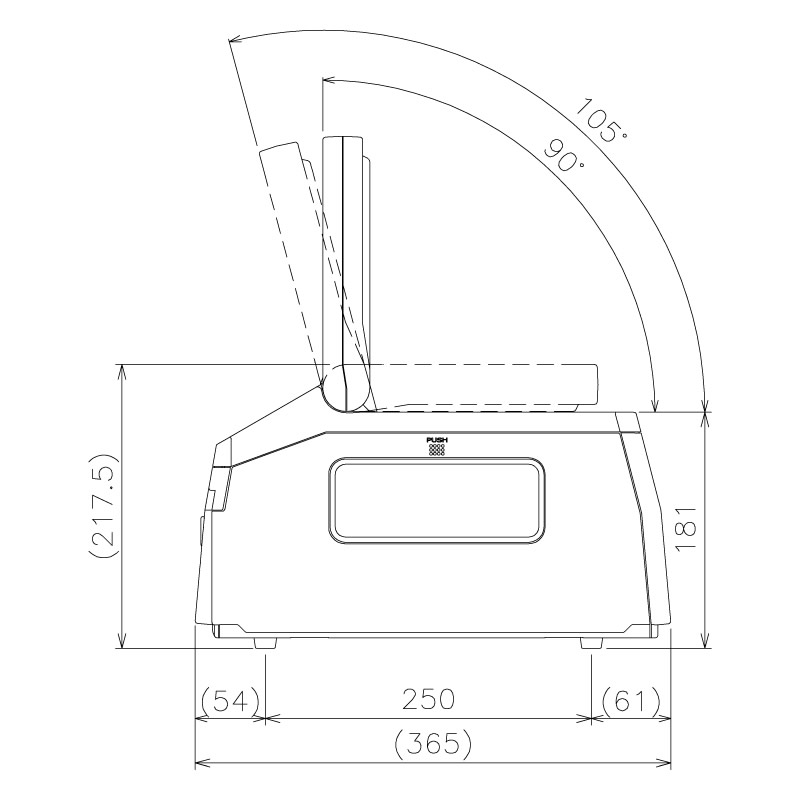

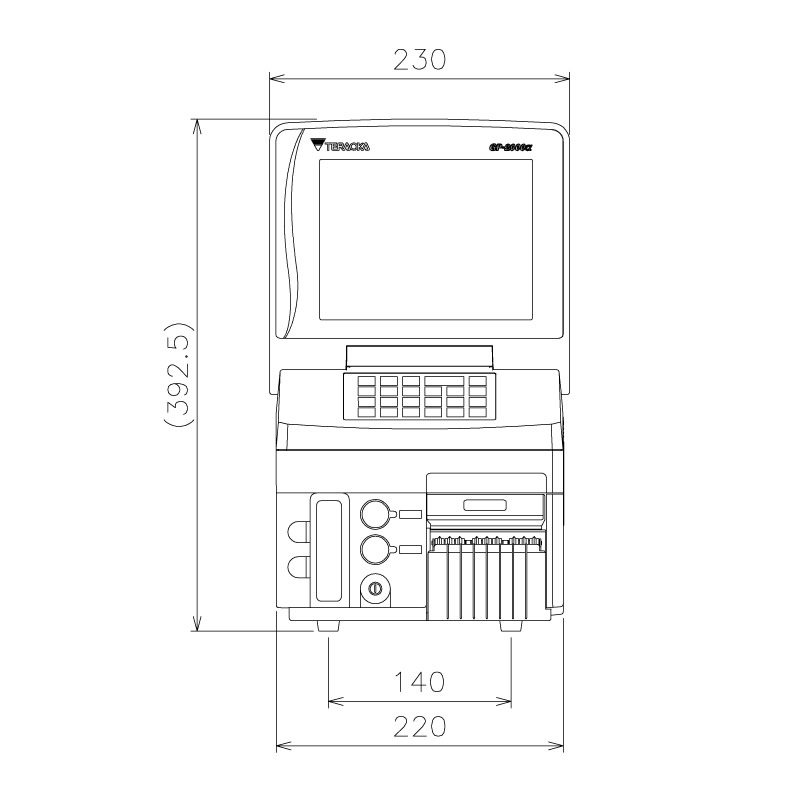

Dimensiones
| Type | Normal type | Auto-cutter built-in type |
|---|---|---|
| Method | Direct thermal/ thermal transfer | |
| Display panel | 8.0 inches TFT LCD color with backlight, 480 x 640 dots | |
| Speed | 70 to 150mm/sec. | |
| Print head width | 80mm | |
| Thermal head density | 12 dots/mm (300 dots/inch) | |
| Label size | Width: 20 to 80mm, Length: 23 to 500mm | |
| Memory items | 512 items (1.8MB) | |
| Modes | Present, Tear-off, Rewind (optional) | Auto-cutting, Tear-off |
| Barcodes | EAN/ UPCA/ UPCE/ CODE39/ ITF/ NW-7/ MATRIX2 of 5/ CODE128/ EAN128/ GS1 DataBar/ QR Code/ PDF417 | |
| Communication interface | LAN, 2 x RS-232C, PS/2 | |
| Operating temperature | 5° C to 35° C(10° C to 35° C for thermal transfer) | |
| Operating humidity | Under 80% RH (non-condensing) | |
| Power supply | AC100V±10%(50/60Hz)/Max. 185W | |
| Net weight | 8.8kg | 9.4kg |
Variaciones

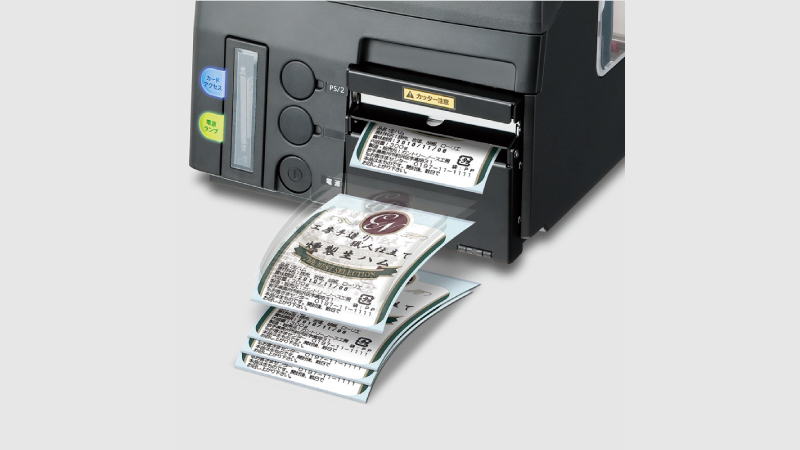

Model with auto cutter
GP-2000αR with auto cutter
This model us equipped with an auto-cutting function that automatically cuts specified quantities of labels printed. Specify this option at time of order.
Opciones

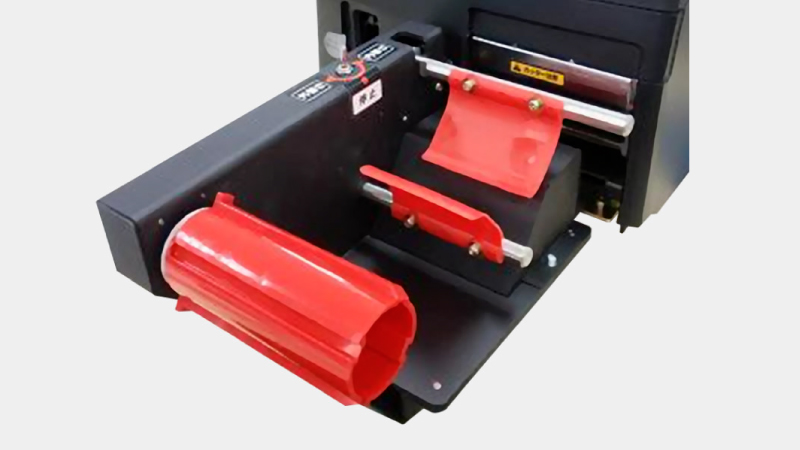

External label winder for ＧＰ-2000αＲ
This is an external winding device for labels printed out by the printer.

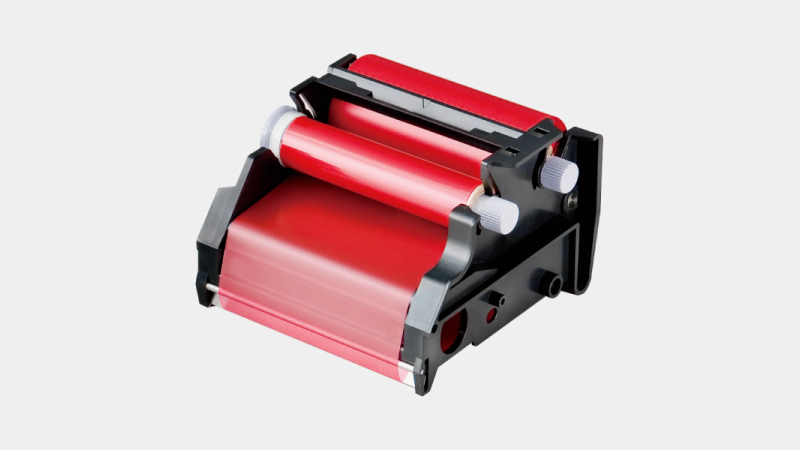

Ink ribbon cassette for GP-2000
This cassette holds ink ribbon used in thermal transfer printing. （Shown: Cassette with red ribbon.)

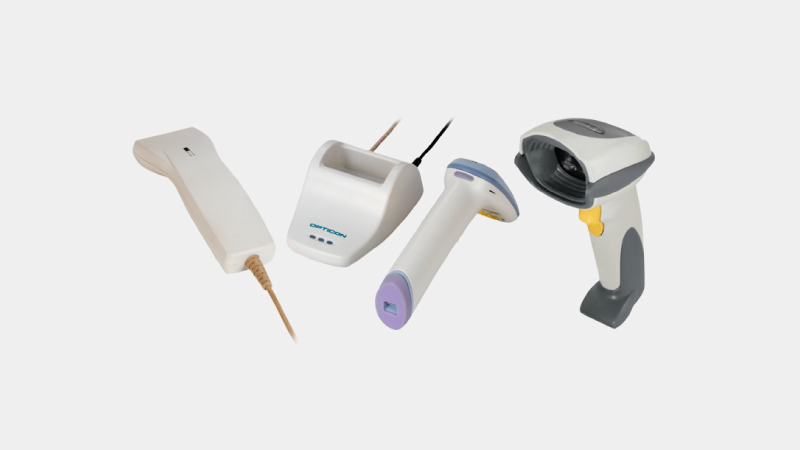

Scanner for connection to GP-series printers
Using the scanner to read barcode eliminates the need to enter data manually and reduces data entry errors. Available in a number of variations, including a wired type (using P/S connection), a wireless type (using RS-232C connection), and a type for reading 2D barcode (QR code).
DC・GP LAN Server
Management software for making use of data on a personal computer. Data acquired can be transferred to the server, where it can be batch-updated or used to verify printing history or search for specific records.
Preguntas frecuentes
-
Can printing history be viewed in CSV format?Yes, histories stored on a CompactFlash card can be checked. Checking can be done either by sending data to a PC by FTP transfer, or using optional software (DC・GP LAN Server).
-
How many records can be stored in a single database?A database will hold up to 9,999 records, with a single file of up to 1.8 MB. A warning message is displayed whenever the quantity of data reaches either limit.
-
Can CompactFlash cards be formatted?Yes, cards can be formatted from a GP-series printer's operation menu.
