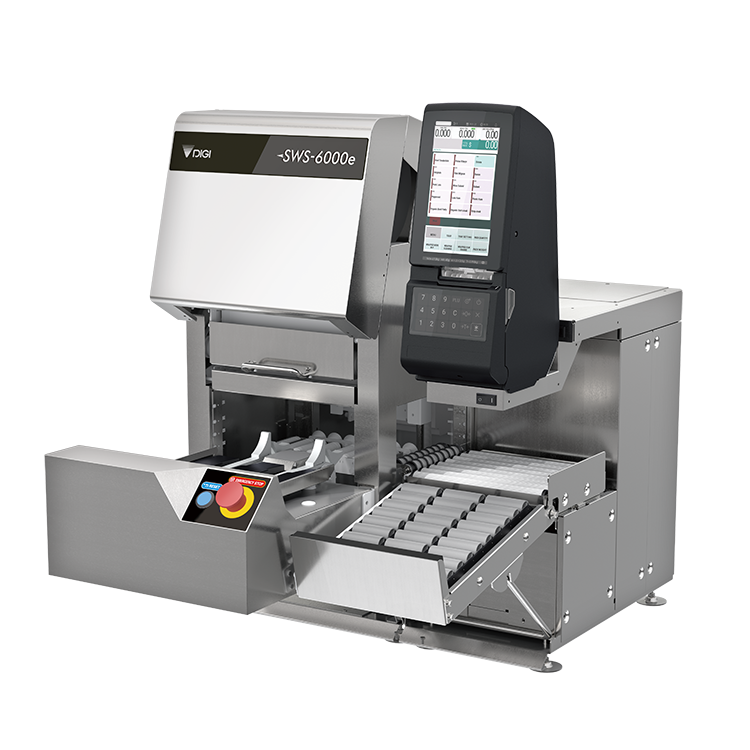

A tabletop tray sealer with integrated weigh-seal-label functionality
SWS-6000e
EinzelhandelÜberblick
A tabletop weigh-seal-label system that improves productivity and operational efficiency of sales counters.
Efficiency and added-value for counter sales
Sales clerks can use idle time to pack and stock prepacked items, allowing them to focus on providing excellent customer service during peak time.

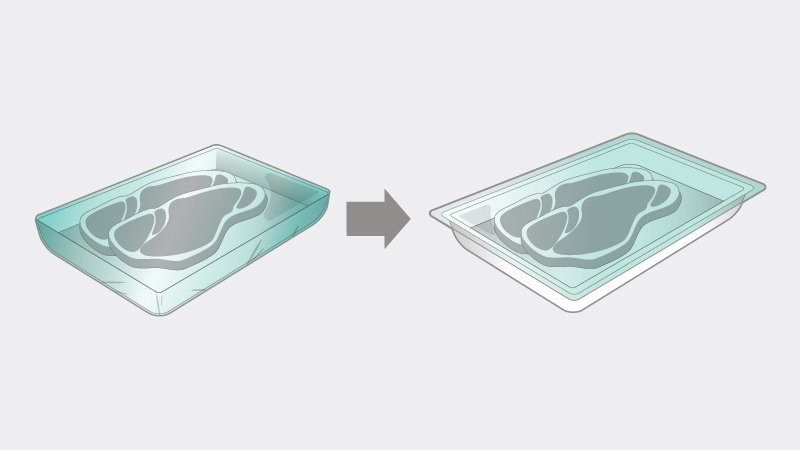

Top seal packing reduces plastic use
Rather than wrapping film the whole way around the tray, this machine utilizes top seal packing, which attaches a sheet of film to only the top of the tray. This leads to a significant decrease in film usage compared to conventional wrapping methods. The environmental impact can further be reduced by using trays made from recycled materials.
Weigh, seal, and label with a single machine
Only one machine is needed for weighing, sealing, and labeling, leading to increased productivity. It’s a solution that provides increased value for consumers operators, and the environment.

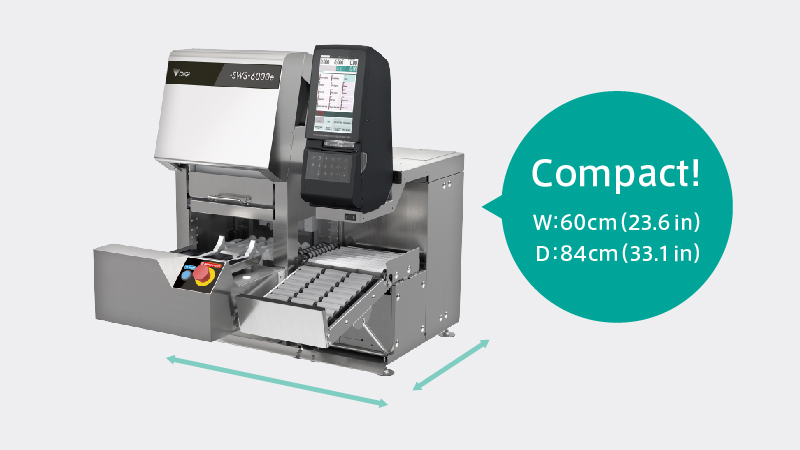

Space-saving compact footprint

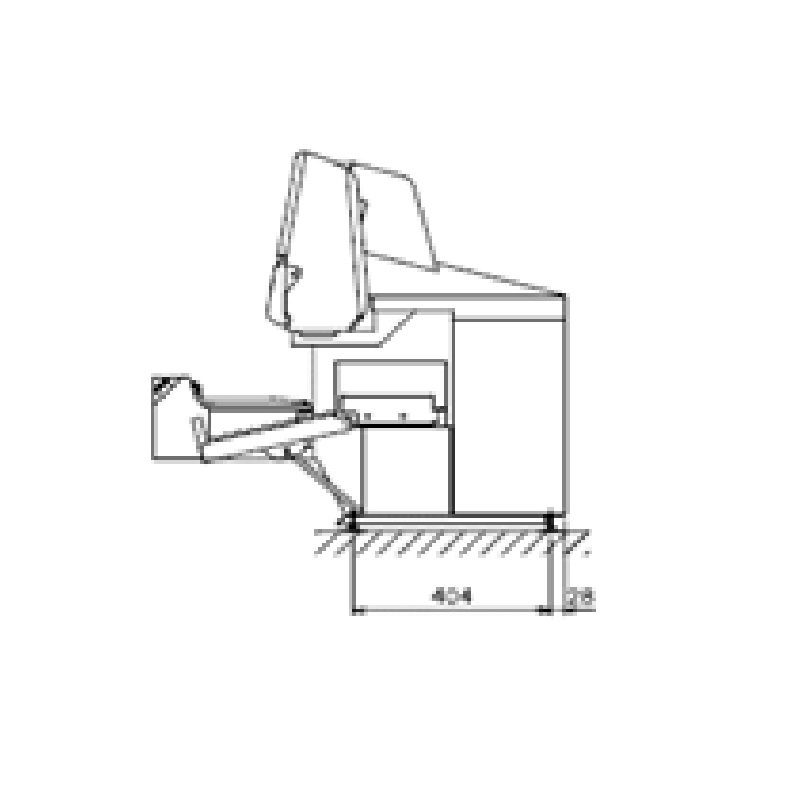

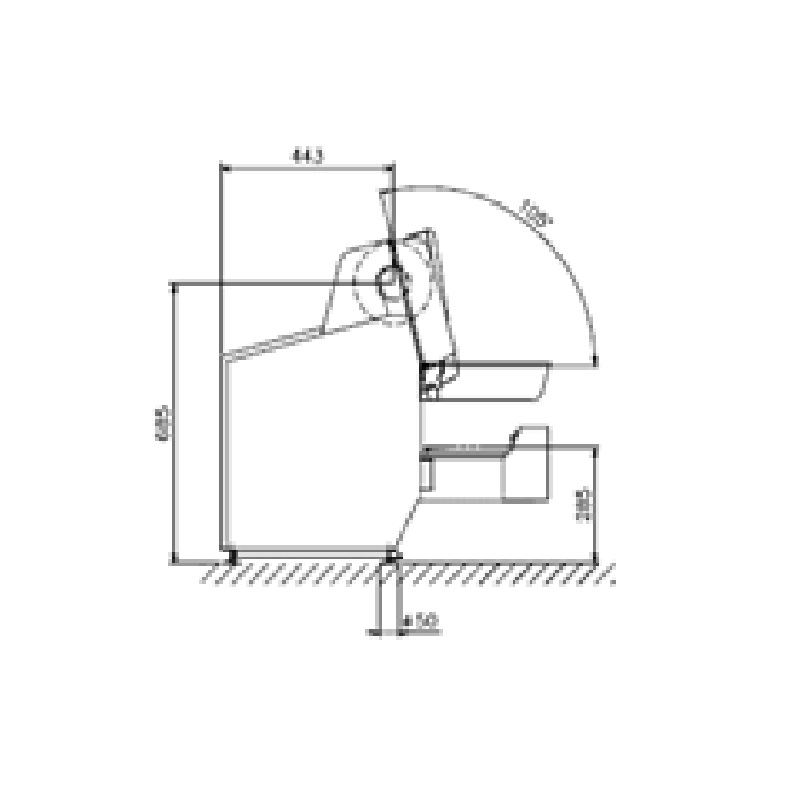

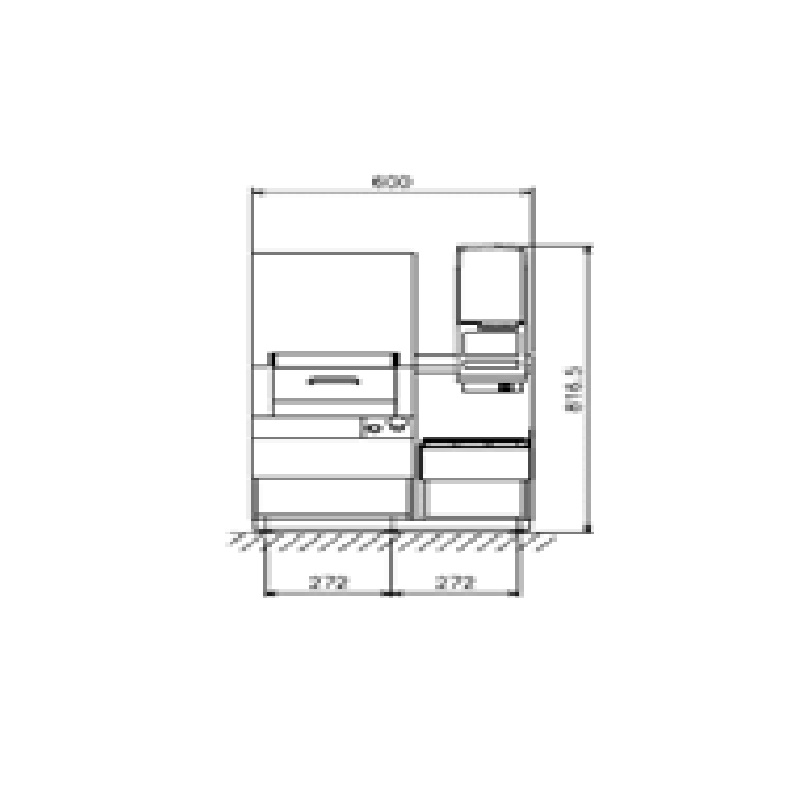

The footprint of SWS-6000e is 60 cm (W) x 84 cm (D). Its compact design allows it to be easily placed in narrow spaces, such as behind the sales counter.
Spezifikationen
Basisdaten
Packing
| Package Size | Width: 240mm (9.4 inches) Depth: 140mm or 190mm (5.5 or 7.5 inches) Height: 30-80mm (1.2-3.1 inches) |
|---|---|
| Packing Speed | Max. 10 packages/min |
| Number of Film Rolls | 1 roll |
| Film Width | 250mm (9.8 inches) |
Weighing
| Interval Type | Multi-interval | Single interval |
|---|---|---|
| Capacity | Max. 3/6kg | Max. 30lb |
| Scale Interval | e=1/2g | e=0.01lb |
| Weighing Range | 20g-6kg | 0.20lb-30lb |
| Max. Packing Capacity | 50g-1kg | 0.11lb-2.2lb |
Thermal Printer
| Label Type | Linerless Label |
|---|---|
| Label Print Width | Max. 61mm (2.4 inches) |
| Label Print Length | Max. 350mm (13.8 inches) |
| Dot Density | 12 dot/mm (300dpi) |
General
| Display Panel | 8" TFT WVGA with Capacitive Touch (480 x 800) |
|---|---|
| Power Consumption | 220-240V;1φ;50/60Hz;1.0Kw |
| Net Weight | 97.5kg |
| Operating Temperature | 10 to 30℃ with no condensation |
| Operating Humidity | 80% RH (Max.) with no condensation |
