Überblick

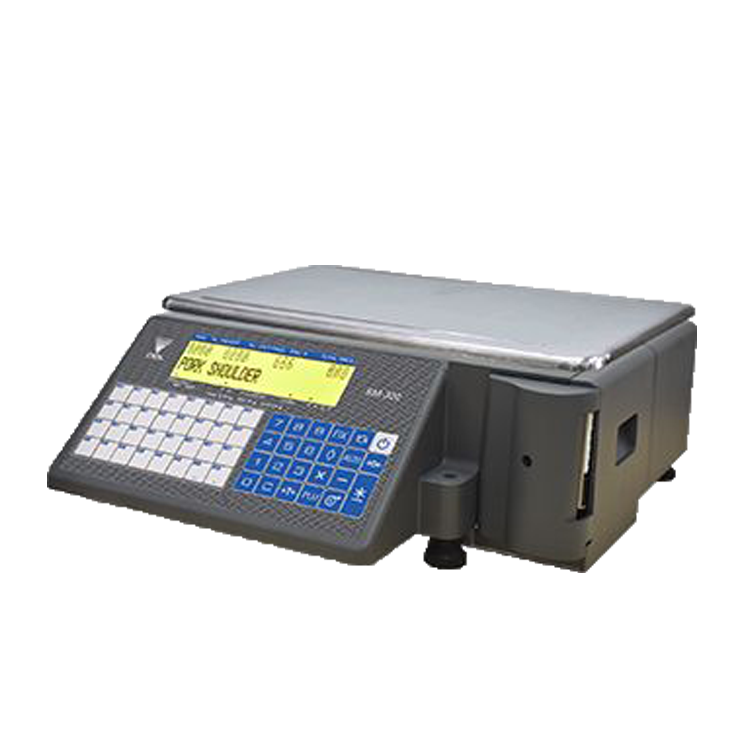

- Digital printing scale with both electronic cash register function and label printing function.
- High-speed, high reliability thermal head printer.
- Easy paper handing achieved with special designed mechanism.
- Built-in clock automatically updates date and time.
- Quick response to weight changes.
- Calibrating by software.
Customer and operator displays
- Optional customer pole display
- 202 x 32 pixels FSTN type LCD with back-light for numeric digit and character display
Flexible memory options
Choose from three memory options:
- 2M (up to 8300 PLU numbers)
- 4M (up to 18000 PLU numbers)
- 8M (up to 38000 PLU numbers)
Spezifikationen
Basisdaten
Basic
| Model | SM-320 | |||||
|---|---|---|---|---|---|---|
| Capacity | 3/6 kg | 6/15 kg | 15/30 kg | |||
| Display resolution | 1/3000 | |||||
| Memory | 2M (standard) 4M or 8M (optional) | |||||
| OP Display | 202 x 32 pixels FSTN type LCD with back-light | |||||
| CU Display | Tare Weight display: 4digits, Weight display: 5 digits, Unit Price display: 6 digits, Total Price display: 7 digits | |||||
| Number of Preset Keys | SM-320B | SM-320P | ||||
| 32 | 56 | |||||
| Standard Interface | 1xRJ45; 1xRS232; 1xRJ9 Cash drawer | |||||
| Printer | High reliability thermal head printer Resolution: 203dpi Max Printing Width: 56mm Max Paper Width: 60mm (receipt) / 60mm (label) Printing speed: Maximum 105 mm / sec Life span: 100 million pulses, 100km or more |
|||||
| Power source | AV 100V~240V ; 50/60Hz | |||||
| WIFI (Optional) | WIFI IEEE 802.11a/b/g/n | |||||
Variationen

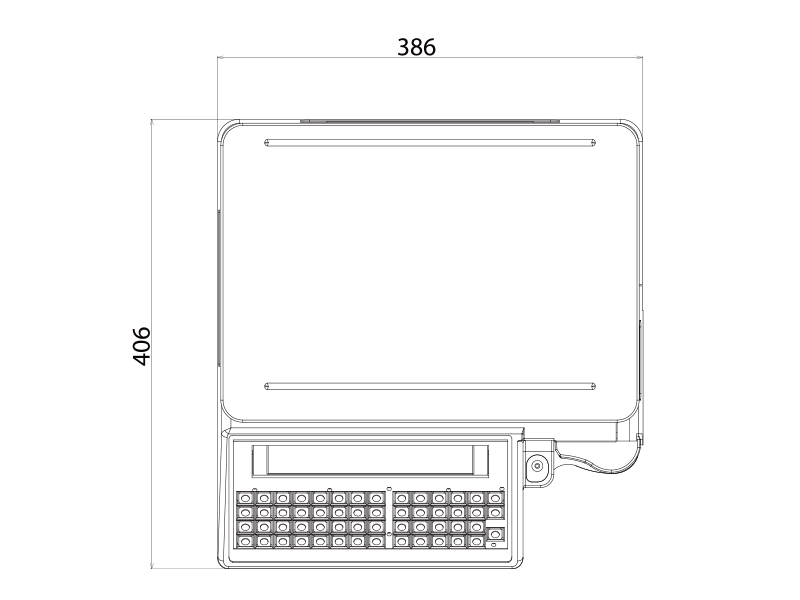

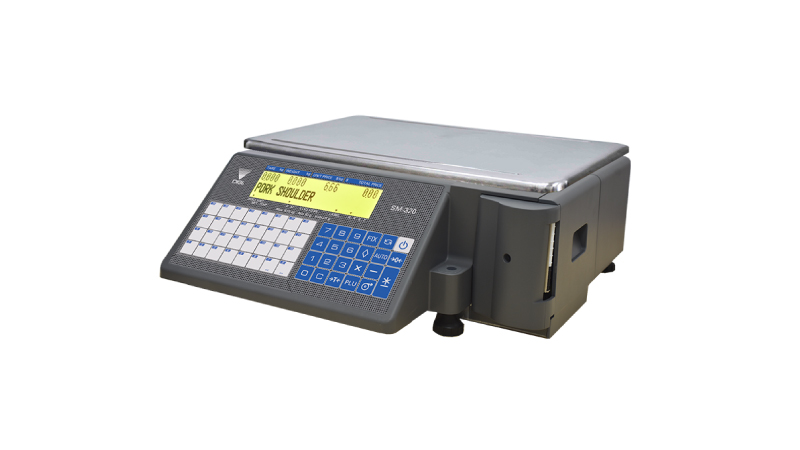

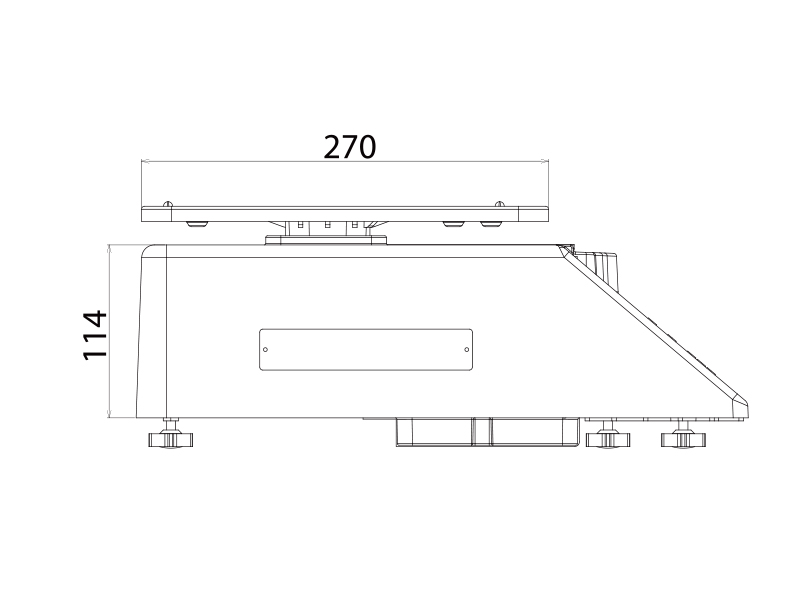

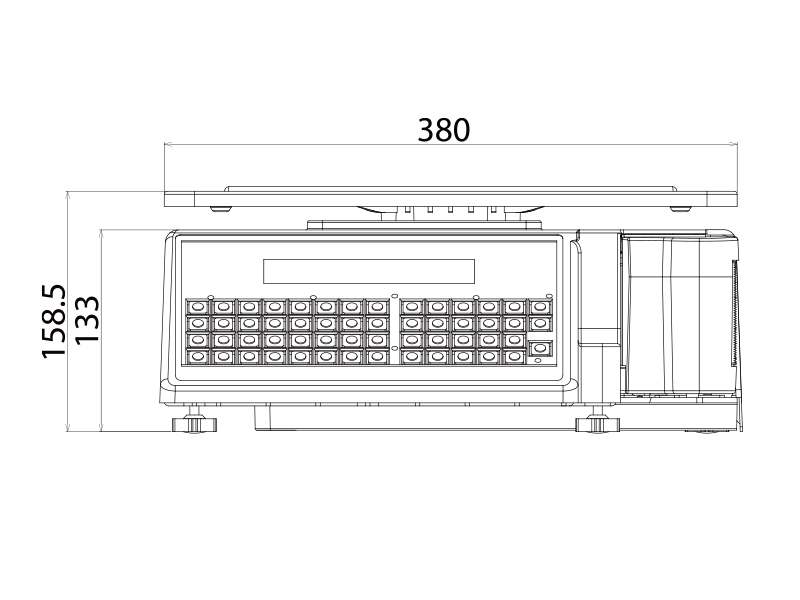

Bench Type
386 (W) x 406 (D) x 159 (H) mm

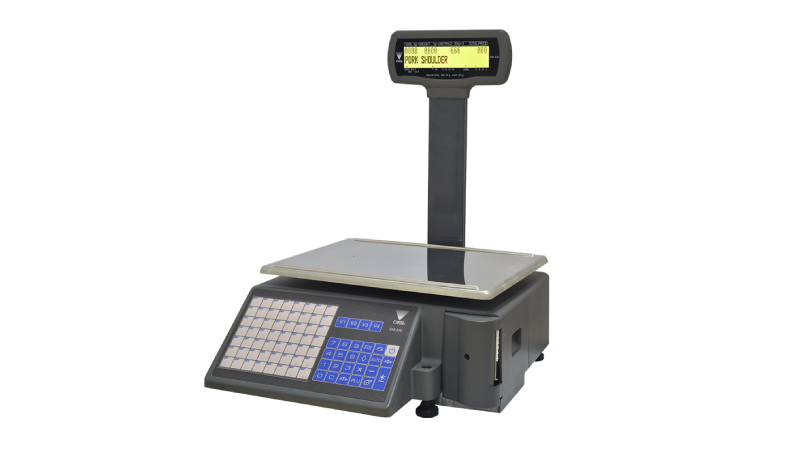

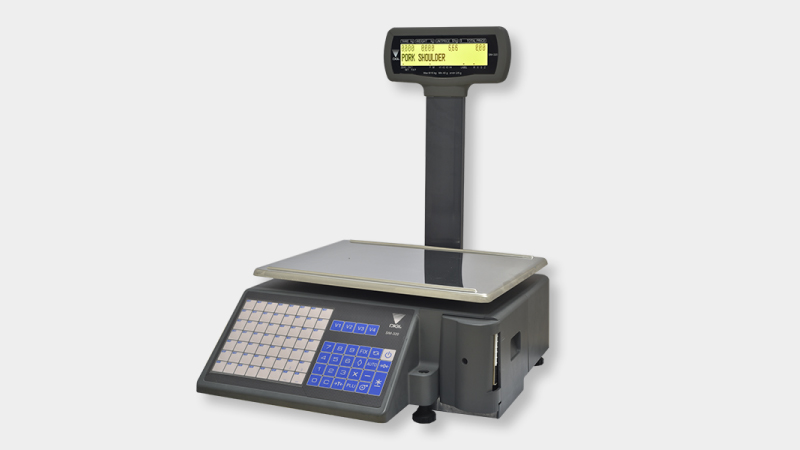

Pole type
386 (W) x 484 (D) x 452 (H) mm.
