Hinweis: Dieses Produkt wird nicht mehr verkauft und möglicherweise nicht mehr unterstützt. Kontaktieren Sie Ihren DIGI Ansprechpartner bezüglich Reparaturarbeiten an diesem Modell oder Informationen über Alternativen.
Überblick

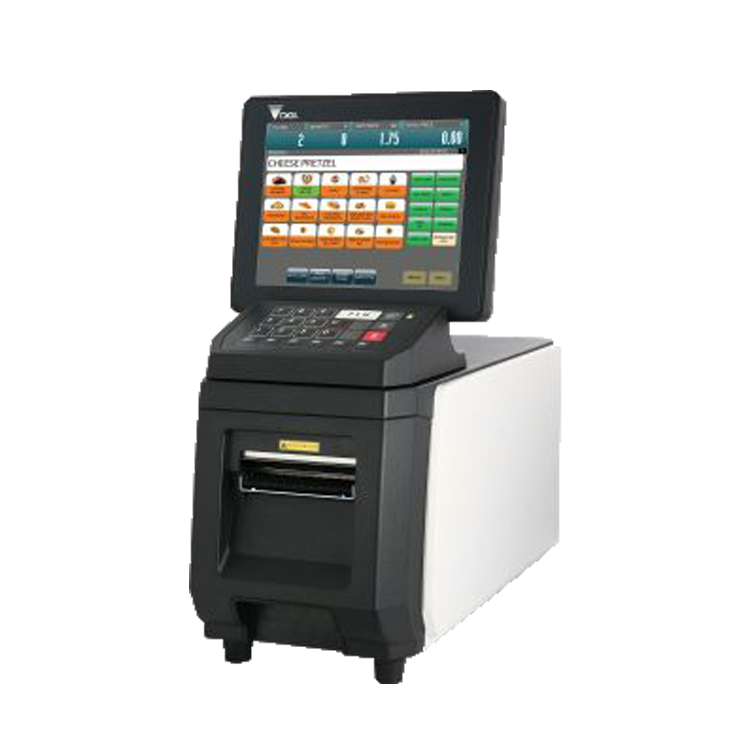

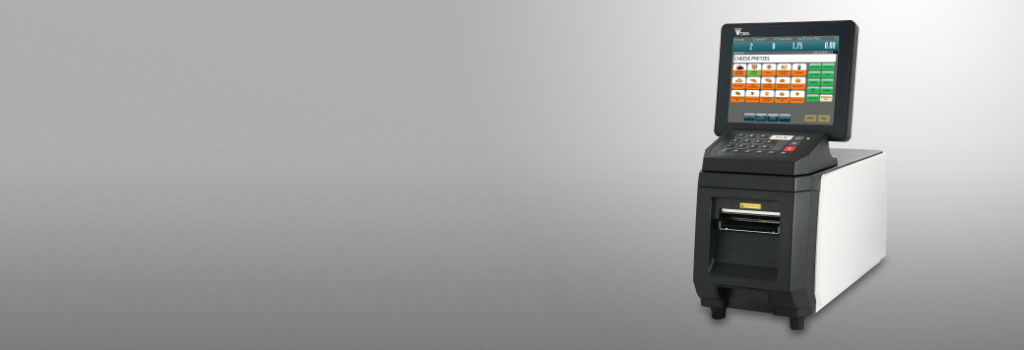

The DP-5000e PC based compact printer offers a versatile printing solution with a space-saving design. With a high speed performance printer, it alleviates prepacking operation to achieve high efficiency without compromising floor space.

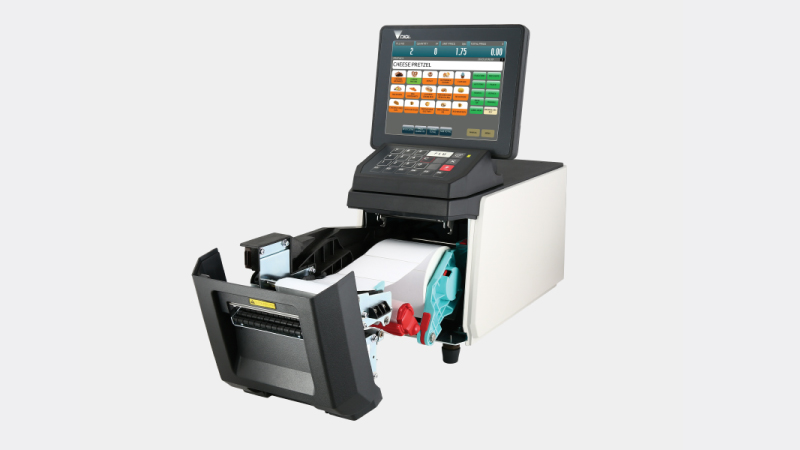

Front Label Loading
The loading mechanism of the DP-5000 is designed at the front to cater for easier and faster label change. This feature greatly bolsters operation efficiency during the prepacking process.
Flexible Operator Display

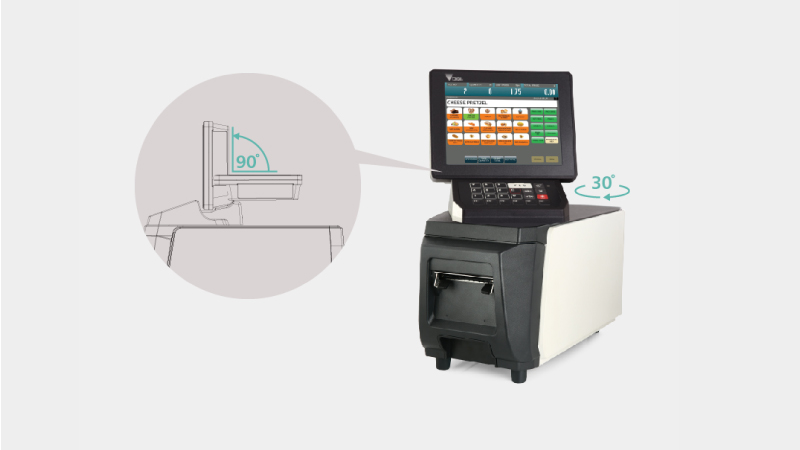

The 8.4" TFT touch screen can be adjusted easily to offer eye-catching details at optimal viewing comfort. The ergonomic user interface comes with a customisable screen layout that further enhances the operation process.
Fast and Efficient Printing
Built for both speed and performance, DP-5000e delivers high-resolution 300dpi printing with a crisp and appealing presentation for high readability.
Other Features

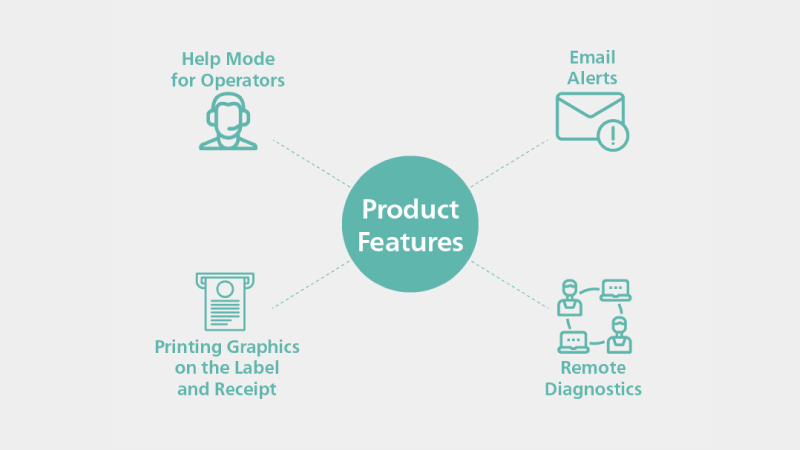

The DP-5000e also includes notable features like remote diagnostics, email alerts, printing graphics on the label and receipt, and help mode for operators.

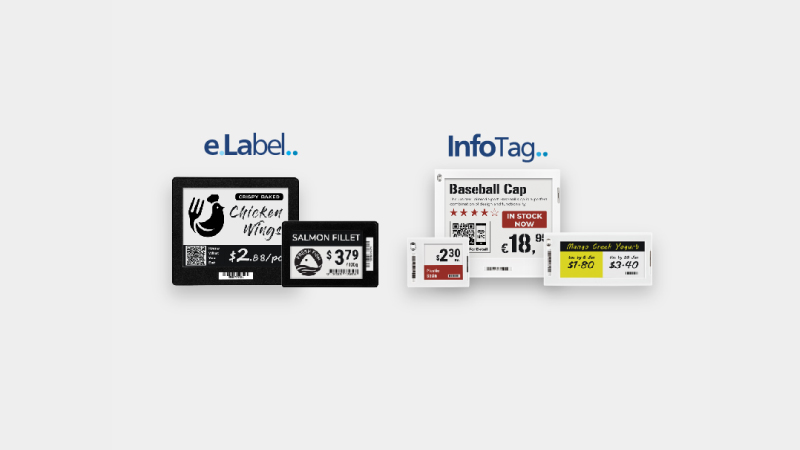

Electronic Shelf Label (ESL)
DIGI's enterprise-grade electronic shelf label (ESL) is developed to accelerate in-store digitisation with its error-free wireless price updates.
• Integrated QR code and Near Field Communication (NFC) capabilities
• Seamless integration with scale via USB base station for automatic price synchronisation
Spezifikationen
Basisdaten
Specification
| Model | DP-5000e | ||||
|---|---|---|---|---|---|

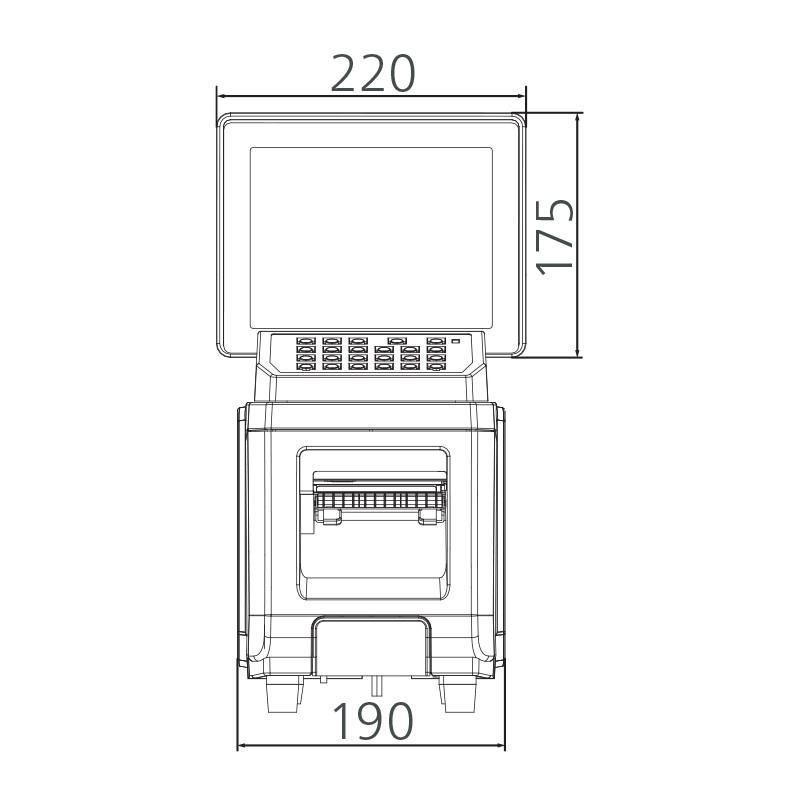

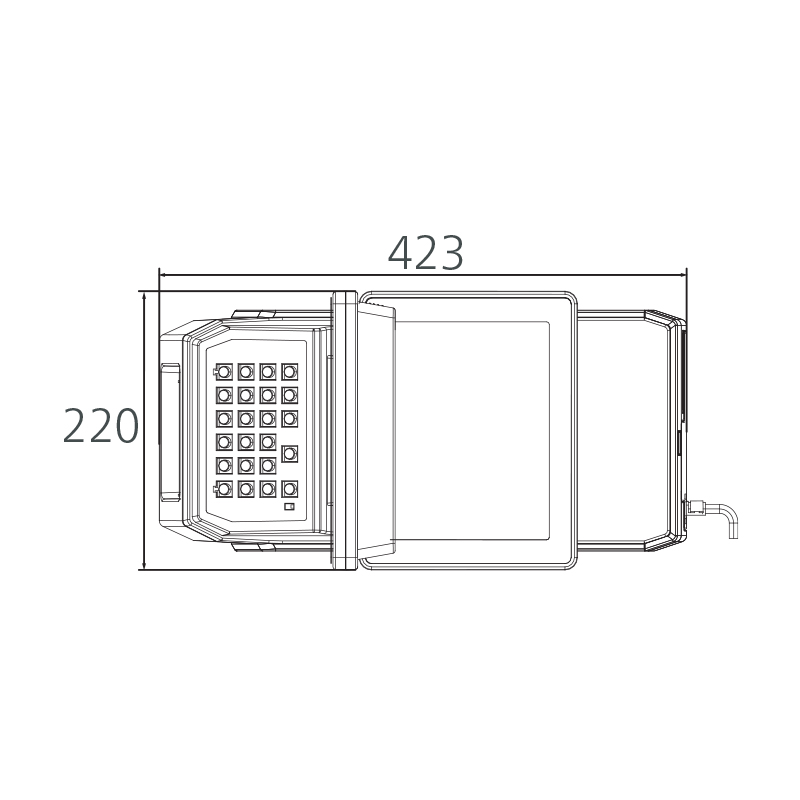

| Dimension W x D x H (mm) | 220 x 423 x 423 | ||||
| Operation Display | 8.4" TFT SVGA with Touch Panel | ||||
| Display Size W x D (Pixels) | 800 x 600 | ||||

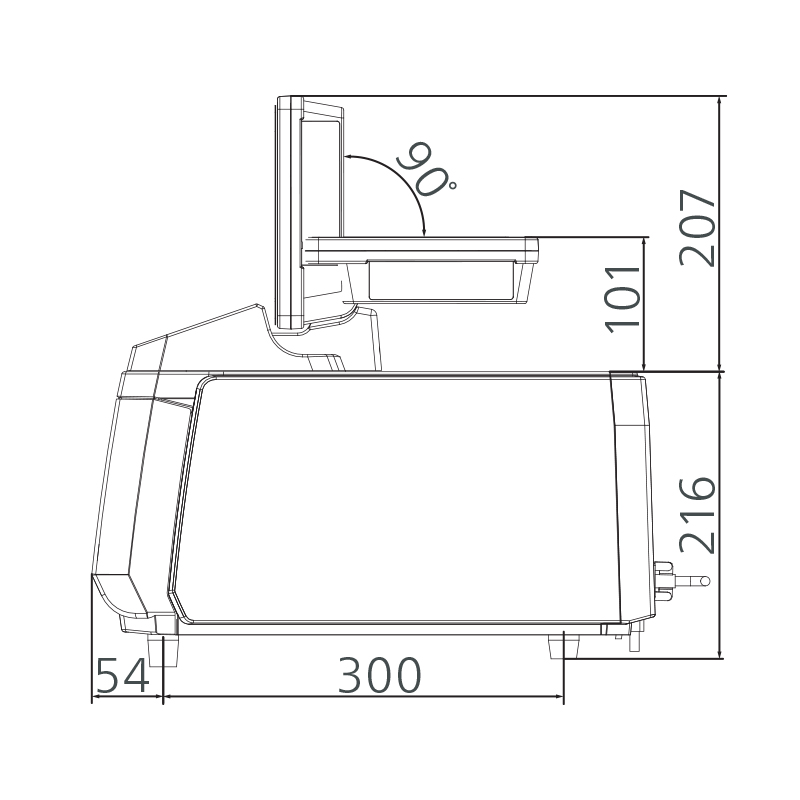

| Display Rotatable Degree | + / - 30 degree left and right ; 90 degree up and down | ||||
| Label / Receipt | Types | Liner | Linerless with Auto-Cutter | ||
| Roll Diameter | Max 125mm | Max 125mm | |||
| Roll Width | Max 80mm | Max 80mm | |||
| Print Width | Max 80mm | Max 80mm | |||
| Printing Speed | Max 150mm / second* | Max 150mm / second* | |||
| Print Resolution | 300 dpi | 300 dpi | |||
| Barcode Type | Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix | ||||
| Power Source | AC 100V / 220V | ||||
| Operating Temperature | -10℃ to +40℃ | ||||
| Humidity | 15% to 85% RH Non-Condensation | ||||
| Standard Interface | 2 x RS232C, Ethernet 10 / 100 Base T, 4 x USB 2.0, SD Socket | ||||
| Net Weight | 10.8 kg | ||||

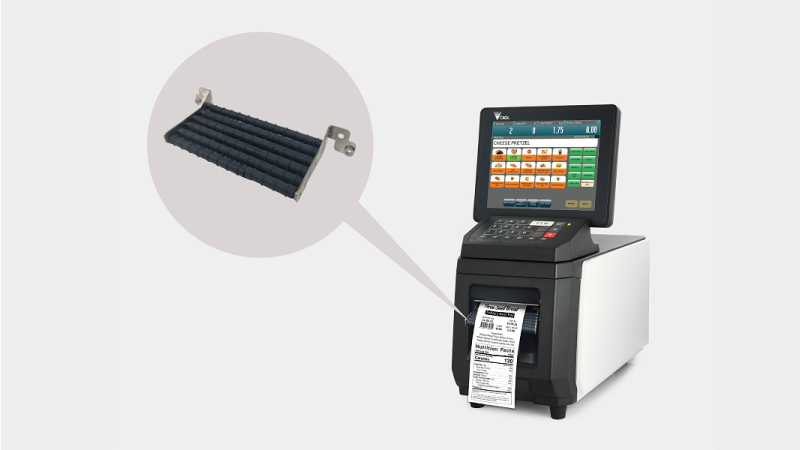

Optionen

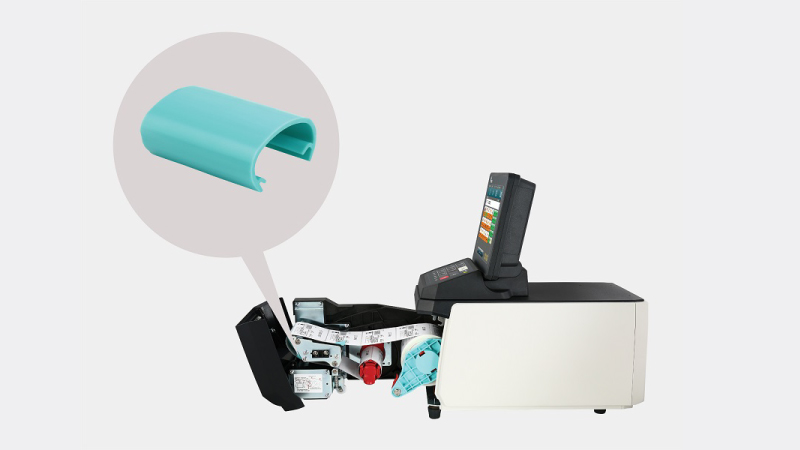

Internal Rewinder Kit
