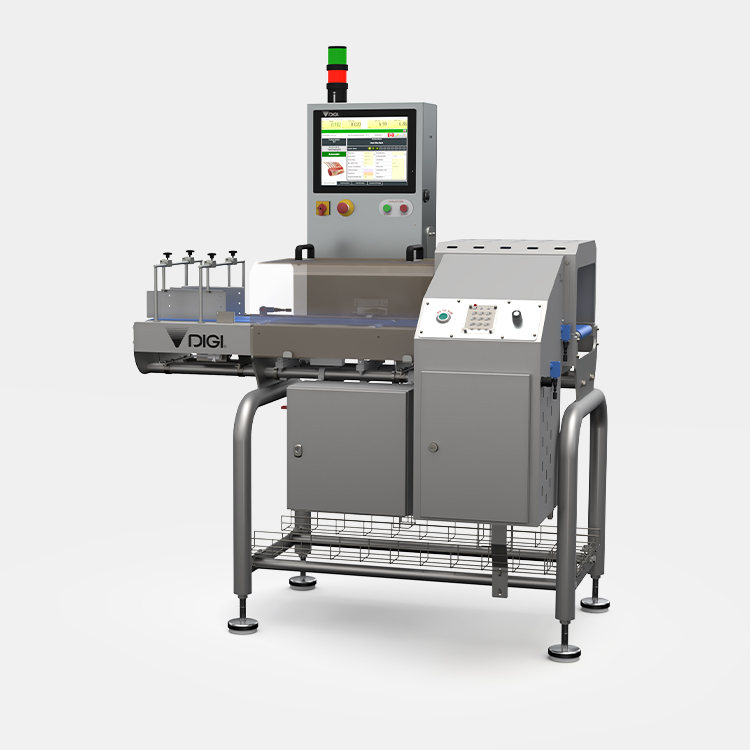

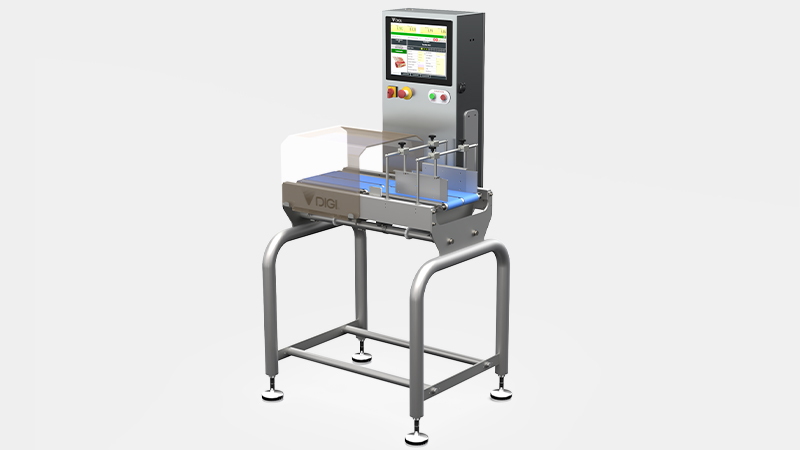

Compact, Single-Framed Checkweighing System For High Productivity
CW-800
Industrie agroalimentairePrésentation
The CW-800's compact, single-framed design makes it ideal for integration into existing lines. With a pack speed of up to 150ppm, its high productivity will ensure targets are met.
Automatic Checkweighing of up to 150ppm

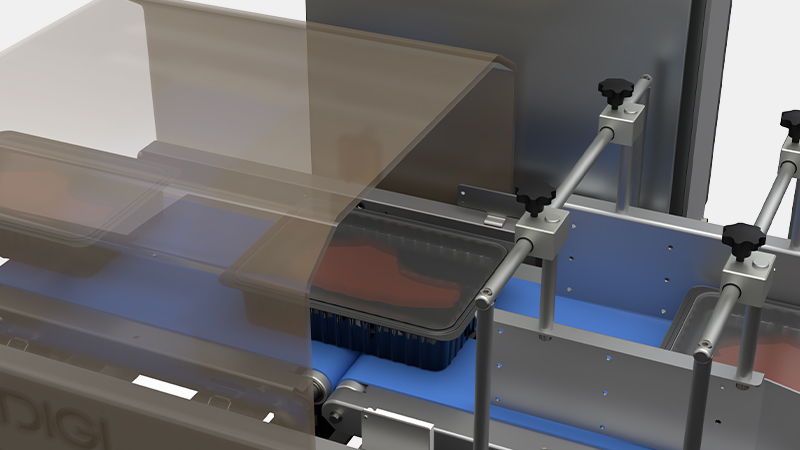

Understanding the demands of the modern production environment, the CW-800 has been designed with a direct drive conveyor system that provides reliable processing of up to 150 packs per minute.

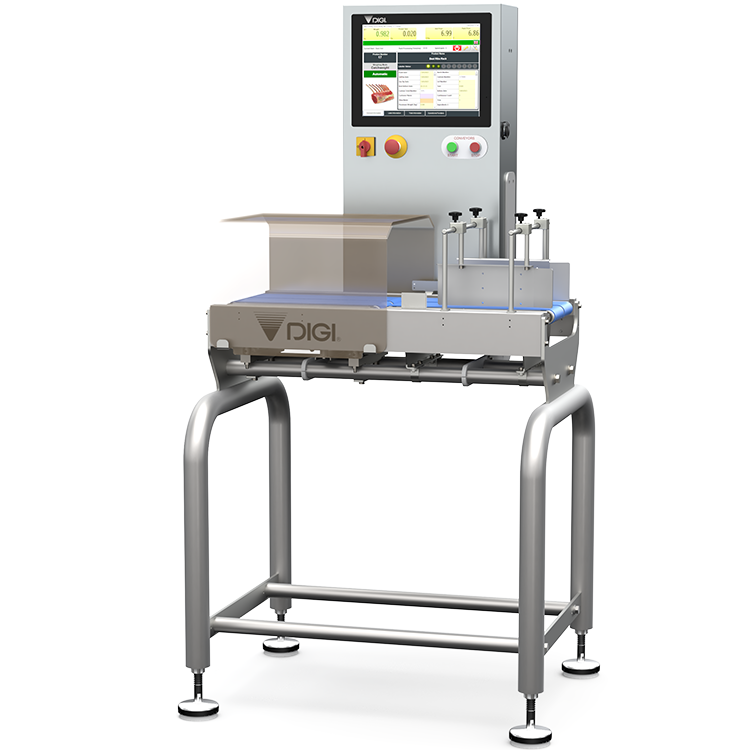

Compact Design
The CW-800 is based on a single 304L grade stainless steel frame, ensuring that valuable floor space is not used unnecessarily. Please refer to 'specifications' for all dimensions.

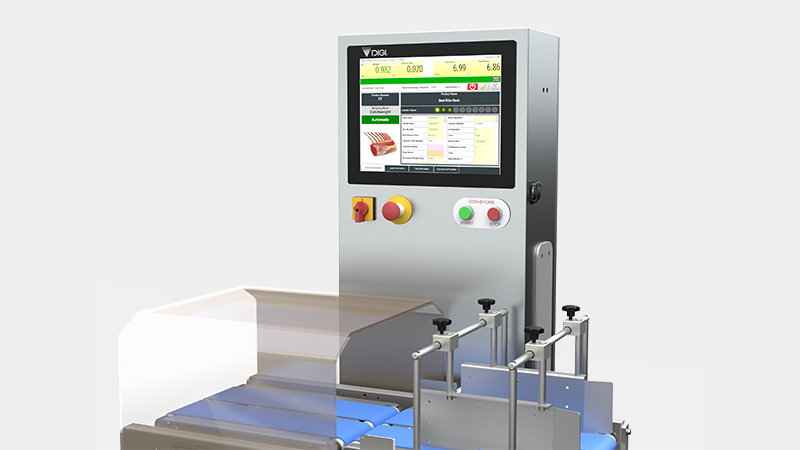

User-Friendly Interface
The CW-800 uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labelers.
Caractéristiques

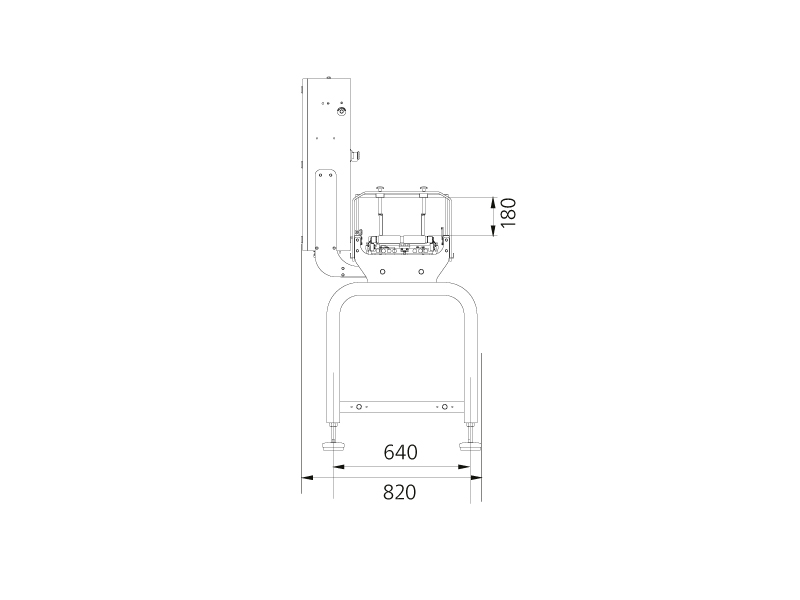

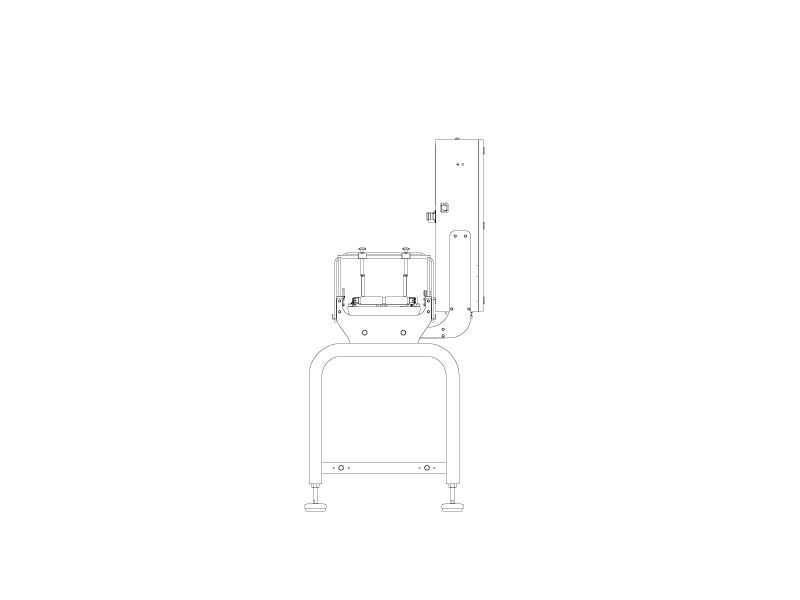

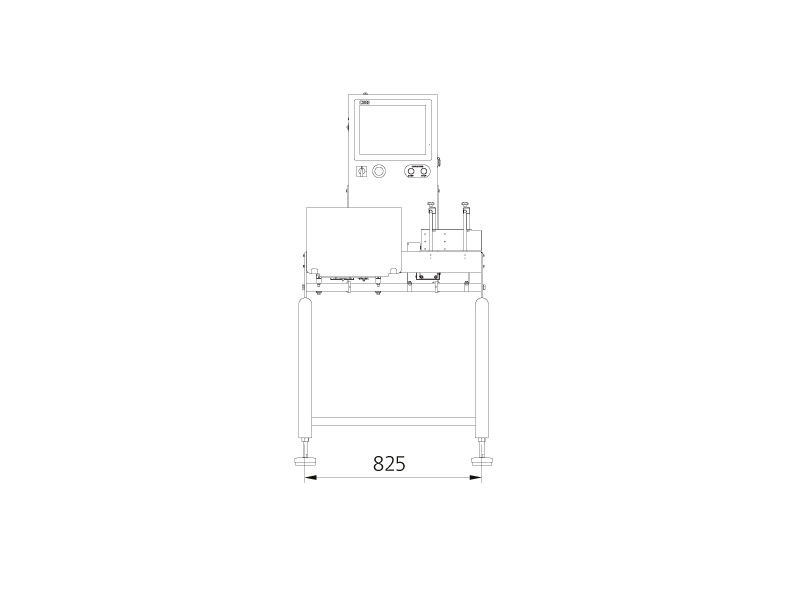

Dimensions
Weighing
Capacity | Max 6 kg | ||
---|---|---|---|
Single Interval | e= 1g | ||
Pack Speed | up to 150 packs per minute | ||
Pack Size | L80-300mm x W40-250mm |
Display
Screen | 15" Colour LCD touchscreen |
---|---|
Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
Weighing Modes | Fixed Weight, Average (Emark) |
---|---|
Communication | Ethernet, USB, RS232 |
Operating System | Windows 10 OS |
Language | Multi-lingual Unicode |
Software | WorldView (embedded application) |
Database | SQL |
Connectivity | Remote programming and control |
Connectivity to meet industry standards | |
Customisable output data | |
Interconnectivity to back-office data management |
General
Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
---|---|
Operating Temperature | 0 to +30°C |
Standard Features
Scale Cover | 'lift-off' formed polycarbonate |
---|---|
Sensors | Overhead retro reflective |
Pack Guides | Adjustable width pack guides |
Conveyors | Blue belts |
