Wide and Long Conveyors for Weigh Price Labeling of Larger Products
WIL-700 II
Industrie agroalimentairePrésentation

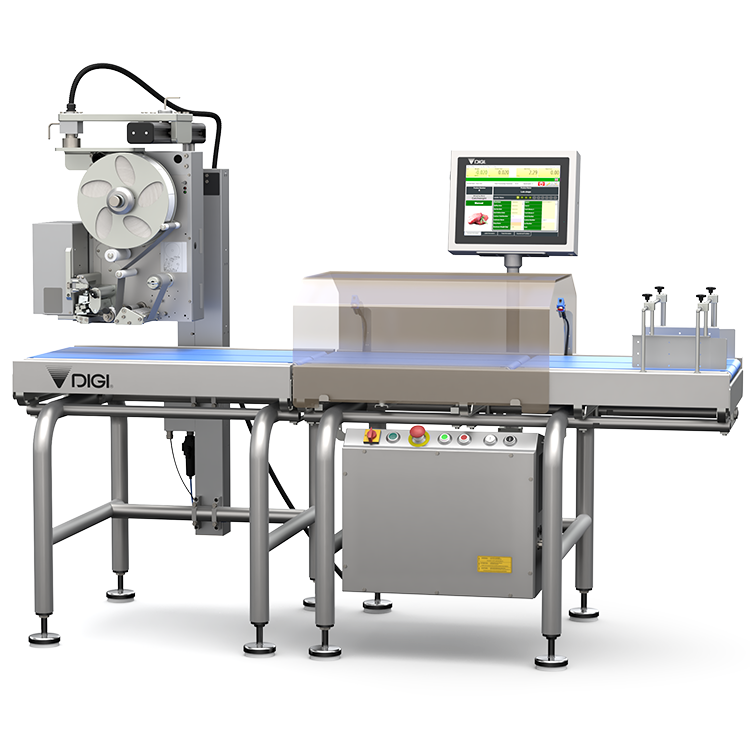

The WIL-700 II Weigh Price Labeler's conveyor is both wider and longer, designed specifically for processing larger products at a speed of up to 36ppm. Running PC-based software, networking and integration with existing machines and back office systems is straightforward.
Caractéristiques

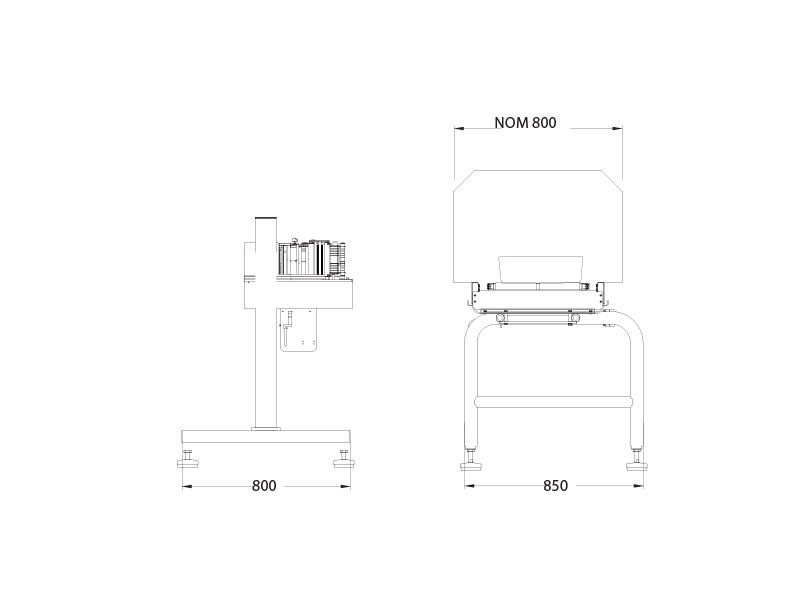

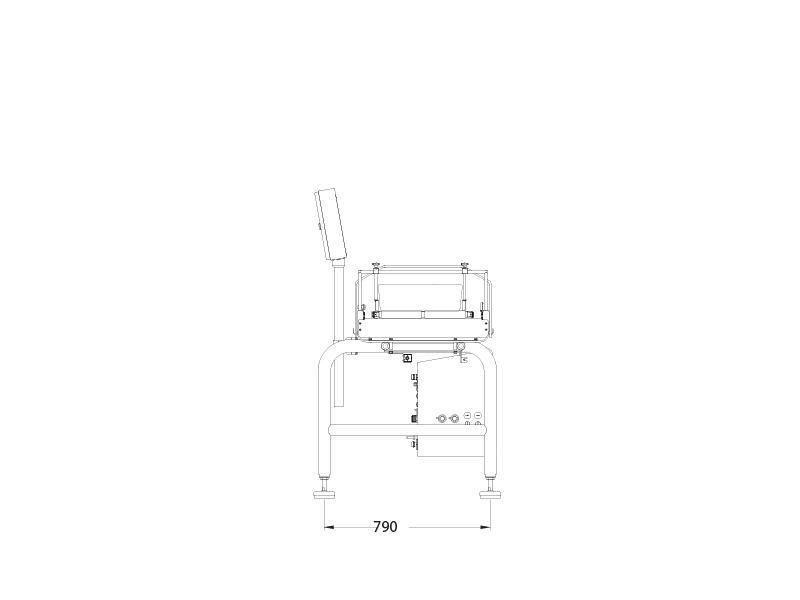

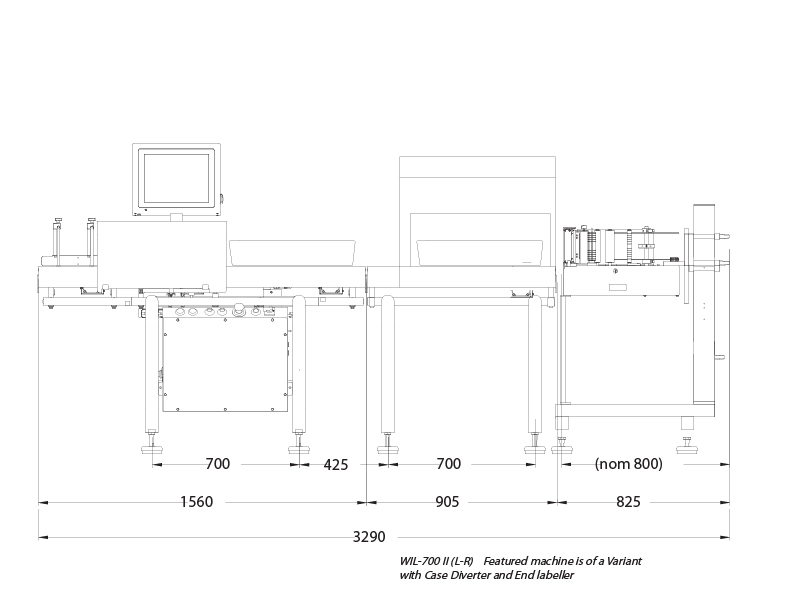

Dimensions
Weighing
Capacity | Max 15 kg | ||
---|---|---|---|
Single Interval | e= 5g | ||
Pack Speed | up to 36 packs per minute | ||
Pack Size | L80-600mm x W40-400mm x H180mm |
Display
Screen | 15" Colour LCD touchscreen |
---|---|
Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
---|---|
Labelers | Multiple labelers/printers |
Communication | Ethernet, USB, RS232 |
Operating System | Windows 10 OS |
Language | Multi-lingual Unicode |
Software | WorldView (embedded application) |
Database | SQL |
Connectivity | Remote programming and control |
Connectivity to meet industry standards | |
Customisable output data | |
Interconnectivity to back-office data management |
General
Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
---|---|
Operating Temperature | 0 to +30°C |
Standard Features
Scale Length | 660mm |
---|---|
Scale Width | 400mm |
Scale Cover | 'lift-off' formed polycarbonate |
Sensors | Horizontal retro reflective |
Labellers | Signature |
Pack Guides | S100 tall guides |
Conveyors | Split blue belts |
Modèles

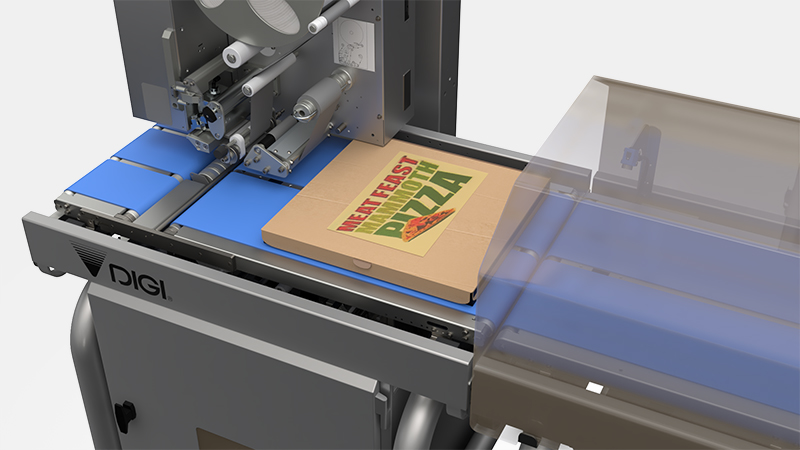

Top, Bottom, Side and Front Labeling
The Signature labeler can be positioned differently to suit the products being weighed and labeled.
