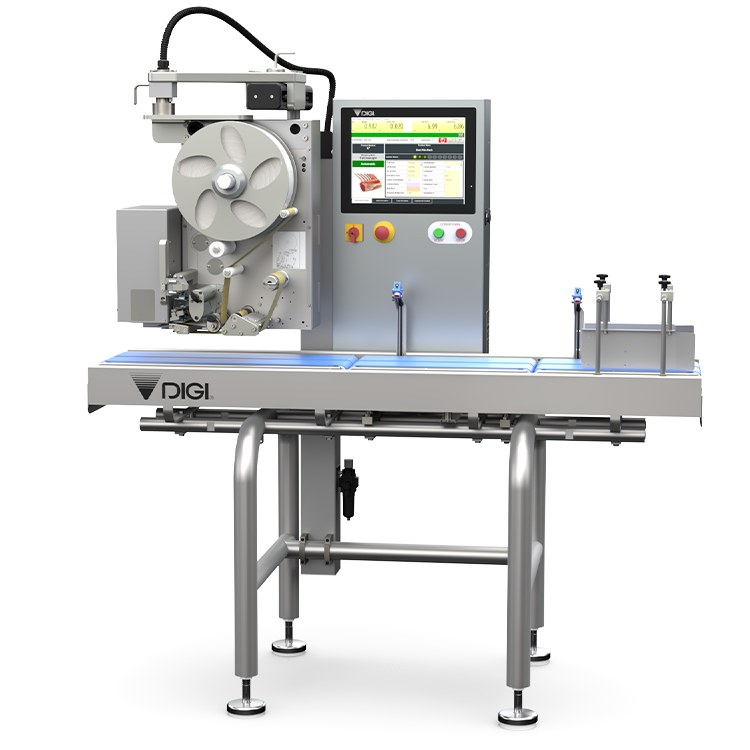

Dynamic Weigh Price Labeler

LI-700 II

Industrie agroalimentaire

Combiné de pesage - étiquetage indutriel automatique

Présentation

The LI-700 ll Weigh Price Labeler is designed for medium productivity environments, processing up to 65ppm. Featuring a single frame design running PC-based software, networking and integration with existing machines and back office systems is straightforward.

Téléchargez la brochure ici

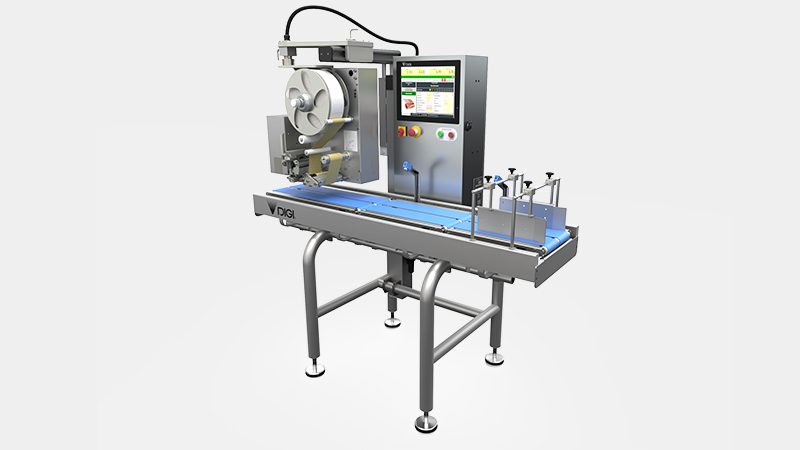

Compact Design

The LI-700 II's single frame design is compact, taking up 1560mm x 695mm of floor space, making it ideal for production lines where space is limited.

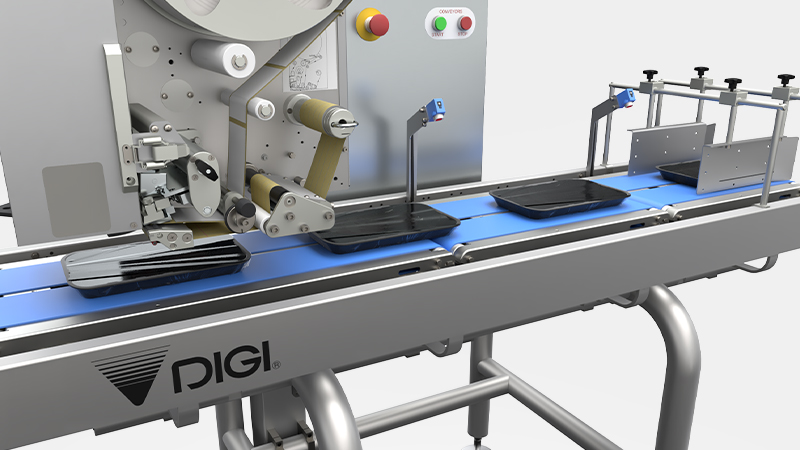

Signature Labeler

The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

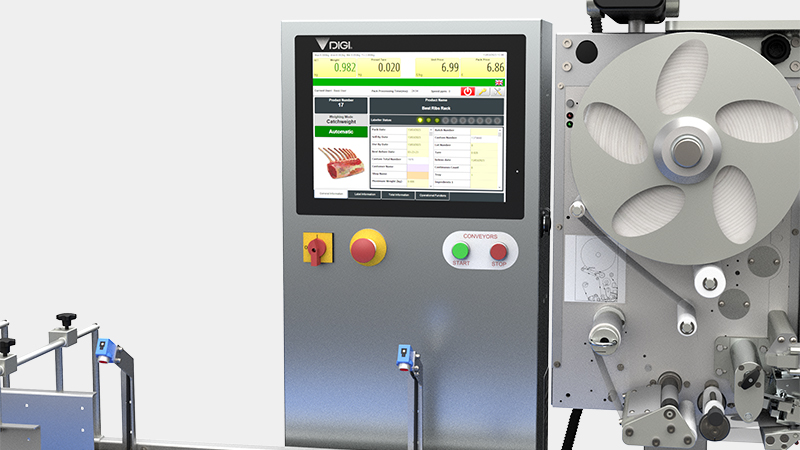

WorldView Operating Software

The LI-700 ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.

Caractéristiques

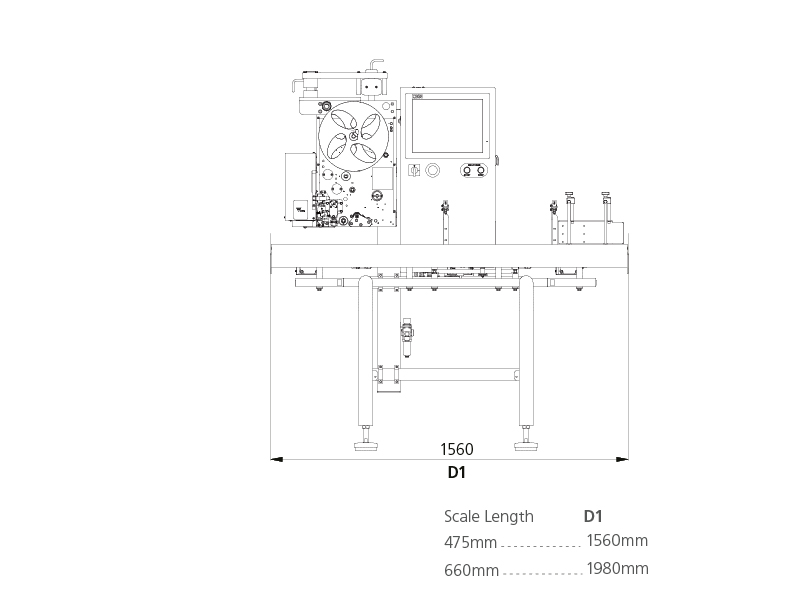

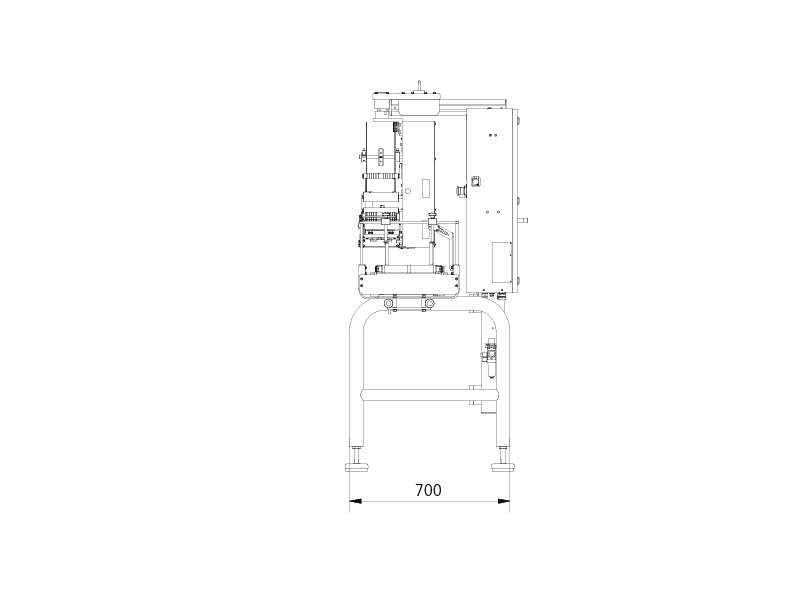

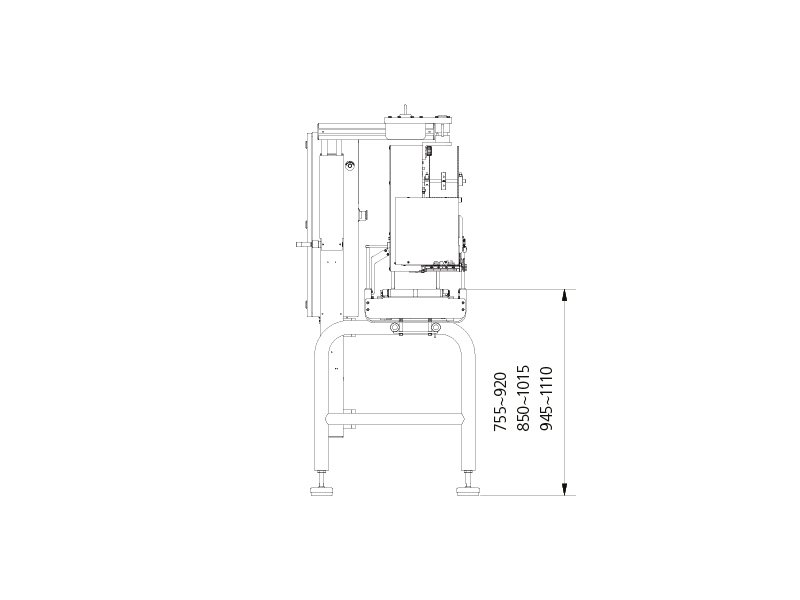

Dimensions

Weighing

Capacity 2g min on 660mm scale	Max 6 kg	Max 10kg
Single Interval	e= 1g	e= 2g
Pack Speed	up to 65 packs per minute
Pack Size	L80-300mm x W40-250mm x H180mm	L80-485mm x W40-250mm x H180mm (660mm scale)

Throughput dependant on product weight and size.

Display

Screen	15" Colour LCD touchscreen
Touch panel	XGA a-Si TFT LCD Resistive touch

Operation

Weighing Modes	Catch Weight, Fixed Weight/Price, Average (Emark)
Labelers	Multiple labelers/printers
Communication	Ethernet, USB, RS232
Operating System	Windows 10 OS
Language	Multi-lingual Unicode
Software	WorldView (embedded application)
Database	SQL
Connectivity	Remote programming and control
	Connectivity to meet industry standards
	Customisable output data
	Interconnectivity to back-office data management

General

Power Supply	220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature	0 to +30°C

Standard Features

Scale Length	475mm or 660mm
Scale Cover	'lift-off' formed polycarbonate
Sensors	Overhead retro reflective
Labellers	Signature
Pack Guides	S100 tall guides
Conveyors	Split blue belts

Modèles

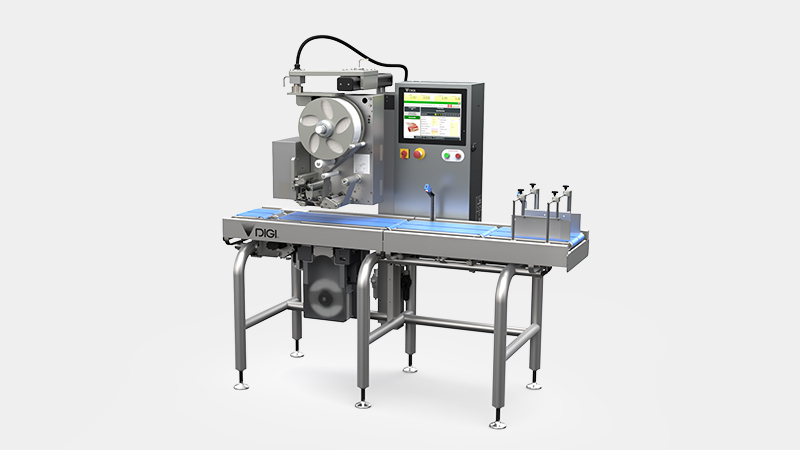

Top and Bottom Labeling

Additional labelers can be integrated into the Weigh Price Labeler, giving extra flexibility to label both the top and under side of each pack simultaneously. (Image shows bottom labeler as optional Cassette labeler)

Options

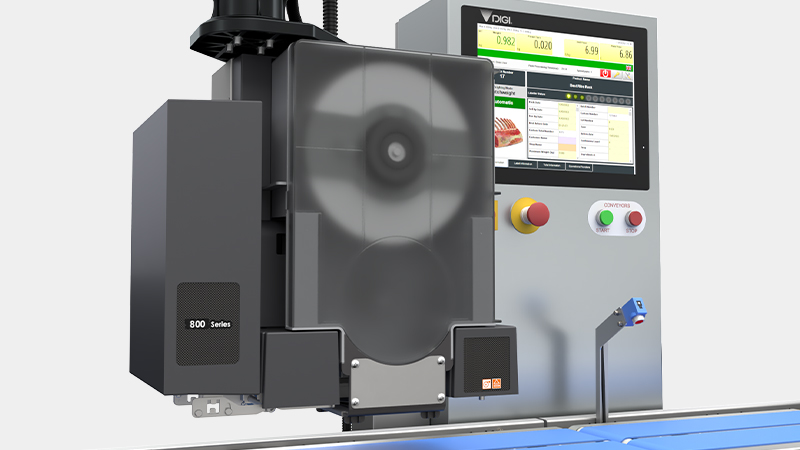

Casette Labeler

The LI-700 II can use the Cassette labeler as well as or instead of the Signature labeler. Please contact Sales for specifications.

Auto Labeler Height Adjustment (Signature)

The height of the Signature labeller can be automatically adjusted via the Product Look Up (PLU).

Options

Options	Pre-printed label applicator, Direct protocol Honeywell (PM43/45), Direct protocol Zebra (ZPL II), Windows printers, High level warning beacon, Rejector, Gravity infeed/outfeed rollers, Pack sensors, 2 or 3 conveyors (3 available on 475mm scale)
