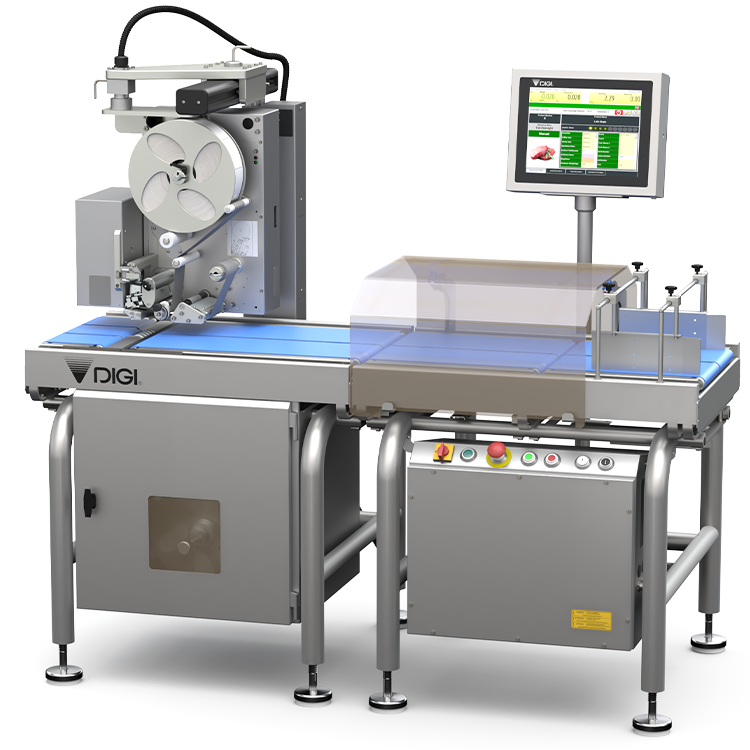

hi700w-2_WP02_01

Wide Scale Dynamic Weigh Price Labeler

HI-700W II

Industrie agroalimentaire

Présentation

The HI-700W II Weigh Price Labeler features a wider conveyor, designed for processing wider products at a speed of up to 120ppm.

Téléchargez la brochure ici

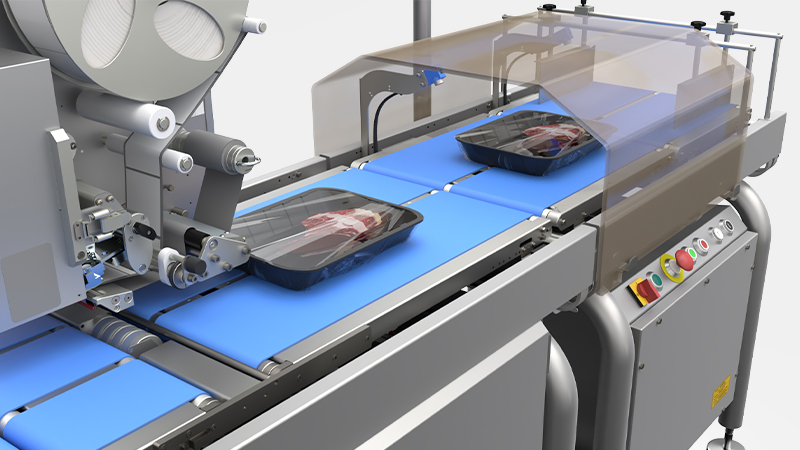

hi700w-2_WP04_01

Wide Conveyor

The extra wide conveyor allows the processing of packs up to 400mm wide at a speed of up to 120ppm.

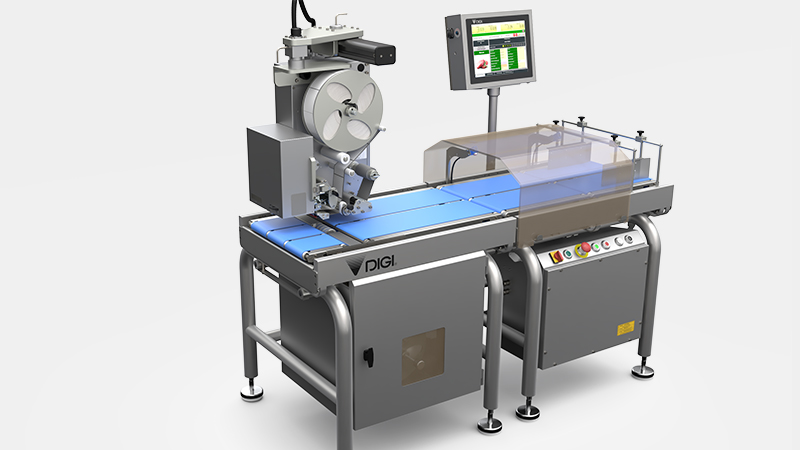

hi700w-2_WP04_02

Signature Labeler

The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

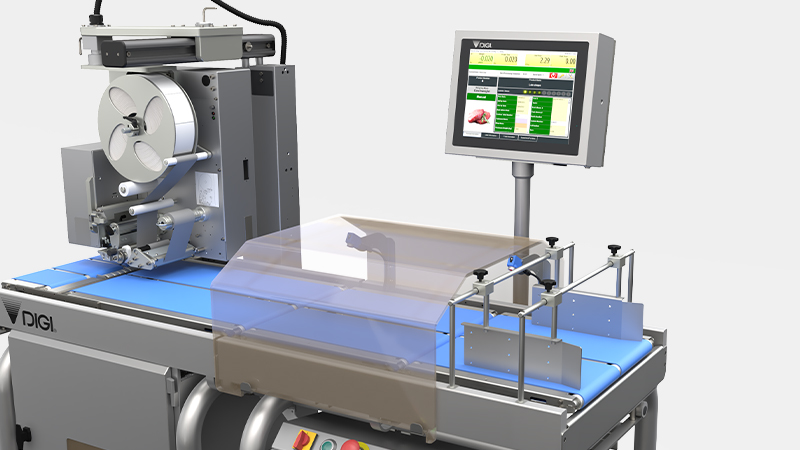

hi700w-2_WP04_03

WorldView Operating Software

The HI-700W ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.

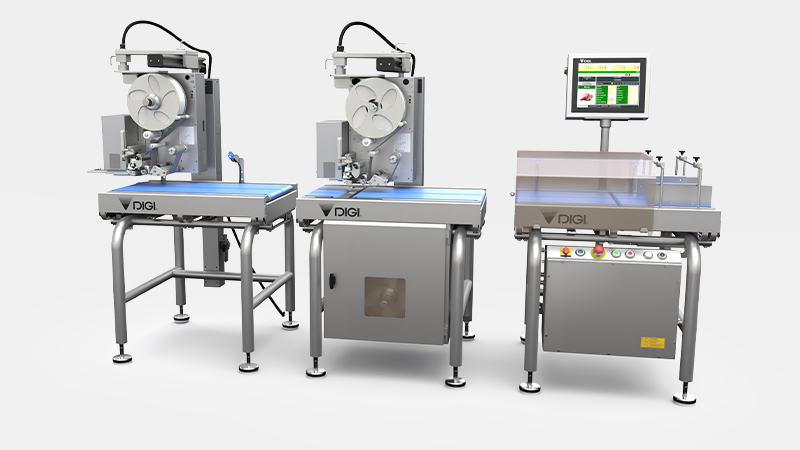

hi700w-2_WP04_04

Modular Design

The modular design allows for the addition of extra labeling stations. Add more top and bottom labelers as required, providing a flexible solution to meet your requirements.

Caractéristiques

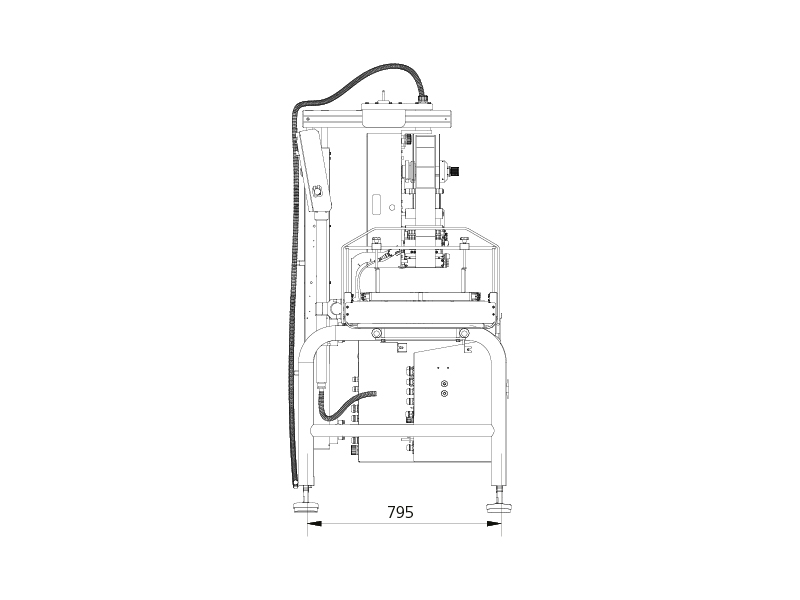

Dimensions

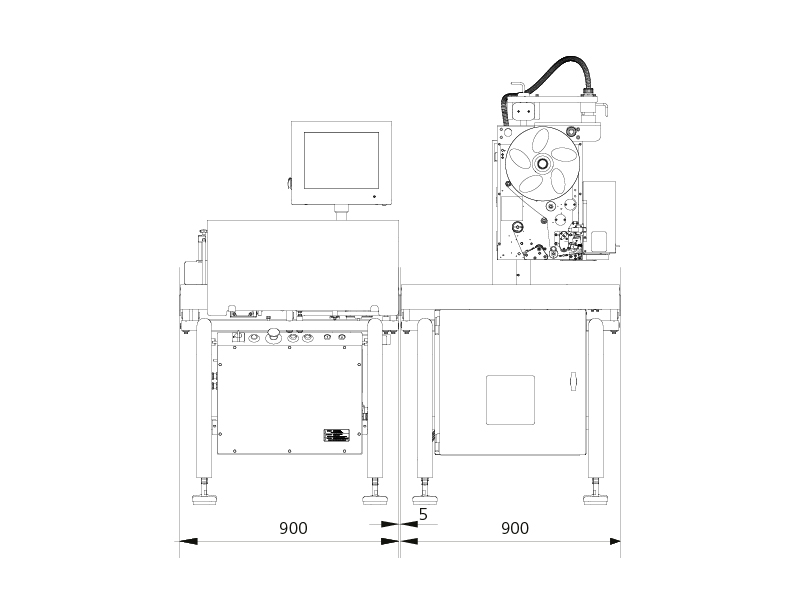

  • hi700w-2_WP05_01
  • hi700w-2_WP05_02

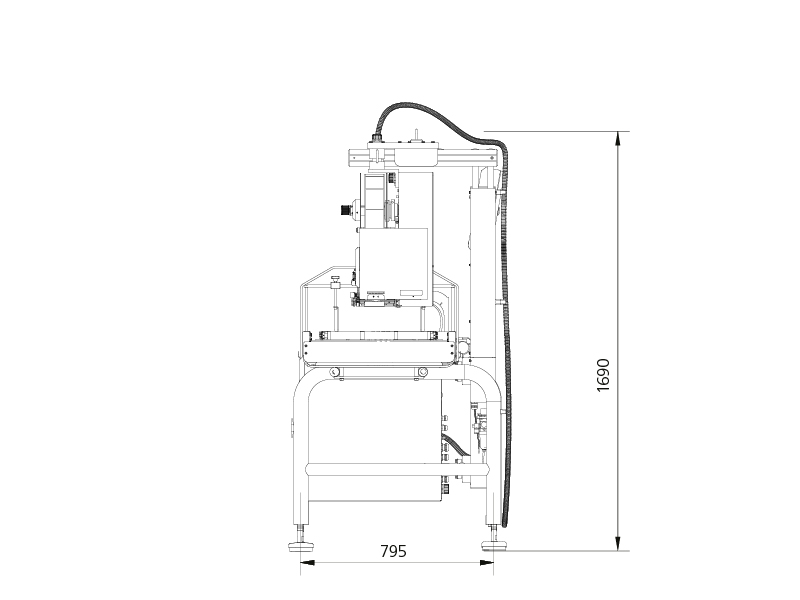

  • hi700w-2_WP05_03

Weighing


Capacity Max 6 kg (660mm scale)
Max 12kg
Single Interval e= 1g e= 2g
Pack Speed up to 120 packs per minute
Pack Size   L80-300mm x W40-400mm x H180mm L80-485mm x W40-400mm x H180mm


Throughput dependant on product weight and size.

Display


Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Catch Weight, Fixed Weight/Price, Average (Emark)
Labelers Multiple labelers/printers
Communication Ethernet, USB, RS232
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General


Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature 0 to +30°C


Standard Features

Scale Length 475mm or 660mm
Scale Cover 'lift-off' formed polycarbonate
Sensors Overhead retro reflective
Labelers Signature
Pack Guides S100 tall guides
Conveyors Split blue belts

Modèles

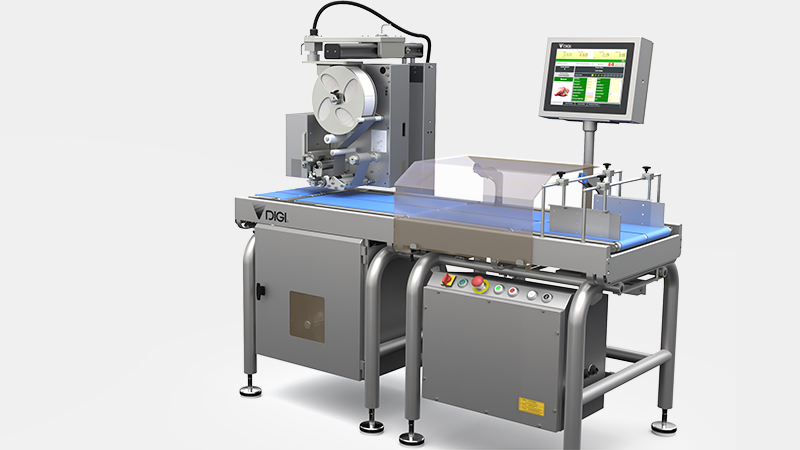

hi700w-2_WP07_01

Top and Bottom Labeling

Additional labelers can be integrated into the Weigh Price Labeler, giving extra flexibility to label both the top and under side of each pack simultaneously.

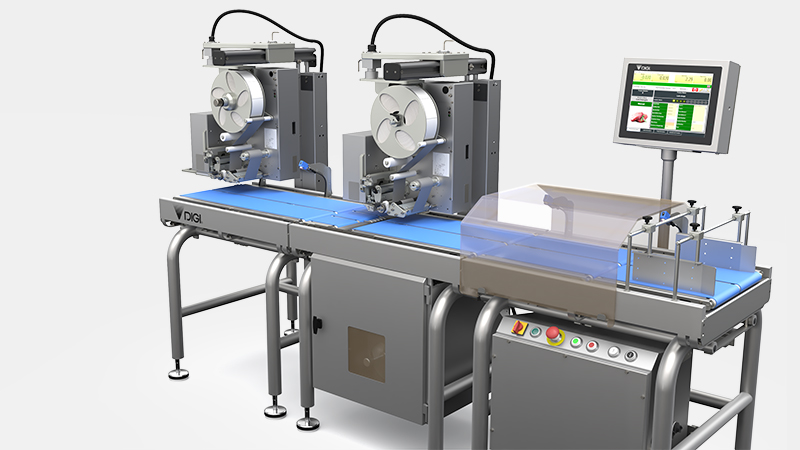

hi700w-2_WP07_02

Multi Labeler

Adding additional labelers will allow automatic switching of labelers when one has run out of labels, further limiting the amount of downtime.

Options

hi700w-2_WP09_01

Auto Labeler Height Adjustment

The height of the Signature labeler can be automatically adjusted via the Product Look Up (PLU).

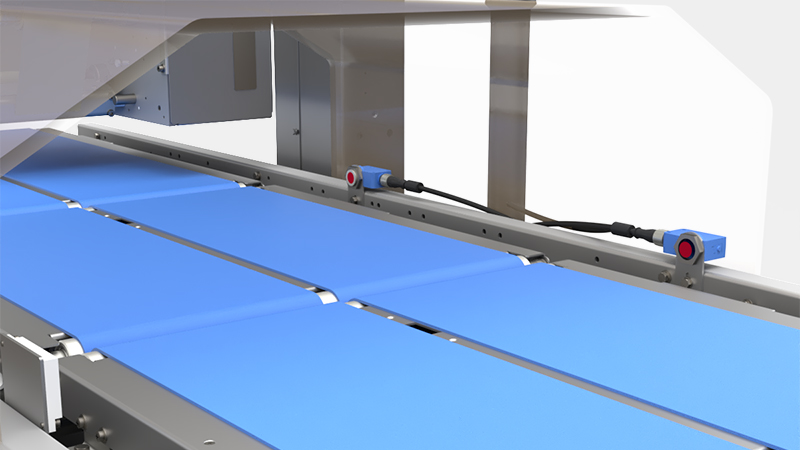

hi700w-2_WP09_02

Pack Sensors

Different pack sensors can be chosen, depending on the size and shape of your packs.

Options

Options Pre-printed label applicator, Direct protocol Honeywell (PM43/45), Direct protocol Zebra (ZPL II), Windows printers, High level warning beacon, Rejector, Gravity infeed/outfeed rollers, 3 conveyors available on 475mm scale
